AZVKEA S17 Cordless Vacuum Cleaner Battery Instruction Manual

Introduction

This manual provides essential instructions for the safe and efficient use, installation, and maintenance of your AZVKEA S17 Cordless Vacuum Cleaner Replacement Battery. Please read this manual thoroughly before using the product and retain it for future reference.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the battery and vacuum cleaner:

• Do not disassemble, open, or shred the battery pack.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a battery pack. Do not store battery packs indiscriminately in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
• Do not remove the battery pack from its original packaging until required for use.
• Do not subject battery packs to mechanical shock.
• In the event of a battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Do not use any charger other than that specifically provided for use with the equipment.
• Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.
• Keep battery packs out of the reach of children.
• Seek medical advice immediately if a battery pack has been swallowed.
• Always purchase the correct battery for the equipment.
• Keep battery packs clean and dry.
• Wipe the battery pack terminals with a clean dry cloth if they become dirty.
• Rechargeable battery packs must be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
• Do not leave a rechargeable battery on charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
• Rechargeable battery packs achieve their best performance when operated at normal room temperature (20°C ± 5°C).
• When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.

Setup

1. Unpacking

Carefully remove the AZVKEA S17 replacement battery from its packaging. Inspect the battery for any visible damage. If any damage is observed, do not proceed with installation and contact customer support.

2. Initial Charging

For optimal performance, it is recommended to fully charge the new battery before its first use. Connect the battery to the original S17 vacuum cleaner charger. Refer to your vacuum cleaner's manual for specific charging instructions.

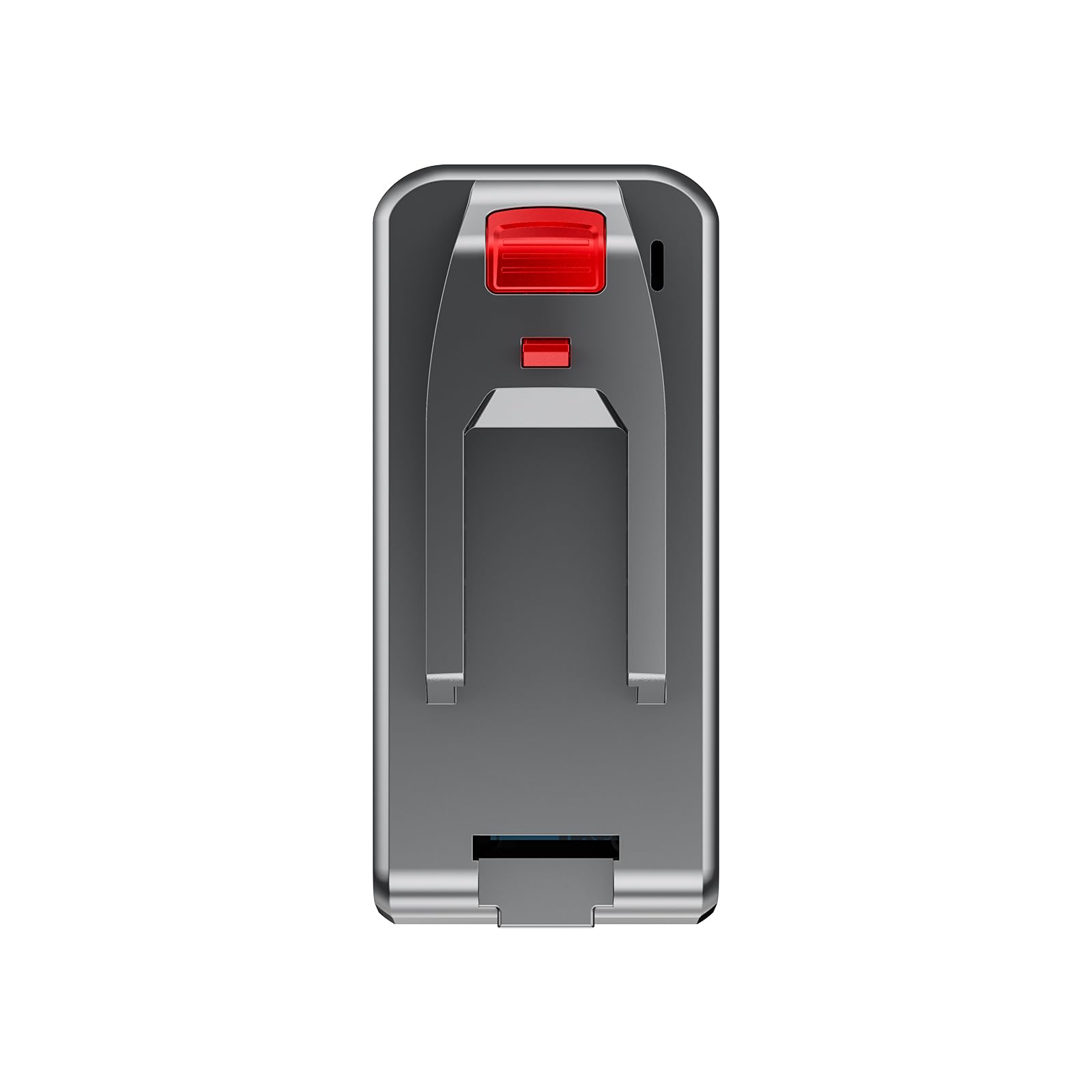

Image: The AZVKEA S17 Cordless Vacuum Cleaner Replacement Battery. This image shows the battery unit, which is designed to replace the original battery in the S17 cordless vacuum cleaner.

3. Battery Installation

Ensure the vacuum cleaner is turned off and unplugged from any power source before installing the battery.

1. Locate the battery compartment on your S17 cordless vacuum cleaner. This is typically on the main body of the vacuum.
2. If replacing an old battery, press the release button (if present) and slide out the old battery.
3. Align the new AZVKEA S17 battery with the battery slot, ensuring the connectors match.
4. Gently slide the battery into the compartment until it clicks securely into place. Do not force the battery.
5. Once installed, you can proceed to charge the battery or use the vacuum cleaner if the battery has sufficient charge.

Operation

Charging the Battery

To charge the AZVKEA S17 replacement battery, connect your S17 cordless vacuum cleaner to its original charging adapter. The charging indicator on your vacuum cleaner will typically illuminate or change color to show that charging is in progress. A full charge usually takes several hours. Refer to your vacuum cleaner's user manual for exact charging times and indicator meanings.

Battery Usage

Once fully charged, the battery provides power to your S17 cordless vacuum cleaner. The operating time will vary depending on the power mode selected (e.g., eco, standard, max) and the type of cleaning task. It is recommended to fully discharge the battery occasionally before recharging to maintain battery health, though modern lithium-ion batteries do not suffer from a "memory effect" as older battery types did.

Maintenance

Cleaning

Keep the battery and its terminals clean. Use a dry, soft cloth to wipe away any dust or debris. Do not use liquids or abrasive cleaners on the battery.

Storage

If the battery will not be used for an extended period, store it in a cool, dry place away from direct sunlight and extreme temperatures. It is advisable to store the battery with approximately 50% charge to prolong its lifespan. Recharge the battery every 3-6 months during storage to prevent deep discharge.

Battery Care Tips

• Avoid fully draining the battery frequently.
• Do not expose the battery to extreme heat or cold.
• Use only the original or a compatible charger designed for the S17 vacuum cleaner.
• If the battery shows signs of swelling, overheating, or damage, discontinue use immediately and dispose of it properly.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your original purchase or contact AZVKEA customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

For further assistance, please visit the official AZVKEA website or contact their support channels.
