Leakbee Y401 Natural Gas Detector Instruction Manual

1. Introduction

The Leakbee Y401 Natural Gas Detector is designed to provide continuous monitoring for various combustible gases, ensuring safety in your home or other environments. This device offers both visual and audible alarms to alert you to potential gas leaks, including methane, propane, LNG, LPG, coal gas, alcohol, and butane.

Figure 1: Front and side view of the Leakbee Y401 Natural Gas Detector.

2. Safety Information

• This device is intended for detecting combustible gases. It is not a substitute for proper ventilation and maintenance of gas appliances.
• Do not block the air vents on the detector.
• In case of an alarm, immediately ventilate the area, turn off gas appliances, and evacuate if necessary. Contact your gas provider or emergency services.
• Perform periodic tests as recommended to ensure proper functionality.
• Keep out of reach of children.

3. Product Features

• Easy Plug-in Installation: Simply plug into a standard 120V outlet.
• Wide Gas Detection: Detects LNG, LPG (propane), methane, natural gas, coal gas, alcohol, and butane.
• Premium Quality Material: Constructed from eco-friendly and V0 level fire-retardant ABS+PC material.
• Visual & Audible Alarm: Features a digital LED display for gas levels and an 85 decibel warning sound.
• 24/7 Monitoring: Provides continuous gas leak monitoring.
• Fast Response: Real-time detection with a response time of 0.5-2 seconds.

4. Package Contents

• 1 x Leakbee Y401 Natural Gas Detector
• 1 x User Manual

5. Setup and Installation

The Leakbee Y401 detector is designed for simple plug-and-play installation.

1. Choose an appropriate location: Refer to Section 7 for recommended placement based on gas type.
2. Plug in the device: Insert the detector into a standard 120V AC outlet.
3. Warm-up: Upon plugging in, the device will undergo a warm-up sequence for approximately 3 minutes. During this time, the LED indicators (Power, Fault, Alarm) may cycle, and the digital display may show a countdown or '8'.
4. Ready for Operation: Once the warm-up is complete, the green 'Power' LED will illuminate steadily, and the digital display will show '0', indicating normal operation and no detected gas.

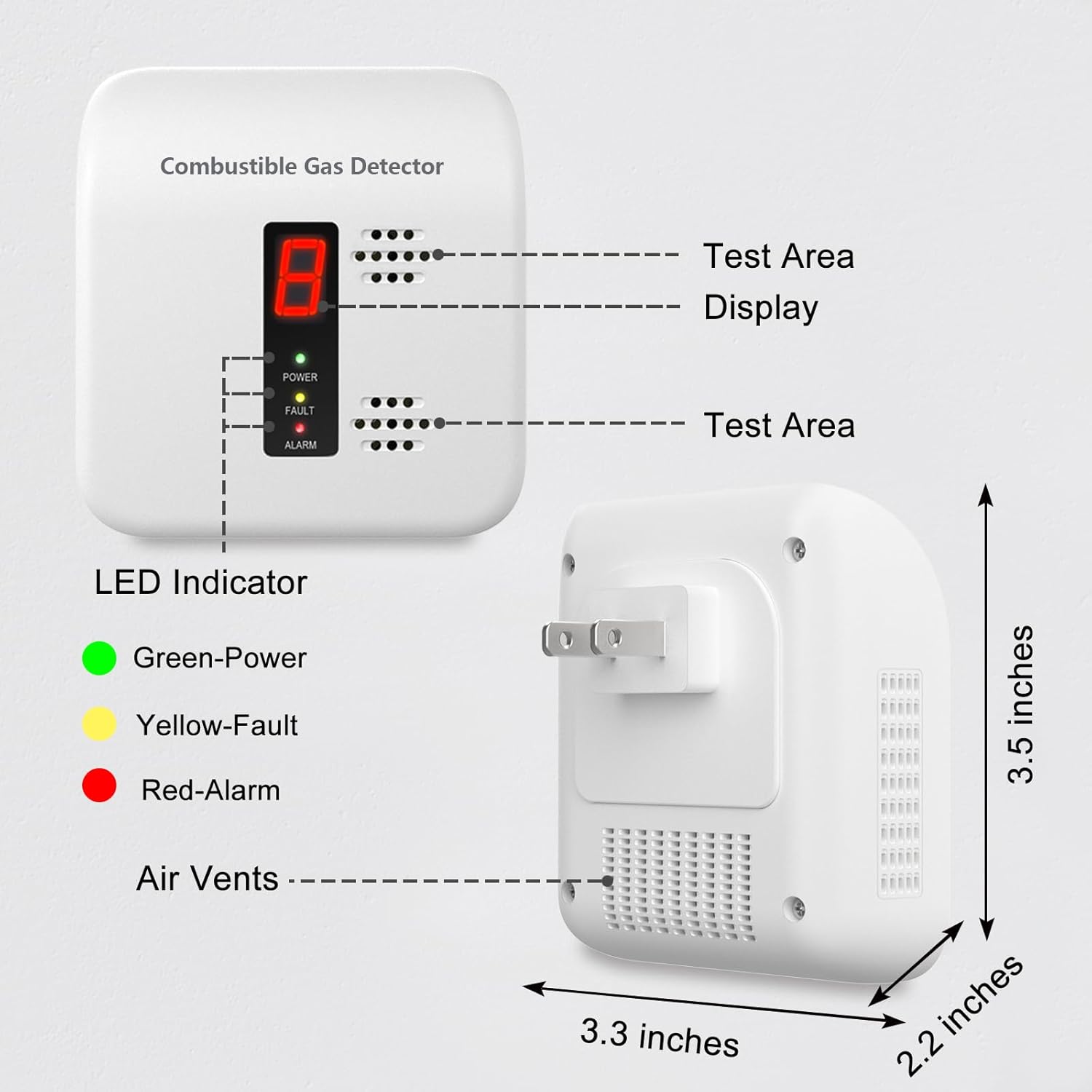

Figure 2: Labeled components of the Leakbee Y401 detector, including LED indicators, display, and air vents.

6. Operating Instructions

The Y401 detector provides clear visual and audible feedback:

• Digital LED Display: Shows the current concentration level of detected gas. '0' indicates no gas detected. Higher numbers indicate increasing gas concentration.
• Green LED (Power): Illuminates when the device is powered on and operating normally.
• Yellow LED (Fault): Illuminates if there is a malfunction with the device. Refer to troubleshooting.
• Red LED (Alarm): Flashes and an audible alarm sounds when a dangerous level of gas is detected.

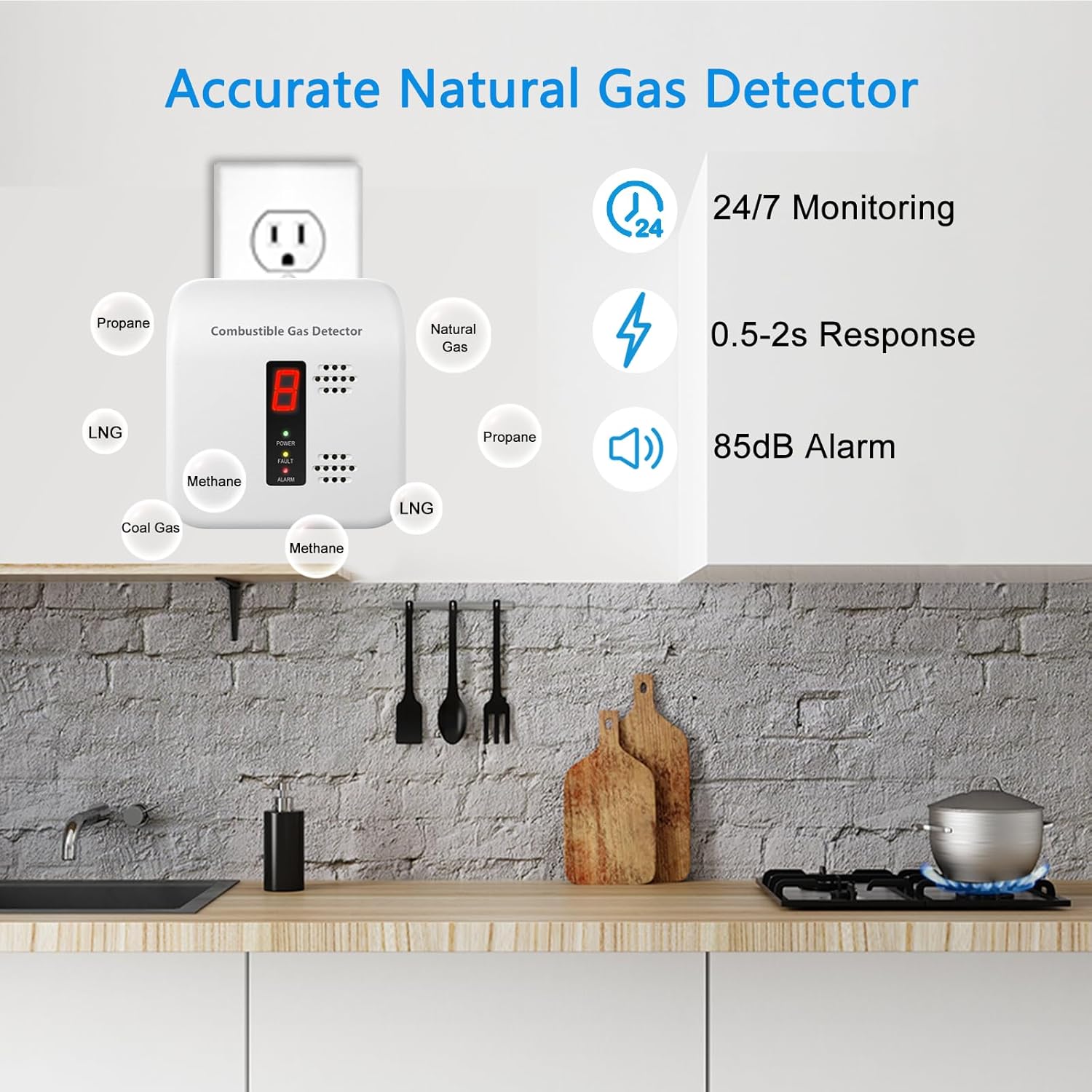

Figure 3: Overview of the Leakbee Y401's detection capabilities and alarm features.

7. Periodic Testing

Regular testing ensures your detector is functioning correctly. It is recommended to test the device at least once every 3-4 months.

1. Extinguish any open flames: Before releasing test gas, ensure all flames in the vicinity are extinguished to prevent combustion.
2. Use a gas lighter: Carefully release gas from a lighter (without igniting) near the detector's test area for 6-8 seconds.
3. Observe the alarm: The device should trigger an audible alarm and the red LED should flash, indicating successful detection.
4. Clear the area: Allow the area to ventilate and the alarm to reset.

Figure 4: Visual guide for performing a periodic test on the gas detector.

8. Recommended Installation Locations

Proper placement is crucial for effective gas detection. Consider the density of the gas you are monitoring:

• Natural Gas (Methane, Coal Gas): These gases are lighter than air and tend to rise. Install the detector at a mid to high level, typically 0.3m to 1m (12-39 inches) below the ceiling, and 1.5m to 4m (5-13 feet) horizontally from gas appliances.
• Propane/LPG (Liquefied Petroleum Gas): These gases are heavier than air and tend to sink. Install the detector at a mid to low level, typically 0.3m to 1m (12-39 inches) above the floor, and 1.5m to 4m (5-13 feet) horizontally from gas appliances.
• General Locations: Kitchens, utility rooms, basements, near gas stoves, furnaces, water heaters, and washing machines. Avoid placing near windows, doors, or ventilation fans where air currents might dilute gas concentrations.

Figure 5: Illustrative diagram for optimal placement of gas detectors relative to gas appliances and ceiling/floor.

9. Wide Applications

The Leakbee Y401 is suitable for various residential and commercial settings where combustible gases are present:

• Kitchens
• Campers and RVs
• Homes and Apartments
• Restaurants and Hotels
• Boiler Rooms

Figure 6: Examples of diverse environments where the Leakbee Y401 detector can be utilized.

10. Specifications

11. Troubleshooting

• Device not powering on:
  • Ensure the device is securely plugged into a functioning 120V outlet.
  • Check if the outlet has power by plugging in another device.
• Yellow 'Fault' LED is on:
  • This indicates an internal malfunction. Unplug the device, wait 30 seconds, and plug it back in. If the fault persists after the warm-up period, contact customer support.
• False alarms:
  • Ensure the detector is not placed near sources of strong fumes (e.g., cleaning products, paint, alcohol sprays) that could trigger a false alarm.
  • Verify proper ventilation in the area.
• Alarm sounds (Red LED flashing):
  • This indicates a gas leak. Immediately follow the safety procedures outlined in Section 2.

12. Maintenance

• Cleaning: Regularly wipe the detector with a soft, dry cloth to remove dust. Do not use cleaning agents or solvents.
• Ventilation: Ensure the air vents on the device remain clear and unobstructed.
• Do Not Paint: Do not paint the detector, as this can interfere with its sensor and functionality.

13. Warranty and Support

Leakbee provides a 24-Month after-sale service and lifetime technical support for the Y401 Natural Gas Detector. For any inquiries, technical assistance, or warranty claims, please refer to the contact information provided with your product packaging or visit the official Leakbee website.
