Feonase King Size Upholstered Storage Bed Frame User Manual

1. Introduction

Thank you for choosing the Feonase King Size Upholstered Storage Bed Frame. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Important Safety Information

WARNING:

• Do not exceed the maximum weight recommendation of 1000 pounds.
• Be cautious of sharp edges and heavy components during assembly.
• Always use the drawers with care to prevent tipping.
• Ensure all connections are securely tightened before use.
• Keep small parts and packaging materials away from children to prevent choking hazards.

2. Package Contents and Components

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact Feonase customer support.

Included Components:

• Upholstered Headboard with Charging Station
• Metal Frame Components
• Wood Slats
• 4 Storage Drawers with Wheels
• Assembly Hardware (screws, bolts, tools)
• Instruction Manual

Figure 2.1: Overview of bed frame components and key dimensions.

This image illustrates the main components of the Feonase King Size Upholstered Storage Bed Frame, including the headboard, metal frame, wooden slats, and storage drawers. Key dimensions such as length (84.99"), width (77"), and headboard height (45.99") are also indicated. The power cord for the charging station is shown, measuring 6.6 feet.

3. Setup and Assembly

Assembly of the Feonase bed frame is designed to be straightforward. It is recommended that two people assemble the bed frame to ensure ease and safety.

3.1 Preparation:

• Clear an open space for assembly.
• Unpack all components and lay them out on a soft, clean surface to prevent scratches.
• Identify all parts using the provided labels and the component list.
• Ensure all necessary tools (included) are at hand.

3.2 Assembly Steps:

1. Assemble the Headboard: Attach the side wings to the main headboard section. Ensure all bolts are tightened securely.
2. Construct the Bed Frame: Connect the side rails and footboard to the assembled headboard using the provided hardware.
3. Install Slats: Place the wooden slats across the bed frame. The one-click easy installation feature ensures quick setup. Ensure the EVA foam strip on the slats is facing up to effectively eliminate noise.
4. Insert Storage Drawers: Slide the four storage drawers into their designated compartments under the bed. Each drawer is equipped with heavy-duty wheels for smooth gliding and a small screw to lock it in place.
5. Connect Charging Station: Plug the power cord from the headboard's charging station into a wall outlet.

Figure 3.1: Detail of slat installation with one-click fastener and noise-reducing EVA foam strip.

This image highlights the quick setup fasteners for the wooden slats, designed for easy installation and a noiseless experience. The EVA foam strip on the slats helps to prevent squeaking and provides a stable foundation for your mattress.

Figure 3.2: View of the four under-bed storage drawers with wheels.

The bed frame includes four spacious drawers on wheels, providing ample storage for various items. The drawers are designed to slide smoothly and feature a locking mechanism to keep them securely in place.

4. Operating Instructions

4.1 Mattress Placement:

Place your King size mattress directly onto the wooden slats. A mattress height of 8-12 inches is recommended for optimal comfort and aesthetic.

Figure 4.1: Illustration of recommended mattress height (8"-12") for the Feonase bed frame.

This image demonstrates the ideal mattress height for the bed frame, ensuring proper fit and preventing mattress sliding. The sturdy frame provides a supportive foundation without the need for a box spring.

4.2 Using the Charging Station:

The integrated charging station in the headboard features 2 AC outlets, 1 Type-C port, and 1 USB port. These ports allow for convenient charging of electronic devices such as phones, tablets, and powering bedside lamps.

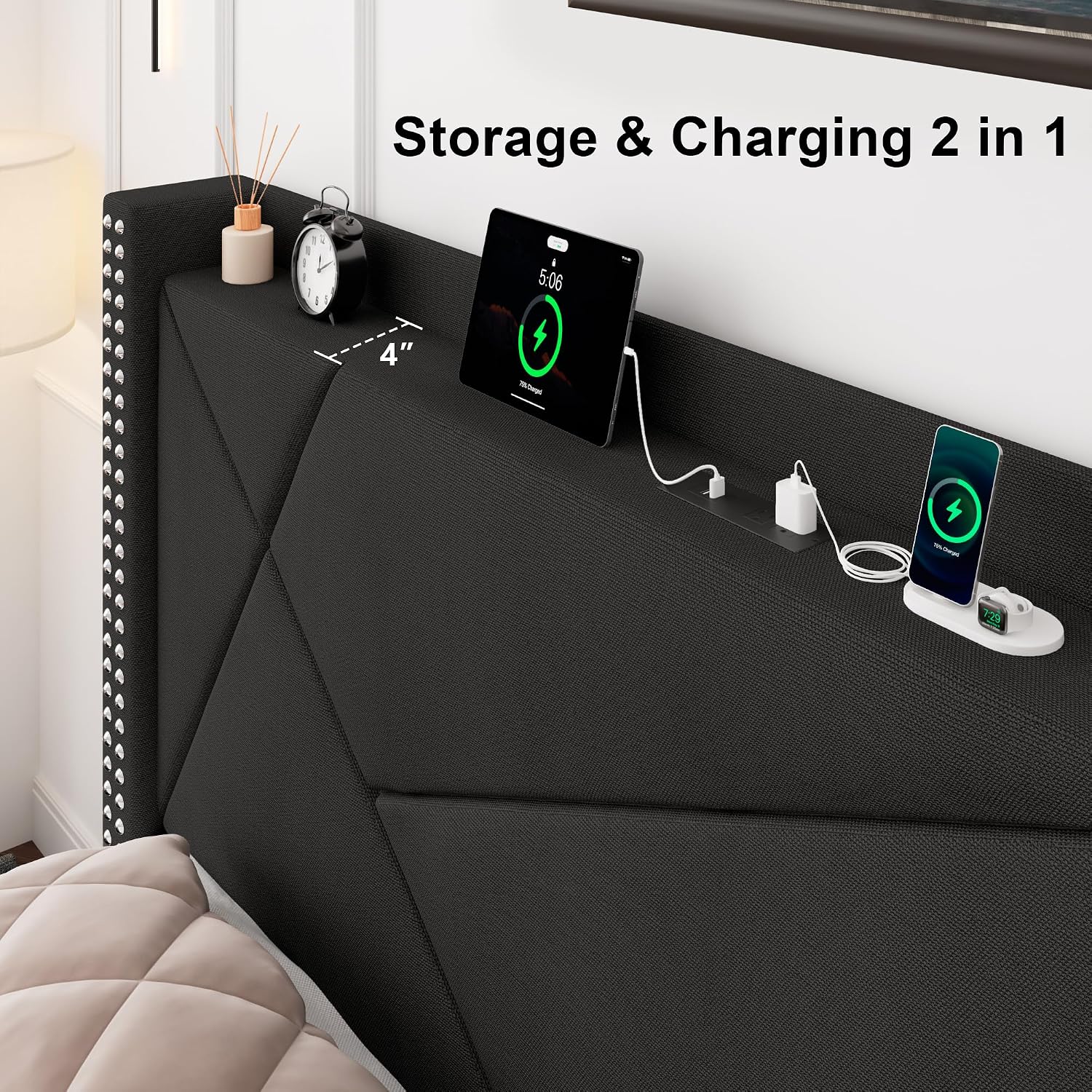

Figure 4.2: Detail of the headboard's integrated charging station with various ports.

This image shows the practical charging station built into the headboard, featuring two AC outlets, a Type-C port, and a USB port. This allows for easy access to power for electronic devices directly from your bed.

4.3 Utilizing Storage Drawers:

The four under-bed drawers provide ample storage. To access, gently pull the drawer outwards. To secure, push the drawer fully inwards until the locking mechanism engages. The fabric bottom of the drawers helps prevent small items from falling out.

Figure 4.3: The Feonase bed frame with all four storage drawers extended.

This image displays the bed frame with its four integrated storage drawers, highlighting their capacity and accessibility. These drawers are ideal for storing bedding, clothing, or other personal items, helping to keep your bedroom tidy.

5. Maintenance and Care

• Cleaning: For the upholstered parts, use a soft, damp cloth and mild soap. Avoid harsh chemicals. For metal parts, wipe with a dry cloth.
• Tightening: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability and prevent noise.
• Drawer Care: Keep the drawer wheels free of debris to ensure smooth operation.
• Charging Station: Ensure the charging station is unplugged from the wall before cleaning or if not in use for extended periods.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or customer support, please refer to the contact details provided at the point of purchase or visit the official Feonase website. Keep your purchase receipt as proof of purchase for any warranty claims.

Feonase Customer Support: Visit the Feonase Store on Amazon

9. Product Videos

No official product videos from the seller were available for embedding based on the provided data.
