Brennenstuhl Professional Coupling IP44 Instruction Manual

1. Introduction and Overview

This manual provides essential information for the safe and effective use of the Brennenstuhl Professional Coupling IP44. This robust earthing contact coupling is designed for demanding outdoor applications, offering reliable electrical connections with enhanced protection against environmental elements. Please read these instructions carefully before installation and operation.

2. Safety Information

WARNING: Electrical installations should only be performed by qualified personnel. Incorrect installation can lead to electric shock, fire, or serious injury.

• Always disconnect power before installing or servicing the coupling.
• Ensure the coupling is compatible with your cable type and electrical system.
• Do not use the coupling if it shows any signs of damage.
• The IP44 rating indicates protection against solid objects larger than 1mm and splashing water from any direction. It is not designed for submersion.
• Keep children away from electrical connections.

3. Product Features

The Brennenstuhl Professional Coupling IP44 is engineered for durability and safety in outdoor environments. Key features include:

• Robust Construction: Made from durable plastic, designed for professional use.
• Earthing Contact: Ensures a safe, grounded electrical connection.
• IP44 Protection: Provides protection against foreign bodies and splashing water, making it suitable for outdoor applications.
• Sealing Cap: An integrated sealing cap offers additional protection against dirt and moisture when the coupling is not in use.
• High Visibility: The striking red and black color scheme enhances visibility on job sites.
• Cable Compatibility: Designed for 3G1.5 - 3G2.5 cables.
• Made in Germany: Guarantees high-quality manufacturing standards.

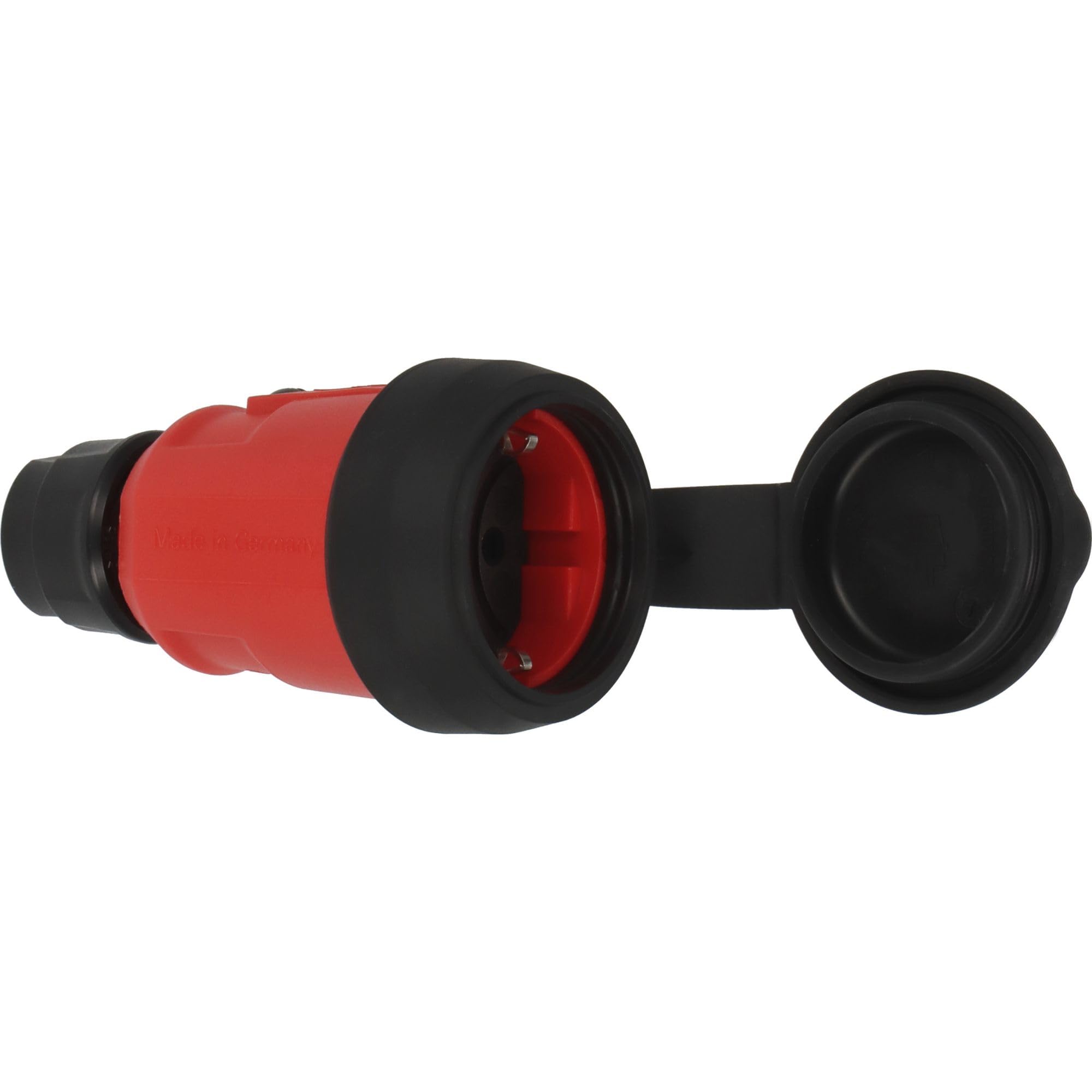

Figure 1: Brennenstuhl Professional Coupling IP44. This image illustrates the robust earthing contact socket with its IP44 sealing cap open, revealing the internal contacts. It also highlights compatibility with 3G1.5 - 3G2.5 cables and its "Made in Germany" origin.

4. Setup and Installation

To ensure a secure and safe connection, follow these steps for installing the Brennenstuhl Professional Coupling:

1. Prepare the Cable: Ensure the cable is suitable for the coupling (3G1.5 - 3G2.5). Strip the outer insulation and individual wire insulation to the appropriate lengths as per standard electrical practices.
2. Disassemble the Coupling: Carefully unscrew or unclip the coupling housing to access the internal terminals.
3. Connect Wires: Connect the live, neutral, and earth wires to their respective terminals within the coupling. Ensure all connections are tight and secure. The earthing contact is crucial for safety.
4. Secure the Cable: Use the integrated cable strain relief to secure the cable firmly, preventing accidental pulling or damage to the internal connections.
5. Reassemble the Coupling: Carefully close and secure the coupling housing, ensuring no wires are pinched and the sealing cap mechanism is functional.
6. Test Connection: Before full use, perform a continuity test to ensure proper wiring and grounding.

5. Operating Instructions

The Brennenstuhl Professional Coupling is designed for straightforward operation:

• Connecting: Align the male plug with the coupling and push firmly until it clicks into place.
• Disconnecting: Grasp the plug and coupling firmly, then pull them apart. Avoid pulling by the cable.
• Sealing Cap: When the coupling is not in use, ensure the integrated sealing cap is securely closed over the socket opening to protect against dirt and moisture.
• Outdoor Use: This coupling is rated IP44 for outdoor use. However, avoid prolonged exposure to heavy rain or standing water.

6. Maintenance

Regular maintenance helps ensure the longevity and safe operation of your coupling:

• Cleaning: Clean the exterior of the coupling with a damp cloth. Do not use abrasive cleaners or solvents. Ensure the coupling is dry before use.
• Inspect Sealing Cap: Periodically check the sealing cap for any signs of wear or damage. A damaged cap may compromise the IP44 protection.
• Inspect Connections: If the coupling is frequently disconnected and reconnected, periodically check the internal wire connections for tightness.
• Storage: Store the coupling in a clean, dry place when not in use, with the sealing cap closed.

7. Troubleshooting

If you encounter issues with your Brennenstuhl Professional Coupling, consider the following:

• No Power:
  • Check the power source.
  • Verify that the plug is fully inserted into the coupling.
  • Inspect the cable for damage.
  • Ensure internal wire connections are secure.
• Loose Connection:
  • Ensure the plug is fully engaged.
  • Check for debris in the coupling socket.
• Sealing Cap Not Closing:
  • Check for obstructions.
  • Inspect the hinge and latch for damage.

If problems persist, consult a qualified electrician. Do not attempt repairs if you are not qualified.

8. Specifications

9. Warranty and Support

For information regarding warranty terms and conditions, or for technical support, please refer to the official Brennenstuhl website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
