1. Introduction
This manual provides instructions for the proper installation, maintenance, and replacement of the Frizzlife ASR511 Replacement Filter Cartridge. This filter is designed as the 1st stage replacement for FRIZZLIFE MR600 Reverse Osmosis Water Filter Systems.
The ASR511 is an advanced 2-in-1 composite filter engineered to block fine debris and reduce particles such as sand, silt, rust, and other insoluble impurities from your water. It also conditions the water and helps extend the lifespan of the RO membrane in your system.
2. Safety Information
- Always turn off the water supply to your RO system before attempting any installation or replacement.
- Depressurize the system by opening the filtered water faucet before removing the old filter.
- Ensure hands are clean before handling new filter cartridges to prevent contamination.
- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
- Keep out of reach of children.
3. Product Overview
The Frizzlife ASR511 is a crucial component of your MR600 Reverse Osmosis system, serving as the first stage of filtration. It is designed to capture larger sediments and protect the subsequent RO membrane.

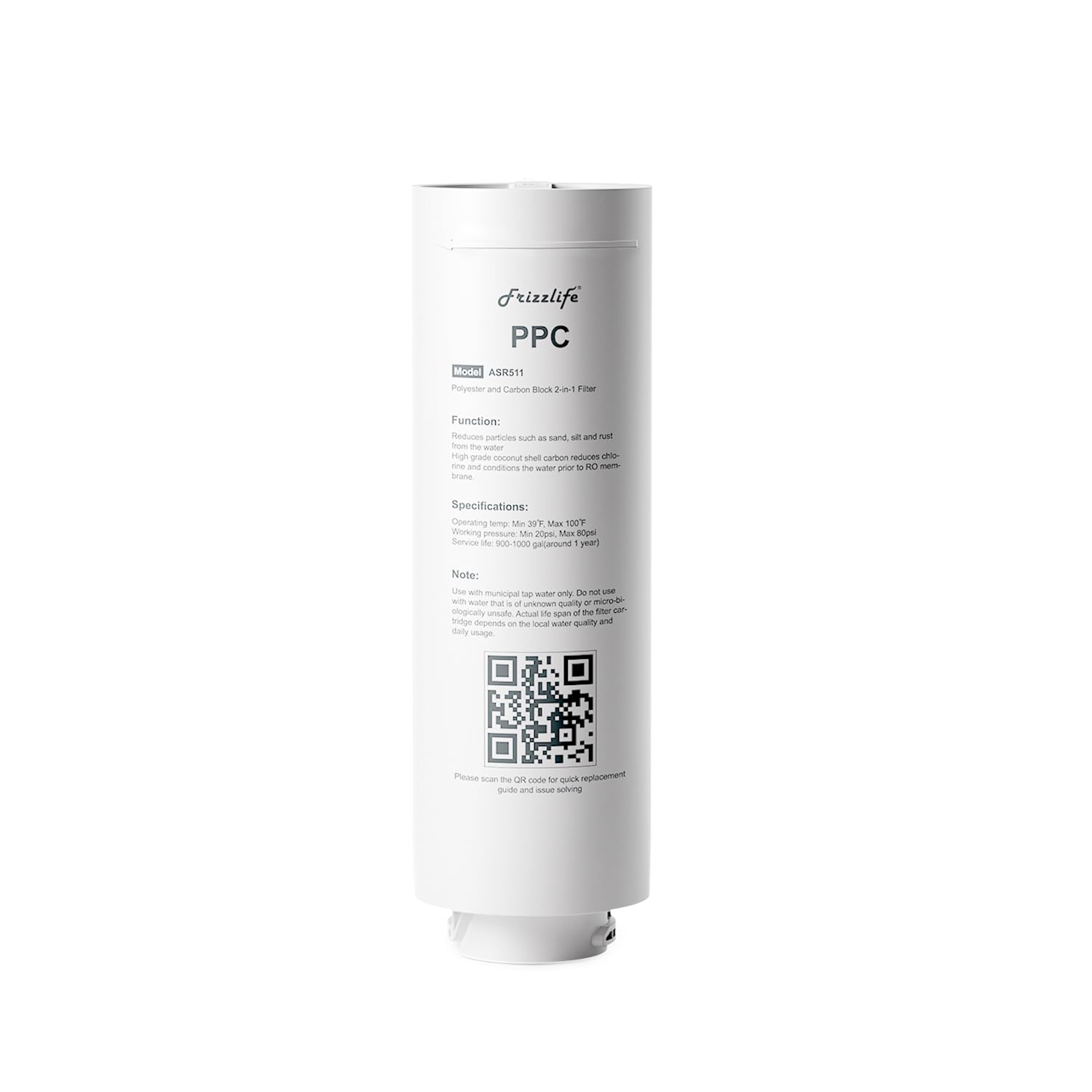

Image 1: Frizzlife ASR511 Replacement Filter Cartridge. This image shows the cylindrical filter cartridge, typically white or light gray, with the Frizzlife logo and model number printed on its side. It features a twist-and-lock mechanism at one end for easy installation.
Compatibility:
This ASR511 filter is specifically designed for use with the following Frizzlife Reverse Osmosis systems:
- FRIZZLIFE MR600 White (ASIN: B0DBHJ41ZH)
- FRIZZLIFE MR600 Black (ASIN: B0DBHG4FMB)
4. Installation Instructions
Follow these steps to replace your Frizzlife ASR511 filter cartridge. The process is designed for quick, tool-free replacement.
- Turn off Water Supply: Locate the cold water supply valve connected to your RO system and turn it off completely.
- Depressurize System: Open the filtered water faucet to release any remaining pressure in the system. Allow water to drain until it stops.
- Identify Filter: Locate the ASR511 filter cartridge within your MR600 system. It is typically the first stage filter.
- Remove Old Filter: Grip the old ASR511 filter cartridge and twist it counter-clockwise by a quarter turn (90 degrees). Pull the filter downwards to detach it from the manifold.
- Prepare New Filter: Remove the new ASR511 filter cartridge from its packaging. Ensure the O-rings are properly seated.
- Install New Filter: Align the new filter cartridge with the manifold. Push it upwards into the manifold and then twist it clockwise by a quarter turn (90 degrees) until it locks securely into place. You should feel a click or firm stop.
- Restore Water Supply: Slowly turn on the cold water supply valve. Check for any leaks around the newly installed filter.
- Flush System: Open the filtered water faucet and allow water to run for approximately 5-10 minutes to flush out any air and carbon fines from the new filter. The water may appear cloudy initially; this is normal.
- Check for Leaks: After flushing, close the faucet and carefully inspect the filter connections for any leaks.
5. Operation
Once installed, the Frizzlife ASR511 filter operates automatically as part of your MR600 Reverse Osmosis system. It continuously filters incoming water, removing sediments and protecting the RO membrane. No user intervention is required during normal operation.
6. Maintenance and Filter Replacement
Regular replacement of the ASR511 filter cartridge is essential to maintain optimal performance of your Frizzlife MR600 RO system and ensure the quality of your filtered water.
Replacement Schedule:
It is recommended to replace the Frizzlife ASR511 composite filter cartridge every 1 year.
Note: The actual replacement period can vary significantly based on your local feed water quality and your daily water consumption. In areas with high sediment or turbidity, more frequent replacement may be necessary.
Refer to the Installation Instructions section for detailed steps on how to replace the filter.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow water flow from faucet | Clogged ASR511 filter (due to heavy sediment) | Replace the ASR511 filter cartridge. |
| Water leaking from filter connection | Filter not properly seated or O-rings damaged | Ensure the filter is twisted fully clockwise until secure. Check O-rings for damage and re-install. If leaks persist, contact support. |
| Cloudy water after filter replacement | Air or carbon fines in the new filter | Flush the system by running water from the faucet for 5-10 minutes until clear. |
8. Specifications
- Model Number: ASR511
- Brand: FRIZZLIFE
- Compatibility: FRIZZLIFE MR600 Reverse Osmosis Systems
- Filter Type: 2-in-1 Composite Filter (1st Stage)
- Dimensions (L x W x H): 10.6 x 10.6 x 32.5 cm (4.17 x 4.17 x 12.8 inches)
- Item Weight: 907.18 grams (2 pounds)
- UPC: 850059617380
- ASIN: B0DBH9CQNK
- Manufacturer: FRIZZLIFE
- Recommended Replacement: Every 1 year (dependent on water quality and usage)
9. Support and Contact Information
For technical assistance, warranty inquiries, or to purchase additional replacement filters, please contact Frizzlife customer support.
- Manufacturer: FRIZZLIFE
- Spare Parts Availability (EU): 1 Year (This refers to the availability of spare parts, not a product warranty period.)
- Please visit the official Frizzlife website or contact your retailer for specific support channels.
