DGBAVARIA Gas Barbecue User Manual

1. Introduction

Thank you for purchasing the DGBAVARIA Gas Barbecue, Model G2083. This gas barbecue with 2 main burners and a side stove is designed for outdoor cooking, offering a convenient and efficient way to prepare meals for family and friends. Its robust construction ensures even and tasty cooking, while the side panels provide practical space for cooking accessories and ingredients. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new gas barbecue. Please read it thoroughly before use and retain it for future reference.

2. Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or burn hazard which could cause property damage, personal injury, or death.

• Outdoor Use Only: This barbecue is for outdoor use only. Do not operate indoors or in an enclosed area.
• Ventilation: Ensure adequate ventilation around the barbecue.
• Clearance: Maintain a minimum distance of 1 meter (3 feet) from combustible materials (e.g., wooden decks, fences, walls).
• Gas Leaks: Always check for gas leaks before each use. Use a soapy water solution; never use a flame.
• Children and Pets: Keep children and pets away from the barbecue at all times, especially during operation.
• Hot Surfaces: The barbecue surfaces will become very hot during use. Use heat-resistant gloves and avoid direct contact.
• Fuel Type: Use only the specified fuel type (Natural Gas as per specifications, or check product label for LPG compatibility).
• Gas Cylinder: If using an LPG cylinder, ensure it is placed on a stable, level surface and is not exposed to excessive heat.
• Assembly: Ensure all components are correctly assembled and tightened before connecting gas.
• Supervision: Never leave a lit barbecue unattended.
• Extinguishing Flames: Do not use water to extinguish grease fires. Turn off the gas supply and close the lid.

3. Package Contents

Before assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or operate the barbecue. Contact customer support immediately.

• Barbecue Lid and Body Assembly
• Main Burners (x2)
• Side Burner (x1)
• Cooking Grates (Chrome Grill)
• Removable Grill
• Side Shelves (x2)
• Control Panel with Knobs
• Legs and Frame Components
• Wheels (x2)
• Bottom Shelf/Storage Rack
• Hardware Pack (screws, nuts, washers)
• Instruction Manual

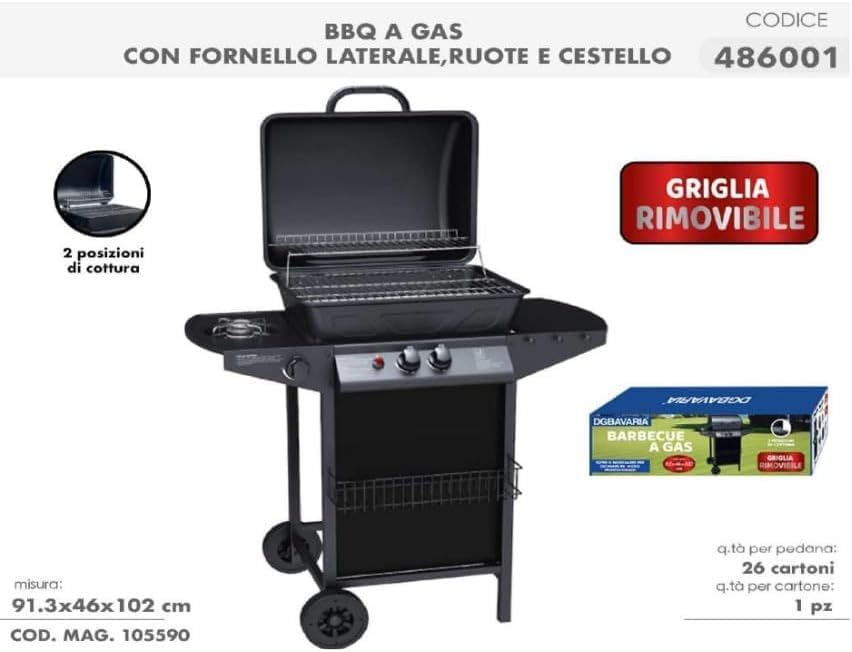

Figure 3.1: Overview of the DGBAVARIA Gas Barbecue G2083, showing its main components, dimensions (91.3x46x102 cm), and features like the removable grill and two cooking positions.

4. Assembly and Setup

Assembly is required for this barbecue. It is recommended to have two people for assembly. Follow the steps below carefully.

1. Unpack Components: Carefully remove all parts from the packaging. Keep all packaging materials until assembly is complete.
2. Assemble Frame: Attach the legs to the main body of the barbecue using the provided hardware. Ensure all connections are secure.
3. Attach Wheels: Secure the wheels to the designated leg assembly. The wheels allow for easy portability of the unit.
4. Install Bottom Shelf: Attach the storage shelf to the lower part of the frame.
5. Mount Side Shelves: Secure the left and right side shelves to the main barbecue body. The left shelf typically houses the side burner.
6. Insert Burners: Carefully place the main burners and the side burner into their respective positions.
7. Place Grates: Position the cooking grates and the removable grill inside the barbecue body.
8. Connect Gas Line: Connect the gas hose and regulator (not included, typically) to the barbecue's gas inlet and to your gas supply (LPG cylinder or natural gas line). Ensure all connections are tight.
9. Leak Test: Before first use, perform a leak test. Mix soapy water (50% soap, 50% water) and apply it to all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas supply immediately, tighten connections, and re-test. Do not use the barbecue if a leak persists.

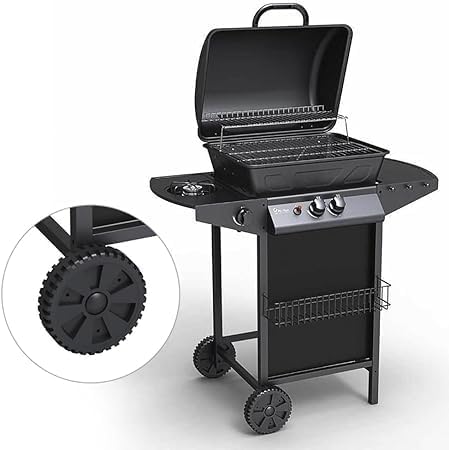

Figure 4.1: The DGBAVARIA Gas Barbecue fully assembled, highlighting the main cooking area, side burner, and the integrated wheels for portability.

5. Operating Instructions

5.1. Lighting the Main Burners

1. Ensure the barbecue lid is open.
2. Open the gas supply valve on your gas cylinder or natural gas line.
3. Push in and turn one of the main burner control knobs to the HIGH position.
4. Press the igniter button (if present) or use a long match/lighter to ignite the burner.
5. Once lit, release the control knob. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, and repeat the process.
6. Repeat for other main burners as needed.
7. Adjust heat by turning the control knobs between HIGH and LOW.

5.2. Lighting the Side Burner

1. Open the side burner lid.
2. Push in and turn the side burner control knob to the HIGH position.
3. Press the igniter button or use a long match/lighter to ignite the burner.
4. Once lit, release the control knob. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes, and repeat.
5. Adjust heat as required.

5.3. Shutting Down the Barbecue

1. Turn all burner control knobs to the OFF position.
2. Close the gas supply valve on your gas cylinder or natural gas line.
3. Allow the barbecue to cool completely before covering or moving.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your barbecue and ensure optimal performance. Always ensure the barbecue is cool and the gas supply is off before cleaning.

• Cooking Grates: After each use, once cooled, brush off food residue from the cooking grates. For stubborn residue, remove grates and wash with warm soapy water. The grill is removable for easier cleaning.
• Burners: Periodically check burner ports for blockages (e.g., from food debris or insects). Clean with a wire brush or a stiff wire.
• Grease Tray: Regularly empty and clean the grease tray located beneath the cooking area to prevent grease fires.
• Exterior Surfaces: Wipe down exterior surfaces with a damp cloth and mild detergent. For chrome finishes, use a non-abrasive cleaner to maintain shine.
• Storage: When not in use for extended periods, store the barbecue in a dry, sheltered area. Consider using a barbecue cover to protect it from the elements.

7. Troubleshooting

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.

8. Specifications

9. Warranty and Support

This DGBAVARIA Gas Barbecue is manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the manufacturer's official website.

If you encounter any issues or require assistance with your product, please contact the retailer or manufacturer's customer support. When contacting support, please have your model number (G2083) and purchase date available.

Manufacturer: DGBAVARIA
Brand: Generico
