Introduction
Thank you for choosing the Pure Garden Rolling Garden Seat. This manual provides essential information for the safe assembly, operation, and maintenance of your new gardening stool. Designed to enhance comfort and efficiency during gardening and other low-to-the-ground tasks, this rolling seat helps alleviate back and knee strain. Please read these instructions thoroughly before first use and retain them for future reference.
Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 200 lbs (90.7 kg). Exceeding this limit may cause damage to the stool and potential injury.
- Surface Use: This rolling garden seat is designed for use on most level terrains. Avoid using on steep slopes, uneven ground, or soft surfaces like deep sand or gravel, which can cause instability and tipping.
- Stability: Always ensure the stool is stable before sitting. Do not lean excessively to one side or attempt to stand on the stool.
- Children: Keep children away from the product during assembly. Adult supervision is required when children are near or using the product.
- Maintenance: Regularly inspect all components for wear, damage, or loose fasteners. Do not use the stool if any parts are damaged or missing.
- Storage: Store the stool in a dry, protected area when not in use to prolong its lifespan.
Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- 1x Seat (Red)
- 1x Tool Tray (Black)
- 2x Axles
- 4x Wheels
- 4x Support Legs (Stainless Steel)
- Hardware (nuts, bolts, washers, end caps)
Setup and Assembly
Assembly is required. Please follow these steps carefully. A Phillips head screwdriver and a wrench (not included) may be needed.
- Attach Support Legs to Seat: Secure the four stainless steel support legs to the underside of the red seat using the provided bolts and nuts. Ensure they are firmly tightened.
- Attach Tool Tray: Position the black tool tray underneath the seat, aligning the holes with the bottom ends of the support legs. Secure the tool tray to the support legs using the remaining bolts and nuts.
- Install Axles: Insert the two axles through the designated openings on the sides of the tool tray.
- Attach Wheels: Slide one wheel onto each end of the axles. Secure each wheel with a washer and an end cap or nut, ensuring they are tight enough to prevent wobble but allow free rotation.
- Final Check: Once assembled, gently test the stability of the stool and ensure all connections are secure before use.

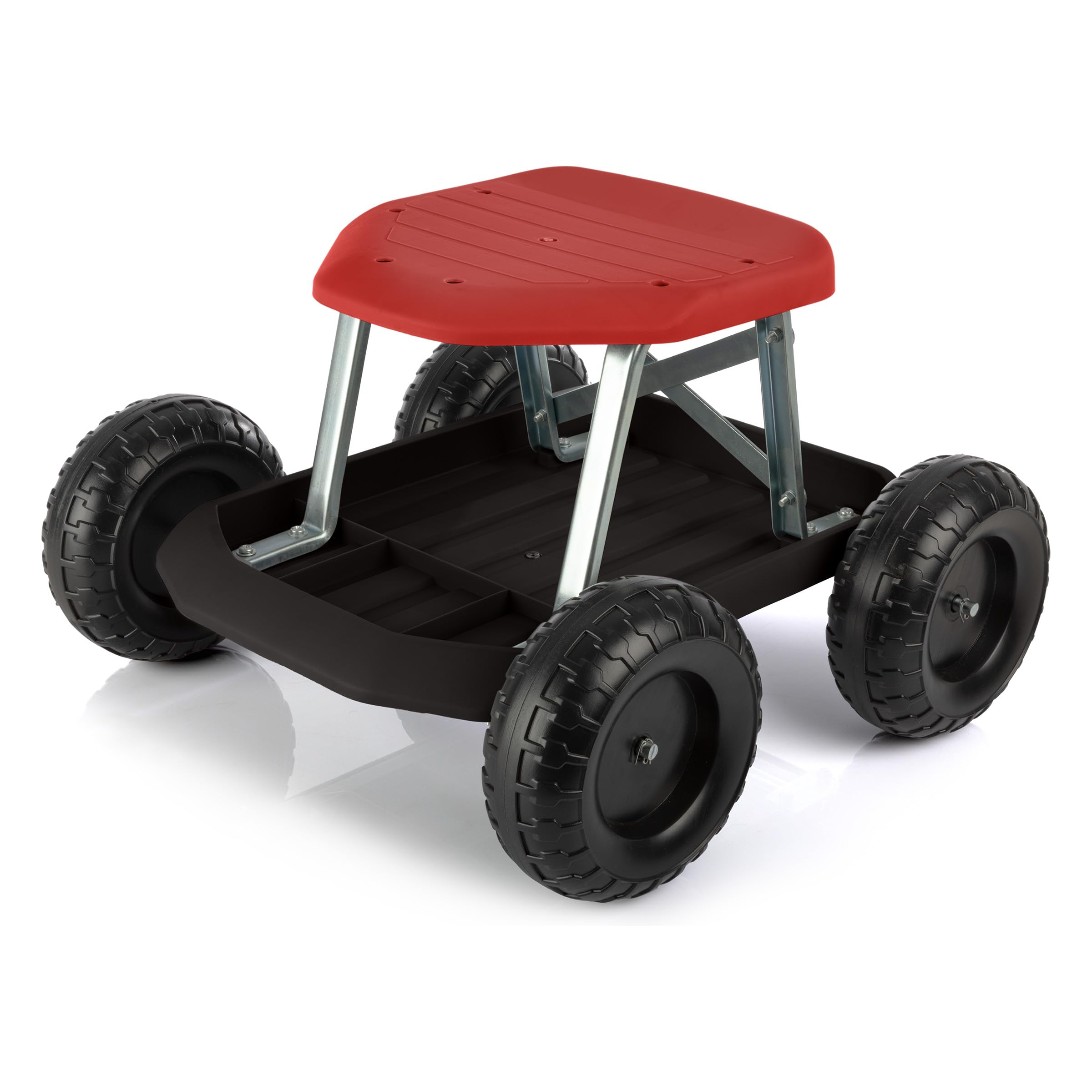

Figure 1: Fully assembled Pure Garden Rolling Garden Seat, showcasing its red seat, black tool tray, and four wheels.
Figure 2: Diagram illustrating the dimensions of the garden seat: 18.5 inches (Width) x 17.5 inches (Depth) x 13 inches (Height), with a 200-pound weight capacity.
Operating Instructions
The Pure Garden Rolling Garden Seat is designed for ease of use in various low-level tasks.
- Sitting: Carefully sit on the red seat, ensuring your weight is centered.
- Rolling: To move, gently push with your feet. The wheels allow for smooth movement forwards and backwards on level surfaces.
- Tool Storage: Utilize the integrated tool tray beneath the seat to keep your gardening tools, cleaning supplies, or other small items conveniently within reach.
- Versatile Use: This stool is suitable for gardening, weeding, planting, painting, cleaning, car detailing, and other activities requiring a low seating position.
Figure 3: The garden seat with various gardening tools stored in its convenient under-seat tray.
Figure 4: A person using the rolling garden seat while washing a car, demonstrating its versatility for various low-level tasks.
Maintenance
- Cleaning: Wipe down the seat, tray, and frame with a damp cloth and mild soap as needed. Rinse thoroughly and dry to prevent water spots or residue buildup.
- Inspection: Periodically check all bolts, nuts, and connections to ensure they remain tight. Re-tighten if necessary.
- Wheel Care: Keep the wheels free of debris, such as mud or tangled plant material, to ensure smooth rolling.
- Storage: For optimal longevity, store the garden seat indoors or in a covered area when not in use, especially during harsh weather conditions.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stool feels wobbly or unstable. | Loose assembly bolts or uneven surface. | Check and tighten all assembly bolts. Ensure the stool is used on a firm, level surface. |
| Wheels do not roll smoothly. | Debris caught in wheels or axles, or loose wheel attachment. | Clear any debris from wheels and axles. Check that wheels are securely attached but can rotate freely. |
| Seat appears cracked or damaged. | Exceeded weight capacity or impact damage. | Ensure user weight does not exceed 200 lbs. If damaged, discontinue use and contact customer support for replacement parts. |
| Difficulty moving on certain terrains. | Product is designed for level, firm surfaces. | This stool performs best on level ground. Avoid soft soil, deep gravel, or very uneven terrain. |
Specifications
- Model Number: 50-LG1508
- Brand: Pure Garden
- Product Dimensions (Width x Depth x Height): 18.5 inches x 17.5 inches x 13 inches
- Seat Dimensions (Length x Width): 11.5 inches x 11 inches
- Tool Tray Dimensions (Length x Width): 16 inches x 12 inches
- Materials: PVC Plastic, Stainless Steel
- Weight Capacity: 200 lbs (90.7 kg)
- Item Weight: 6.9 lbs (3.1 kg)
- Number of Wheels: 4
- Color: Red and Black
Warranty and Support
Specific warranty details for the Pure Garden Rolling Garden Seat are not provided in this manual. For warranty information, replacement parts, or customer support, please contact the manufacturer, Pure Garden, directly or refer to the retailer's return policy where the product was purchased.
You may visit the Pure Garden Store on Amazon for more information.
