Hasuit LB-02
Hasuit Twin Size Loft Bed with Desk U-Shaped Instruction Manual
Model: LB-02 | Brand: Hasuit
1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Hasuit Twin Size Loft Bed with Desk U-Shaped. Please read thoroughly before beginning assembly or use to ensure safe and proper functionality.
2. Safety Information
WARNING: Be cautious when using the double ladder. Do not exceed the maximum weight capacity of 400 pounds. Ensure all connections are securely fastened before use. This product is designed for use with a twin-sized mattress.
To prevent tipping, the anti-tipping device must be properly installed and secured to a wall stud. Regularly check all bolts and connections to ensure they remain tight. Do not allow children to play unsupervised on or around the bed. Always use the provided ladders for access to the top bunk.
Figure 2.1: Anti-Tipping Device Installation. This device is crucial for preventing the loft bed from tipping over, ensuring user safety.
3. Components List
Before assembly, verify that all parts listed below are present and undamaged. Refer to the included installation manual for a detailed diagram of each component.
- Loft Bed Frame (Metal components)
- U-shaped Desk Surface
- Open Storage Shelves (Triangular)
- RGB LED Lights (with APP/Remote control)
- Built-in Charging Station (2 AC outlets, 2 USB ports)
- Double Ladders
- Safety Guardrails
- Anti-tipping Kit
- Installation Tools and Parts (screws, wrench, etc.)
- Installation Manual
4. Setup and Assembly
Assembly of the Hasuit Loft Bed is designed to be DIY-friendly with number-coded parts. Please follow the step-by-step instructions provided in the separate Installation Manual included with your product. Ensure you have adequate space and a second person to assist with assembly for safety and ease.
Key Assembly Features:
- Buckle Design: Simplifies the connection of bed frame components.
- Square Frame Structure: Contributes to the overall stability of the bed.
- Non-slip Pads: Located at the base of the legs to prevent sliding and protect flooring.

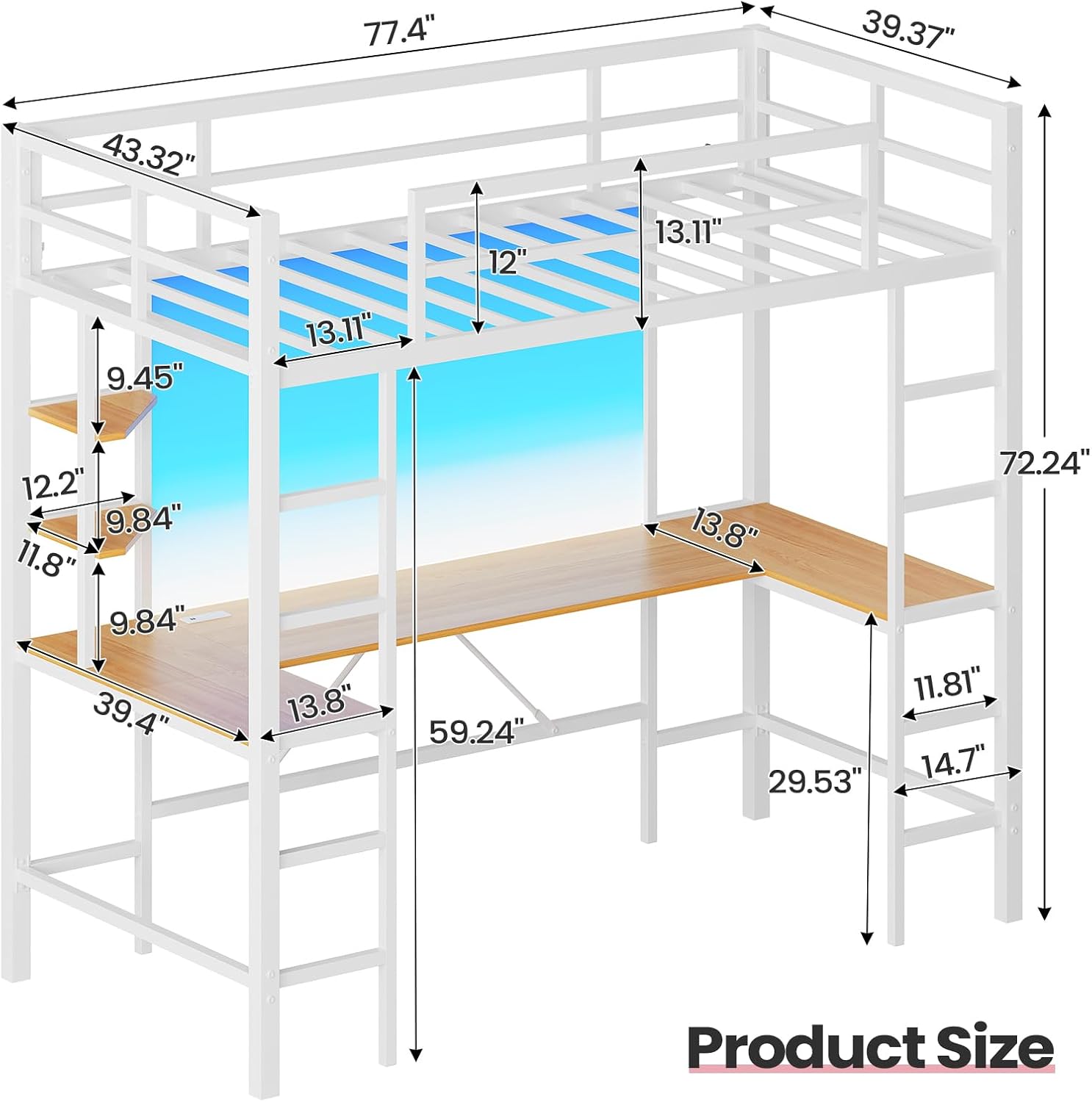

Figure 4.1: Product Dimensions and Structure. This diagram illustrates the overall size and key structural elements of the loft bed.
Figure 4.2: Assembled Loft Bed with Desk and LED Lights. This image provides a visual reference of the fully assembled product in a typical use scenario.
5. Operating Instructions
5.1. RGB APP-Controlled LED Lights
The integrated RGB LED lights can be controlled via a dedicated mobile application or the included remote control. Refer to the LED light instruction sheet for specific pairing and operation details. Features include:
- Over 60,000 color options
- Music Mode (lights sync with audio)
- Mic Mode (lights react to sound)
- Timing Function (schedule on/off times)
- Brightness Adjustment
- Custom Style Presets
Figure 5.1: RGB LED Light Features. This image highlights the various control options and effects available for the integrated LED lighting system.
5.2. Built-in Charging Station
The U-shaped desk features a built-in charging station for convenient power access. It includes:
- 2 x 125V/12A AC Outlets
- 2 x 5V/2.1A USB Ports
- 5.2-Foot Power Cord
Simply plug the power cord into a standard wall outlet. Use the outlets and USB ports to charge your electronic devices such as laptops, phones, and tablets.
Figure 5.2: Built-in Charging Station. This image shows the integrated power outlets and USB ports for convenient device charging.
6. Maintenance
To maintain the longevity and appearance of your Hasuit Loft Bed, follow these guidelines:
- Cleaning: For the metal frame and desk surfaces, wipe with a damp cloth and mild detergent. Dry thoroughly.
- Fabric Care: Any fabric components (e.g., mattress cover, bedding) should be dry cleaned only, as per the product specifications.
- Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary to maintain structural integrity.
- LED Lights: Avoid direct contact with water. If lights malfunction, refer to the LED light instruction sheet or contact customer support.
7. Troubleshooting
If you encounter any issues with your Hasuit Loft Bed, please refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose bolts or improper assembly. Anti-tipping device not secured. | Ensure all bolts are tightened according to the assembly manual. Verify the anti-tipping device is securely anchored to a wall stud. Re-check all connections. |
| LED lights are not working. | Power connection issue, remote battery dead, or app not paired. | Check if the LED strip is properly plugged into the power source. Replace remote batteries. Re-pair the app with the LED lights as per the separate instruction sheet. |
| Charging station not providing power. | Charging station not plugged into wall outlet, or device cable issue. | Ensure the charging station's power cord is fully plugged into a functional wall outlet. Test with a different device or charging cable. |
If the problem persists after attempting these solutions, please contact Hasuit customer support for further assistance.
8. Specifications
- Size: Twin
- Product Dimensions: 77.4"L x 43.32"W x 72.24"H
- Color: White
- Finish Type: Painted
- Item Weight: 94.7 pounds
- Material: Industrial-grade steel frame, wood desk surface
- Weight Capacity: 400 lbs (tested)
- Special Features: Built-in Charging Station, RGB APP-Controlled LED Lights, U-shaped Desk, Open Storage Shelves, Safety Guardrails, Double Ladder
- Assembly Required: Yes
- Compatible Mattress Size: Twin
- Model Number: LB-02
9. Warranty and Support
Hasuit is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or assistance with your product, please do not hesitate to contact our customer support team. We are dedicated to serving you wholeheartedly.
Please refer to your purchase documentation or the Hasuit official website for specific warranty details and contact information.
Contact Information:
- Brand Store: Hasuit Store on Amazon
- Seller: Hasuit Direct
10. Product Videos
Watch the official product video for a visual guide to the Hasuit Twin Size Loft Bed with Desk U-Shaped:
Video 10.1: Hasuit Twin Metal Loft Bed with U-shaped Desk. This video provides an overview of the loft bed's features and design.
