Introduction
Thank you for choosing the TRIUMPHKEY Gaming Chair Model 0482. This ergonomic gaming chair is designed to provide comfort and support during long gaming sessions or work hours. It features a reclining backrest, a retractable footrest, and a built-in lumbar massage function. This manual provides detailed instructions for assembly, operation, and maintenance to ensure you get the most out of your new chair.

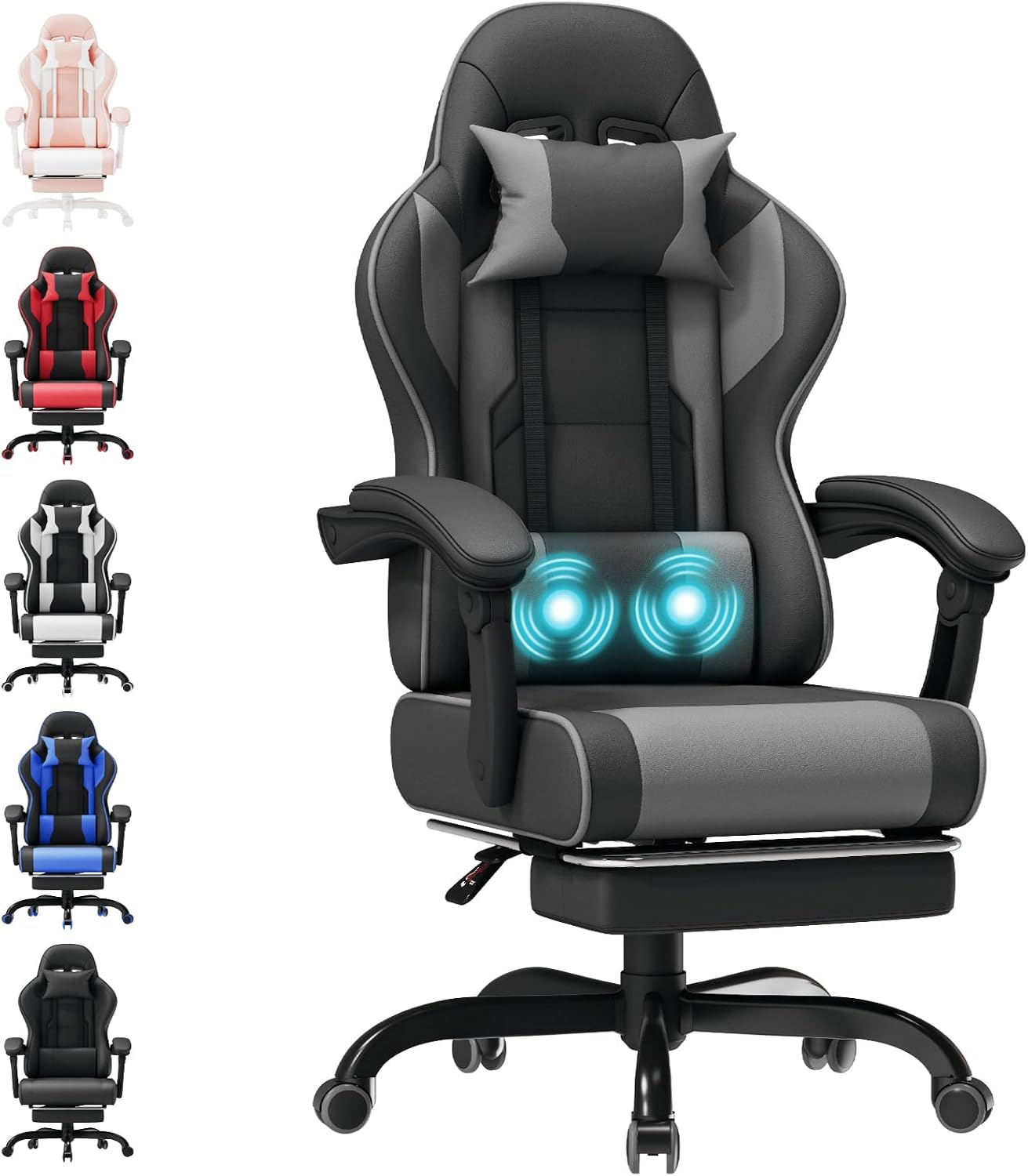

Image: The TRIUMPHKEY Gaming Chair Model 0482 in grey, showcasing its ergonomic design and lumbar massage feature.
Safety Guidelines
Please read and understand all safety information before assembling and using the chair. Failure to follow these instructions may result in injury or damage to the product.
- Weight Capacity: The chair is designed for a maximum load of 150 kg. Do not exceed this weight limit.
- Surface Use: Use the chair only on flat, indoor surfaces such as hardwood floors or carpets to ensure stability.
- Children and Pets: Keep children and pets away from the assembly area. Small parts can be a choking hazard.
- Proper Assembly: Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Avoid Standing: Do not stand on the chair.
- Moving the Chair: When moving the chair, lift it rather than dragging it to prevent damage to the base or floor.
- Electrical Components: For the massage function, ensure the USB cable is connected properly and avoid exposing it to water or excessive force.
Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Backrest
- Seat Cushion
- Armrests (2)
- Star Base
- Casters (5)
- Gas Lift Cylinder
- Gas Lift Cover
- Mechanism Plate
- Lumbar Support Pillow with Massage Function
- Headrest Pillow
- Retractable Footrest
- Hardware Kit (screws, washers, Allen wrench)
Assembly Guide
Assembly typically takes about 20 minutes. Follow these steps carefully. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.
- Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the star base. Push firmly until they click into place.
- Install Gas Lift: Place the gas lift cylinder into the center hole of the star base. Cover it with the gas lift cover.
- Attach Mechanism Plate to Seat: Align the mechanism plate with the screw holes on the underside of the seat cushion. Ensure the front of the mechanism faces the front of the seat. Secure with screws provided in the hardware kit.
- Attach Armrests to Seat: Secure the armrests to the sides of the seat cushion using the provided screws. Do not overtighten initially.
- Connect Backrest to Seat: Attach the backrest to the seat cushion by aligning the metal brackets on the backrest with the corresponding holes on the seat mechanism/armrests. Secure with screws. Once all screws are in place, tighten all armrest and backrest screws firmly.
- Mount Seat Assembly onto Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder. Press down firmly to secure.
- Attach Footrest: Slide the retractable footrest into its designated slots under the seat.
- Attach Pillows: Place the headrest pillow on top of the backrest and the lumbar support pillow in the lower back area. The lumbar pillow has a USB cable for the massage function.
Image: An overview of the chair's components and features, useful for visual reference during assembly.
Operating Your Chair
Adjusting Chair Height
To adjust the chair's height, locate the lever on the right side, beneath the seat.
- To raise: Lift the lever while taking your weight off the seat. The chair will rise automatically.
- To lower: Lift the lever while seated. The chair will lower under your weight.
Reclining the Backrest
The backrest can be reclined between 90° and 150°.
- To recline: Pull the recline lever located on the right side of the seat, then lean back to your desired angle. Release the lever to lock the backrest in position.
- To return upright: Pull the recline lever and lean forward.
Image: Illustration showing the adjustable recline angles of the chair, from 90 degrees (upright) to 145 degrees (reclined).
Using the Retractable Footrest
The footrest provides additional comfort when reclining.
- To extend: Pull the footrest out from under the seat.
- To retract: Push the footrest back under the seat until it is fully stored.
Activating the Lumbar Massage Function
The lumbar pillow features a 2-point massage function.
- To activate: Connect the USB cable from the lumbar pillow to a compatible USB power source (e.g., computer, power bank, USB wall adapter).
- To deactivate: Disconnect the USB cable.
Image: Close-up of the lumbar support pillow, illustrating the two-point massage function with glowing blue circles.
Care and Maintenance
Regular care will extend the life and appearance of your TRIUMPHKEY Gaming Chair.
- Cleaning: Wipe the chair's surface with a soft, damp cloth. For stubborn stains, use a mild soap solution and then wipe with a clean, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Spills: Blot spills immediately with a clean, dry cloth.
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading and material degradation.
- Moving Parts: Periodically check all screws and bolts and re-tighten them if necessary to ensure stability and safety.
- Casters: Keep casters clean from hair and debris to ensure smooth movement.
Troubleshooting
If you encounter any issues with your chair, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair wobbles or is unstable. | Loose screws or uneven floor. | Ensure all assembly screws are tightened. Move the chair to a flat surface. |
| Gas lift does not adjust height. | Gas lift is faulty or lever is not engaged. | Check if the lever is fully engaged. If the issue persists, the gas lift may need replacement. Contact customer support. |
| Backrest does not recline or lock. | Recline mechanism is jammed or faulty. | Ensure no obstructions are preventing movement. Check the recline lever for proper function. |
| Lumbar massage not working. | USB power issue or cable disconnected. | Ensure the USB cable is securely connected to a working power source. Try a different USB port or power bank. |
| Casters do not roll smoothly. | Debris caught in casters. | Remove any hair or debris from the caster wheels. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | TRIUMPHKEY |
| Model | 0482 |
| Color | Grey (as per current product variant) |
| Product Dimensions | 66 x 66 x 130 cm (L x W x H) |
| Seat Dimensions | Approx. 50 cm (width) |
| Adjustable Height | Yes |
| Recline Angle | 90° to 150° |
| Weight Capacity | 150 kg |
| Special Features | Adjustable Height, Wheels, Ergonomic Design, Lumbar Massage, Retractable Footrest |
| Item Weight | 20.5 Kilograms |
Image: Detailed diagram illustrating the dimensions of the TRIUMPHKEY Gaming Chair.
Warranty and Customer Support
TRIUMPHKEY is committed to providing high-quality products and excellent customer service. For warranty information, technical support, or to report missing/damaged parts, please contact your retailer or visit the official TRIUMPHKEY website. Please have your model number (0482) and purchase date ready when contacting support.
For further assistance, you may visit the TRIUMPHKEY Store on Amazon.
