LITFAD Floating TV Stand Instruction Manual

1. Introduction

Thank you for choosing the LITFAD Floating TV Stand. This modern wall-mounted entertainment center is designed to provide a stylish and space-saving solution for your living room, bedroom, or hotel. Crafted from manufactured wood, it features a sleek design with ample storage. This manual provides essential information for safe assembly, installation, operation, and maintenance of your new TV stand.

Please read these instructions carefully before beginning assembly and retain this manual for future reference.

2. Safety Information

• Wall Mounting: This TV stand is designed for wall mounting. Ensure the wall is suitable for supporting the weight of the stand and its contents. Suitable wall types include dry walls, wooden walls, plastered walls, and solid walls. Consult a professional if you are unsure about your wall's capacity.
• Weight Capacity: Do not overload the TV stand. Exceeding the recommended weight capacity can lead to instability and potential damage or injury.
• Assembly: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all fasteners are securely tightened before use.
• Children and Pets: Keep small parts and packaging materials away from children and pets during assembly.
• Material Safety: This product is made from environmentally-friendly wood, free from formaldehyde and strong odors.

3. Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 x Floating TV Console Unit
• Assembly Hardware (screws, wall anchors, etc.)
• Assembly Tool (e.g., Allen wrench)
• Instruction Manual (this document)

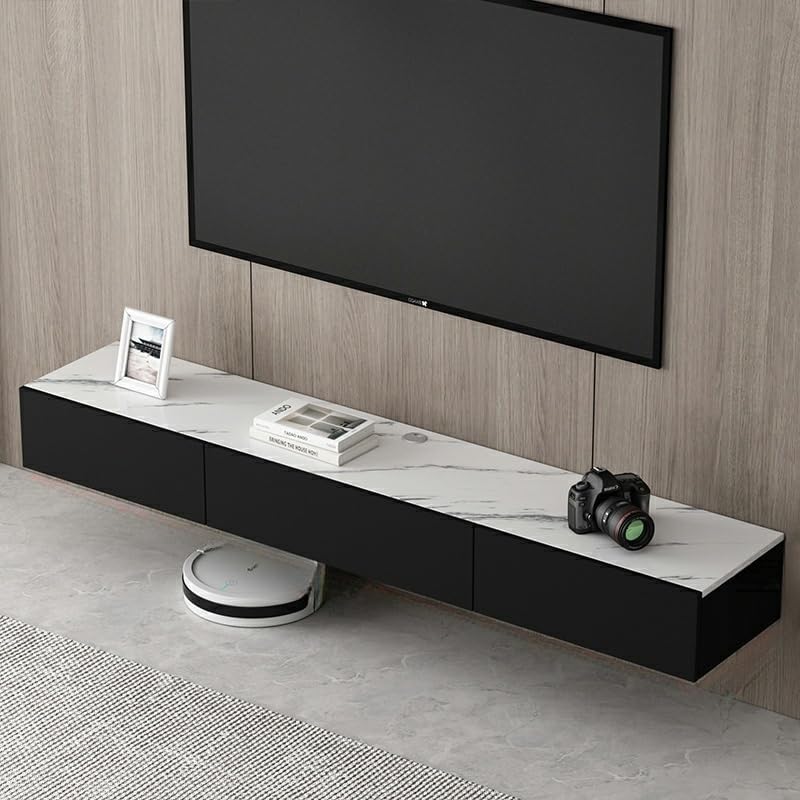

Image 1: LITFAD Floating TV Stand (overall view). This image shows the complete floating TV stand in a black and white finish, mounted on a wall.

4. Setup and Assembly

Follow these steps carefully for proper assembly and wall mounting.

4.1. Prepare for Assembly

1. Unpack all components and lay them out on a soft, clean surface to prevent scratches.
2. Identify all parts and hardware using the provided parts list (if included separately).
3. Gather necessary tools (e.g., drill, level, measuring tape, pencil, screwdriver).

4.2. Assemble the TV Stand Components

Assemble the main body of the TV stand, including attaching any internal shelves or door hinges. The stand features 3 flip-down doors for storage.

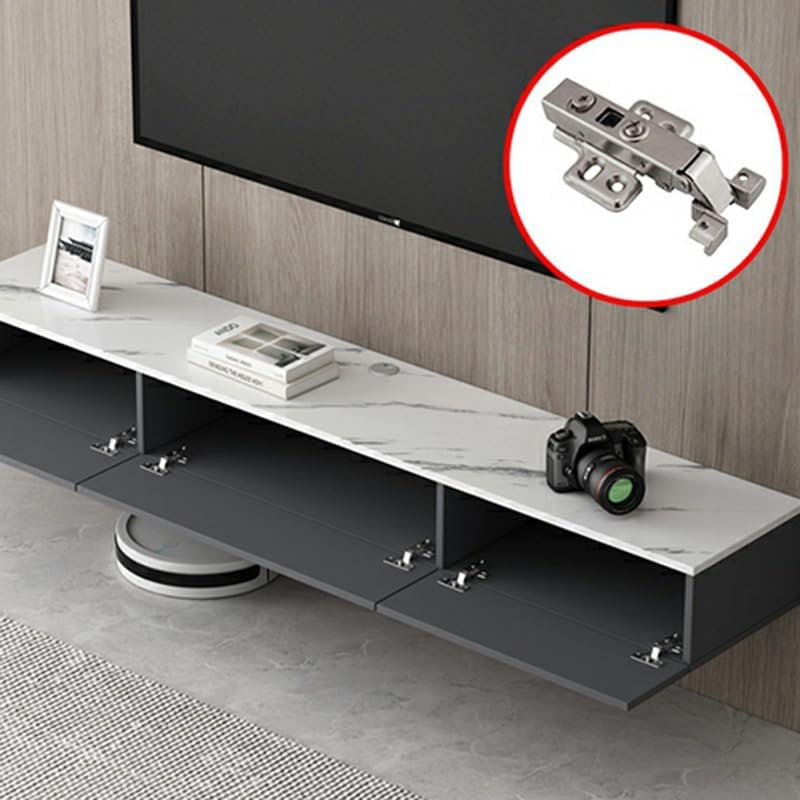

Image 2: Interior view of the TV stand with doors open. This image highlights the internal compartments and the hinge mechanism for the flip-down doors.

4.3. Wall Mounting

This floating shelf is suitable for dry walls, wooden walls, plastered walls, and solid walls. Ensure you use appropriate wall anchors for your specific wall type.

1. Determine Mounting Location: Choose a suitable location on your wall. Consider the height for comfortable viewing and access to power outlets.
2. Mark Drilling Points: Hold the TV stand against the wall at the desired height and use a level to ensure it is straight. Mark the drilling points for the mounting brackets/hardware with a pencil.
3. Drill Holes: Drill pilot holes at the marked points. The size of the drill bit will depend on the type of wall anchors provided or chosen for your wall type.
4. Install Wall Anchors: Insert the appropriate wall anchors into the drilled holes.
5. Attach Mounting Brackets: Secure the mounting brackets to the wall using the provided screws, ensuring they are firmly attached.
6. Mount the TV Stand: Carefully lift the assembled TV stand and align it with the wall mounting brackets. Secure the TV stand to the brackets according to the specific design of the mounting hardware.
7. Verify Stability: Gently test the stability of the mounted TV stand to ensure it is securely fastened to the wall.

Image 3: Floating TV Stand installed. This image shows the TV stand mounted on a wall beneath a television, demonstrating its intended use.

Image 4: Dimensions of the TV stand. This image provides a visual representation of the stand's length (55 inches), width (9 inches), and height (7.5 inches).

5. Operating Instructions

The LITFAD Floating TV Stand is designed for straightforward use.

• Storage Access: The stand features three flip-down doors. Gently pull the top edge of each door to open and push to close.
• Cable Management: While not explicitly stated, consider routing cables for your media devices neatly behind or through the stand to maintain a clean appearance.
• Device Placement: The top surface can accommodate various media devices, decorative items, or a soundbar. Ensure devices are placed stably and do not exceed the stand's surface area.

6. Maintenance

Proper care will help maintain the appearance and longevity of your TV stand.

• Cleaning: Wipe the surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Spills: Immediately wipe up any spills with a dry cloth to prevent moisture damage.
• Inspection: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.

7. Troubleshooting

If you encounter any issues with your LITFAD Floating TV Stand, refer to the following common solutions:

• Stand feels unstable after mounting: Ensure all wall anchors are correctly installed and all mounting screws are fully tightened. Verify that the wall material is appropriate for the chosen anchors.
• Doors do not close properly: Check the hinge alignment. Adjust hinges if necessary to ensure smooth operation and proper closure. Ensure no items inside the cabinet are obstructing the door.
• Scratches or minor damage: For minor scratches, touch-up pens or furniture repair kits matching the finish may be used.

If problems persist, please contact customer support for further assistance.

8. Specifications

9. Warranty and Support

For any questions regarding your LITFAD Floating TV Stand, including assembly, missing parts, or operational concerns, please contact the seller or manufacturer directly. While specific warranty details are not provided in this manual, most products come with a limited warranty against manufacturing defects. Please refer to your purchase documentation for warranty terms and conditions.

We are committed to assisting you with any inquiries about our products and service.
