Introduction
The Caydo Electric Yarn Winder is designed to efficiently transform loose yarn into compact, organized yarn cakes. This automatic winder features stepless speed control and a strong tension system to ensure smooth operation and neatly wound yarn. It is suitable for various yarn types and can handle up to 10 ounces of yarn, significantly reducing manual effort and improving storage efficiency for knitting and crocheting enthusiasts.
Safety Information
- Always place the yarn winder on a stable, flat surface to prevent movement during operation.
- Ensure the table clamp is securely tightened before use.
- Keep fingers and loose clothing away from moving parts during operation.
- Do not attempt to wind excessively bulky or extremely thin yarns, as this may cause the machine to jam or operate inefficiently.
- If the yarn snags or the machine stops, turn off the power immediately before clearing any obstructions.
- Use only a 5V-2A USB adapter (not included) for power.
- This device is not recommended for use with a yarn swift.
Package Contents
- Electric Yarn Winder Unit
- Yarn Guide Arm with Tension Springs
- Table Clamp
- USB Power Cable
- Small Screwdriver
- Screws for Assembly
Setup Instructions
- Fix the Yarn Guide: Attach the yarn guide arm to the main winder unit using the provided screws and screwdriver. Ensure the metal arm is inserted fully until the screw holes align, and secure it firmly.
- Install Winder Spindle: Insert the winder spindle into its designated slot on the main unit. It should snap into place with minimal effort.
- Clamp to Table & Plug in Power: Securely attach the winder to a stable table using the table clamp. Tighten the wing nut until the unit is firm. Connect the USB power cable to the winder and plug it into a 5V-2A USB adapter (not included).
- Thread Yarn to Winder Body: Guide the yarn through the tension guide rail bracket on the arm. Ensure it passes through all necessary guides for optimal tension.
- Prepare for Winding: Secure the end of the yarn to the spindle of the winder.
Image: A person's hands securing the yarn guide arm to the winder base with a screwdriver.
Image: A person's hands installing the blue winder spindle onto the main unit.
Image: The winder clamped to a wooden table, with a hand plugging in the USB power cable.
Image: A hand threading yarn through the tension guides on the blue arm.
Setup Video Guide
Video: Official Caydo guide demonstrating the assembly and initial setup of the electric yarn winder.
Operating Instructions
- Start Winding: Slowly turn the ON/OFF knob to initiate the winding process. Adjust the speed as needed.
- Monitor Yarn Flow: Observe the yarn as it winds. The dual-spring tension system helps minimize vibration and ensures a smooth, compact cake.
- Adjust Speed: Use the stepless speed control knob to adjust the winding speed according to the yarn type and your preference. This allows for optimal efficiency and prevents tangles.
- Complete Winding: Once the yarn is fully wound, turn the knob to the OFF position. Carefully remove the yarn cake from the spindle.
Image: A hand turning the speed control knob on the winder unit.
Image: The electric yarn winder actively winding yarn into a cake on a wooden table.

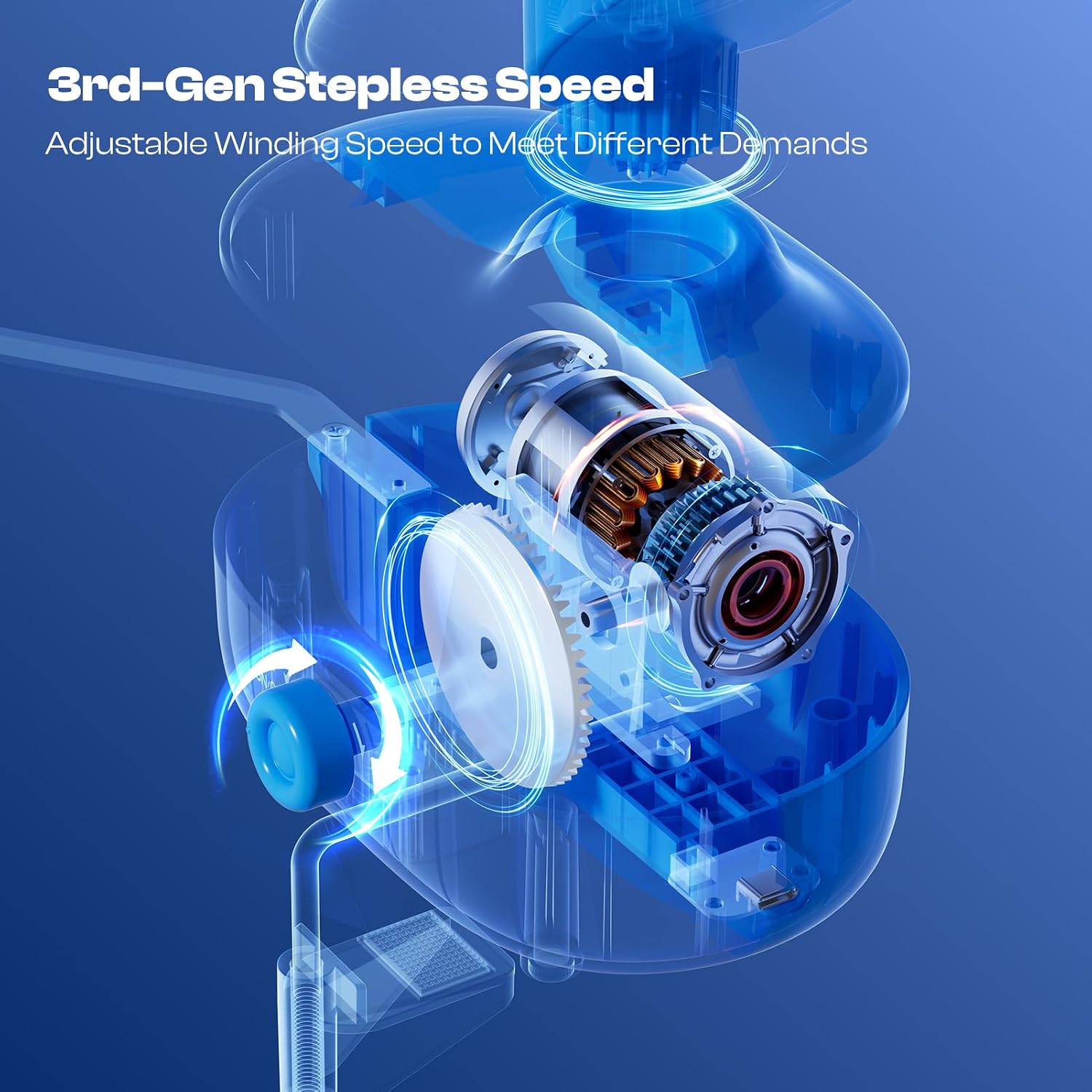

Image: An X-ray view diagram highlighting the internal motor and stepless speed control mechanism of the winder.
Operation Video Guides
Video: A demonstration of the automatic electric yarn winder in action, showing how it efficiently winds yarn for knitting and crocheting projects.
Video: A user demonstrating the yarn winder as a tool for organizing yarn, highlighting its effectiveness in creating neat yarn cakes.
Video: A knitter showcasing how the Caydo electric yarn winder assists in preparing yarn for projects, emphasizing its utility.
Video: A detailed review of the Caydo winder, providing insights into its performance and features for potential users.
Video: A demonstration of the yarn winder creating a perfect yarn cake, highlighting the quality of the finished product.
Video: An overview of how the Caydo Electric Yarn Winder improves yarn storage efficiency, showcasing its practical benefits.
Maintenance
To maintain your Caydo Electric Yarn Winder, simply wipe the unit with a clean, dry cloth after each use. Ensure no yarn fibers or dust accumulate in the moving parts or around the tension springs. Do not use harsh chemicals or abrasive cleaners.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine stops or yarn snags | Yarn tangle, knot, or excessive tension. | Turn off the machine. Clear any tangles or knots. Ensure yarn is fed smoothly. Restart the machine by turning the knob off and then on again. |
| Yarn cakes are loose or uneven | Insufficient tension, incorrect threading, or winding speed too high. | Ensure yarn is threaded through all tension guides. Check that the tension spring coil is correctly positioned. Reduce winding speed. |
| Machine struggles to pull yarn from a swift | Resistance from the swift or yarn type. | The winder is not recommended for use with a swift. If used, manually assist the swift to reduce resistance, especially at the beginning of winding. |
| Machine makes unusual noises or vibrates excessively | Unstable setup, yarn type incompatibility, or internal issue. | Ensure the winder is securely clamped to a stable surface. Avoid winding super bulky, very thin, smooth, or highly elastic yarns (e.g., acrylic, polyester) as they may not be suitable. |
| Yarn fibers are stripping | Repeated winding/unwinding or abrasive guides. | Minimize re-winding. Ensure yarn is not catching on any rough edges. |
Specifications
- Material: ABS+POM
- Brand: Caydo
- Color: Blue
- Item Weight: 0.68 Kilograms
- Item Length: 16 Inches
- Power Input: Requires 5V-2A USB adapter (not included)
- Yarn Capacity: Up to 10 ounces
Image: A visual representation of the winder's dimensions and its large 10oz yarn capacity.
Warranty and Support
This product does not come with a stated warranty. For any product inquiries or support, please contact Caydo customer service through their official channels or the retailer where the product was purchased.
