YIDOFENG 750W 110V DC Brushless Spindle Motor with Power Driver Kit Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and efficient operation of your YIDOFENG 750W 110V DC Brushless Spindle Motor with Power Driver Kit. Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to the equipment or injury to personnel. This kit is designed for use with CD210v and WM210v Mini Lathes.

2. Product Overview

The YIDOFENG 750W 110V DC Brushless Spindle Motor with Power Driver Kit offers a high-performance solution for various industrial and automated applications, particularly mini lathes. It features a robust brushless motor paired with an advanced driver board for precise control.

Key Features:

• Brushless Motor: Constructed from iron, weighing 1.6kg, with dimensions of 115.5mm length, 88mm width, 35mm shaft length, and 10mm shaft diameter. It delivers a maximum speed of 4000 RPM and operates at 110V with 750W power.
• Driver Board: Input 110VAC 50/60Hz, output 110VDC, with a maximum output power of 1100W. The driver incorporates advanced technology for high speed, low noise, low vibration, and includes protection features such as over current, overload, less phase line, phase line short, alarm output, and speed output. Note: The driver board color may be green or blue.
• Performance Advantages: Offers high speed and substantial torque, stable operation with low noise, high efficiency, fast heat dissipation, and a lightweight design.
• Versatile Application: Suitable for industrial manipulators, semiconductor equipment, carving equipment, measuring equipment, medical equipment, robotics, and other automated systems. Ideal for repetitive positioning control and applications requiring numerous input/output points or networking communication.

Product Details:

Figure 2.2: 750W DC Brushless Motor Dimensions.

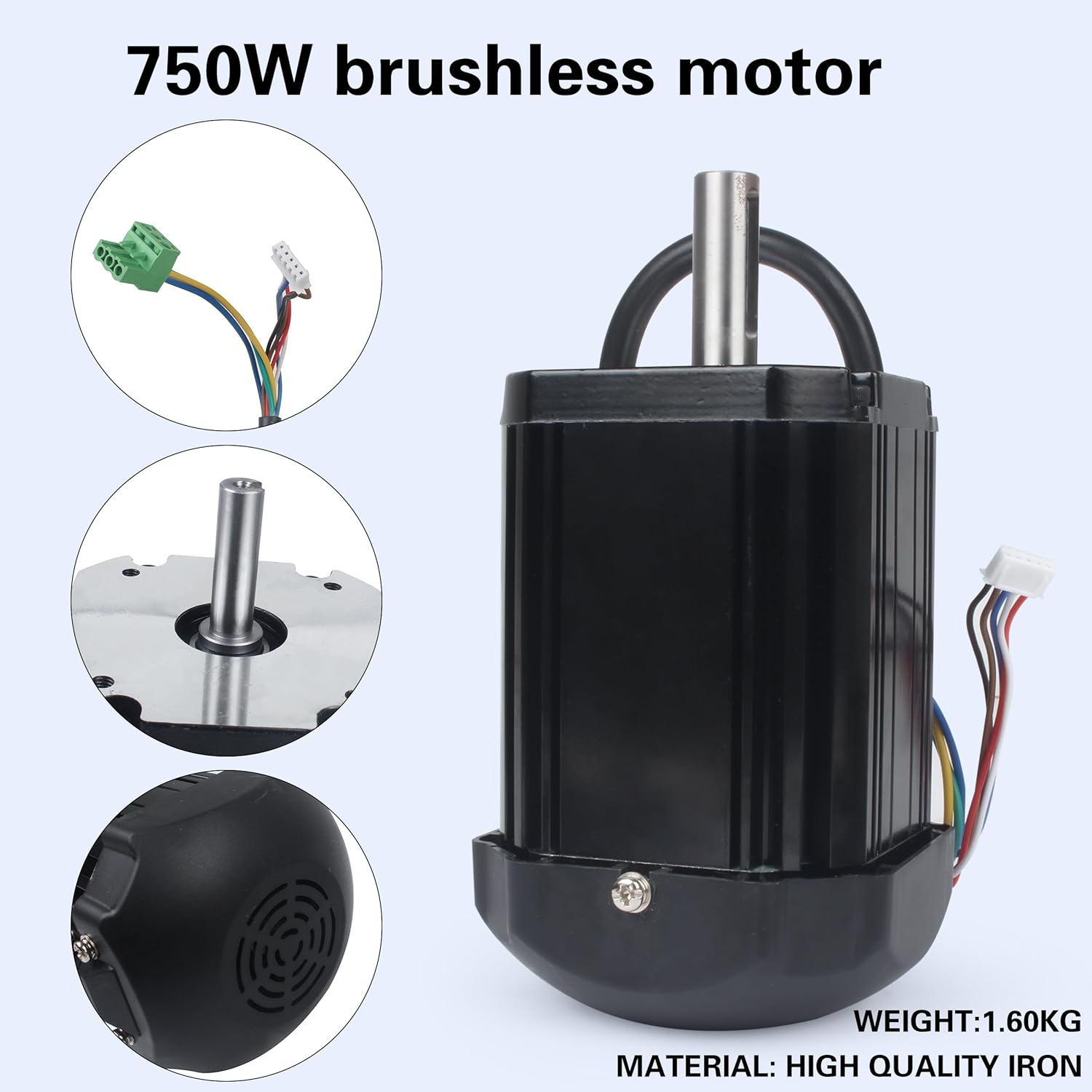

Figure 2.3: Various views of the 750W DC Brushless Motor.

Figure 2.4: Close-up of the 750W Brushless Motor.

Figure 2.5: Close-up of the 110V Driver Board.

3. Specifications

4. Package Contents

Verify that all items are present and undamaged upon opening the package:

• 1 x 750W DC Brushless Motor
• 1 x Control Driver Board

5. Setup and Installation

Careful installation is crucial for the safe and effective operation of your motor kit. Refer to the wiring diagram below for correct connections.

Figure 5.1: Physical Wiring Diagram for the Motor and Driver Kit.

Wiring Steps:

1. Motor Connection: Connect the brushless DC motor to the motor power output terminals on the driver board. Ensure a secure connection.
2. Power Input: Connect the AC 110V power input to the designated terminals on the driver board.
3. Ground Wire: Connect the ground wire for safety.
4. Speed Control Knob: Connect the speed control knob to its dedicated socket on the driver board. The center pin on the 3-pin socket typically connects to the center lug on the potentiometer. The other two wires are interchangeable.
5. Forward/Reverse Switch: Connect the forward/off/reverse switch to the conversion switch socket. The pin nearest the corner of the board usually connects to the center lug on the switch. The neighboring two wires are interchangeable. The fourth pin, furthest from the corner, is typically unused.
6. Speed Display Meter: Connect the speed display meter to its socket to monitor RPM.
7. Emergency Stop: Integrate any emergency stop switches as required by your application for safety.

Ensure all connections are firm and correctly oriented before applying power. Incorrect wiring can lead to damage or malfunction.

Figure 5.2: Driver Board Connection Points.

Figure 5.3: Example of the motor kit integrated with a CD/WM-210 mini lathe.

6. Operating Instructions

Once the motor kit is correctly installed and wired, follow these steps for operation:

1. Power On: Apply AC 110V power to the driver board. The speed display meter should illuminate.
2. Direction Selection: Use the conversion switch (Forward/Off/Reverse) to select the desired rotation direction for the motor. Ensure the motor is stopped before changing direction.
3. Speed Adjustment: Rotate the speed control knob to adjust the motor's RPM. The current speed will be displayed on the speed display meter. Start at a low speed and gradually increase to the desired operating speed.
4. Emergency Stop: In case of an emergency, activate the emergency stop switch to immediately cut power to the motor.
5. Power Off: To stop operation, turn the speed control knob to its minimum setting, then switch off the main power supply.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your YIDOFENG motor kit.

• Cleaning: Periodically clean the motor and driver board to remove dust and debris. Use a soft, dry cloth. Ensure power is disconnected before cleaning.
• Connection Check: Regularly inspect all electrical connections for tightness and signs of wear or corrosion. Re-tighten loose connections.
• Ventilation: Ensure the driver board has adequate ventilation to prevent overheating. Keep the area around the board clear of obstructions.
• Environmental Conditions: Operate the kit within recommended temperature and humidity ranges to avoid damage to electronic components.

8. Troubleshooting

If you encounter issues, refer to the following common troubleshooting steps:

• Motor Not Starting:
  • Check if the main power supply is connected and active.
  • Verify all motor and power input connections on the driver board are secure.
  • Ensure the emergency stop switch is not engaged.
• Incorrect Speed or No Speed Control:
  • Check the connection of the speed control knob to the driver board.
  • Inspect the speed control knob for damage.
• Motor Runs in Wrong Direction:
  • Verify the setting of the forward/off/reverse conversion switch.
  • Check the wiring of the conversion switch.
• Unusual Noise or Vibration:
  • Ensure the motor is securely mounted.
  • Check for any obstructions or loose components.
  • If the issue persists, disconnect power and contact support.

For complex issues or if troubleshooting steps do not resolve the problem, please contact customer support.

9. Official Product Video

10. Warranty and Support

YIDOFENG is committed to providing high-quality products and customer satisfaction.

• After-Sales Service: If you encounter any issues or have questions regarding your product, please do not hesitate to contact our customer service team. We are always ready to assist you.
• Contact Information: For support, please refer to the contact details provided with your purchase documentation or visit the official YIDOFENG website.
