EcoCalm Radiator Fan with Thermostat (3-Fan Model) Instruction Manual
Model: 3 Ventilatoren
Introduction
Thank you for choosing the EcoCalm Radiator Fan with Thermostat. This device is designed to improve the heating efficiency of your radiators, helping to distribute warmth more effectively throughout your room and potentially reduce energy consumption. This manual provides essential information for the safe and efficient operation of your radiator fan.
Image: The EcoCalm Radiator Fan system, featuring three individual fan units and a control module, designed for magnetic attachment to radiators.
Setup and Installation
Follow these steps to properly set up your EcoCalm Radiator Fan:
- Unpack the Device: Carefully remove all components from the packaging. Ensure you have the fan units, the control module with thermostat, and the power adapter.
- Identify Compatible Radiators: The EcoCalm Radiator Fan is suitable for metallic radiators with magnetic absorption capabilities, such as traditional cast iron radiators, tubular radiators, and oil-filled radiators. Ensure there is sufficient space for the fan units between the radiator columns.
- Magnetic Attachment: Each fan unit and the control module are equipped with strong magnets. Attach the fan units directly to the radiator surface. You can separate or combine the fans based on your radiator's length and your preference. Position them to optimize airflow.
- Connect Power: Plug the power adapter into the control module, then connect it to a standard electrical outlet.

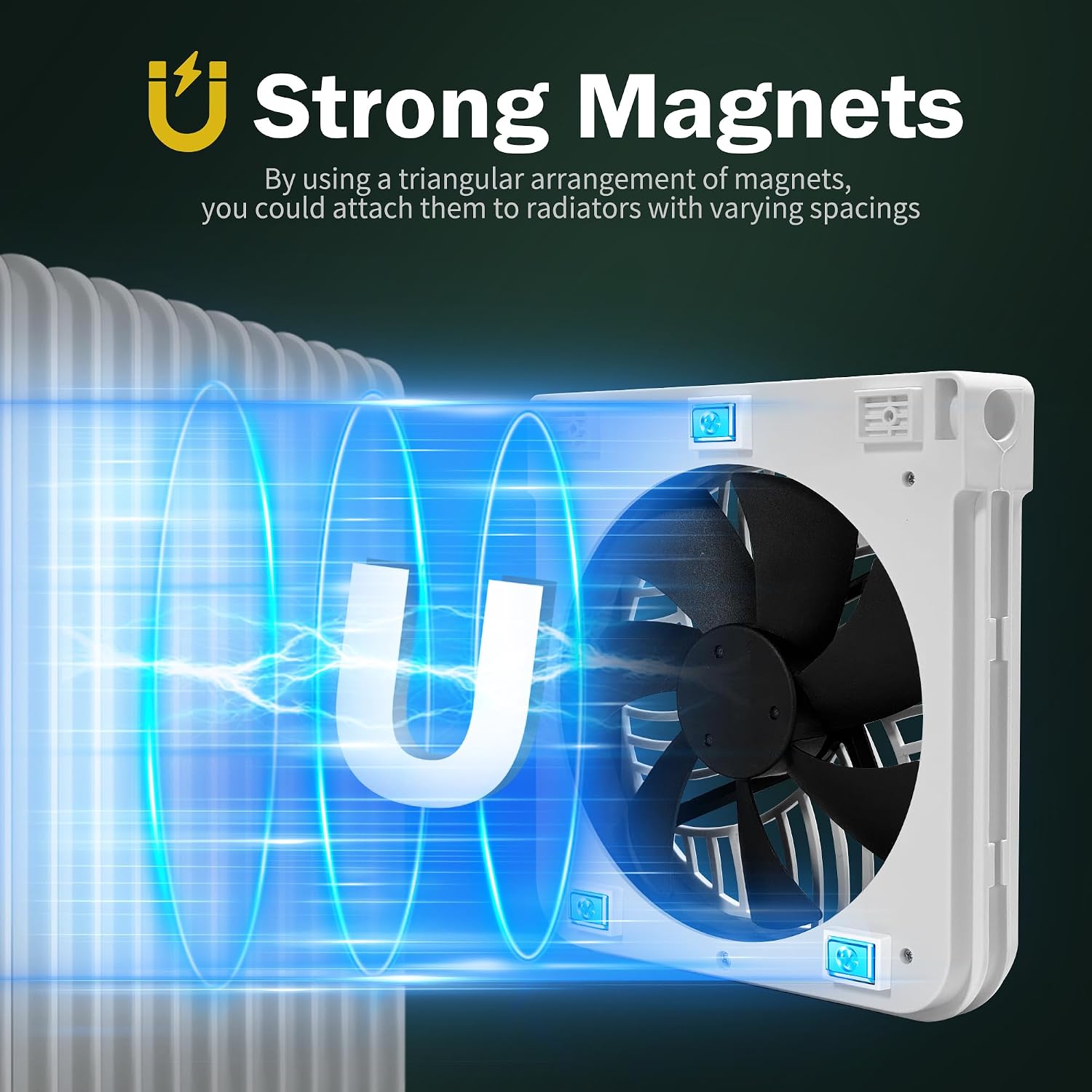

Image: Illustration of the strong magnetic attachment mechanism on the back of an EcoCalm fan unit, ensuring stable placement on radiators.
Image: Visual guide indicating the types of radiators compatible with the EcoCalm fan system, including traditional column, steel column, panel, and oil-filled models.
Operating Instructions
The EcoCalm Radiator Fan features touch controls and an integrated thermostat for efficient operation.
Power On/Off
- Press the power button on the control module to turn the unit on or off.
ECO Mode
The intelligent ECO mode is designed for optimal energy saving and heating efficiency:
- In ECO mode, the integrated thermostat measures the radiator's temperature.
- The fans automatically activate when the radiator temperature reaches 30°C (86°F).
- The fans automatically deactivate when the radiator temperature drops below 26°C (78.8°F).
- By default, the fan speed in ECO mode is set to Level 1.
Image: Visual explanation of the Intelligent ECO Mode, detailing the automatic activation and deactivation temperatures for energy-efficient operation.
Fan Speed Adjustment
The radiator fan offers three speed levels to suit your needs:
- Use the speed control buttons on the control module to cycle through the three available speed settings.
- Level 1 provides quiet operation, ideal for nighttime or when minimal disturbance is desired (sound level below 39 dB).
- Higher levels increase airflow for faster heat distribution.
Image: Depiction of the fan's quiet operation, highlighting its low noise level (below 39dB) suitable for use in bedrooms without disturbing sleep.
Enhanced Heating
The fan system accelerates air convection around the radiator, improving heating efficiency and reducing the time required to reach your desired room temperature. For best results, activate the fans when the radiator is warming up.
Image: Visual representation of the EcoCalm fans increasing indoor heating efficiency by circulating warm air from the radiator into the room.
Maintenance
To ensure the longevity and optimal performance of your EcoCalm Radiator Fan, follow these simple maintenance guidelines:
- Cleaning: Periodically wipe the fan units and control module with a soft, dry cloth. Do not use abrasive cleaners or immerse the units in water. Ensure the device is unplugged before cleaning.
- Dust Removal: Gently remove any dust accumulation from the fan blades and grilles using a soft brush or a vacuum cleaner with a brush attachment. Dust can impede airflow and reduce efficiency.
- Storage: If storing the device for an extended period, disconnect it from power, clean it thoroughly, and store it in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
If you encounter issues with your EcoCalm Radiator Fan, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fans not turning on | No power; ECO mode not activated or radiator not hot enough; device off. | Check power connection; ensure radiator temperature is above 30°C in ECO mode; press power button to turn on. |
| Ineffective heat distribution | Improper fan placement; fan speed too low; dust accumulation. | Adjust fan placement for optimal airflow; increase fan speed; clean fan blades and grilles. |
| Fans making unusual noise | Obstruction in fan blades; loose attachment. | Disconnect power and check for any obstructions; ensure fans are securely attached to the radiator. |
| Control module display not working | Power issue; module malfunction. | Check power connection; try unplugging and re-plugging the device. If problem persists, contact customer support. |
Product Specifications
| Feature | Detail |
|---|---|
| Model Number | 3 Ventilatoren |
| Brand | EcoCalm |
| Dimensions (L x W x H) | 17 x 19 x 21 cm (6.7 x 7.5 x 8.3 inches) |
| Weight | 1.38 kilograms (3.04 lbs) |
| Sound Level | 39 Decibels (at Level 1) |
| Compatible Devices | Radiators (magnetic absorption type, e.g., cast iron, tubular, oil-filled) |
| Cooling Method | Air |
| Power Connector Type | 3-pin |
| Number of Items | 1 (set of 3 fans with control module) |
| ASIN | B0D9W465N2 |
Image: Technical drawing illustrating the precise dimensions of the EcoCalm fan units and control module, along with the maximum horizontal combination distance.
Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact your retailer. If you require technical assistance or have questions not covered in this manual, please reach out to EcoCalm customer support through the retailer's platform or the manufacturer's official website.
