Dawnice 555W Monocrystalline Bifacial Solar Panel User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Dawnice 555W Monocrystalline Bifacial Solar Panels. These high-efficiency panels are designed for a wide range of off-grid applications, offering robust performance and durability.

Image: A stack of 20 Dawnice 555W Monocrystalline Bifacial Solar Panels, highlighting the quantity and power rating.

2. Key Features

• Bifacial Module Yield: Additional power generation from the backside of the modules, significantly improving energy yield under optimal conditions. The glass-glass encapsulation structure enhances resistance to environmental erosion.

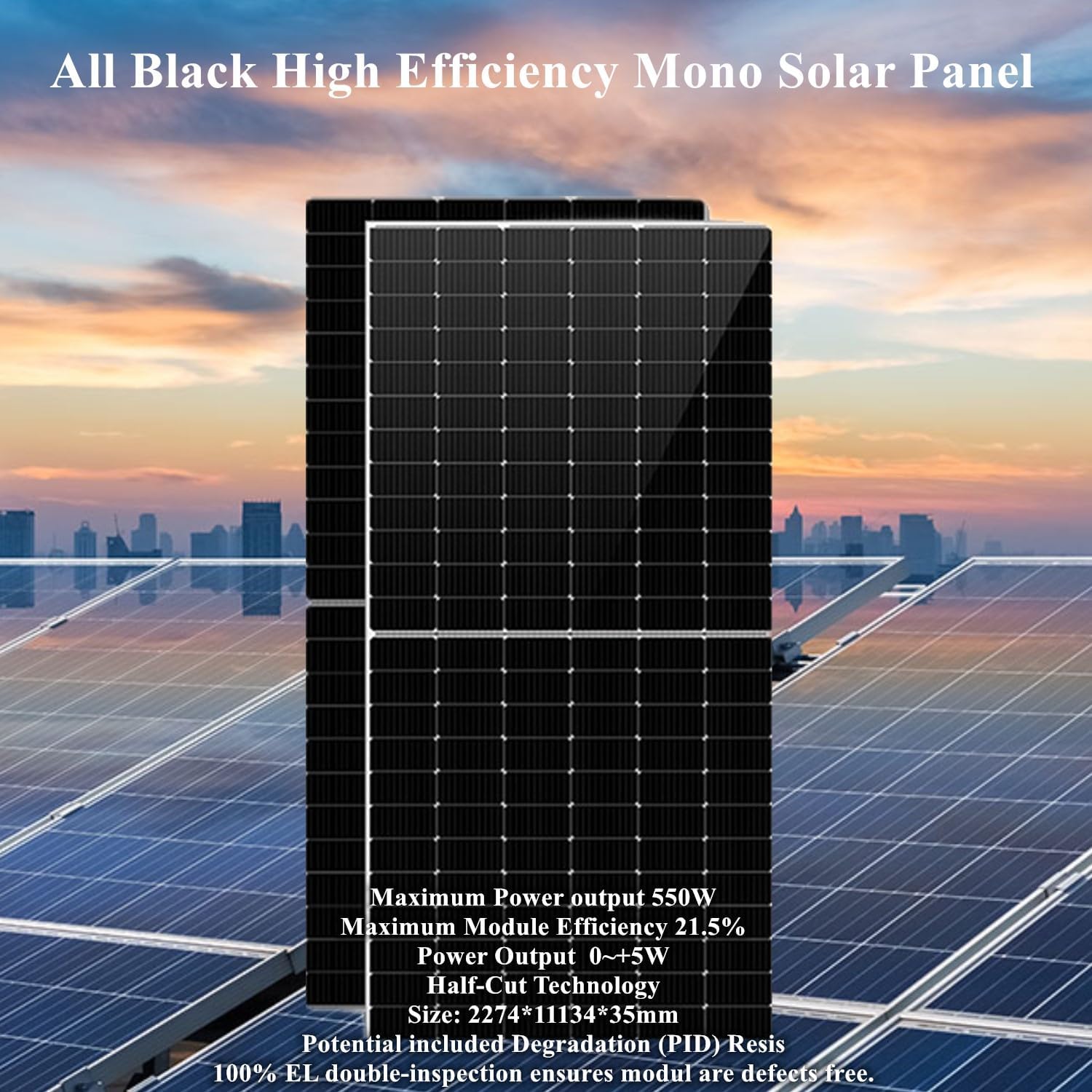

  Image: Two all-black high-efficiency mono solar panels, illustrating their sleek design and bifacial capability.
• High Efficiency: Utilizes 9-busbar Half-cut cells and composite backsheet for up to 90% transmittance and a 21.5% conversion rate. Recommended for use with solar tracker brackets for maximized performance.


  Image: A detailed diagram highlighting the 555W High Efficiency MBB Half Cell Monocrystalline Module's features, such as Multi Busbar Technology and enhanced mechanical load resistance.

• Durable Construction: IP65 protection ensures resistance to snow, rain, and heat. Features low iron-tempered glass, corrosion-resistant aluminum frames, and polyamide corner support for long-term outdoor performance.


  Image: A solar panel shown in a rainy environment, emphasizing its IP65 outdoor rainproof and waterproof capabilities.
• Premium Material & Testing: 100% tested with a design that reduces shading from the frame, supports 1500V systems, and uses reliable 2+2mm glass encapsulation.


  Image: A diagram detailing the panel's construction, including a short frame design to reduce shading, 1500V system compatibility, and robust 2+2mm glass encapsulation.

3. Specifications

4. Setup and Installation

The Dawnice solar panels are designed for easy installation. Follow these general guidelines for setting up your panels:

• Mounting: The panels feature pre-drilled holes on the back for fast mounting. They are directly compatible with various mounting systems such as ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.


  Image: Assortment of mounting hardware for solar panels, including Z brackets and corner brackets.

• Wiring: The panels come with plug-and-play MC4 cables for straightforward electrical connections. Ensure all connections are secure and properly insulated.


  Image: Red and black solar cables with MC4 connectors, illustrating the plug-and-play wiring components.

• Location: For optimal performance, position panels in an area that receives maximum direct sunlight throughout the day, free from shading. Consider using a solar tracker bracket to maximize energy yield, especially for bifacial modules.

5. Operating Instructions

Once properly installed and connected to an appropriate charge controller and battery bank (or inverter for grid-tied systems), your solar panels will begin generating electricity from sunlight.

• Power Output: Under 4 hours of full sunshine conditions, a single 555W panel can contribute to a daily output of approximately 2.2kWh/day. Actual output may vary based on sunlight intensity, temperature, and panel orientation.
• System Monitoring: For optimal performance and longevity, regularly monitor your solar system's output and battery charge levels using compatible monitoring equipment (e.g., charge controller display, system inverter).

6. Maintenance

Regular maintenance ensures the long-term efficiency and lifespan of your solar panels.

• Cleaning: Periodically clean the surface of the panels to remove dust, dirt, leaves, or other debris that may accumulate and reduce efficiency. Use a soft cloth and water. Avoid abrasive materials or harsh chemicals.
• Inspection: Regularly inspect the panels for any physical damage, such as cracks in the glass, loose frames, or damaged cables. Check electrical connections for corrosion or looseness.
• Shading: Ensure that no new obstructions (e.g., growing trees, new constructions) are casting shadows on the panels, as even partial shading can significantly reduce power output.

7. Troubleshooting

If you experience issues with your solar panels, consider the following common troubleshooting steps:

• Low Power Output:
  • Check for shading on the panel surface.
  • Clean the panel surface if it's dirty.
  • Verify all electrical connections are secure and free of corrosion.
  • Ensure the charge controller or inverter is functioning correctly.
• No Power Output:
  • Confirm there is sufficient sunlight.
  • Check all wiring from the panels to the charge controller/inverter and battery for disconnections or damage.
  • Inspect fuses or circuit breakers in your system.
• Physical Damage: If panels show signs of physical damage (e.g., cracked glass), contact the manufacturer or a qualified technician. Do not attempt to repair damaged panels yourself.

8. Wide Application Scenarios

These versatile solar panels are suitable for a broad range of applications, providing reliable power wherever needed:

9. Warranty and Support

All Dawnice products undergo rigorous testing and are packaged securely to ensure safe delivery. Due to the large size of these panels, shipping typically occurs via sea transport, which may take 20-45 days.

For specific warranty details, technical support, or any inquiries regarding your Dawnice solar panels, please refer to the official Dawnice website or contact Dawnice customer service directly. Information regarding protection plans may also be available through your point of purchase.

Thank you for choosing Dawnice for your solar energy needs.
