Product Overview
The ADESSO iMouse X1 is a multi-color, 6-button gaming mouse designed for precise control and comfortable use. It features an optical sensor, adjustable DPI settings, and an ergonomic ambidextrous design. This manual provides instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your iMouse X1.

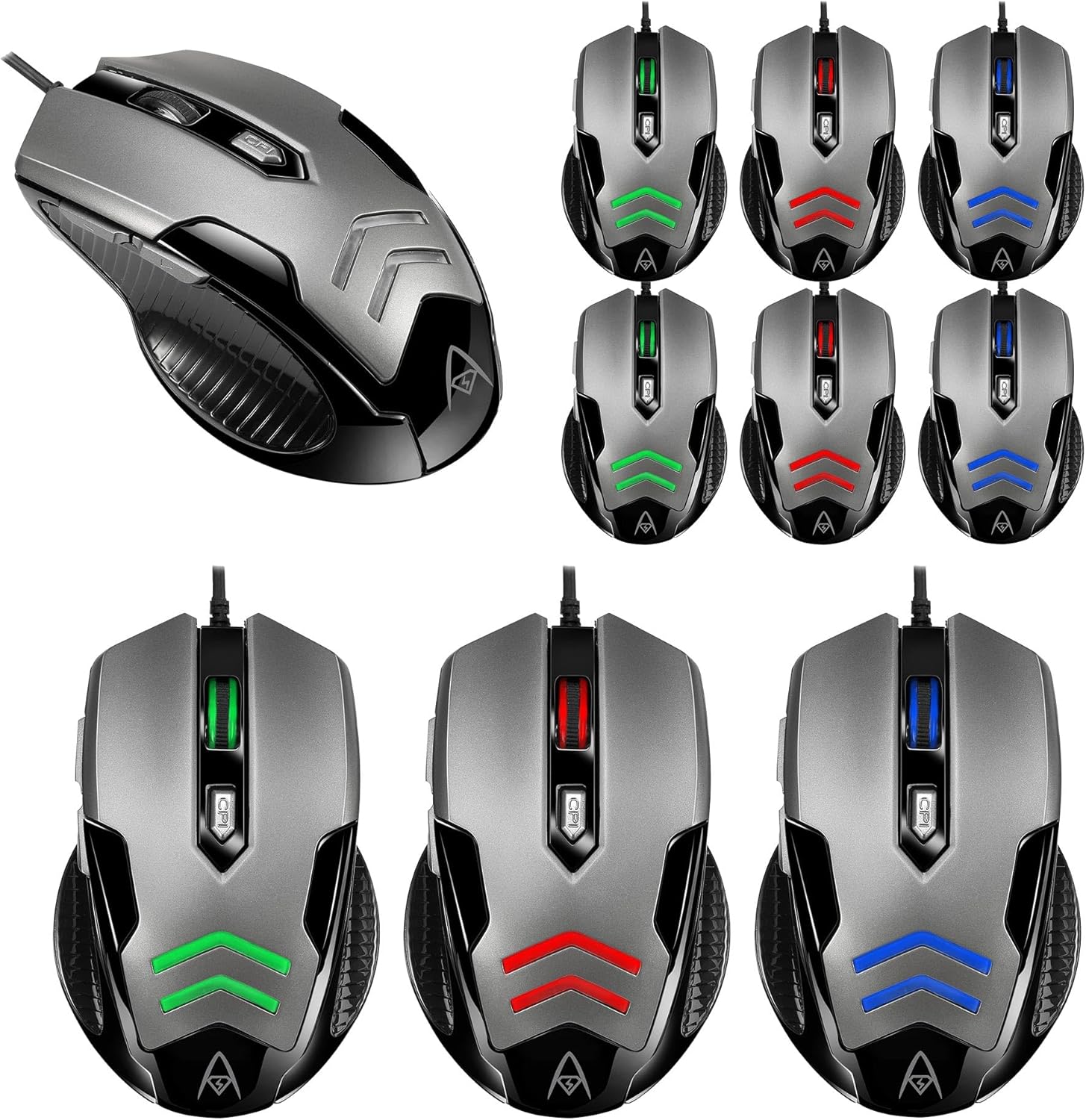

Image: The ADESSO iMouse X1 Gaming Mouse, showcasing its sleek design, scroll wheel, DPI button, and the multi-color LED lighting options (green, red, blue) on the mouse body and scroll wheel. The image displays multiple mice, highlighting the different LED color settings.
Setup
- Unpacking: Carefully remove the iMouse X1 from its packaging. Ensure all components are present.
- Connection: Locate an available USB port on your computer. Insert the USB connector of the iMouse X1 into the USB port.
- Driver Installation: The iMouse X1 is a plug-and-play device. Your operating system should automatically detect and install the necessary drivers. No additional software installation is typically required.
- Initial Test: Once connected, move the mouse and click the buttons to confirm basic functionality.
Operating Instructions
The iMouse X1 features 6 buttons and an adjustable DPI switch for enhanced control.
- Left Click Button: Standard primary click function.
- Right Click Button: Standard secondary click function.
- Scroll Wheel: Used for scrolling up and down. Can also be pressed for a middle-click function.
- DPI Switch Button: Located behind the scroll wheel. Press this button to cycle through four different DPI (Dots Per Inch) sensitivity settings. Each setting is indicated by a specific LED color:
- 1000 DPI: White LED
- 1600 DPI: Green LED
- 2400 DPI: Blue LED
- 3200 DPI: Red LED
- Forward Button: Located on the left side of the mouse. Typically used for navigating forward in web browsers or file explorers.
- Back Button: Located on the left side of the mouse. Typically used for navigating backward in web browsers or file explorers.
The iMouse X1 features an ambidextrous design with texturized sides, providing a comfortable grip for both left and right-handed users.
Maintenance
- Cleaning: Use a soft, dry, lint-free cloth to clean the surface of the mouse. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive materials.
- Sensor Care: Keep the optical sensor on the underside of the mouse clean and free from dust or debris to ensure accurate tracking.
- Storage: When not in use for extended periods, store the mouse in a clean, dry environment away from extreme temperatures.
Troubleshooting
- Mouse Not Responding:
- Ensure the USB cable is securely connected to your computer's USB port.
- Try connecting the mouse to a different USB port.
- Restart your computer.
- DPI Switch Not Changing Colors/Sensitivity:
- Press the DPI button firmly.
- Ensure the mouse is properly connected and receiving power.
- Buttons or Scroll Wheel Not Working:
- Check for any physical obstructions.
- Test the mouse on another computer to rule out software issues.
- Inaccurate Tracking:
- Clean the optical sensor on the underside of the mouse.
- Ensure you are using the mouse on a suitable surface (e.g., a mouse pad, not highly reflective or transparent surfaces).
Specifications
| Model Name | iMouse X1 |
| Connectivity | USB |
| Sensor Type | Optical |
| DPI Settings | 1000 / 1600 / 2400 / 3200 DPI |
| Number of Buttons | 6 (Left, Right, Scroll Click, DPI, Forward, Back) |
| LED Backlight | Multi-color (White, Green, Blue, Red) |
| Switch Lifespan | 10 Million Clicks |
| Ergonomics | Ambidextrous design with texturized sides |
Warranty Information
For detailed warranty information regarding your ADESSO iMouse X1, please refer to the warranty card included with your product or visit the official ADESSO website. Warranty terms and conditions may vary by region and retailer.
Customer Support
If you encounter any issues not covered in this manual or require further assistance, please contact ADESSO customer support. You can typically find contact information, FAQs, and additional resources on the official ADESSO website:
