Aermec WMT16 Thermostat User Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of the Aermec WMT16 electromechanical thermostat. Please read this manual carefully before using the device to ensure proper function and safety.

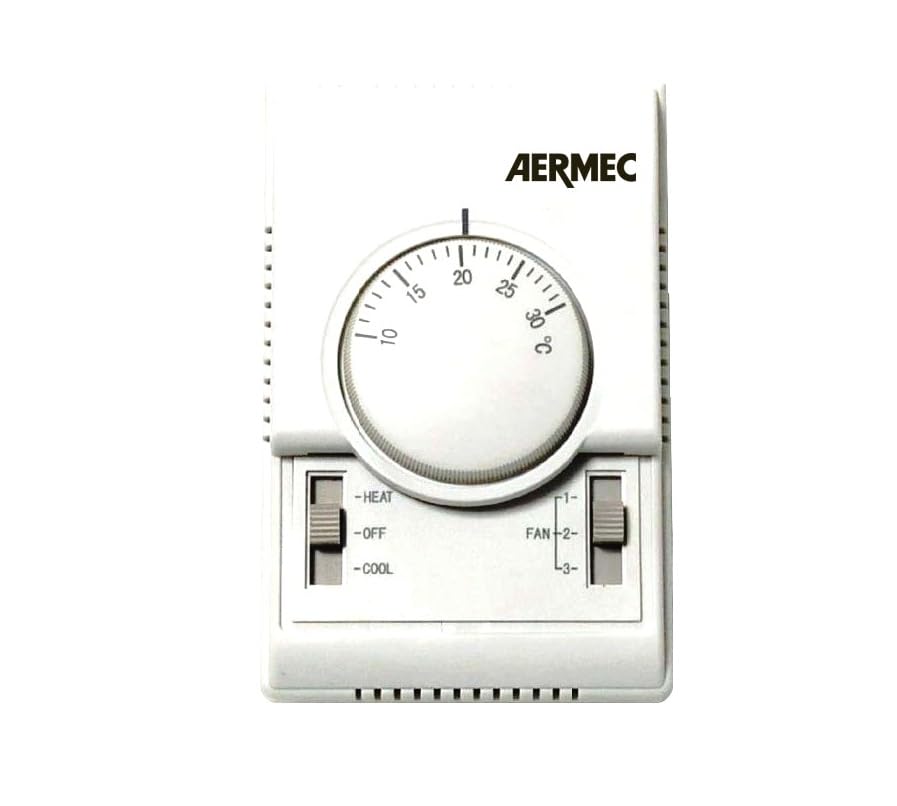

Image 1: Front view of the Aermec WMT16 Thermostat, showing the temperature control knob and mode selector.

2. Safety Information

• Electrical Hazard: Installation must be performed by a qualified electrician in accordance with local electrical codes. Disconnect power before installation or maintenance.
• Do not expose the thermostat to water or excessive humidity.
• Do not attempt to disassemble or repair the thermostat yourself. Contact qualified service personnel.
• Ensure the thermostat is mounted securely to a wall.

3. Package Contents

Verify that all items are present in the package:

• Aermec WMT16 Thermostat Unit
• Mounting Screws (2)
• User Manual (this document)

4. Product Overview

The Aermec WMT16 is a wall-mounted electromechanical thermostat designed for controlling air conditioning systems. It features a temperature control knob, an operating mode selector, and a speed selector.

4.1. Components

1. Temperature Control Knob: Used to set the desired temperature.
2. Operating Mode Selector: Switches between heating, cooling, and fan-only modes.
3. Fan Speed Selector: Adjusts the fan speed (e.g., Low, Medium, High, Auto).
4. Panel Edge Air Probe: Integrated sensor for ambient temperature detection.

5. Installation

Warning: Disconnect all power to the heating/cooling system at the main circuit breaker before beginning installation to prevent electrical shock or equipment damage.

5.1. Mounting Location

Choose a location on an interior wall, approximately 1.5 meters (5 feet) above the floor, away from direct sunlight, drafts, and heat sources (e.g., lamps, appliances, fireplaces). Avoid mounting on exterior walls.

5.2. Wiring

1. Carefully remove the front cover of the thermostat.
2. Connect the electrical wires from your HVAC system to the corresponding terminals on the WMT16 thermostat. Refer to the wiring diagram provided with your HVAC system for specific connections. Ensure all connections are secure.
3. Mount the thermostat base plate to the wall using the provided screws.
4. Reattach the front cover of the thermostat.
5. Restore power to the HVAC system at the main circuit breaker.

6. Operating Instructions

6.1. Setting the Temperature

Rotate the Temperature Control Knob clockwise to increase the desired temperature or counter-clockwise to decrease it. The thermostat will maintain the room temperature at the set point.

6.2. Selecting Operating Mode

Use the Operating Mode Selector to choose one of the following modes:

• OFF: The system is turned off.
• HEAT: The system will activate heating when the room temperature falls below the set point.
• COOL: The system will activate cooling when the room temperature rises above the set point.
• FAN: The fan operates continuously without heating or cooling.

6.3. Adjusting Fan Speed

Use the Fan Speed Selector to choose the desired fan speed:

• LOW: Low fan speed.
• MED: Medium fan speed.
• HIGH: High fan speed.
• AUTO: The fan operates only when heating or cooling is active.

7. Maintenance

The Aermec WMT16 thermostat requires minimal maintenance.

• Cleaning: Gently wipe the exterior of the thermostat with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Dust Removal: Periodically remove any dust accumulation from the vents or openings to ensure proper air circulation for the internal sensor.
• Ensure the thermostat is not obstructed by furniture or curtains, which could affect temperature readings.

8. Troubleshooting

If the problem persists after attempting these solutions, contact customer support or a qualified HVAC technician.

9. Specifications

• Model: WMT16
• Type: Electromechanical Thermostat
• Control Type: Button Control
• Specific Uses: Air Conditioner
• Color: White
• Item Weight: 50 g
• Package Dimensions: 20 x 20 x 10 cm
• Backlight: No

10. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Technical support may be available through the product's brand or distributor.

For further assistance, please visit the official website of Generico or contact their customer service department.
