Introduction
This manual provides detailed instructions for the safe and effective use of your Zilynhom 20A 12V/24V Smart Battery Charger & Maintainer. This device is designed for charging and maintaining various 12V and 24V batteries, including LiFePO4, AGM, Lead Acid, EFB, GEL, and STD types. It features a 7-stage smart charging process and multiple operating modes to optimize battery health and longevity.
Please read this manual thoroughly before operating the charger to ensure proper usage and to prevent damage to the unit or your battery.

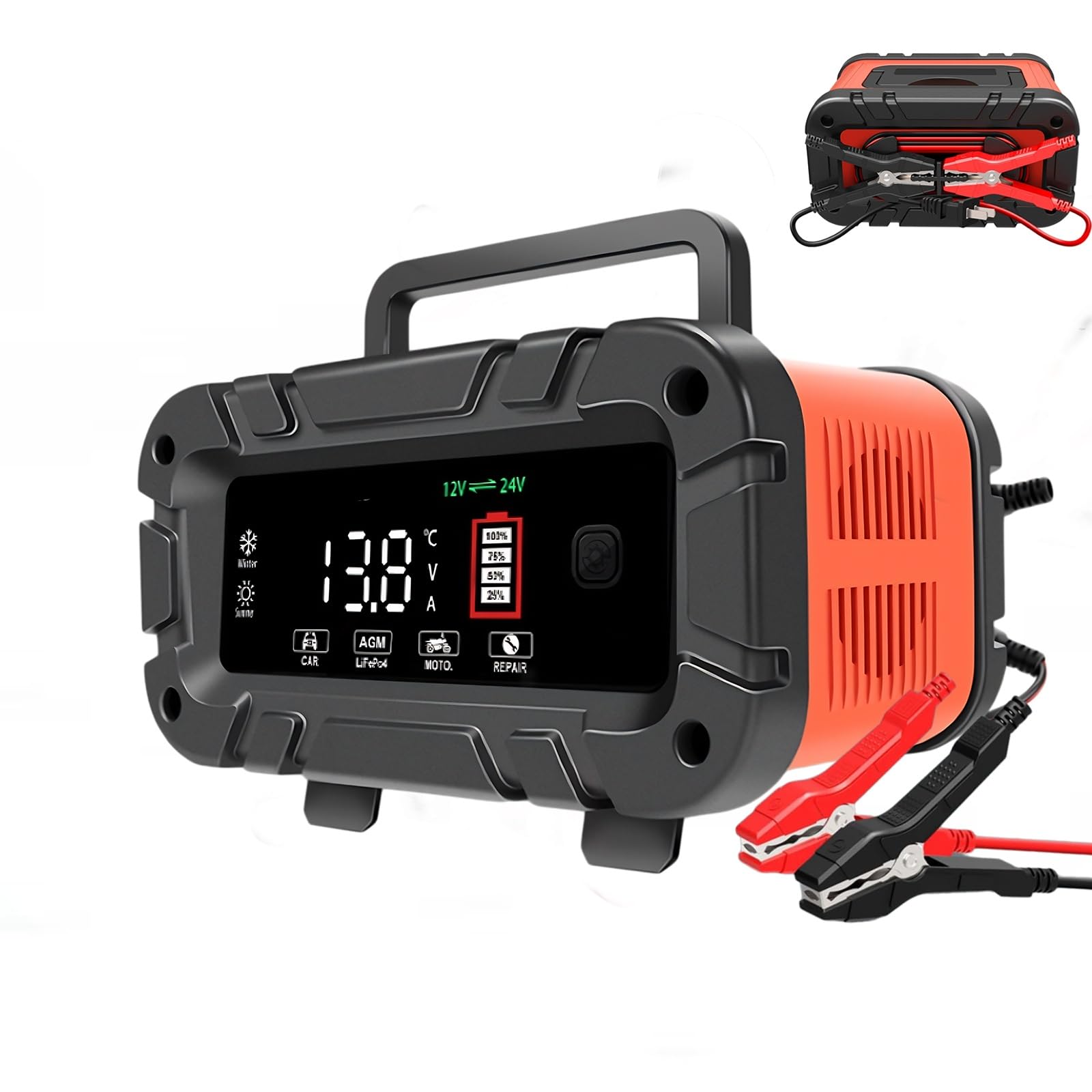

Image: The Zilynhom 20A 12V/24V Smart Battery Charger and Maintainer.
Important Safety Instructions
WARNING: Risk of explosive gases. Working in the vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of utmost importance that you read this manual and follow the instructions exactly each time you use the charger.
- Always wear eye protection and protective clothing when working with batteries.
- Ensure the charging area is well-ventilated.
- Keep sparks, flames, and smoking materials away from batteries.
- Never charge a frozen battery.
- Do not use the charger if cables or clamps are damaged.
- Disconnect the AC power before connecting or disconnecting battery clamps.
- This charger is not designed to activate a dead battery or repair a damaged battery, nor can it function as a car jump starter.
- Ensure the charger is compatible with your battery type before use. This charger is suitable for LiFePO4, AGM, Lead Acid, EFB, GEL, and STD batteries. It is NOT suitable for other lithium battery types.
Product Features
The Zilynhom 20A 12V/24V Smart Battery Charger & Maintainer offers a range of features for efficient and safe battery management:
- Versatile Charging: Supports 12V (20A) and 24V (10A) output for batteries from 1AH to 300AH.
- Multi-Battery Compatibility: Compatible with LiFePO4, AGM, Lead Acid, EFB, GEL, and STD batteries.
- 3-in-1 Functionality: Functions as a battery charger, maintainer, and repair unit (for old/idle batteries, not physically damaged ones).
- 4 Charging Modes: Dedicated modes for Car, LiFePO4, Moto, and Repair.
- 7-Stage Smart Charging: Includes Desulfurization, Trickle Charging, Constant Current Charging, Constant Voltage Charging, Battery Current Detection, Compensation Charging, and Floating Charging.
- Automatic Winter/Summer Mode: Adjusts charging parameters based on ambient temperature (above 82°F for summer, below 50°F for winter).
- Comprehensive Protection: Features reverse polarity, short circuit, over current, over heat, over voltage, low voltage, electric shock, and fire protection.
- LCD Digital Display: Provides clear readings of temperature, voltage, current, and battery capacity.
- Portable Design: Equipped with a foldable handle for easy transport.
Image: Key features of the Zilynhom 3-in-1 Smart Battery Charger.
Package Contents
Please check the package for the following items:
- Zilynhom 20A 12V/24V Smart Battery Charger & Maintainer Unit
- Battery Clamps (Red for Positive, Black for Negative)
- User Manual
Setup Instructions
- Prepare the Battery: Ensure the battery terminals are clean and free of corrosion. If necessary, clean them with a wire brush and baking soda solution.
- Connect to Battery:
- Connect the RED positive (+) clamp to the positive (+) terminal of the battery.
- Connect the BLACK negative (-) clamp to the negative (-) terminal of the battery.
- For vehicles, if connecting to the vehicle battery, connect the negative clamp to the vehicle chassis away from the battery and fuel line, if the battery is not removed from the vehicle.
- Connect to Power: Plug the charger's power cable into a standard 100-220V AC electrical outlet. The charger will power on, and the LCD display will illuminate.
Image: Proper connection of the charger clamps to a battery.
Operating Instructions
- Power On: After connecting the battery clamps and plugging into AC power, the charger will automatically turn on. The LCD display will show current battery voltage, temperature, and charging status.
- Select Charging Mode: Press the "MODE" button on the charger to cycle through the available charging modes: CAR, LiFePO4, MOTO, and REPAIR. Select the mode appropriate for your battery type and condition. The selected mode will be highlighted on the display.
- Begin Charging: Once a mode is selected, the charger will automatically begin the 7-stage charging process. The display will show the charging progress and relevant information.
- Monitor Charging: Observe the LCD display for charging status. The battery icon will indicate the charge level. The charger will automatically switch to maintenance mode or stop charging once the battery is fully charged.
- Disconnecting: When charging is complete, first unplug the charger from the AC power outlet. Then, disconnect the BLACK negative (-) clamp from the battery (or chassis), followed by the RED positive (+) clamp from the battery.
Image: The charger's LCD display with mode selection options.
Understanding Charging Modes
The charger offers four distinct modes to cater to different battery types and charging needs:
- CAR Mode: Designed for 12V and 24V car batteries, including standard Lead Acid, AGM, and EFB batteries.
- LiFePO4 Mode: Specifically for 12V and 24V Lithium Iron Phosphate (LiFePO4) batteries.
- MOTO Mode: Suitable for smaller 12V and 24V batteries found in motorcycles and other small vehicles, typically Lead Acid types.
- REPAIR Mode: Used for attempting to restore old, idle, or weak batteries. This mode applies pulse technology to desulfate and recondition the battery. Note: This mode cannot repair physically damaged or completely dead batteries.
7-Stage Smart Charging Process
The Zilynhom charger utilizes an advanced 7-stage charging process to ensure optimal battery charging, maintenance, and longevity:
- Desulfurization: Applies high-frequency pulse charges to break down lead sulfate crystals that can form on battery plates, improving charge acceptance.
- Trickle Charging: Initial low-current charge for deeply discharged batteries to safely bring them to a basic charge level.
- Constant Current Charging: Charges the battery at a constant maximum current until the voltage reaches a predetermined level.
- Constant Voltage Charging: Maintains a constant voltage while the current gradually decreases as the battery approaches full charge.
- Battery Current Detection: Monitors the battery's current absorption to determine if it is fully charged or requires further charging.
- Compensation Charging: Provides a brief, higher voltage charge to ensure the battery is fully topped off.
- Floating Charging: Maintains the battery at a full charge by providing a small, constant voltage, preventing self-discharge and keeping the battery ready for use.
Image: Visual representation of the 7-stage charging cycle.
Automatic Winter/Summer Mode
The charger features an intelligent temperature sensor that automatically adjusts charging parameters based on the ambient temperature:
- Summer Mode: Activates automatically when the ambient temperature is above 82°F (28°C). This mode adjusts charging to prevent overcharging in warmer conditions.
- Winter Mode: Activates automatically when the ambient temperature is below 50°F (10°C). This mode adjusts charging to ensure efficient charging in colder conditions, which can otherwise reduce battery performance.
This automatic adjustment ensures safer and more efficient charging regardless of the environmental conditions.
Image: The charger's automatic temperature compensation feature.
Maintenance
- Cleaning: Keep the charger casing clean and free of dust and debris. Use a soft, dry cloth for cleaning. Do not use solvents or abrasive cleaners.
- Cable and Clamp Inspection: Regularly inspect the charging cables and clamps for any signs of damage, fraying, or corrosion. Replace if damaged.
- Storage: Store the charger in a cool, dry place when not in use. Ensure cables are neatly wrapped (using the built-in storage if available) to prevent damage.
- Ventilation: Ensure the cooling fan and ventilation slots are not obstructed during operation to prevent overheating.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger does not power on. | No AC power; loose connection; faulty outlet. | Check AC power cord connection. Test outlet with another device. Ensure power switch (if any) is ON. |
| Charger displays an error or does not charge. | Incorrect battery connection (reverse polarity); battery voltage too low; incompatible battery type; faulty battery. | Verify correct clamp connection (Red to +, Black to -). Ensure battery voltage is within charger's operating range. Select correct charging mode. Test battery condition. |
| Charger gets hot during operation. | Normal operation; obstructed ventilation; prolonged high-current charging. | Some heat is normal. Ensure ventilation slots are clear. If excessively hot, disconnect and allow to cool. Reduce charging current if possible (not applicable for this model's fixed current). |
| Battery does not hold charge after charging. | Battery is old or damaged; internal battery fault. | The charger cannot repair physically damaged batteries. Consider battery replacement. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 20A |
| Input Voltage | 100-220V AC |
| Output Voltage | 12V / 24V DC (Auto-detect) |
| Output Current | 12V 20A / 24V 10A |
| Battery Capacity Range | 1AH - 300AH |
| Compatible Battery Types | LiFePO4, AGM, Lead Acid, EFB, GEL, STD |
| Charging Stages | 7-Stage Smart Charging |
| Thermal Protection | Automatic Winter/Summer Mode |
| Dimensions (D x W x H) | 7.5" x 4" x 6.5" (19cm x 10.16cm x 16.51cm) |
| Safety Protections | Reverse Polarity, Short Circuit, Over Current, Over Heat, Over Voltage, Low Voltage, Electric Shock, Fire Protection |
Product Videos
Zilynhom Smart Battery Charger Overview
Video: An overview of the Zilynhom 20A 12V/24V Smart Battery Charger, demonstrating its features and functionality for various battery types.
Car Battery Charger 20A 12V/24V LiFePO4/LeadAcid Maintainer Demonstration
Video: A demonstration of the Zilynhom 20A 12V/24V charger's capabilities as a maintainer for LiFePO4 and Lead Acid car batteries.
Warranty and Support
This Zilynhom product comes with a 1-year warranty from the date of purchase, covering manufacturing defects.
For technical support, warranty claims, or any questions regarding your Zilynhom battery charger, please contact our customer service team. Refer to the contact information provided on the product packaging or the seller's platform for the most up-to-date support channels.
Please have your model number (20A) and purchase details ready when contacting support.
