APDTY 168174 Front Engine Splash Shield Manual

1. Product Overview

The APDTY 168174 Front Engine Splash Shield is a replacement component designed to protect the engine bay from road debris, water, and other elements. This shield helps maintain the cleanliness and integrity of critical engine components, contributing to the vehicle's overall performance and longevity. It is engineered to match the original equipment specifications for a precise fit.

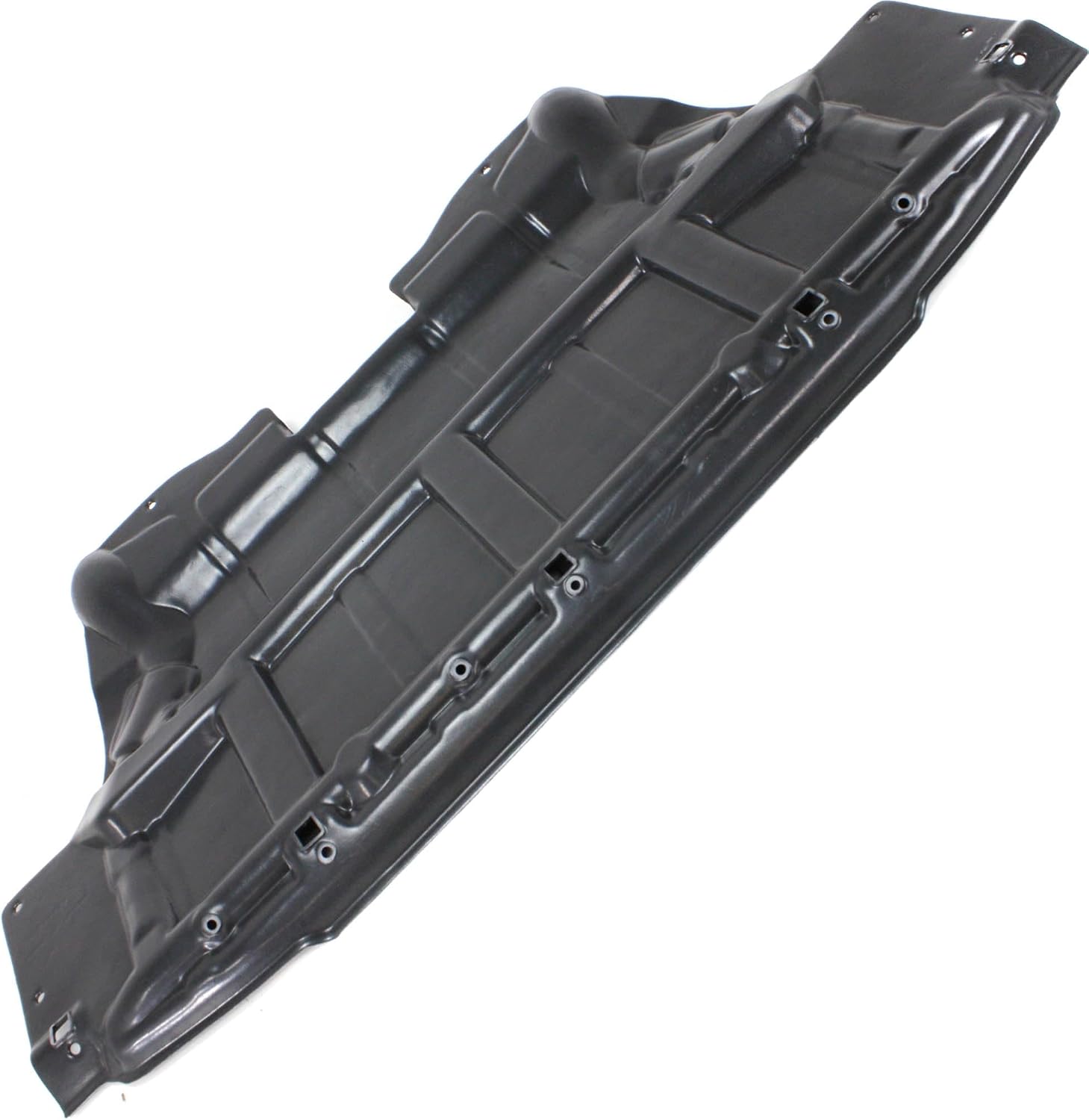

An image showing the APDTY 168174 Front Engine Splash Shield, a black, molded plastic component designed to protect the engine bay from road debris and water. The shield features various mounting points and structural ribs for rigidity.

2. Vehicle Compatibility

This front engine splash shield (APDTY 168174) is compatible with specific BMW X5 models. Please verify your vehicle's make, model, and year against the list below to ensure proper fitment. This part replaces OEM Part Number 51718402436.

• 2000-2006 BMW X5 4.4i
• 2001-2006 BMW X5 3.0i
• 2002-2003 BMW X5 4.6is
• 2004-2006 BMW X5 4.8is

3. Installation Guidelines

Installation of the front engine splash shield typically involves removing the old, damaged shield and securing the new one in place using existing mounting points. Professional installation is recommended to ensure correct fitment and secure attachment.

Required Tools (Typical):

• Socket wrench set
• Screwdriver set
• Vehicle lift or jack stands (for safe access underneath the vehicle)
• Safety glasses and gloves

General Installation Steps:

1. Prepare Vehicle: Safely lift and support the front of the vehicle using a lift or jack stands. Ensure the vehicle is stable before proceeding.
2. Locate Old Shield: Identify the existing front engine splash shield.
3. Remove Fasteners: Carefully remove all bolts, screws, clips, or other fasteners securing the old splash shield to the vehicle's undercarriage. Note the location and type of each fastener.
4. Remove Old Shield: Once all fasteners are removed, carefully detach and remove the old splash shield.
5. Position New Shield: Align the new APDTY 168174 splash shield with the mounting points on the vehicle's undercarriage.
6. Secure New Shield: Reinstall all fasteners, ensuring they are tightened securely but not over-tightened. Verify that the shield is firmly attached and does not have any loose areas.
7. Lower Vehicle: Safely lower the vehicle.
8. Final Check: Visually inspect the installed shield to confirm proper alignment and security.

Safety Note: Always prioritize safety when working under a vehicle. Use appropriate safety equipment and ensure the vehicle is securely supported.

4. Maintenance

The APDTY 168174 Front Engine Splash Shield is designed for durability and requires minimal maintenance. Regular inspection is recommended to ensure its continued effectiveness.

Maintenance Tips:

• Periodic Inspection: During routine vehicle maintenance (e.g., oil changes), visually inspect the splash shield for any signs of damage, cracks, or loose fasteners.
• Cleaning: If the shield accumulates excessive dirt or debris, it can be cleaned with water and mild soap. Ensure all debris is removed to prevent potential issues.
• Fastener Check: Periodically check that all mounting fasteners are tight. Loose fasteners can lead to rattling or detachment of the shield.
• Damage Assessment: If the shield sustains significant impact or damage, consider replacement to maintain optimal protection for your engine bay.

5. Troubleshooting

While the APDTY 168174 Front Engine Splash Shield is a straightforward component, minor issues can arise. Here are some common troubleshooting points:

Common Issues and Solutions:

• Rattling Noise: If you hear rattling from the undercarriage, check all fasteners securing the splash shield. They may have loosened over time. Tighten any loose fasteners.
• Improper Fitment: If the shield does not seem to fit correctly, double-check the vehicle compatibility list. Ensure all mounting points are correctly aligned and that no obstructions are preventing proper seating.
• Visible Damage: Cracks, holes, or significant bending can compromise the shield's protective function. If damage is severe, replacement is recommended.
• Missing Fasteners: Over time, some fasteners may fall out. Replace any missing fasteners with appropriate automotive-grade hardware to ensure the shield remains securely attached.

6. Product Specifications

7. Warranty and Support

For warranty information or technical support regarding the APDTY 168174 Front Engine Splash Shield, please contact APDTY directly through their official website or customer service channels. Keep your purchase receipt and product details handy when contacting support.

⚠ California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
