RELAX4LIFE 3-Person Porch Swing Chair Instruction Manual

Introduction

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your RELAX4LIFE 3-Person Porch Swing Chair, Model RXE-70491. Please read all instructions carefully before use and retain this manual for future reference.

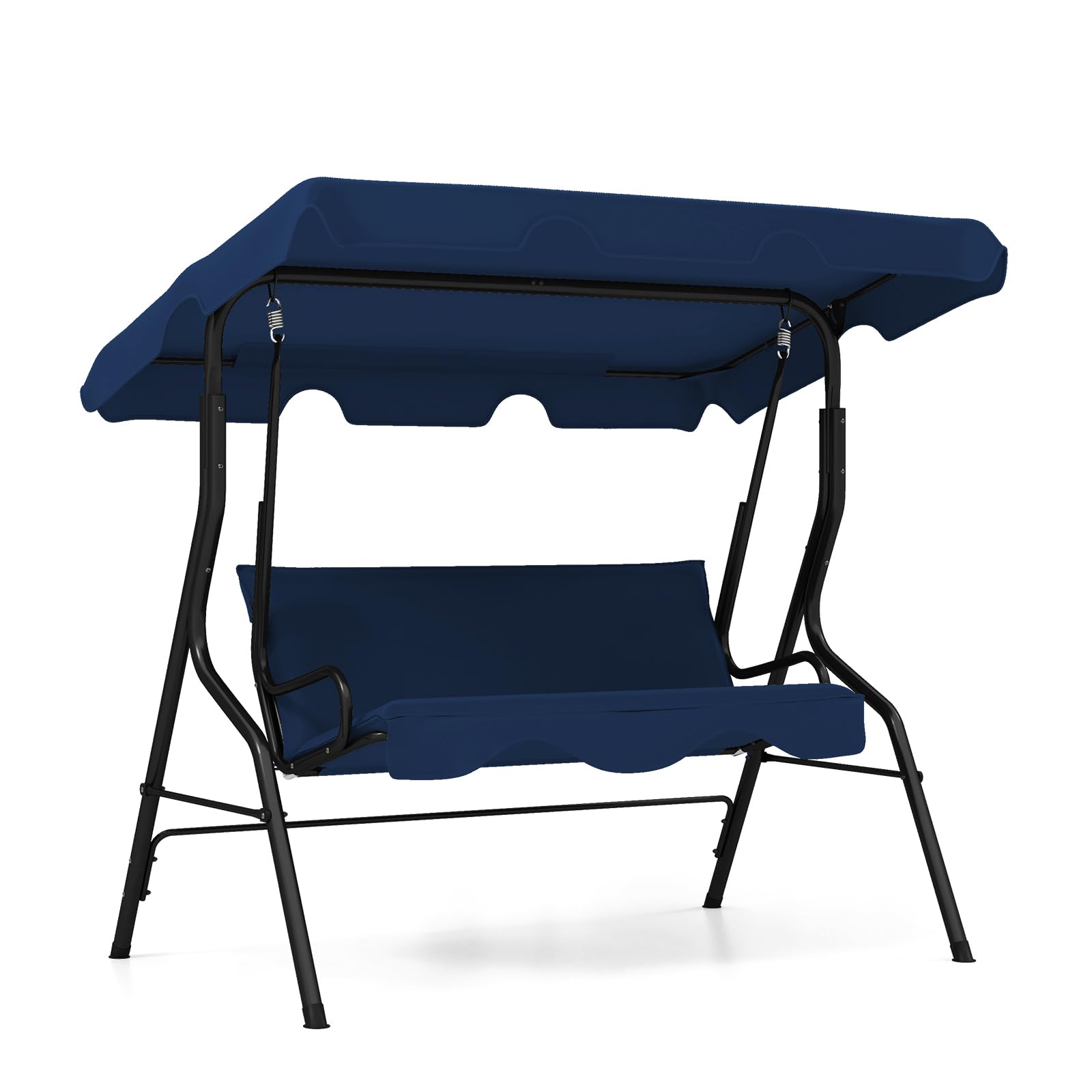

Image: The RELAX4LIFE 3-Person Porch Swing Chair, featuring a navy canopy and seating, set in an outdoor environment.

Safety Information

To ensure safe operation and prevent injury, adhere to the following safety guidelines:

• Weight Capacity: Do not exceed the maximum weight recommendation of 226.8 kg (500 lbs). This swing is designed for up to 3 individuals.
• Assembly: Ensure all parts are correctly assembled and fasteners are securely tightened before use. Refer to the assembly section for detailed instructions.
• Placement: Place the swing on a flat, stable, and level surface to prevent tipping. Avoid placing near open flames, heaters, or sharp objects.
• Children: Supervise children at all times when they are near or using the swing.
• Weather Conditions: Avoid using the swing during strong winds, heavy rain, or other severe weather conditions. The canopy should be secured or removed in high winds.
• Inspection: Regularly inspect the swing for loose bolts, damaged parts, or signs of wear. Discontinue use if any damage is found and replace parts as necessary.
• Movement: Do not stand on the swing or engage in excessive swinging that could destabilize the unit.

Setup and Assembly

Follow these steps to assemble your porch swing chair. It is recommended to have two adults for assembly.

Parts List

Before beginning, verify that all components listed in your product packaging are present. Typical components include:

• Metal Frame Components (legs, crossbars, seat frame)
• Swing Seat Fabric/Cushion
• Canopy Fabric and Frame
• Hardware (bolts, nuts, washers, spring hangers, anti-slip foot pads)

Assembly Steps

1. Assemble the Base Frame: Connect the main support legs and crossbars using the provided hardware. Ensure all connections are firm. The frame features a stable A-shaped structure.
2. Attach the Swing Seat: Secure the swing seat frame to the main frame using the sturdy spring hangers. Ensure the seat hangs freely and securely.
3. Install the Canopy Frame: Assemble the canopy frame and attach it to the top of the main frame.
4. Drape the Canopy Fabric: Place the canopy fabric over its frame and secure it according to the instructions.
5. Place the Seat Cushion: Position the removable seat cushion on the swing seat. The cushion may have fixing ties to secure it to the frame.
6. Final Check: Double-check all bolts and connections to ensure they are tight. Confirm the anti-slip foot pads are correctly installed on the base of the legs.

Image: Detailed view of the heavy-duty metal frame, highlighting the stable A-shaped structure, sturdy spring hangers, reinforced crossbars, and anti-slip foot pads for enhanced stability.

Operation

Using your RELAX4LIFE Porch Swing Chair is straightforward. Follow these guidelines for optimal comfort and safety.

Seating

The swing is designed to comfortably accommodate up to three people, with a maximum weight capacity of 226.8 kg (500 lbs). The seat features a removable, padded cushion for enhanced comfort, and ergonomically designed curved armrests.

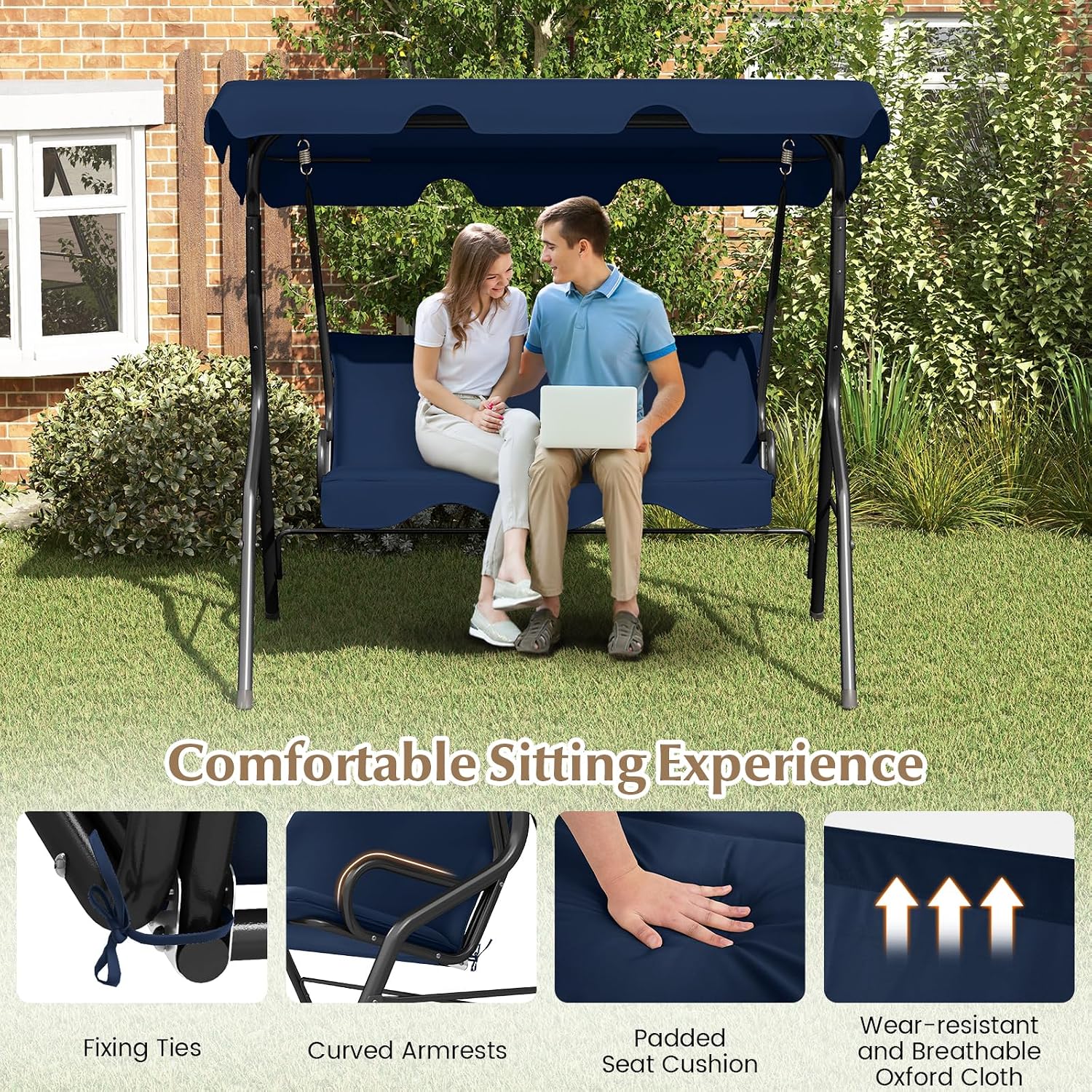

Image: Close-up details of the swing seat, showing fixing ties for the cushion, curved armrests, the padded seat cushion, and the wear-resistant Oxford cloth fabric.

Adjusting the Canopy

The swing is equipped with an adjustable canopy that can tilt up to 80 degrees. To adjust, locate the adjustment knobs or levers on the canopy frame and loosen them. Position the canopy to the desired angle to block direct sunlight, then tighten the knobs or levers to secure it in place.

Image: A diagram illustrating the 80-degree adjustable tilt mechanism of the canopy, allowing for flexible shade positioning.

Maintenance and Care

Proper maintenance ensures the longevity and appearance of your porch swing chair.

Cleaning

• Frame: Wipe the metal frame with a damp cloth and mild soap. Rinse thoroughly and dry immediately to prevent rust. The frame is powder-coated for durability.
• Fabric (Canopy & Cushion): The polyester fabric is sun-proof, anti-fading, and wear-resistant. Clean with a soft brush, mild soap, and water. Rinse thoroughly and allow to air dry completely before storage or re-use. The waterproof surface makes cleaning easy.
• Cushions: The removable cushion can be spot cleaned. Ensure it is completely dry before storing to prevent mildew.

Image: Illustration of the premium polyester fabric, highlighting its sun-proof and waterproof properties, ideal for outdoor use.

Storage

During off-seasons or periods of prolonged non-use, store the swing in a dry, protected area. Consider using a weather-resistant cover to protect it from dust, moisture, and extreme temperatures.

Troubleshooting

Refer to this section for solutions to common issues.

• Swing feels unstable or shifts: Ensure the swing is placed on a completely level surface. Check all frame connections and bolts for tightness. Re-tighten any loose fasteners.
• Canopy does not stay in position: Verify that the canopy adjustment knobs or levers are fully tightened after positioning. Inspect the adjustment mechanism for any damage.
• Squeaking noises during use: Apply a silicone-based lubricant to the spring hangers and any moving metal-on-metal contact points. Avoid oil-based lubricants that can attract dirt.
• Cushion slides off: Utilize the fixing ties on the cushion to secure it to the swing frame. If ties are damaged, consider replacing the cushion or adding new ties.
• Rust spots on frame: Clean any rust spots immediately with a wire brush and apply a rust-inhibiting primer and outdoor-grade paint to prevent further corrosion. Ensure the frame is kept dry after cleaning.

Specifications

Image: A detailed diagram illustrating the overall dimensions of the porch swing chair, including height, width, and depth measurements.

Warranty Information

RELAX4LIFE products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact customer support. Keep your proof of purchase for any warranty claims.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing or damaged parts, please contact RELAX4LIFE customer support. Refer to your product packaging or the seller's information for contact details.

For general inquiries, you may visit the RELAX4LIFE brand page on Amazon: RELAX4LIFE on Amazon
