1. Introduction
Thank you for choosing the Azilaser Infrared Light Therapy Heating Pad with Vibration Massager. This device is designed to provide targeted pain relief, muscle relaxation, and promote overall well-being through a combination of infrared light therapy, red light therapy, heat, and vibration massage. It is suitable for various body parts including the lower back, waist, neck, arms, and legs.
Please read this manual thoroughly before using the product to ensure safe and effective operation. Keep this manual for future reference.
2. Safety Information
To reduce the risk of burns, electrocution, fire, or injury, this product must be used in accordance with the following instructions:
- Do not use on infants, incapacitated individuals, or on sleeping or unconscious persons.
- Do not use on sensitive skin or in the presence of poor circulation.
- Never use the device if the skin is broken, inflamed, or has open wounds.
- Consult a physician before use if you are pregnant, have a pacemaker, diabetes, phlebitis, or other serious medical conditions.
- Do not use while bathing or showering. Keep away from water.
- Unplug the device from the power source when not in use.
- Do not operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution, or injury to persons.
- Never pull the power cord to disconnect from the outlet. Grasp the plug and pull to disconnect.
- Do not use pins or other metallic fasteners with this appliance.
- Do not use if the power cord or plug is damaged.
3. Product Features
The Azilaser Infrared Light Therapy Heating Pad offers a comprehensive solution for pain management and relaxation:
- 5 Levels Vibration Massage: Provides customizable vibration frequencies (S0-S5) to relieve muscle tension and promote relaxation.
- Infrared (IR) and Red Light Therapy: Features 120 visible 660nm red lights and 240 invisible 850nm infrared lights.
- 3 Light Modes: Select between 660nm (Red Lights), 850nm (Infrared Lights), or ALL (both combined).
- 5 Levels of Brightness/Intensity: Adjust light output from L0 to L5 for varying therapeutic needs.
- Adjustable Timer: Set session duration from 5 to 30 minutes.
- Wide Application: Designed for use on the waist, back, neck, arm, wrist, hip, thigh, leg, ankle, and feet.
- Portable Design: Can be powered by an AC adapter or a power bank (not included) for use on the go.
- Adjustable Strap: Fits individuals with a circumference up to 155 cm (60 inches).

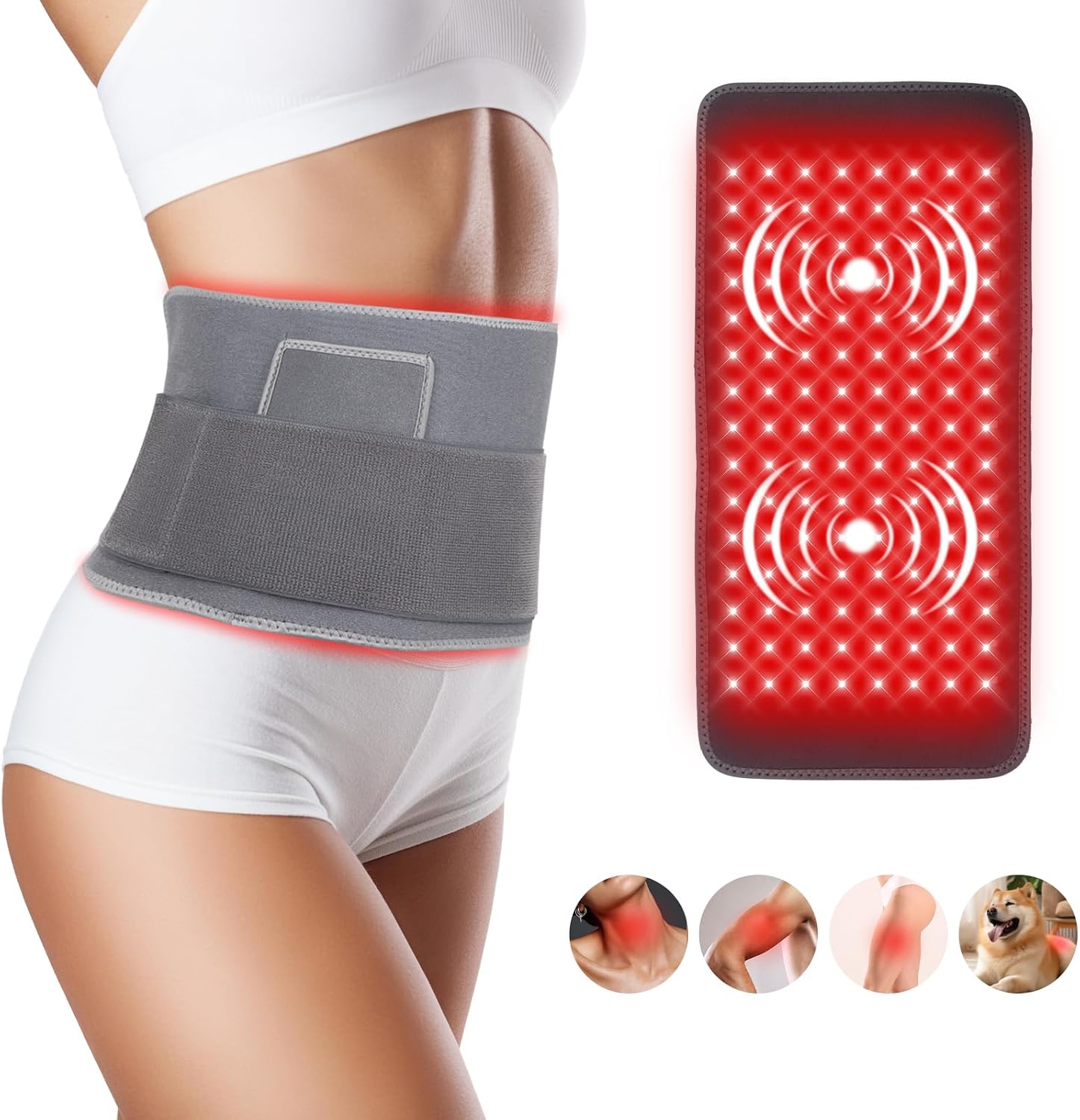

Image: The Azilaser Infrared Light Therapy Heating Pad, showing its flexible design and integrated light panel.
4. Package Contents
Please check the package to ensure all items are present:
- 1 x Infrared/Red Light Therapy Heating Massager Pad
- 1 x Elastic Waistband
- 1 x AC Cable (Power Adapter)
- 1 x Type-C Cable
- 1 x Control Unit
5. Setup
Follow these steps to set up your device:
- Unpack all components from the box.
- Connect the control unit to the therapy pad. Ensure the connectors are securely inserted.
- Choose your power source:
- For wall outlet use: Connect the AC cable to the control unit and plug the adapter into a standard electrical outlet.
- For portable use: Connect the Type-C cable to the control unit and plug the USB-A end into a compatible power bank (not included).
- Place the therapy pad on the desired body area and secure it with the elastic waistband.
Image: Connection diagram for the control unit, therapy pad, and power options (AC adapter or power bank).
6. Operating Instructions
Control Panel Overview
Image: Detailed view of the control unit, illustrating button functions and display.
- POWER Button: Turns the device ON/OFF and adjusts the pulse frequency (10 HZ pulse).
- Right Button (660/850/ALL): Cycles through light therapy modes: 660nm Red Lights, 850nm Infrared Lights, or ALL (both combined).
- +/- Buttons: Adjusts light intensities (brightness/temperature) from L0 (lowest) to L5 (highest).
- VIBRATION Button: Adjusts vibration frequency from S0 (off) to S5 (highest).
- TIMER Button: Sets the session duration to 5, 10, 15, 20, 25, or 30 minutes.
Usage Steps
- Ensure the device is properly connected to a power source.
- Press the POWER button to turn on the device. The default settings will activate.
- Press the Right Button (660/850/ALL) to select your desired light therapy mode.
- Use the +/- buttons to adjust the light intensity (L0-L5) to a comfortable level.
- Press the VIBRATION button to activate and adjust the vibration massage level (S0-S5).
- Press the TIMER button to set your preferred session duration. The device will automatically shut off after the set time.
- To turn off the device manually, press and hold the POWER button.
7. Applications and Usage
The Azilaser therapy belt is versatile and can be applied to various parts of the body for targeted relief:
- Waist & Lower Back: Ideal for general back pain, muscle tension, and menstrual cramps.
- Neck & Shoulder: Helps alleviate stiffness and discomfort in the upper body.
- Arms, Wrists, Thighs, & Legs: Can be wrapped around limbs for localized pain relief and muscle relaxation.
- Abdomen: Useful for stomach discomfort and period pain.
Its portable design allows for use in various settings:
- At home while resting or performing light activities.
- At the office while working.
- During fitness activities at the gym or yoga/pilates outdoors.
- While driving or traveling.
Image: Illustrations of various application areas for the therapy belt, including human body parts and even for pets.
Image: Examples of how the therapy belt can be used in various daily activities and environments.
8. Maintenance and Care
Proper care will extend the life of your device:
- Cleaning: Disconnect the device from power before cleaning. Wipe the surface of the pad with a soft, damp cloth. Do not immerse the pad or control unit in water. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the device in a cool, dry place away from direct sunlight when not in use. Avoid folding the pad tightly to prevent damage to the internal components.
- Handling: Do not pull, twist, or excessively bend the cables. Avoid placing heavy objects on the device.
9. Troubleshooting
If you encounter any issues, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | No power supply; loose connection; faulty cable. | Ensure AC adapter is plugged in or power bank is charged and connected. Check all cable connections are secure. Try a different power outlet or power bank. |
| Lights are not visible. | 850nm mode selected; brightness too low. | The 850nm infrared lights are invisible; you will only feel warmth. Switch to 660nm or ALL mode to see red lights. Increase brightness using the +/- buttons. |
| No vibration. | Vibration level set to S0; motor issue. | Press the VIBRATION button to cycle through levels S1-S5. If still no vibration, contact customer support. |
| Device shuts off unexpectedly. | Timer expired; power supply issue. | Check if the timer has reached its set duration. Ensure stable power supply; if using a power bank, check its charge level. |
10. Specifications
| Feature | Detail |
|---|---|
| Model | B0D8L2P8V |
| Brand | Azilaser |
| Light Wavelengths | 660nm (Red Light), 850nm (Infrared Light) |
| LED Chips | 120 pcs 660nm, 240 pcs 850nm (Total 360 chips) |
| Vibration Levels | 5 (S0-S5) |
| Brightness/Intensity Levels | 5 (L0-L5) |
| Timer Settings | 5, 10, 15, 20, 25, 30 minutes |
| Max Circumference | 155 cm / 60 inches |
| Material | Polyester |
| Package Dimensions | 10 x 7 x 2 inches |
| Weight | 1.2 Pounds |
11. Warranty and Support
Azilaser is committed to providing high-quality products. For any questions, concerns, or warranty inquiries regarding your Infrared Light Therapy Heating Pad, please contact our customer support team. Details for contacting support are typically found on the product packaging or our official website.
Please retain your proof of purchase for warranty validation.
