Lykus HC-5030 Waterproof Hard Case Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper use, setup, and maintenance of your Lykus HC-5030 Waterproof Hard Case. Designed for robust protection, this case is suitable for electronics, cameras, and other sensitive equipment, ensuring safety in various environments.

Image 1.1: The Lykus HC-5030 Waterproof Hard Case. This image displays the closed black hard case from an angled top-front view, highlighting its robust construction and latches.

2. Package Contents

Verify that all items are present in your package:

• Lykus HC-5030 Hard Case
• Customizable Pick-and-Pluck Foam Inserts (6 pieces)

3. Key Features

The Lykus HC-5030 case incorporates several design elements for enhanced protection and user convenience:

• Durable Construction: Made from new Polypropylene resin for ruggedness.
• IP67 Watertight Seal: Certified to protect against water, dust, mud, and sand.
• Customizable Foam: Six pieces of pre-cut foam allow for easy customization to fit your items.
• Anti-Scratch Surface: Designed to resist surface damage.
• Silicone Rubber Handle: Provides a comfortable and secure grip.
• Big Firm Latches: Four robust latches (two front, two side) ensure secure closure.
• Automatic Air Pressure Valve: Automatically balances internal air pressure, crucial for air travel.
• One Entire Steel Hinge: Offers a stronger and more durable connection compared to cases with multiple smaller hinges.
• Padlock Ready: Features reinforced padlock holes (0.3 inch / 0.75 cm diameter) for added security.

Image 3.1: Waterproof capability. The case is shown partially submerged in water, demonstrating its ability to protect contents up to 3.3 feet (1 meter) underwater.

Image 3.2: Crushproof design. A person is standing on the case, which is floating in water, illustrating its ability to withstand significant pressure.

Image 3.3: Dustproof protection. The case is shown on a sandy surface, indicating its sealed design prevents dirt and dust ingress.

Image 3.4: Close-up of the silicone rubber handle, designed for comfortable and secure carrying.

Image 3.5: Detail of the automatic air pressure valve, which regulates internal pressure changes, especially during altitude variations.

Image 3.6: Close-up of one of the large, firm latches, demonstrating its secure locking mechanism.

Image 3.7: View of the continuous steel hinge, providing robust and reliable lid attachment.

Image 3.8: The case features a padlock hole, shown with a padlock inserted, for enhanced security.

4. Setup and Foam Customization

The HC-5030 case comes with pre-cut, customizable foam inserts to secure your equipment. Follow these steps to create a custom fit:

1. Prepare Your Items: Lay out all items you intend to store in the case on a flat surface. Arrange them as you would like them to sit inside the case, ensuring a minimum distance of 0.4 inches (1 cm) between items.
2. Measure Your Layout: Measure the length, width, and height of your arranged items. The height of the tallest item should be equal to or less than 14 inches (35.5 cm) to fit within the case's base depth.
3. Assess Foam Dimensions: The usable foam area (pluckable area) is 18.1 inches (46 cm) in length and 14.6 inches (37 cm) in width. The foam consists of 31 squares per row and 25 squares per column, with each square measuring 0.58 inches (1.48 cm) in length.
4. Customize the Foam: The foam layers are designed for easy customization. Gently tear out the pre-cut foam squares around the outline of your items. Remove only the necessary foam to create a snug fit. The case includes multiple layers of pluckable foam and a protective sponge layer for the lid.

Image 4.1: Illustration of foam customization. This image shows the case open with its foam inserts, demonstrating how to tear and pull out pre-cut foam sections to create custom compartments. It also highlights the protective sponge in the lid and multiple foam layers.

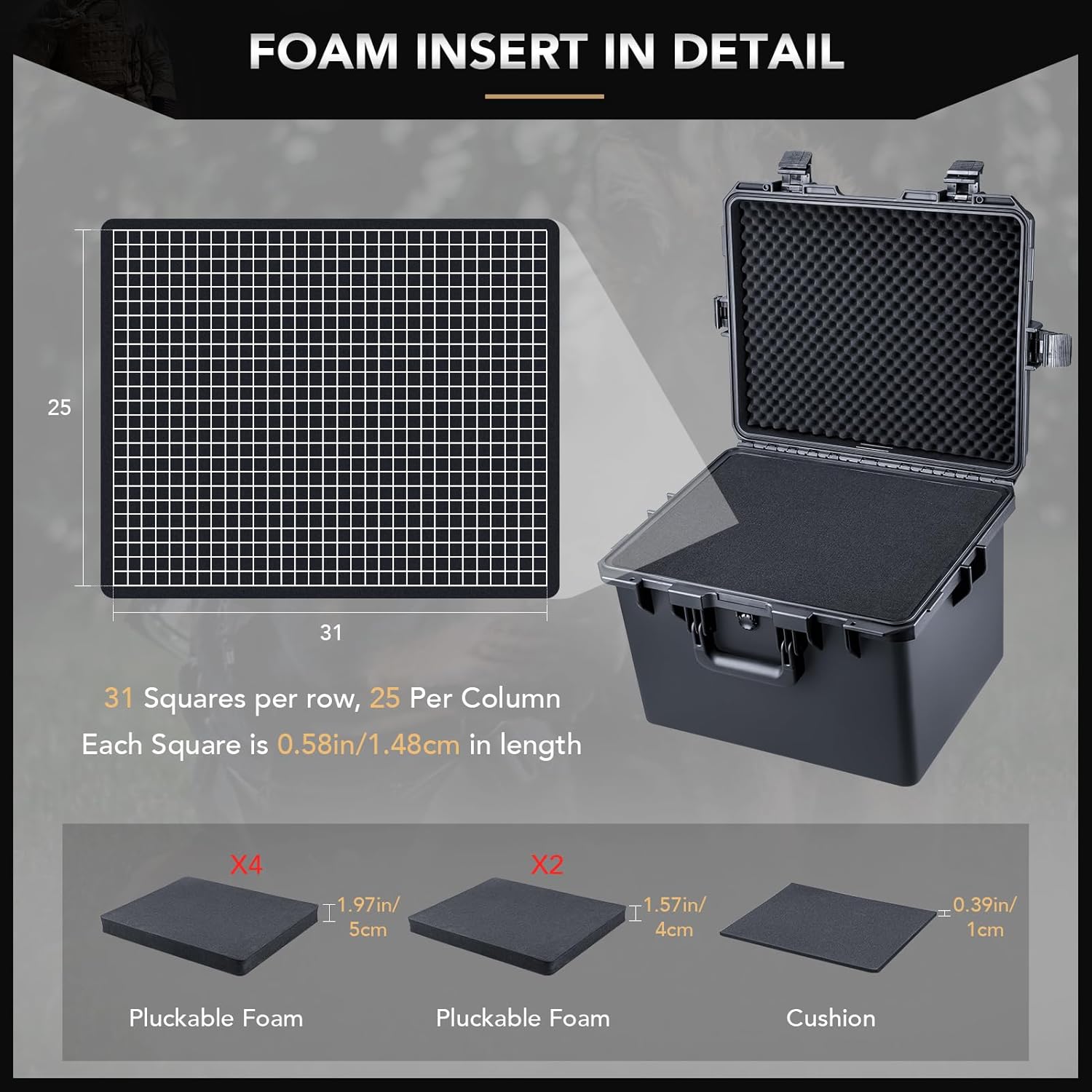

Image 4.2: Detailed view of the foam insert grid. This image provides a visual representation of the foam's grid pattern, indicating 31 squares per row and 25 squares per column, with each square being 0.58 inches (1.48 cm) in length. It also shows the different foam layer thicknesses.

Image 4.3: Diagram illustrating exterior, interior, and usable foam dimensions. This visual aid helps users understand the various measurements of the case and the effective area for foam customization.

Image 4.4: Detailed dimensions of the HC-5030 case. This image shows the base depth (11.6 in / 29.5 cm) and lid depth (2.4 in / 6 cm), along with the pluckable area (18.1 in x 14.6 in / 46 cm x 37 cm). It emphasizes that the object's height must be equal to or less than 14 inches (35.5 cm).

Image 4.5: Guide for measuring items for case fit. This image provides a four-step visual guide on how to measure the length, width, and height of items to ensure they fit within the case's dimensions.

5. Operation

5.1 Opening and Closing the Case

To open the case, release all four latches by pulling them outwards and upwards. To close, align the lid with the base and firmly press down on each latch until it clicks securely into place. Ensure all latches are fully engaged to maintain the watertight seal.

5.2 Using the Automatic Air Pressure Valve

The automatic air pressure valve is designed to equalize the internal pressure of the case with the external atmospheric pressure. This is particularly useful when traveling by air or changing altitudes, preventing vacuum lock or pressure buildup. The valve operates automatically and does not require manual adjustment.

5.3 Securing Your Case

For added security, you can attach padlocks to the reinforced padlock holes located on the front of the case. The holes have a diameter of 0.3 inches (0.75 cm).

6. Maintenance

Proper maintenance ensures the longevity and protective capabilities of your Lykus HC-5030 case.

• Cleaning: Clean the exterior of the case with mild soap and water. Avoid abrasive cleaners or solvents that could damage the polypropylene resin.
• Seal Inspection: Periodically inspect the rubber gasket around the lid for any signs of wear, cracks, or debris. A clean, intact gasket is crucial for maintaining the watertight seal.
• Foam Care: The foam inserts can be gently cleaned with a damp cloth if necessary. Allow them to air dry completely before placing them back in the case.
• Storage: Store the case in a cool, dry place away from direct sunlight when not in use.

7. Troubleshooting

• Difficulty Opening/Closing Latches: Ensure no debris is obstructing the latches. If the case has been exposed to significant pressure changes (e.g., air travel), the automatic pressure equalization valve should resolve this. If not, gently press the valve to release any residual pressure.
• Water or Dust Ingress: Check the rubber gasket for damage or debris. Ensure all four latches are fully and evenly engaged when closing the case.
• Foam Not Fitting Items: Re-evaluate your item arrangement and foam customization. Ensure you have removed enough foam for a snug fit without compressing items excessively. Refer to the 'Setup and Foam Customization' section for detailed guidance.

8. Specifications

9. Warranty and Support

The Lykus HC-5030 Waterproof Hard Case is backed by a lifetime limited warranty, ensuring quality and durability. For warranty claims, product support, or additional information, please visit the official Lykus store or contact customer service.

Official Lykus Store: Visit the Lykus Store
