MOTO1988 341cc Engine Rebuild Kit Instruction Manual

1. Product Overview

This MOTO1988 341cc Engine Rebuild Kit is designed for standard replacement of internal engine components in Club Car Gas Golf Carts equipped with KF-82 341cc side valve engines manufactured between 1986 and 1991. The kit includes essential components for a complete engine top-end and bottom-end rebuild.

Compatible Models: Club Car Gas Golf Cart KF-82 341cc side valve engines (1986-1991).

Manufacturer Part Numbers: 1012515, 1012962, 1012511, 1012518, 92049-2057, 1012519.

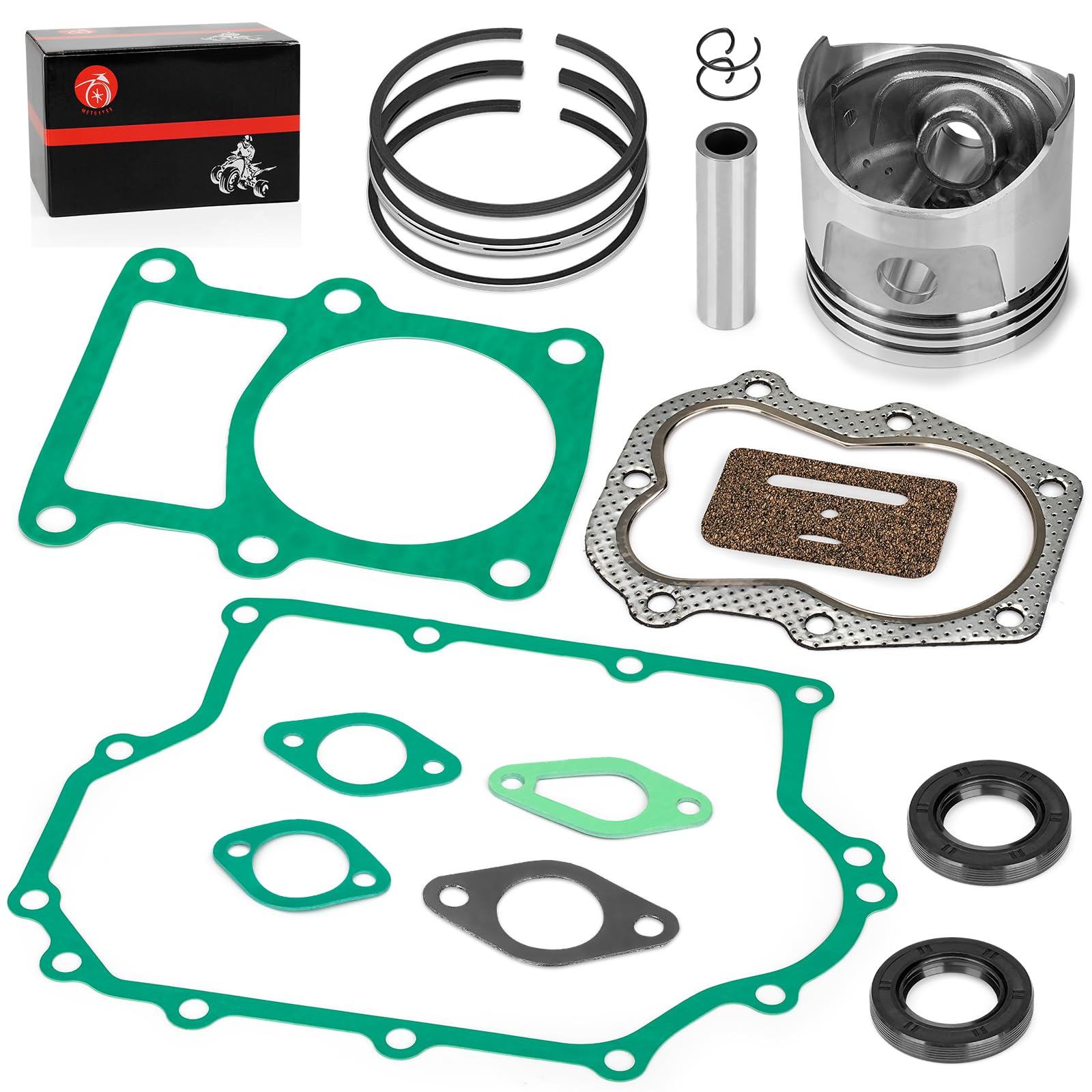

Image 1.1: Overview of the MOTO1988 341cc Engine Rebuild Kit components, including piston, rings, wrist pin, clips, and various gaskets.

Package Contents:

• 1x Standard Piston, Rings, Wrist Pin & Clips
• 1x Cylinder Head Gasket
• 1x Cylinder Base Gasket
• 1x Crankcase Gasket
• 1x Exhaust Gasket
• 2x Crankcase Seals
• 1x Carburetor Gasket
• 1x Pump Cover Gasket
• 1x Tappet Cover Gasket
• 1x Carburetor / Air Cleaner Gasket

Image 1.2: Visual representation of all components included in the rebuild kit, alongside a list of items.

2. Setup and Installation Guidelines

Installation of engine rebuild components requires specialized knowledge and tools. It is highly recommended that this kit be installed by a qualified mechanic or an individual with extensive experience in engine repair. Incorrect installation can lead to engine damage or malfunction.

Before Installation:

1. Verify Compatibility: Confirm that your golf cart's make, model, and engine type (Club Car Gas Golf Cart KF-82 341cc side valve engine, 1986-1991) match the specifications for this kit. Refer to your vehicle's service manual for exact engine identification.
2. Inspect Components: Before beginning the rebuild, carefully inspect all components in the kit for any signs of damage or manufacturing defects. Ensure all gaskets are pliable and intact.
3. Gather Tools: Ensure you have all necessary tools, including torque wrenches, piston ring compressors, gasket scrapers, and appropriate lubricants.
4. Clean Engine Components: Thoroughly clean all engine parts that will be reused, removing old gasket material, carbon deposits, and debris.

Image 2.1: A Club Car gas golf cart, illustrating the type of vehicle this rebuild kit is compatible with.

General Installation Steps (Consult Service Manual for Details):

• Follow the specific disassembly and assembly procedures outlined in your Club Car KF-82 engine service manual.
• Install the piston with new rings, ensuring correct ring orientation and gap. Use a piston ring compressor for proper installation into the cylinder.
• Replace all gaskets and seals with the new components from the kit. Apply appropriate gasket sealants where specified by the service manual.
• Ensure all fasteners are torqued to the manufacturer's specifications using a calibrated torque wrench.
• Lubricate all moving parts during assembly with clean engine oil.

3. Operating After Rebuild

After completing the engine rebuild, proper break-in procedures are crucial for the longevity and performance of the engine. Failure to follow break-in guidelines can lead to premature wear or damage.

Break-in Procedure Recommendations:

1. Initial Start-up: Ensure the engine has adequate oil and coolant (if applicable) before starting. Start the engine and allow it to idle for a short period, checking for any leaks or unusual noises.
2. Vary Engine Speed: For the first few hours of operation (typically 5-10 hours), avoid prolonged periods of constant engine speed. Vary the RPMs to allow piston rings to seat properly against the cylinder walls.
3. Avoid Heavy Loads: Do not subject the rebuilt engine to heavy loads or full throttle operation during the break-in period. Gradually increase load and speed over time.
4. First Oil Change: Perform an oil and filter change after the initial break-in period (e.g., 5-10 hours of operation) to remove any metallic particles or debris generated during the seating process.

4. Maintenance

Regular maintenance is essential to ensure the continued reliable operation of your rebuilt engine. Adhere to the maintenance schedule outlined in your Club Car golf cart's owner's manual.

Key Maintenance Practices:

• Oil Changes: Perform regular engine oil and filter changes using the recommended oil type and viscosity.
• Air Filter: Inspect and clean or replace the air filter regularly to ensure proper air intake and prevent contaminants from entering the engine.
• Spark Plug: Check and replace the spark plug as per the manufacturer's recommendations.
• Fuel System: Ensure the fuel filter is clean and the fuel system is free of contaminants.
• Valve Clearance: Periodically check and adjust valve clearances if required by your engine's service manual.

5. Troubleshooting

This section provides general guidance for common issues that may arise after an engine rebuild. Always consult a qualified mechanic for complex diagnostics and repairs.

Common Issues and Potential Solutions:

6. Specifications

• Brand: MOTO1988
• Model Number: 1012515
• Engine Displacement: 341cc
• Engine Type: KF-82 Side Valve
• Compatible Vehicle Years: 1986-1991
• Fuel Type: Gasoline
• Piston Type: Standard (STD)

Key Component Dimensions:

Image 6.1: Detailed dimensions for the piston, wrist pin, and crankcase seal included in the kit. Please allow for minor measurement errors (1-3 inches as indicated in the source image).

7. Official Product Video

Watch this short video for a visual overview of the MOTO1988 341cc Engine Rebuild Kit components.

8. Warranty and Support

MOTO1988 stands behind the quality of its products.

• Product Warranty: This product comes with a 1-year (365 days) product service warranty from the date of purchase.
• Customer Service: For any questions, concerns, or assistance, please contact our 24-hour friendly customer service.
• Returns and Exchanges: A 30-day return and exchange policy is available.
• Brand Store: For more products and information, visit the MOTO1988 Store.
