Introduction
This manual provides essential information for the safe and efficient operation of your new Whirlpool 308 L Convertible Frost Free Double Door Refrigerator. Please read these instructions thoroughly before installation and use, and retain them for future reference.

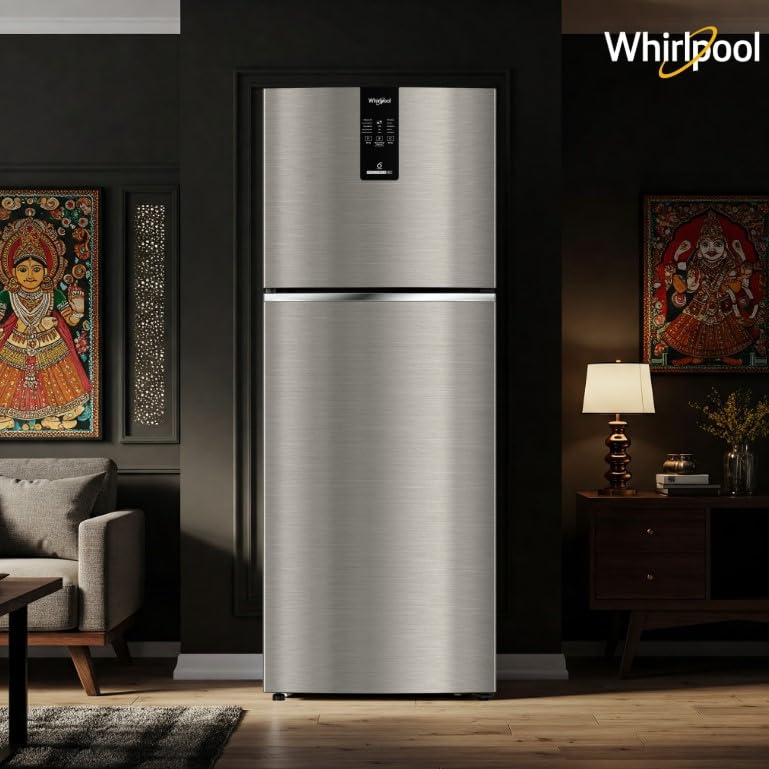

Front view of the Whirlpool 308 L Convertible Frost Free Double Door Refrigerator.
Safety Information
To reduce the risk of fire, electric shock, or injury, follow these basic precautions:
- Ensure the refrigerator is properly grounded.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings clear of obstruction.
- Do not damage the refrigerant circuit.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Setup and Installation
1. Unpacking
Carefully remove all packaging materials, including tape and protective films. Inspect the refrigerator for any damage incurred during transit. Report any damage to your retailer immediately.
2. Placement
- Place the refrigerator on a firm, level floor.
- Ensure adequate air circulation around the appliance. Maintain a minimum clearance of 10 cm (4 inches) at the back and sides, and 30 cm (12 inches) at the top.
- Avoid direct sunlight and heat sources (e.g., stoves, heaters).
- The product dimensions are 71.6 cm (Depth) x 61.5 cm (Width) x 167.6 cm (Height). Ensure sufficient space for door opening.
Image showing the dimensions of the refrigerator and its energy efficiency label.
3. Leveling
Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
4. Power Connection
Connect the refrigerator to a dedicated, properly grounded electrical outlet. This model features Stabilizer Free Operation within a voltage range of 95V - 300V, providing protection against voltage fluctuations.
5. Initial Cleaning
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.
Operating Instructions
1. Control Panel and Temperature Settings
The control panel is located on the exterior of the freezer door. It allows you to adjust temperature settings and select various operating modes.
Close-up of the refrigerator's control panel, indicating the 5-in-1 convertible modes.
Refer to the detailed instructions in your physical user manual for specific button functions and temperature adjustment procedures.
2. Convertible 5-in-1 Modes
Your refrigerator offers five convertible modes for flexible storage. These modes allow you to optimize the freezer and refrigerator compartments based on your needs.
- All Season Mode: Standard operation for both freezer and refrigerator.
- Chef Mode: Optimized for storing cooked food and ingredients.
- Dessert Mode: Ideal for desserts and frozen treats.
- Party Mode: Provides enhanced cooling for beverages and party supplies.
- Deep Freeze Mode: For extended preservation of frozen items.

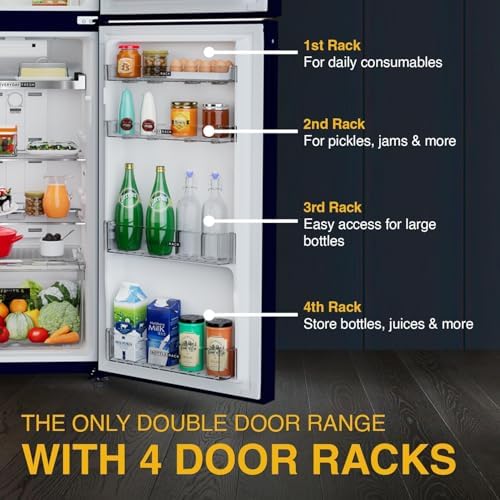

Interior view of the refrigerator, showcasing shelves and storage compartments.
3. Key Features and Technologies
- Intellisense Inverter Technology: Ensures energy-efficient operation and consistent cooling, with reliable performance.
Illustration of Intellisense Inverter Technology for efficient cooling.
- Fast Ice Making: Produces ice quickly, useful for immediate needs.
Visual representation of the fast ice making capability.
- 2X Longer Vitamin Preservation: Helps retain vitamins in fruits and vegetables for extended periods.
An apple illustrating the 2X longer vitamin preservation feature.
- 15 Days of Extended Freshness: Maintains freshness of produce in both fridge and freezer compartments.
Lettuce demonstrating the 15 days of extended freshness feature.
- 7 Days of Dairy Freshness: Specialized conditions to keep dairy products fresh for up to 7 days.
Assortment of dairy products illustrating the 7 days of dairy freshness feature.
- 99.9% Bacterial Growth Prevention: Advanced technology to inhibit bacterial growth in the vegetable crisper.
Vegetable crisper highlighting the 99.9% bacterial growth prevention feature.
- Prevent Excessive Ripening of Fruits and Vegetables: Helps maintain optimal ripeness.
Comparison of apples illustrating the prevention of excessive ripening.
- 40% Faster Bottle Cooling: Dedicated bottle storage for quicker chilling.
Bottles in a rack demonstrating 40% faster cooling.
- Ice Twister and Collector: Convenient mechanism for dispensing ice cubes.
Diagram of the ice twister and collector system.
Maintenance
1. Cleaning
- Interior: Clean regularly with a solution of mild soap and warm water. Wipe dry with a soft cloth. Remove shelves and drawers for thorough cleaning.
- Exterior: Wipe surfaces with a soft, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner.
- Door Seals: Clean door gaskets regularly to ensure a tight seal.
- Condenser Coils: Periodically clean the condenser coils (located at the back or bottom) to maintain efficiency. Unplug the refrigerator before cleaning.
2. Defrosting
This is a Frost Free refrigerator, meaning manual defrosting of the freezer compartment is generally not required. The system automatically prevents ice buildup. If excessive frost does accumulate, contact customer service.
3. Power Saving Tips
- Avoid opening doors frequently or for extended periods.
- Allow hot foods to cool before placing them in the refrigerator.
- Ensure door seals are clean and intact.
- Utilize the Mini Ref Mode for up to 50% energy saving when less storage is needed.
Symbolic image representing 50% energy saving with Mini Ref Mode.
Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not operating | No power, plug loose, circuit breaker tripped. | Check power supply, ensure plug is secure, reset circuit breaker. |
| Temperature too warm | Door left open, warm food added, temperature setting too high, poor ventilation. | Ensure door is closed, allow food to cool, adjust temperature, check clearances. |
| Excessive noise | Refrigerator not level, items vibrating inside, normal operating sounds. | Level the appliance, rearrange items, consult manual for normal sounds. |
| Water on floor | Drain tube clogged, drip tray overflowing. | Clear drain tube, empty drip tray. |
If the problem persists after attempting these solutions, please contact Whirlpool customer service.
Specifications
| Feature | Detail |
|---|---|
| Brand | Whirlpool |
| Model | IF INV 355 TITAN STEEL CONV |
| Capacity | 308 Litres |
| Energy Rating | 3 Star (as per BEE guidelines 1st Jan 2023) |
| Annual Energy Consumption | 236 Kilowatt Hours Per Year |
| Refrigerator Fresh Food Capacity | 235 Litres |
| Freezer Capacity | 73 Litres |
| Defrost System | Frost Free |
| Installation Type | Freestanding |
| Dimensions (LxWxH) | 71.6 x 61.5 x 167.6 Centimeters |
| Item Weight | 57 kg |
| Voltage | 230 Volts |
| Special Features | Door Lock, Stabilizer Free Operation (95V-300V), 5-in-1 Convertible Modes, Intellisense Inverter Technology |
| Shelf Type | Toughened Glass |
| Included Components | Refrigerator, Instruction Manual, Warranty Card |
Warranty and Support
Warranty Information
Your Whirlpool Refrigerator comes with a 1-year product warranty and a 10-year compressor warranty from the date of purchase. Please refer to the warranty card included with your product for full terms and conditions.
Customer Support
For service, technical assistance, or to register your product, please contact Whirlpool customer support. Contact details can be found on your warranty card or the official Whirlpool website.
Manufacturer: Whirlpool of India Ltd., Plot No. A-4, MIDC Ranjangaon, Taluka Shirur, Dist: Pune, Maharashtra 412220, India.
