SODI Qi2-Certified 3-in-1 Foldable Wireless Charging Station with Night Light Instruction Manual

1. Introduction

Thank you for choosing the SODI Qi2-Certified 3-in-1 Foldable Wireless Charging Station. This device is designed to provide efficient and convenient wireless charging for your iPhone, Apple Watch, and AirPods simultaneously. It also features an adjustable night light and a portable, foldable design. Please read this manual carefully before use to ensure proper operation and safety.

2. Package Contents

Verify that all items are present in your package:

1 x Foldable Wireless Charging Station with Night Light
1 x 20W Fast Adapter
1 x USB-C to USB-C Cable (3.4 ft / 1m)
1 x User Manual

3. Product Overview

Familiarize yourself with the components of your charging station.

Video: An instructional guide video demonstrating the features and setup of the SODI Qi2 3-in-1 Wireless Charging Station.

Diagram of SODI 3-in-1 Wireless Charging Station with labeled parts

Image: A diagram illustrating the various parts of the charging station, including the iPhone wireless charging area, Apple Watch wireless charging area, AirPods wireless charging area, Night Light, Night Light Button, LED Indicator, and Type C Input Port.

Key Components:

iPhone Wireless Charging Area: Magnetic pad for Qi2-compatible iPhones.
Apple Watch Wireless Charging Area: Dedicated spot for Apple Watch charging.
AirPods Wireless Charging Area: Flat pad for wireless charging cases.
Night Light: Integrated LED light with adjustable brightness.
Night Light Button: Controls the night light settings.
LED Indicator: Shows charging status.
Type C Input Port: Connects the charging station to the power adapter.

4. Setup Instructions

Unfold the Charging Station: Gently unfold the charging station to its upright position. Ensure the magnetic phone charging pad is securely in place.
Connect Power: Insert the provided USB-C to USB-C cable into the Type C Input Port on the charging station. Connect the other end of the cable to the 20W Fast Adapter, then plug the adapter into a wall outlet.
Power On: The LED indicator will light up briefly, indicating the station is powered on and ready for use.

SODI 3-in-1 Wireless Charging Station in its unfolded state, ready for use.

Image: The SODI 3-in-1 Wireless Charging Station unfolded and connected to power, showing its readiness for charging devices.

5. Operating Instructions

5.1 Charging Your Devices

The SODI charging station supports simultaneous charging for up to three devices:

For iPhone (15W Max): Place your Qi2-compatible iPhone (iPhone 12 series and newer) onto the magnetic charging pad. The phone will snap into place. A charging animation will appear on your iPhone screen.
For AirPods (5W): Place your AirPods (with wireless charging case) onto the flat charging pad at the base. The LED indicator for AirPods will illuminate.
For Apple Watch (3W): Place your Apple Watch onto the dedicated watch charging module. Ensure it aligns correctly for charging.

Note: For Android phones, a magnetic ring must be attached to the back of the phone for normal use (magnetic ring not included). Smartwatch charging is not compatible with Android watches.

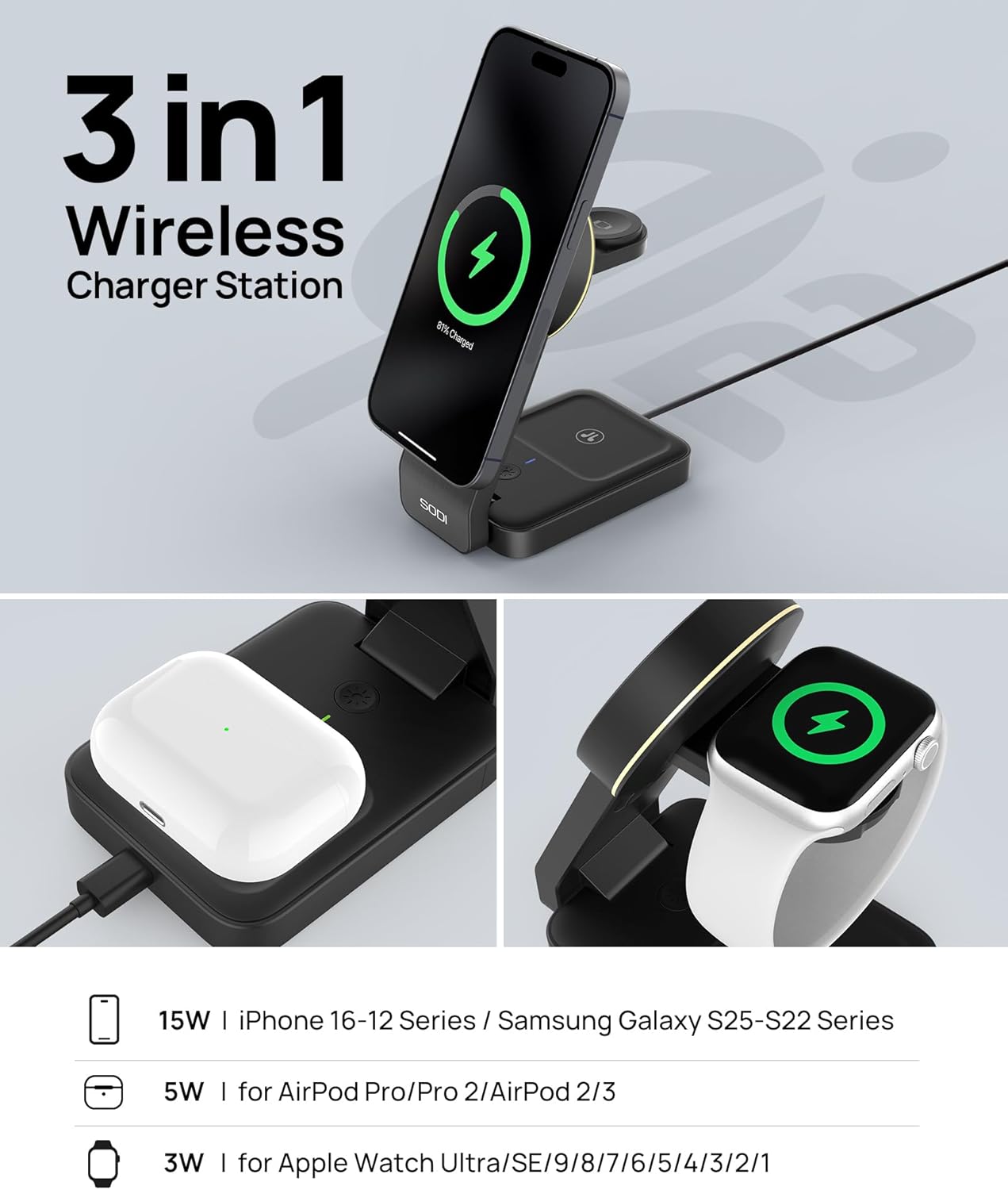

SODI 3-in-1 Wireless Charging Station charging an iPhone, Apple Watch, and AirPods simultaneously.

Image: The charging station actively charging an iPhone, Apple Watch, and AirPods, demonstrating its 3-in-1 capability.

iPhone charging at 15W on SODI Qi2 charger, showing 2X faster charging compared to 7.5W chargers.

Image: An iPhone charging on the magnetic pad, highlighting the 15W Qi2 fast charging capability and its speed advantage.

5.2 Night Light Operation

The charging station features a 3-level adjustable LED night light:

Turn On/Off: Press the Night Light Button once to turn the light on or off.
Adjust Brightness: With the light on, press the Night Light Button repeatedly to cycle through High, Medium, and Low brightness levels.
Breathing Light Mode: Some models may feature a breathing light mode, which can be activated by a long press or specific sequence (refer to product-specific details if applicable).

SODI 3-in-1 Wireless Charging Station with its 3-level adjustable night light illuminated.

Image: The charging station on a nightstand with its adjustable night light providing ambient illumination.

5.3 Viewing Options

The magnetic phone charging pad allows for flexible viewing angles:

Vertical Mode: Ideal for video calls or browsing.
Horizontal Mode: Perfect for watching videos or using StandBy mode.
Adjustable Angle: The phone charging arm can be adjusted to various angles (e.g., 65° to 115° as shown in product images) for optimal viewing.

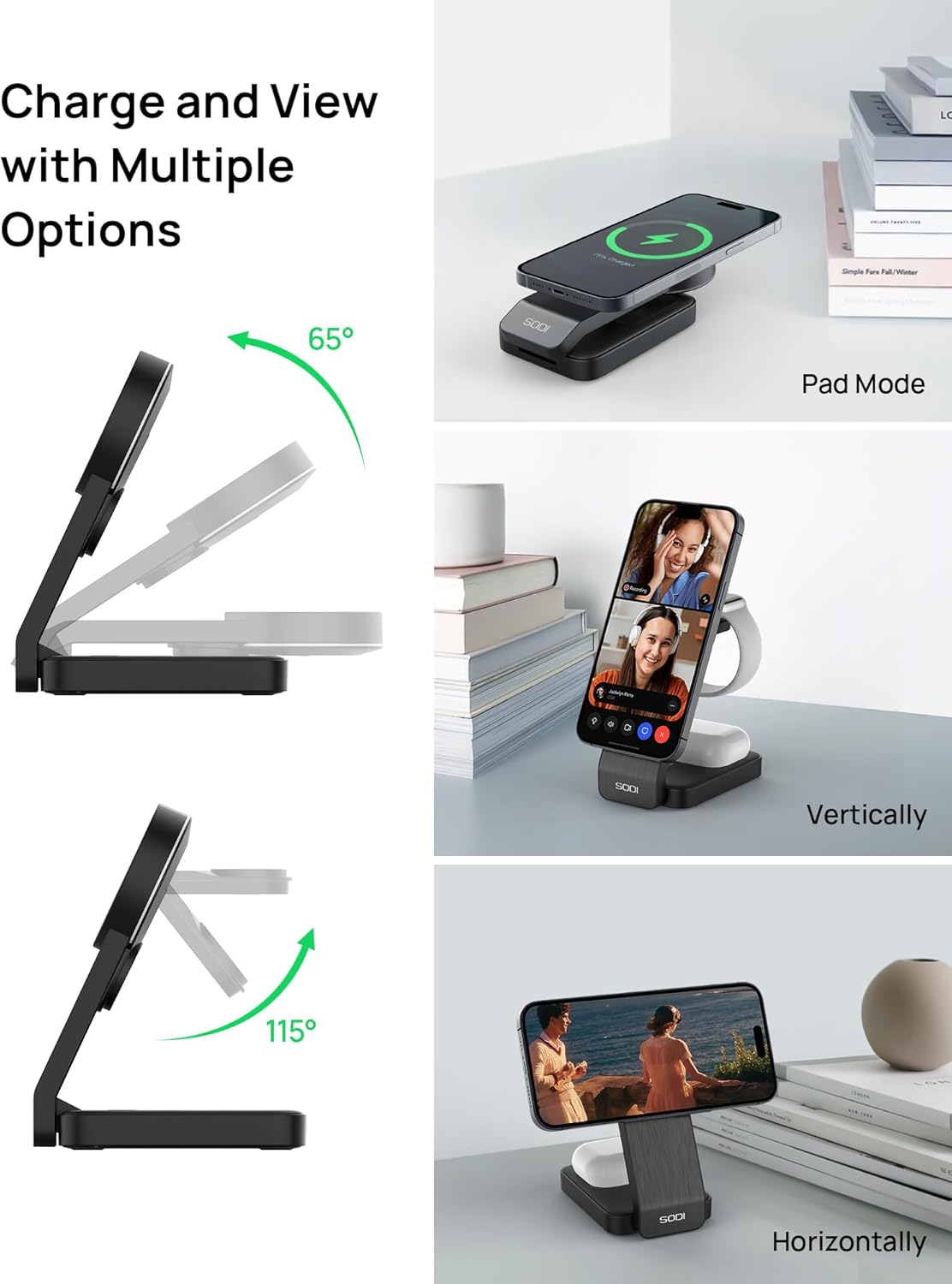

SODI 3-in-1 Wireless Charging Station showing various adjustable viewing angles for a smartphone.

Image: Demonstrates the flexibility of the charging station, allowing a smartphone to be positioned vertically or horizontally with adjustable angles for different viewing needs.

Video: A demonstration of the 3-in-1 charging station's features, including its ability to charge multiple devices and its adjustable viewing options.

5.4 Portability

The charging station is designed to be foldable and portable, making it ideal for travel. Simply fold the device flat for easy storage in a bag or luggage.

SODI 3-in-1 Wireless Charging Station folded for portability, being placed into a laptop bag.

Image: The charging station in its compact, folded state, being placed into a bag, illustrating its travel-ready design.

6. Compatibility

The SODI Qi2-Certified 3-in-1 Foldable Wireless Charging Station is compatible with a wide range of devices:

iPhones: iPhone 16 Pro Max, iPhone 16 Pro, iPhone 16, iPhone 16 Plus, iPhone 15 Pro Max, iPhone 15 Pro, iPhone 15, iPhone 15 Plus, iPhone 14 Pro Max, iPhone 14 Pro, iPhone 14, iPhone 14 Plus, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 12 series.
Android Phones: Samsung Galaxy S25 Ultra, S25+, S25, S24 Ultra, S24+, S24, S23 Ultra, S23+, S23, S22, S22+, S22 Ultra, S21 FE, Z Fold 4, Z Flip 4, Z Fold 3, Z Flip 3, S21, S21 Ultra, S20, S20 Ultra, S10, Note 10, Note 9 and more. (Note: Requires a magnetic ring for Android phones, not included).
AirPods: AirPods 3, AirPods Pro 2, AirPods Pro, AirPods (3rd generation), AirPods 2 Wireless Charging Case.
Apple Watch: Apple Watch Ultra/SE/9/8/7/6/5/4/3/2/1. (Note: Not compatible with Android watches).

For optimal wireless charging, we recommend removing thick phone cases. The station supports charging through most thick cases, but maximum power is achieved without them.

7. Safety Information

To ensure safe and efficient use of your charging station, please observe the following:

Use only the provided 20W Fast Adapter and USB-C cable. Using incompatible power sources may damage the device or pose a safety risk.
Do not disassemble, modify, or repair the device yourself. Contact customer support if service is required.
Keep the charging station away from water, moisture, and extreme temperatures.
Avoid placing metal objects, credit cards, or other foreign objects between the charging surface and your device, as this can interfere with charging and potentially damage the device.
The built-in MCU chip and triple cooling system prevent overheating. However, ensure adequate ventilation around the charger during use.
This device is designed for indoor use only.

Exploded view of SODI 3-in-1 Wireless Charging Station showing internal multi-protection system components.

Image: An exploded view of the charging station, highlighting its internal components and multi-protection system, including temperature control, foreign object detection, over-voltage protection, and over-charge protection.

8. Maintenance

Cleaning: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the surface of the charging station. Do not use abrasive cleaners or solvents.
Storage: When not in use, store the charging station in a cool, dry place, away from direct sunlight and extreme temperatures. Its foldable design makes it easy to store compactly.

9. Troubleshooting

Problem	Possible Cause	Solution
Device not charging.	Incorrect placement. Incompatible device/case. Power adapter/cable issue. Foreign object detected.	Ensure device is centered on the charging area. Verify device compatibility (refer to Section 6). Remove thick cases or metal attachments. Check if the power adapter and cable are securely connected and functioning. Use the provided accessories. Remove any foreign objects from the charging surface.
Slow charging.	Thick phone case. Background apps. Non-optimal power source.	Remove phone case for maximum charging speed. Close unnecessary background applications on your device. Ensure you are using the provided 20W Fast Adapter.
Night light not working.	Not powered on. Button malfunction.	Ensure the charging station is connected to power. Press the Night Light Button to cycle through settings. If still unresponsive, contact support.
Device gets warm during charging.	Normal operation. Poor ventilation.	It is normal for wireless charging to generate some heat. The device has built-in temperature control. Ensure the charging station is placed on a flat surface with good airflow.

10. Specifications

Feature	Detail
Model Number	W79
Product Dimensions	5.39 x 1.26 x 2.68 inches
Item Weight	7.9 ounces
Input Voltage	9 Volts
Phone Output	15W (Max, Qi2 Certified)
AirPods Output	5W
Apple Watch Output	3W
Connector Type	USB Type C
Special Features	Fast Charging, Magsafe Compatible, Multi Device Charging, Travel, Wireless Charging, 3-level Adjustable Night Light, Foldable Design
Manufacturer	Shenzhen Meskey Technology co., Ltd

11. Warranty and Support

For warranty information or technical support, please refer to the warranty card included in your package or contact SODI customer service through the official website or your retailer. Keep your purchase receipt for warranty claims.

Contact Information:

Brand Store: SODI Amazon Store
Refer to the product packaging or official website for direct customer service contact details.
