Amig Portable Double Camping Stove Model 25041 Instruction Manual

1. Introduction

Thank you for choosing the Amig Portable Double Camping Stove Model 25041. This compact and lightweight gas stove is designed for outdoor cooking, perfect for camping, caravanning, excursions, and other outdoor events. It features two independent burners and a stainless steel surface for efficient and convenient meal preparation. Please read this manual carefully before use to ensure safe and optimal operation.

Image 1.1: Amig Portable Double Camping Stove with Plancha.

2. Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or carbon monoxide poisoning, which could cause property damage, personal injury, or death.

• FOR OUTDOOR USE ONLY: Never operate this appliance indoors or in an enclosed space. Ensure adequate ventilation.
• GAS CARTRIDGES: Use only B-250 butane gas cartridges. Ensure the cartridge is correctly installed and sealed before use. Do not use damaged or leaking cartridges.
• FLAMMABLE MATERIALS: Keep the stove clear of flammable materials, gasoline, and other combustible vapors and liquids. Maintain a safe distance from walls, tents, and other structures.
• STABILITY: Always place the stove on a firm, level, and non-combustible surface.
• CHILDREN AND PETS: Keep children and pets away from the stove during operation and while it is cooling down.
• HOT SURFACES: The stove and cooking surfaces become very hot during use. Use heat-resistant gloves and allow the appliance to cool completely before handling or cleaning.
• LEAK CHECK: Before each use, check for gas leaks. Apply soapy water to connections; bubbles indicate a leak. Do not use if a leak is detected.
• MAINTENANCE: Do not modify the appliance. Any repairs should be performed by qualified personnel.

3. Package Contents

Carefully unpack the box and ensure all items are present and undamaged. The package should contain:

• Amig Portable Double Camping Stove (Model 25041)
• Plancha / Grill Plate
• Removable Drip Tray
• Carry Case (for transport and storage)

Note: Butane gas cartridges (B-250) are not included and must be purchased separately.

Image 3.1: The Amig Portable Double Camping Stove stored in its carry case.

4. Setup

1. Choose a Location: Select a flat, stable, non-combustible surface outdoors, away from any flammable materials, tents, or structures. Ensure good ventilation.
2. Open the Stove: Open the lid of the stove. The lid can act as a windbreak.
3. Install Gas Cartridge:
   • Open the gas cartridge compartment cover on the side of the stove.
   • Align the collar of a B-250 butane gas cartridge with the connector in the compartment.
   • Push the cartridge firmly into place and then push the locking lever down to secure it. Ensure a tight seal.
   • Close the gas cartridge compartment cover.


   Image 4.1: Proper insertion of the butane gas cartridge.

4. Place Drip Tray and Grates: Insert the removable drip tray below the burners. Place the burner grates securely over the burners. If using the plancha, place it directly on top of the grates.

Image 4.2: The stove with the plancha accessory in place.

5. Operating Instructions

1. Ignition:
   • Ensure the gas cartridge is correctly installed and the locking lever is down.
   • Turn the control knob for the desired burner counter-clockwise to the 'IGNITE' position. You should hear a click as the igniter sparks.
   • If the burner does not light immediately, repeat the process. If it still doesn't light, check the gas cartridge connection.

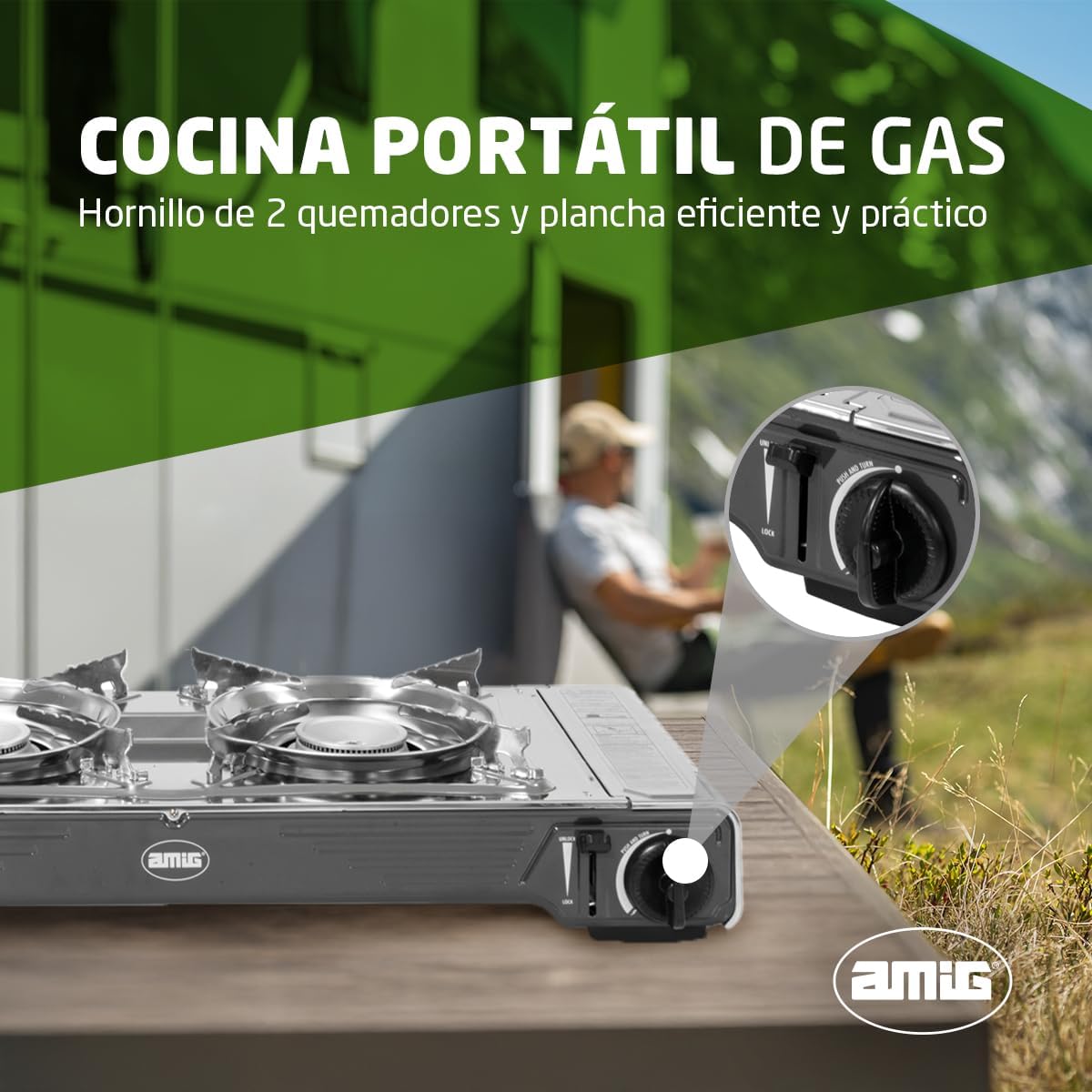

   Image 5.1: The control knob for igniting and adjusting the flame.

2. Adjusting Flame: Once lit, continue turning the control knob counter-clockwise to increase the flame intensity, or clockwise to decrease it.
3. Cooking: Place your cookware (pots, pans, or the included plancha) centrally over the burner. The stove is designed to accommodate pots up to 26 cm in diameter.


Image 5.2: A pan placed on one of the stove's burners.

4. Shutting Down: When finished cooking, turn the control knob fully clockwise to the 'OFF' position until the flame extinguishes. Allow the stove to cool completely before handling.
5. Removing Gas Cartridge: After the stove has cooled, open the gas cartridge compartment, lift the locking lever, and carefully remove the gas cartridge. Store cartridges in a cool, dry place away from direct sunlight and heat.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your camping stove.

• Cleaning: After each use, ensure the stove is completely cool. Remove the burner grates and the drip tray. Wash these components with warm, soapy water. Wipe the stainless steel surfaces of the stove with a damp cloth. Do not use abrasive cleaners or scouring pads, as they can damage the finish.
• Drip Tray: The removable drip tray facilitates easy cleaning of grease and food residues. Empty and clean it regularly.
• Storage: Store the clean and dry stove in its original carry case in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure gas cartridges are removed before storage.

7. Troubleshooting

If you encounter issues with your Amig Portable Double Camping Stove, refer to the following common troubleshooting steps:

• Burner Not Lighting:
  • Check if the gas cartridge is correctly installed and the locking lever is fully engaged.
  • Ensure the gas cartridge is not empty.
  • Verify that the control knob is turned to the 'IGNITE' position.
  • Check if the igniter spark is visible. If not, the igniter may be faulty or obstructed.
• Weak Flame or Irregular Flame:
  • The gas cartridge may be running low. Replace it with a new one.
  • Ensure the gas cartridge is not too cold, which can reduce gas pressure.
  • Check for any obstructions in the burner ports. Clean if necessary.
• Gas Leak Smell:
  • Immediately turn off the stove and remove the gas cartridge.
  • Move the stove to a well-ventilated area.
  • Perform a leak check using soapy water on all connections. If bubbles appear, do not use the stove and contact customer support.

If these steps do not resolve the issue, please contact Amig customer support for assistance.

8. Specifications

Image 8.1: The compact dimensions of the stove, approximately 68 cm long, 26 cm wide, and 9 cm high.

9. Warranty and Support

Amig provides a commitment to quality and reliability. Spare parts for this product are available for 10 years from the date of purchase.

For any questions, technical support, or warranty claims, please contact your retailer or Amig customer service directly. Please have your model number (25041) and proof of purchase ready when contacting support.
