TOOLUCK 3x4.5M Pop Up Gazebo Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the proper setup, operation, maintenance, and care of your TOOLUCK 3x4.5M Pop Up Gazebo. Please read all instructions carefully before assembly and use to ensure safe and efficient operation. This heavy-duty canopy tent is designed for various outdoor events, offering protection from sun and light rain.

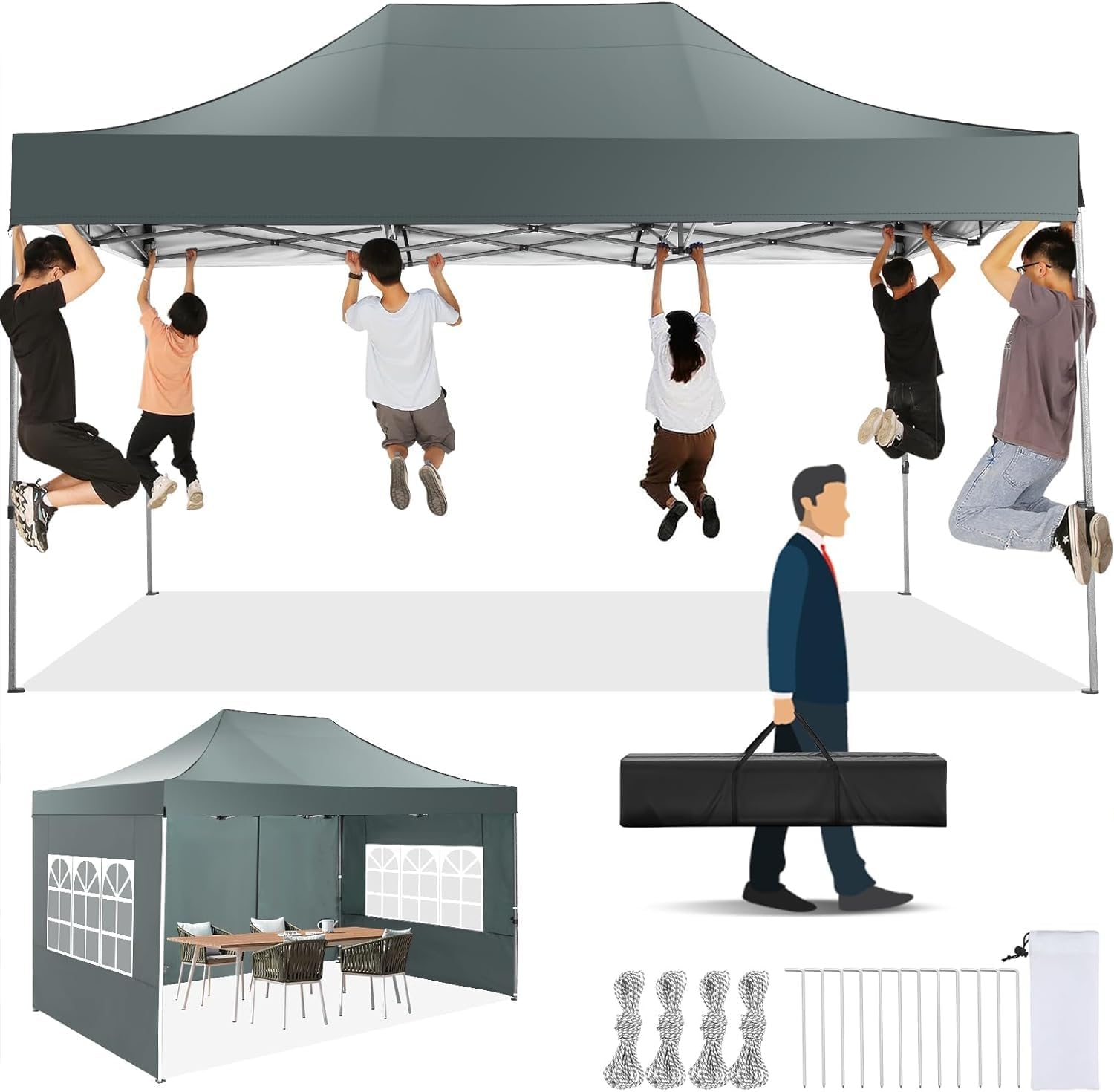

Image: The TOOLUCK 3x4.5M Pop Up Gazebo demonstrating its robust frame capable of supporting significant weight, along with its portable carry bag and accessories.

2. Product Features

• Upgraded Heavy-Duty Frame: Features a full truss construction with a powder-coated finish for enhanced durability and rust resistance.
• Waterproof and UV Protection 50+: Crafted from high-quality 500D Oxford fabric with a PU silver coating, providing 100% waterproofing and UV 50+ protection. All seams are machine-sealed.
• Easy Assembly: Equipped with practical snap buttons and an upgraded thumb latch system for quick assembly and disassembly by 2-4 people without tools.
• Adjustable Height: Offers 3 height settings (222cm, 232cm, 240cm) for versatile use.
• Versatile Applications: Includes 3 removable sidewalls, 4 ropes, and 8 tent stakes, covering an area of 13.5 m² suitable for various outdoor events.

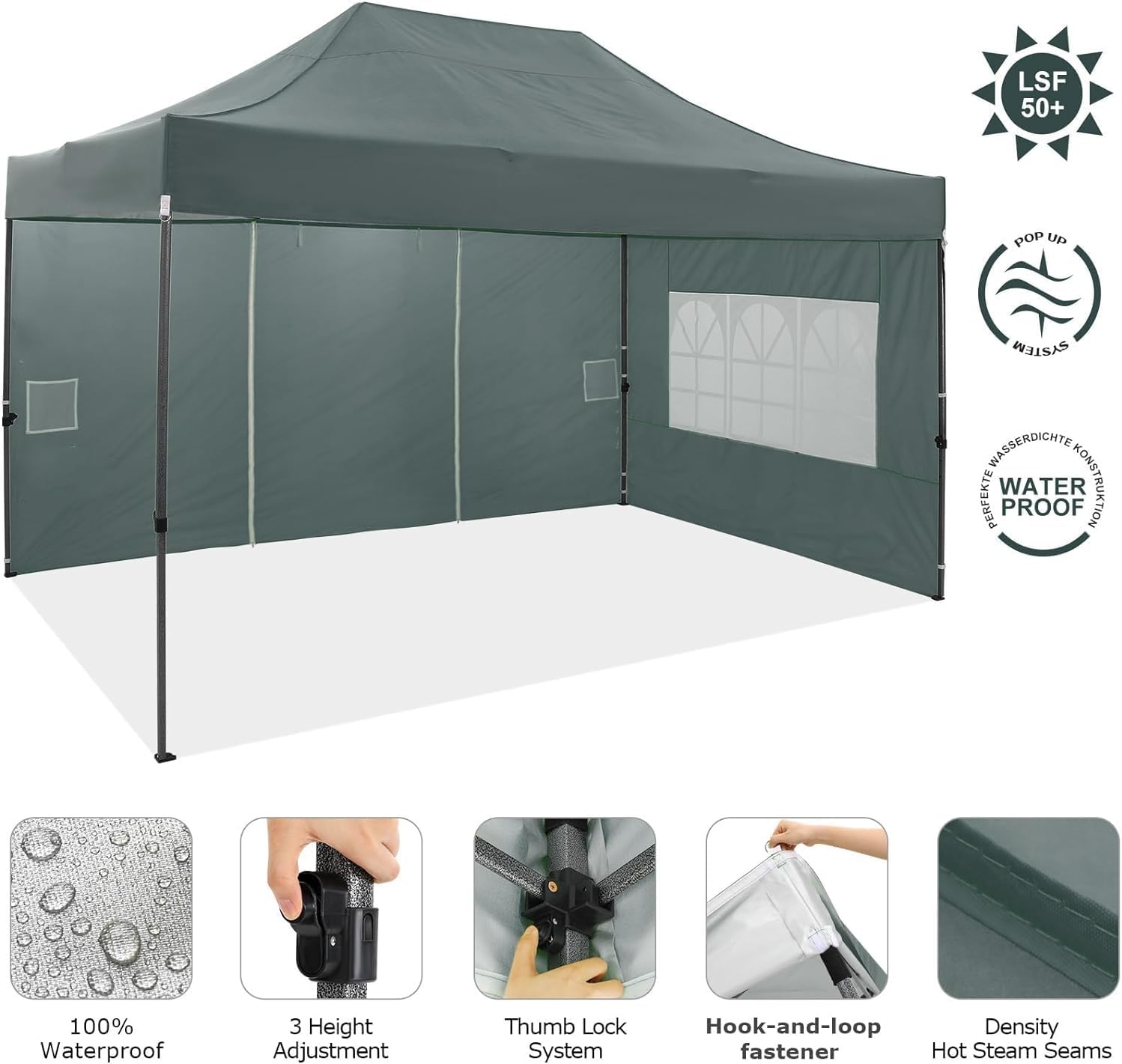

Image: Detailed view highlighting key features such as 100% waterproof fabric, 3 height adjustment options, the thumb lock system for easy setup, and hook-and-loop fasteners for secure attachment.

3. Package Contents

Please verify that all components listed below are present in your package before beginning assembly. If any parts are missing or damaged, contact customer support.

• 1 x Portable Bag
• 1 x Frame (Thickened Alloy Steel)
• 2 x Side Wall (with Window)
• 1 x Side Wall (Solid Color)
• 1 x Top Cover (Canopy Fabric)
• 4 x Rope
• 8 x Ground Nails (Tent Stakes)

Image: An illustration of all components included in the TOOLUCK 3x4.5M Pop Up Gazebo package, including the portable bag, frame, side walls, top cover, ropes, and ground nails.

4. Setup Instructions

The TOOLUCK Pop Up Gazebo is designed for easy assembly without the need for additional tools. It is recommended that 2-4 people assist with the setup process for optimal ease and safety.

Image: A visual guide illustrating the three main steps for installing the gazebo: pulling up the frame and covering it, pulling up the frame further, and pushing it until fully open.

1. Step 1: Pull up the frame and cover it with the roof canopy. Secure the four corners of the roof with the integrated hook-and-loop fasteners.
2. Step 2: Continue to pull up the frame, extending it outwards.
3. Step 3: Push the frame upwards until it is completely open and locked into position. Ensure all locking mechanisms are engaged.

Once the frame is fully extended, you can attach the removable sidewalls using the hook-and-loop fasteners. Secure the gazebo to the ground using the provided ropes and ground nails for enhanced stability, especially in outdoor conditions.

5. Operating Instructions

Your TOOLUCK Pop Up Gazebo offers flexibility in height and configuration to suit various needs.

Height Adjustment

The gazebo features 3 adjustable height settings: 222cm, 232cm, and 240cm. To adjust the height, locate the thumb latch system on each leg. Press the latch to release the pin, then slide the leg to the desired height setting. Ensure all four legs are set to the same height and the pins are securely engaged before use.

Sidewall Configuration

The gazebo comes with 3 removable sidewalls (2 with windows, 1 solid). These can be attached or removed as needed to provide additional shelter, privacy, or to adapt to weather conditions. Use the hook-and-loop fasteners along the top and sides to secure the sidewalls to the frame and to each other.

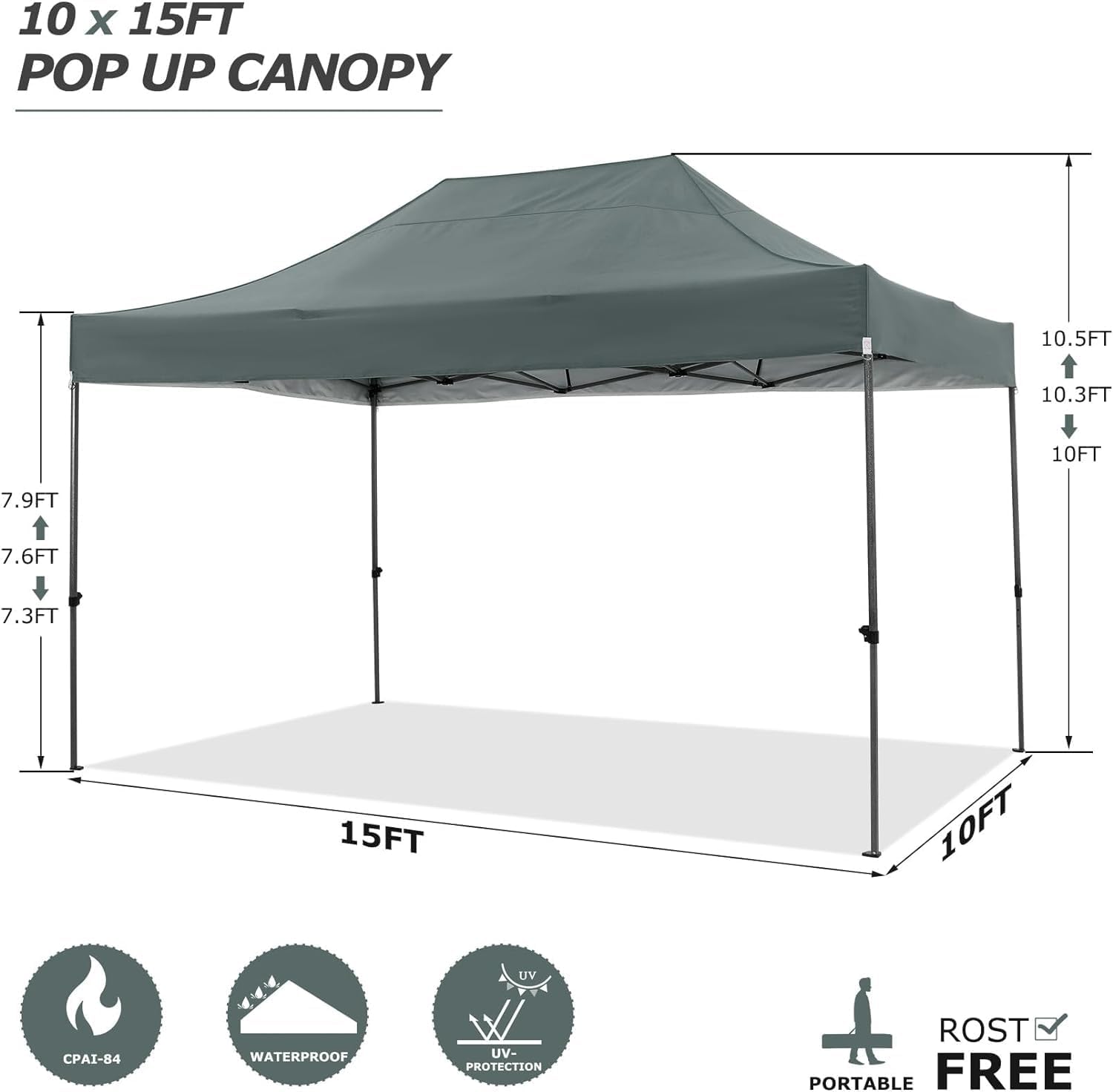

Image: A diagram illustrating the dimensions of the 10x15FT (3x4.5M) pop up canopy, including its adjustable height settings from 7.3FT to 7.9FT (222cm to 240cm) and overall canopy height.

6. Maintenance and Care

Proper maintenance will extend the lifespan of your TOOLUCK Pop Up Gazebo.

• Weather Precautions: It is strongly recommended to stow away the gazebo during instances of strong winds, heavy rain, or snowfall. Prolonged exposure to severe weather can cause damage to the frame and fabric.
• Cleaning: Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the waterproof coating and UV protection. Allow the fabric to dry completely before folding and storing to prevent mildew.
• Storage: When not in use, disassemble the gazebo and store it in its portable bag in a dry, cool place, away from direct sunlight and extreme temperatures.
• Frame Inspection: Periodically inspect the alloy steel frame for any signs of rust, bending, or damage. Ensure all joints and locking mechanisms are functioning correctly.

7. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

• Difficulty in Assembly/Disassembly: Ensure 2-4 people are assisting. Check that all snap buttons and thumb latches are fully disengaged or engaged as required. The frame should extend and retract smoothly. Do not force components.
• Gazebo Instability: Always use the provided ropes and ground nails to secure the gazebo, especially on soft ground or in windy conditions. Ensure legs are fully extended and locked.
• Water Leakage: While the fabric is 100% waterproof and seams are sealed, extreme conditions or prolonged heavy rain might test its limits. Ensure the canopy is taut to prevent water pooling.
• Damaged Fabric: Avoid sharp objects near the canopy. If a tear occurs, a repair kit (not included) may be used for minor damage. For significant damage, contact customer support.

8. Specifications

9. Warranty and Support

TOOLUCK is committed to providing quality products and customer satisfaction.

• Frame Warranty: TOOLUCK promises a one-year after-sales guarantee for the gazebo frame.
• Fabric and Accessories Warranty: A six-month after-sales guarantee is provided for the fabrics and accessories.

For any questions, concerns, or warranty claims, please contact TOOLUCK customer service through the retailer where the product was purchased. Please have your model number (5913) and purchase date available when contacting support.
