Introduction
This user manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your VGR V-642 Ultra Premium Hair Clipper, Trimmer, and Shaver Set. Please read this manual thoroughly before first use and retain it for future reference.
Safety Guidelines
For safe and proper use, please read the enclosed safety instructions and use the product responsibly. Always ensure the device is dry before charging. Do not immerse the main body in water unless specified for cleaning. Keep out of reach of children.
Package Contents
Image: The complete VGR V-642 set, including the hair clipper, trimmer, shaver, various guide combs, charging cables, cleaning brush, and oil.
Your VGR V-642 set typically includes:
- VGR Hair Clipper
- VGR Hair Trimmer
- VGR Foil Shaver
- 8 attachment guide combs for clipper (1.5mm, 3mm, 4.5mm, 6mm, 10mm, 13mm, 16mm, 19mm)
- 4 attachment guide combs for trimmer (1mm, 3mm, 5mm, 7mm)
- 2 USB Type-C charging cables
- Cleaning brush
- Lubricating oil
- Travel pouch
Product Features
- New Technology Blades: Clipper and Trimmer feature self-sharpening Ceramic and Powder Metallurgic Blades in proper alignment for smooth cutting. Shaver has double hypoallergenic foils.
- LED Digital Display: Shows battery charge status, RPM, and includes over-charge protection.
- Metal Housing Body: Durable and ergonomic design for all three devices.
- Turbo Power Function: Clipper and Trimmer with 4-speed 5500-7000 RPM motor. Shaver with 4-speed 5500-7500 RPM motor.
- Cordless/Corded Operation: Long-lasting Li-ion batteries for extended cordless use.
- Adjustable Hair Cutting Lengths: Clipper with integrated taper lever (0.5mm to 2mm) and multiple guide combs. Trimmer with specific guide combs.
- Waterproof: Specific components are waterproof for easy cleaning.
Image: Close-up of the VGR shaver highlighting its dual independent flexing foils for precise cutting and a pop-up trimmer for detailing.
Image: Detail of the VGR trimmer showing its ceramic and powder metallurgic blade for fine-cutting and an example guide comb.
Image: The LED digital display on the VGR devices, indicating battery percentage, current speed (RPM), and travel lock status.
Setup
Initial Charging
Before first use, fully charge each device. Use the provided USB Type-C charging cables. The LED display will indicate charging status.
- Clipper: Approximately 3.5 hours for 250 minutes of operation.
- Trimmer: Approximately 2.5 hours for 240 minutes of operation.
- Shaver: Approximately 1.5 hours for 90 minutes of operation.

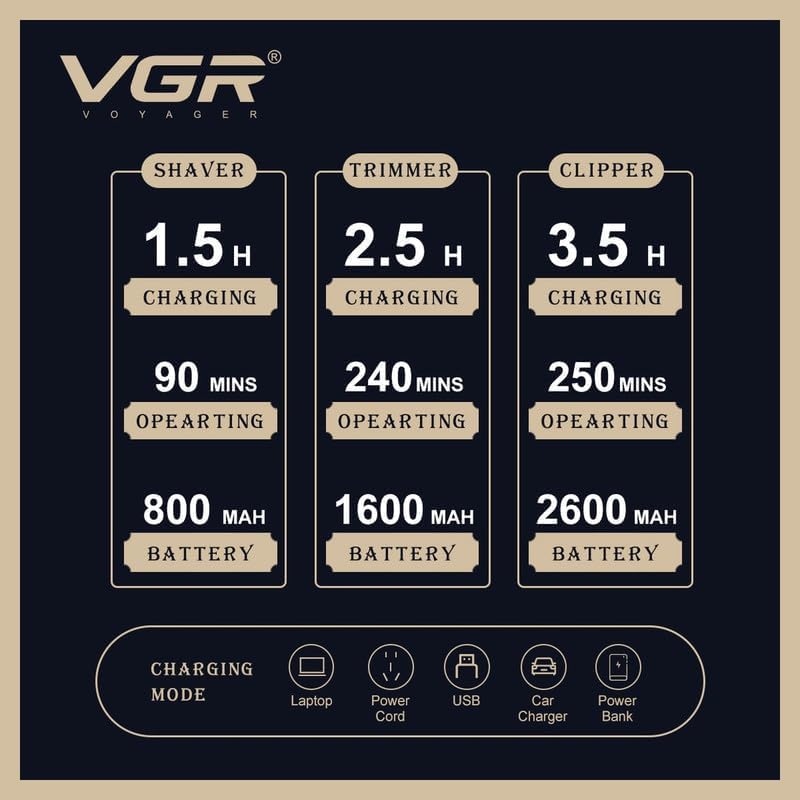

Image: A diagram illustrating the charging times, operating times, and battery capacities for the shaver, trimmer, and clipper units.
Attaching Guide Combs
Select the desired guide comb for your preferred cutting length. Align the comb with the blade and push firmly until it clicks into place. Ensure it is securely attached before use.
Operating Instructions
Power On/Off and Speed Adjustment
Press the power button to turn the device on or off. For the clipper, trimmer, and shaver, you can adjust the motor speed (RPM) by pressing the speed adjustment buttons. The LED display will show the current speed setting.
Using the Hair Clipper
For general hair cutting, attach the appropriate guide comb. The integrated taper lever allows for fine adjustment of cutting length from 0.5mm to 2mm without a comb. Move the clipper against the direction of hair growth for an even cut.
Using the Hair Trimmer
Ideal for detailing, outlining, and beard trimming. Use the smaller guide combs (1mm, 3mm, 5mm, 7mm) for desired beard or stubble length. The fine-cutting teeth allow for extremely close cutting (0-gapped).
Using the Foil Shaver
For a smooth, close shave, use the foil shaver. The dual independent flexing foils adapt to facial contours. Utilize the pop-up trimmer for precise lines and edges before shaving.
Travel Lock Function
To activate the travel lock, long press the ON/OFF button for 3 seconds. This prevents accidental activation during travel. Repeat the action to unlock the device.
Maintenance
Cleaning the Blades and Foils
After each use, turn off the device and remove any attached guide combs. Use the provided cleaning brush to remove hair clippings from the blades and foils. For waterproof components, you may rinse them under running water. Ensure they are completely dry before reassembling or storing.
Lubrication
Regularly apply a few drops of the provided lubricating oil to the blades of the clipper and trimmer. This ensures smooth operation and prolongs blade life. Apply oil after cleaning and before storage.
Storage
Store the devices and accessories in the travel pouch or a dry, cool place away from direct sunlight and moisture. Ensure all devices are fully charged before long-term storage to maintain battery health.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not turning on. | Low battery; Travel lock engaged. | Charge the device fully; Long press power button for 3 seconds to disengage travel lock. |
| Poor cutting performance. | Blades are dull or clogged with hair; Insufficient lubrication. | Clean blades thoroughly; Apply lubricating oil to blades. |
| Device gets hot during use. | Extended continuous use; Blades need lubrication. | Allow device to cool down; Apply lubricating oil. |
| Charging indicator not working. | Faulty cable or adapter; Device not properly connected. | Try a different USB Type-C cable or power adapter; Ensure cable is securely plugged into device and power source. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | V-642 |
| Brand | VGR |
| Blade Material | Ceramic, Powder Metallurgic |
| Power Source | Battery Powered (Cordless/Corded) |
| Clipper Battery | 2600mAh Li-ion (250 min run time / 3.5 hr charge) |
| Trimmer Battery | 1600mAh Li-ion (240 min run time / 2.5 hr charge) |
| Shaver Battery | 800mAh Li-ion (90 min run time / 1.5 hr charge) |
| Clipper Speed | 4 speeds, 5500-7000 RPM |
| Trimmer Speed | 4 speeds, 5500-7000 RPM |
| Shaver Speed | 4 speeds, 5500-7500 RPM |
| Special Features | Waterproof, Cordless, USB Rechargeable, LED Digital Display, Metal Housing |
| Product Dimensions | 23.7 x 22 x 7.7 cm |
| Item Weight | 1.4 kg (1400 Grams) |
| Color | Gold |
Warranty and Support
The VGR V-642 Hair Clipper Trimmer Shaver Set comes with a 12-month quality warranty. If you encounter any issues with the product, please contact the seller or manufacturer's customer service for assistance. Ensure you retain your proof of purchase for warranty claims.
For further support or inquiries, refer to the contact information provided with your purchase or visit the official VGR website.
