Introduction
Thank you for choosing the VGR V-110 8-in-1 Multi-Grooming Kit. This comprehensive grooming solution is designed for precision trimming and styling of face, hair, and body. Please read this manual carefully before use to ensure safe and optimal performance of your device.
Image: The VGR V-110 Multi-Grooming Kit, showcasing the main trimmer unit and all included attachments and accessories.
Important Safety Information
WARNING: To reduce the risk of electric shock, injury, or damage, always follow these basic safety precautions:
- Avoid use near eyes.
- Keep the device away from water or any liquids. Do not use while bathing or showering.
- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not ingest or inhale small parts. Ensure all attachments are securely fastened.
- Use the travel lock feature during travel to prevent accidental activation.
- Only use the charging cable provided with the device.
- Do not disassemble, repair, or modify the appliance yourself. Contact qualified service personnel for repairs.
Package Contents
Your VGR V-110 Multi-Grooming Kit includes the following items:
- Main Trimmer Unit
- Hair Clipper Head
- Detail Trimmer Head
- Precision Trimmer Head
- Design Trimmer Head
- Nose Trimmer Head
- Beard Shaver Head
- Body Shaver Head
- Body Trimmer Head
- 9 Cutting Guide Combs (for Detail Trimmer: 1, 3, 5, 7mm; for Hair Clipper: 3, 6, 9, 12, 15mm)
- USB Charging Cable
- Travel Pouch
- Comb
- Cleaning Brush
- Oil Bottle
- Storage Base
Image: The VGR V-110 main unit with its array of interchangeable grooming heads and various guide combs.
Setup and Charging
Initial Charge
Before first use, fully charge the grooming kit. Connect the USB charging cable to the trimmer and a suitable USB power adapter (not included). The LED display will indicate the charging status. A full charge takes approximately 1.5 hours and provides up to 180 minutes of runtime.

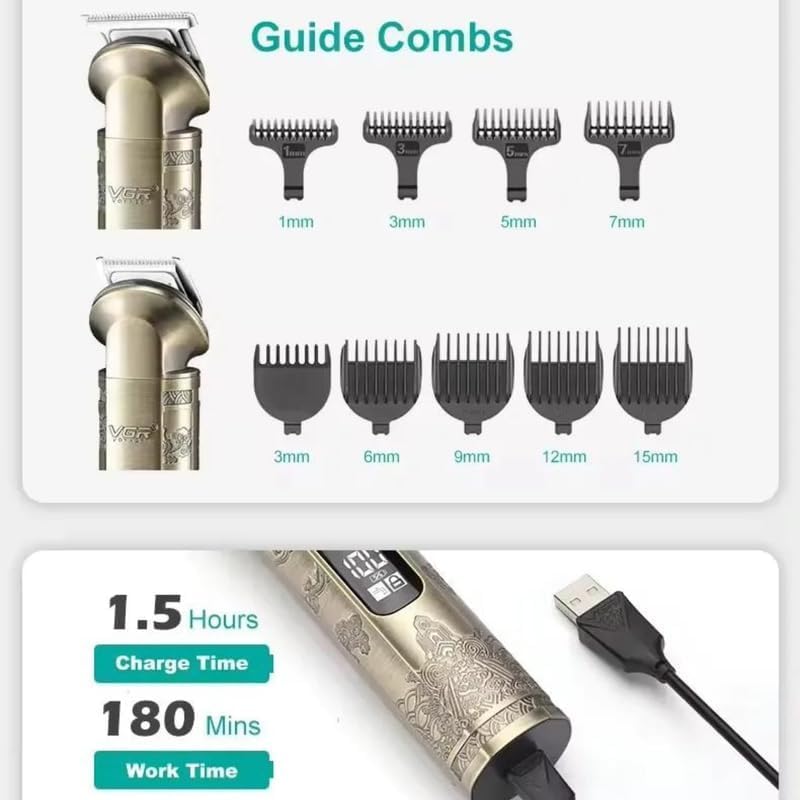

Image: Close-up of the VGR V-110 trimmer highlighting its 1.5-hour charge time and 180-minute work time, with the USB charging cable.
Attaching/Detaching Heads and Guide Combs
- To attach a grooming head: Align the desired head with the main unit and press firmly until it clicks into place.
- To detach a grooming head: Gently push the head upwards from the front of the unit until it releases.
- To attach a guide comb: Slide the comb onto the desired trimmer head until it securely locks.
- To detach a guide comb: Gently pull the comb away from the trimmer head.
Video: A demonstration of attaching and detaching the various grooming heads and guide combs on the VGR V-110 Multi-Grooming Kit.
Operating Instructions
Power On/Off and Travel Lock
- To turn on: Press the ON/OFF switch.
- To turn off: Press the ON/OFF switch again.
- To activate Travel Lock: Long press the ON/OFF button for 3 seconds. The LED display will show a lock icon.
- To deactivate Travel Lock: Long press the ON/OFF button for 3 seconds again.
Using the Grooming Heads
Select the appropriate grooming head and guide comb for your desired style and hair length. The VGR V-110 features high-carbon self-sharpening stainless steel blades designed for precision and to prevent skin irritation.
- Hair Clipper Head: Use with larger guide combs (3, 6, 9, 12, 15mm) for general hair cutting and styling.
- Beard Trimmer Head: Ideal for shaping and maintaining beard length.
- Detail Trimmer Head: Use with smaller guide combs (1, 3, 5, 7mm) for precise lines, edges, and intricate designs.
- Precision Trimmer Head: For fine detailing and sharp lines.
- Design Trimmer Head: For creating unique patterns and styles.
- Nose Trimmer Head: Gently insert into nostrils or ear canals to trim unwanted hair.
- Beard Shaver Head: For a close shave on facial hair.
- Body Shaver Head: For smooth results on larger body areas.
- Body Trimmer Head: For trimming body hair to a desired length.
Image: Visual guide illustrating the application of each of the eight grooming heads for various personal care needs.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your VGR V-110 grooming kit.
- Cleaning Blades: After each use, turn off the trimmer and detach the grooming head. Use the provided cleaning brush to remove any hair clippings from the blades.
- Oiling Blades: Periodically, apply a small drop of the included oil to the blades. Turn on the trimmer for a few seconds to distribute the oil evenly. This helps maintain blade sharpness and reduces friction.
- Washing: The grooming heads can be rinsed under running water. Ensure the main unit is not submerged in water. Dry all parts thoroughly before reassembling or storing.
- Storage: Store the trimmer and all accessories in the provided travel pouch or on the storage base in a dry, cool place.

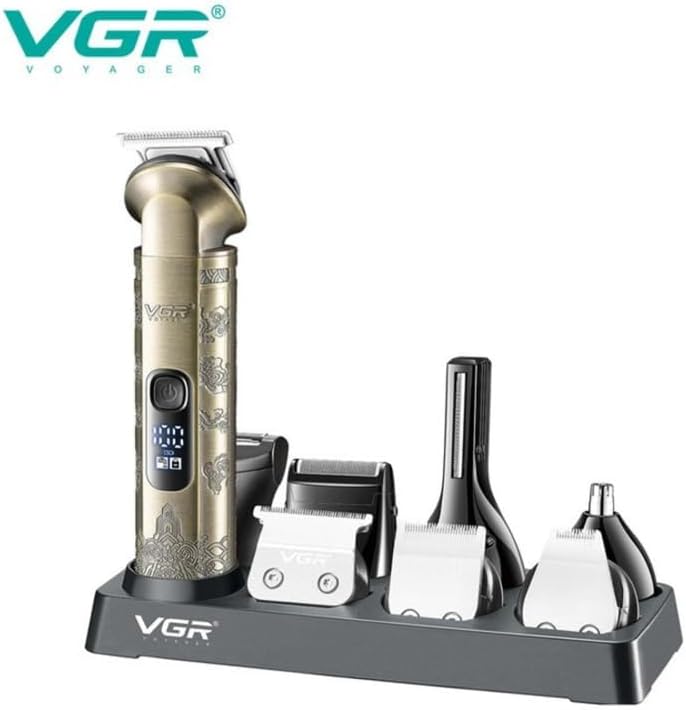

Image: The VGR V-110 grooming kit displayed on its dedicated storage base, showing the main unit and several interchangeable heads.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not turn on. | Battery is depleted. Travel lock is active. | Charge the trimmer fully. Deactivate travel lock by long-pressing the ON/OFF button for 3 seconds. |
| Trimmer pulls hair or cuts poorly. | Blades are dull or clogged with hair. Blades are not oiled. | Clean the blades thoroughly with the brush. Apply a drop of oil to the blades. |
| Trimmer makes unusual noise. | Blades are not properly aligned or secured. Lack of lubrication. | Ensure the grooming head is correctly attached. Oil the blades. |
| LED display not working. | Device is off or battery is completely drained. | Turn on the device. Charge the device. If problem persists, contact customer support. |
Specifications
- Model: V-110
- Brand: VGR
- Power Source: Battery Powered
- Battery Type: Lithium-Ion
- Battery Charge Time: Approximately 1.5 hours
- Operating Time: Up to 180 minutes
- Blade Material: High-carbon Self-sharpening Stainless Steel
- Product Dimensions: 23 x 15.5 x 6.2 cm
- Weight: 760 g
- Included Attachments: Hair Clipper, Detail Trimmer, Precision Trimmer, Design Trimmer, Nose Trimmer, Beard Shaver, Body Shaver, Body Trimmer
- Included Guide Combs: 9 (1, 3, 5, 7mm for detail; 3, 6, 9, 12, 15mm for hair clipper)
Warranty and Support
The VGR V-110 Multi-Grooming Kit comes with a 12-month quality warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.
For warranty claims, technical support, or any inquiries regarding your product, please contact VGR customer service. Please have your purchase receipt and product model number (V-110) ready when contacting support.
VGR is committed to providing high-quality products and customer satisfaction. If you encounter any issues, please do not hesitate to reach out to us.
