FocusOnHome 38CC 4-Stroke 4-in-1 Multi Garden Tool Instruction Manual

1. Introduction

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your FocusOnHome 38CC 4-Stroke 4-in-1 Multi Garden Tool. This versatile tool is designed for various outdoor tasks, combining a string trimmer, brush cutter, hedge trimmer, and pole saw into one unit. Please read this manual thoroughly before operating the tool to ensure safe and efficient use.

2. Safety Information

Always prioritize safety when operating power tools. Failure to follow safety instructions can result in serious injury or death.

• Read the Entire Manual: Understand all instructions and warnings before use.
• Personal Protective Equipment (PPE): Always wear safety glasses or goggles, hearing protection, heavy-duty gloves, long pants, and sturdy, non-slip footwear. A hard hat is recommended when using the pole saw.
• Fuel Handling: Handle gasoline with extreme care. Store fuel in an approved container in a well-ventilated area away from ignition sources. Never refuel a hot engine.
• Work Area: Keep children, bystanders, and pets at least 50 feet (15 meters) away from the work area. Clear the work area of debris, rocks, and other objects that could be thrown.
• Inspection: Before each use, inspect the tool for loose parts, damaged components, or fuel leaks. Do not operate if damaged.
• Engine Operation: Operate the engine in a well-ventilated area to avoid carbon monoxide poisoning.
• Blade/Line Safety: Ensure all cutting attachments are properly installed and secured. Never touch moving blades or lines.
• Maintain Control: Always maintain a firm grip on the tool handles. Do not overreach.
• First Aid: Keep a first aid kit readily available.

3. Package Contents

Your FocusOnHome 4-in-1 Multi Garden Tool package includes the following components:

• 38CC 4-Stroke Engine Unit
• Main Shaft Assembly
• String Trimmer Attachment (with nylon line head)
• Brush Cutter Attachment (with metal blade)
• Hedge Trimmer Attachment
• Pole Saw Attachment
• Shoulder Strap/Harness
• Tool Kit (for assembly and maintenance)
• Instruction Manual

4. Setup and Assembly

Follow these steps to assemble your multi-tool and prepare it for use.

4.1 Engine Unit and Shaft Assembly

1. Carefully unpack all components and lay them out on a clean, flat surface.
2. Connect the main shaft to the engine unit. Align the splines and push firmly until it clicks into place. Secure with the locking knob or bolt provided.
3. Attach the handle to the main shaft at a comfortable operating position. Tighten securely.
4. Attach the shoulder strap/harness to the designated mounting point on the shaft. Adjust for a balanced and comfortable fit.

4.2 Attaching Different Tools

The quick-attachment system allows for easy swapping of tools. To attach an accessory:

1. Ensure the engine is OFF and cool.
2. Loosen the coupling knob on the main shaft.
3. Insert the desired attachment (e.g., string trimmer, hedge trimmer) into the coupling, aligning the drive shaft.
4. Push the attachment fully into the coupling until it seats properly.
5. Tighten the coupling knob securely to prevent movement during operation.

Image: Hedge trimmer attachment connected to the main shaft, ready for use.

Image: String trimmer attachment connected to the main shaft, showing the nylon line head.

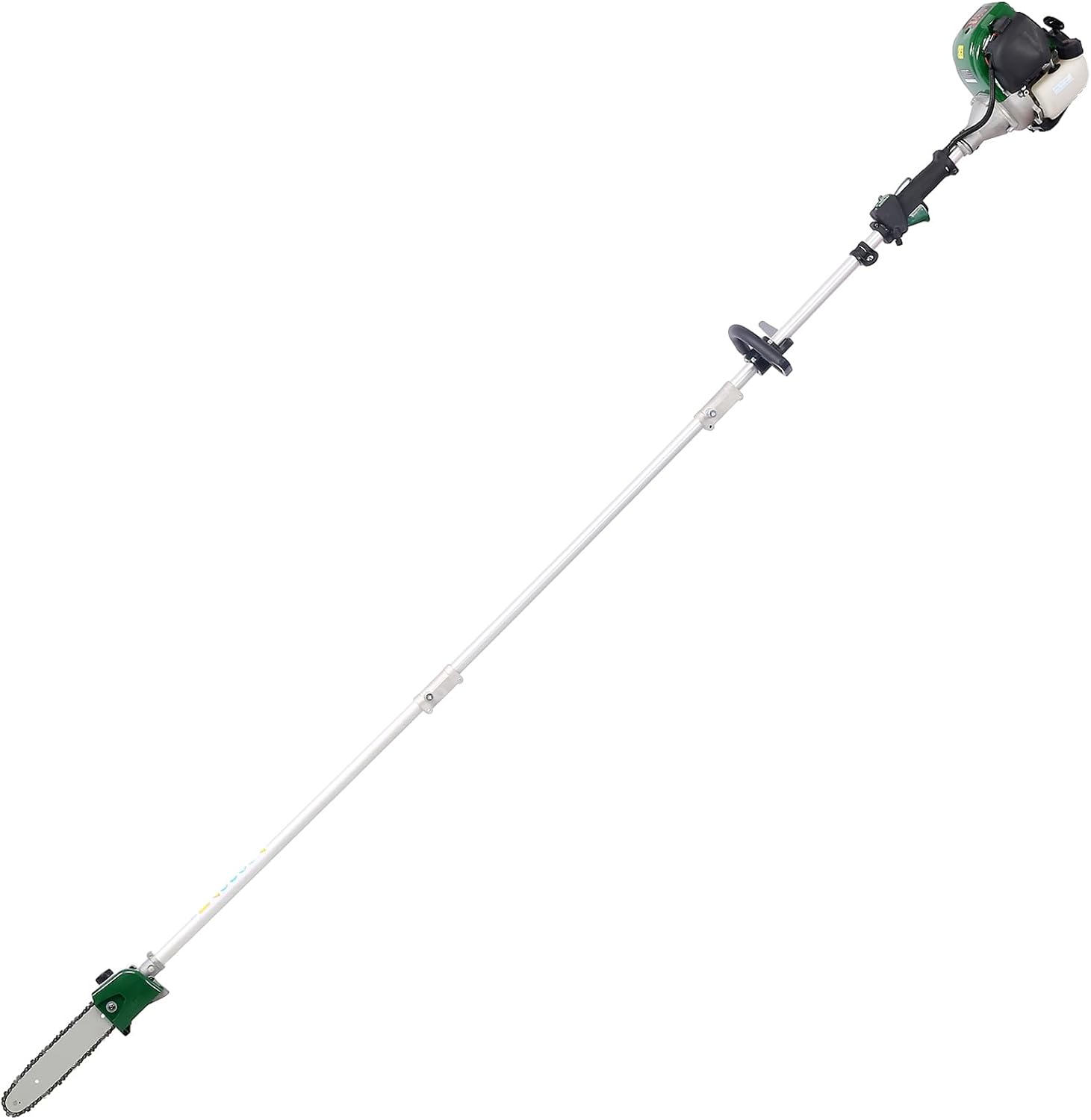

Image: Pole saw attachment connected to the main shaft, featuring the saw chain and bar.

Image: Brush cutter attachment connected to the main shaft, with a metal cutting blade.

4.3 Fueling the Engine

This tool uses a 4-stroke engine. Use fresh, unleaded gasoline with an octane rating of 87 or higher. Do NOT mix oil with the gasoline.

1. Ensure the engine is OFF and cool.
2. Move to a well-ventilated outdoor area away from open flames or sparks.
3. Clean the area around the fuel cap to prevent dirt from entering the fuel tank.
4. Slowly remove the fuel cap.
5. Fill the fuel tank carefully, avoiding overfilling. Leave some space for fuel expansion.
6. Securely replace the fuel cap. Wipe up any spilled fuel immediately.

4.4 Starting Procedure (Recoil Start)

1. Place the tool on a flat, stable surface.
2. Ensure the ON/OFF switch is in the "ON" position.
3. If the engine is cold, move the choke lever to the "CLOSED" or "START" position. If warm, leave it in the "OPEN" or "RUN" position.
4. Press the primer bulb several times until fuel is visible in the return line.
5. Hold the tool firmly with one hand and pull the starter rope slowly until resistance is felt, then pull sharply and quickly. Repeat until the engine attempts to start.
6. Once the engine fires (or starts briefly), move the choke lever to the "OPEN" or "RUN" position.
7. Continue pulling the starter rope until the engine starts and runs smoothly.
8. Allow the engine to warm up for a few moments before engaging the throttle.

Image: Close-up of the 38cc 4-stroke engine unit, showing the recoil starter and fuel cap.

5. Operating Instructions

Always wear appropriate PPE and maintain a safe working distance from others.

5.1 String Trimmer / Edger

Ideal for trimming grass and weeds around obstacles, fences, and garden beds.

• Hold the trimmer with both hands, keeping the cutting head away from your body.
• Use a sweeping motion, cutting from right to left for optimal debris deflection.
• For edging, tilt the trimmer head to a vertical position and walk along the edge of the lawn or path.
• To advance the nylon line, tap the trimmer head gently on the ground while the engine is running at full throttle.

Image: A person demonstrating the use of the string trimmer attachment for cutting grass.

5.2 Brush Cutter

Use for cutting thicker weeds, brush, and small saplings that nylon line cannot handle.

• Ensure the metal blade is sharp and securely fastened.
• Always use the brush cutter guard.
• Cut with a controlled, sweeping motion. Be aware of kickback, especially when cutting thicker material.
• Avoid hitting hard objects like rocks or metal, which can damage the blade or cause kickback.

Image: A person using the brush cutter attachment to clear dense vegetation.

5.3 Hedge Trimmer

Designed for shaping and trimming hedges and shrubs.

• The hedge trimmer attachment can articulate to multiple positions for various cutting angles. Adjust the angle before starting the engine.
• Use a smooth, even motion to cut branches. Avoid forcing the blades through thick branches.
• Keep the blades clean and sharp for best performance.

Image: A person using the hedge trimmer attachment to trim a tall hedge.

5.4 Pole Saw

For pruning high branches without the need for a ladder.

• Ensure the chain is properly tensioned and lubricated with bar and chain oil.
• Always stand on firm ground. Do not cut above shoulder height.
• Make relief cuts to prevent pinching the bar and chain.
• Be aware of falling branches and plan your escape path.

Image: A person using the pole saw attachment to cut an overhead branch.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tool.

6.1 Engine Maintenance

• Air Filter: Clean or replace the air filter regularly (every 10-20 hours of operation, or more often in dusty conditions). A dirty air filter reduces engine performance.
• Spark Plug: Inspect and clean the spark plug every 25 hours. Replace if electrodes are worn or fouled.
• Fuel Filter: Check and replace the fuel filter annually or if fuel delivery issues occur.
• Oil Change: As a 4-stroke engine, it requires regular oil changes. Refer to the engine manufacturer's guidelines for oil type and change intervals.

6.2 Attachment Maintenance

• Cutting Blades (Brush Cutter, Hedge Trimmer): Keep blades sharp and free of nicks. Sharpen or replace as needed. Apply a light coat of oil to prevent rust.
• Nylon Line (String Trimmer): Replace worn or broken line as needed. Refer to the attachment's instructions for specific line replacement procedures.
• Chain (Pole Saw): Keep the chain sharp and properly tensioned. Ensure adequate bar and chain oil is used during operation.
• General Cleaning: After each use, clean all attachments and the main unit of grass, dirt, and debris.

6.3 Storage

• For long-term storage, drain the fuel tank or use a fuel stabilizer to prevent fuel degradation.
• Clean the entire tool thoroughly.
• Store in a dry, well-ventilated area, away from children and ignition sources.

7. Troubleshooting

This section addresses common issues you might encounter.

If you encounter issues not listed here or cannot resolve a problem, please contact customer support.

8. Specifications

9. Warranty and Support

Your FocusOnHome 38CC 4-Stroke 4-in-1 Multi Garden Tool is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, replacement parts, or warranty claims, please contact FocusOnHome customer support through the retailer where you purchased the product or visit the official FocusOnHome website for contact information.

When contacting support, please have your product model number (38CC 4-Stroke 4-in-1 Multi Garden Tool) and purchase date available.
