LUVODI Smart LED Bathroom Mirror Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your LUVODI Smart LED Bathroom Mirror. This mirror features integrated Bluetooth speakers, a digital display for time and temperature, front and backlit LED lighting with dimmable and color-changing functions, and an anti-fog system. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Image 1.1: LUVODI Smart LED Bathroom Mirror showcasing its RGB backlighting and integrated Bluetooth speaker functionality.

2. Important Safety Warnings

WARNING: This mirror is heavy and must be securely mounted by a professional. Do not attempt to install it yourself. The mirror contains electrical components and a defogger, which should be kept away from water to prevent damage. Always unplug the mirror before cleaning. Do not use the mirror if the glass is cracked or damaged. Keep the mirror away from high heat sources and extreme temperatures. Always follow the manufacturer's instructions for safe use and installation.

3. Package Contents

Please verify that all items listed below are present and undamaged upon opening the package:

• LUVODI Smart LED Bathroom Mirror Unit
• Mounting Hardware (screws, wall anchors)
• Power Cord with Plug
• Instruction Manual (this document)

Image 3.1: Product packaging, indicating careful handling.

4. Product Specifications

Image 4.1: Detailed dimensions of the mirror unit.

5. Setup and Installation

Due to the weight and electrical components of this mirror, professional installation is highly recommended.

5.1 Pre-installation Checklist

• Ensure the wall can support the mirror's weight (26.4 lbs).
• Verify the electrical wiring meets local codes and the mirror's requirements.
• Confirm all package contents are present and undamaged.

5.2 Tools Required (Not Included)

• Drill and drill bits
• Measuring tape
• Level
• Pencil
• Screwdriver
• Wire strippers (if hardwiring)

5.3 Mounting Instructions

1. Determine the desired horizontal mounting location on the wall. The mirror can only be hung horizontally due to the display screen.
2. Using a level and pencil, mark the positions for the mounting screws based on the mirror's pre-drilled holes on the back frame.
3. Drill pilot holes at the marked locations and insert appropriate wall anchors if necessary.
4. Secure the mounting screws into the wall, leaving a small gap for the mirror to hang.
5. Carefully lift the mirror and align the back frame with the secured screws, sliding it down to lock into place. Ensure the mirror is firmly seated and level.

5.4 Electrical Connection

The mirror supports both plug-in operation and hardwiring to a wall switch. For hardwiring, it is strongly recommended to consult a professional electrician.

• Plug-in: Simply plug the mirror's power cord into a standard electrical outlet.
• Hardwire: If connecting to a wall switch, cut the plug from the power cord and connect the wires directly to the appropriate electrical connections in the wall. Ensure power is OFF at the circuit breaker before attempting any wiring.

Image 5.1: Illustration of the wall mounting and wiring options.

6. Operating Instructions

The LUVODI Smart LED Bathroom Mirror features intuitive touch controls located on the mirror surface.

Image 6.1: Overview of the intelligent display screen and touch controls.

6.1 Power On/Off

• To turn on/off all lighting and functions, long press the first key (usually the power icon) from the off state.

6.2 Lighting Control (Front Light & RGB Backlight)

Image 6.2: Smart touch sensor controls for lighting.

• Front Light Control:
  1. Short press to adjust brightness.
  2. Short press again to change the color temperature (White 6000K, Neutral 4500K, Warm 3000K).
  3. A third short press can turn off the front light.
• RGB Backlight Control:
  1. Short press to change the color (11 light modes available, including single colors and mixed colors).
  2. Long press and hold to adjust the RGB brightness.
• Both front and backlit functions can be turned on/off simultaneously or independently.

6.3 Defogging Function

Image 6.3: Anti-fog function in action.

• Press the defogger button (often indicated by a steam icon) on the mirror surface to activate the anti-fog pads.
• The defogger typically clears steam within 3-4 minutes.

6.4 Bluetooth Speaker

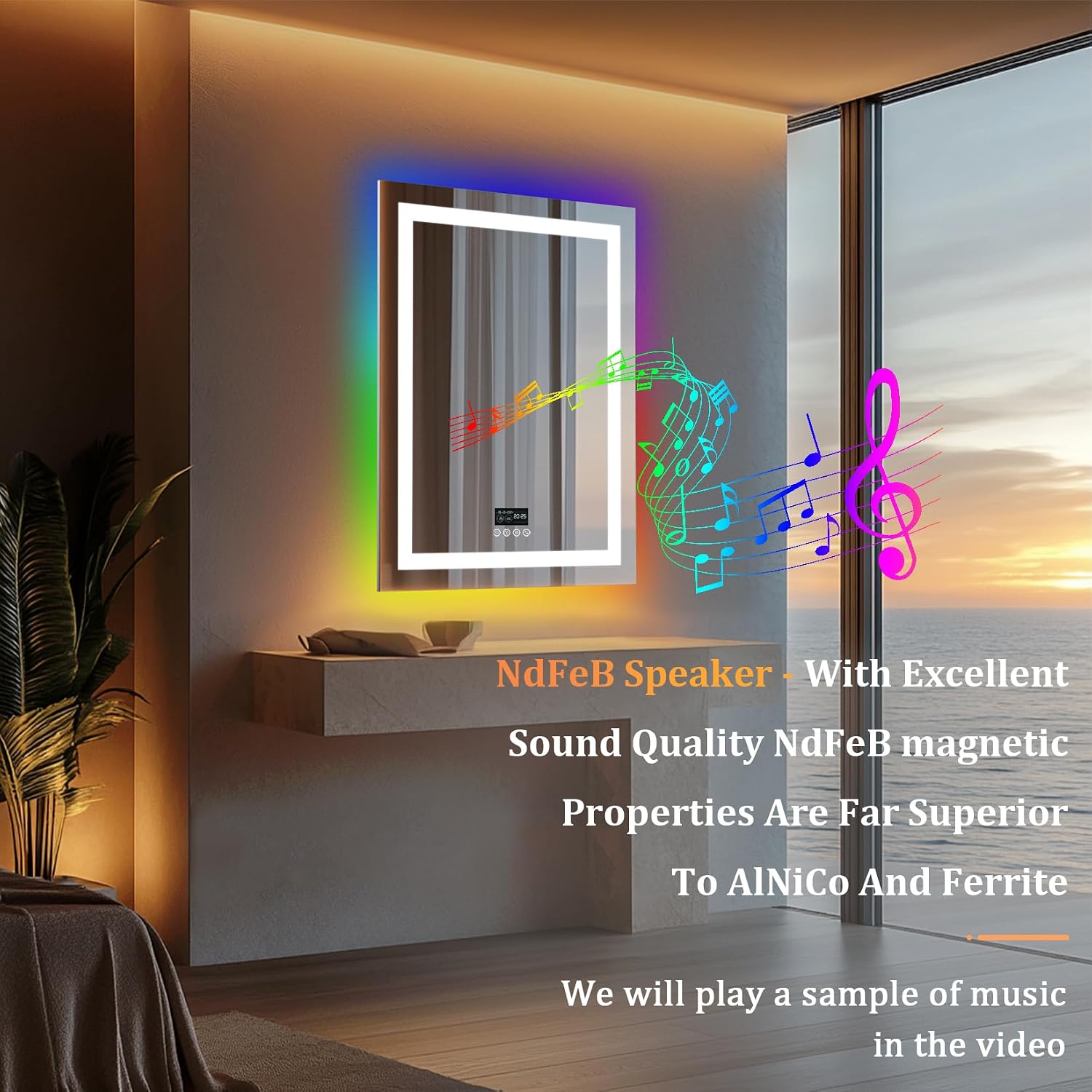

Image 6.4: NdFeB Speaker for enhanced sound quality.

• Activate Bluetooth on your mobile device.
• On your device, search for and connect to the mirror's Bluetooth name (e.g., "LUVODI Mirror").
• Once connected, audio from your device will play through the mirror's built-in speakers.
• Music playback can be controlled via the mirror's touch buttons (e.g., play/pause, next/previous track) or directly from your connected device.

6.5 Digital Time and Temperature Display

• The mirror features a digital display that shows the current time and ambient temperature.
• The display is automatically updated. For initial setup or adjustment, refer to the troubleshooting section.

6.6 Memory Function

• The mirror is equipped with a memory function that retains your last used lighting and brightness settings when the mirror is turned off and then back on.

7. Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your LUVODI Smart LED Bathroom Mirror.

• Cleaning the Mirror Surface: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components.
• Cleaning the Frame: Wipe the aluminum frame with a soft, damp cloth. Avoid harsh chemicals or abrasive materials that could damage the finish.
• General Care: Ensure the mirror is unplugged or the power supply is disconnected before any cleaning or maintenance. Avoid exposing the mirror to excessive moisture or direct water spray.

8. Troubleshooting

If you encounter issues with your LUVODI Smart LED Bathroom Mirror, refer to the following common problems and solutions:

9. Warranty and Support

LUVODI stands behind the quality of its products. For specific warranty details, please refer to the documentation included with your purchase or contact the seller directly. Most products come with a standard return policy, typically 30 days from the date of purchase, for refunds or replacements.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact LUVODI customer service through the retailer where you purchased the mirror or visit the official LUVODI brand store online.

LUVODI Brand Store: https://www.amazon.com/stores/LUVODI/page/4BEC0A90-ABDC-4882-A841-B58DE55FD089
