1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Moonshan MS-ZN-16 Instant Hot Water Recirculating Pump. This system is designed to provide instant hot water at your fixtures, reducing water waste and improving convenience. It features an upgraded stainless steel sensor valve, 20-inch PEX supply lines, and a Wi-Fi smart plug for scheduled operation. This pump is intended for indoor use with standard tank water heaters only and is not compatible with tankless water heaters.
2. Safety Instructions
- Read all instructions carefully before installation and operation.
- Ensure the power supply is disconnected before performing any installation or maintenance.
- Installation should be performed by a qualified individual if you are unfamiliar with plumbing or electrical work.
- Do not operate the pump if it is damaged or appears to be malfunctioning.
- This product is designed for indoor use only.
- Ensure all connections are watertight to prevent leaks.
- Keep children and pets away from the installation area.
3. Package Contents
Verify that all components are present before beginning installation:
- Hot Water Recirculating Pump (3-speed control)
- Stainless Steel Sensor Valve
- 20-inch PEX Supply Lines (2 pieces)
- Wi-Fi Smart Plug
- 1/2" FIP to 3/8" OD Adapters (2 pieces)
- Rubber Gaskets
- Teflon Tape
- Pipe Clamps with Self-Tapping Screws
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Moonshan |
| Model Number | MS-ZN-16 |
| Material | Stainless Steel |
| Style | 3-speed control |
| Product Dimensions | 7"L x 5"W x 5"H |
| Power Source | Corded Electric |
| Item Weight | 6 Pounds |
| Maximum Flow Rate | 10.5 Gallons Per Minute |
| Maximum Lifting Height | 20 Feet |
| Voltage | 110 Volts |
| Compatible Water Heaters | Standard Tank Water Heaters (Not for Tankless) |
5. Setup and Installation
The Moonshan recirculating system is designed for straightforward installation. Ensure you have basic plumbing tools and follow these steps. If unsure, consult a professional plumber.
5.1 System Overview
The system consists of the recirculating pump installed at the hot water heater and a sensor valve installed under the furthest sink from the water heater. The sensor valve uses bypass technology to return cooled water from the hot water line back to the water heater via the cold water line for reheating.
5.2 Pump Installation at Water Heater
- Turn off Water and Power: Shut off the main water supply to your home and the power to your water heater.
- Drain Hot Water Line: Open a hot water faucet at the highest point in your home to relieve pressure and drain some water from the hot water tank.
- Install Pump: Connect the recirculating pump to the hot water outlet of your tank water heater. Ensure all connections are sealed with Teflon tape and tightened appropriately to prevent leaks.
- Connect Supply Lines: Use the provided 20-inch PEX supply lines to connect the pump to the existing hot water plumbing.
5.3 Sensor Valve Installation Under Sink
- Identify Furthest Faucet: Locate the hot water faucet furthest from your water heater.
- Disconnect Supply Lines: Disconnect the hot and cold water supply lines from the shut-off valves under the sink.
- Install Sensor Valve: Connect the stainless steel sensor valve between the hot and cold water supply lines under the sink. The valve is marked for hot and cold connections. Use the provided adapters, gaskets, and Teflon tape for a secure, leak-free connection.
- Reconnect Faucet Lines: Reconnect the faucet's hot and cold supply lines to the sensor valve.
5.4 Final Steps
- Restore Water and Power: Slowly turn on the main water supply. Check all connections for leaks. Restore power to the water heater.
- Bleed Air: Open a hot water faucet until water flows steadily, indicating air has been purged from the lines.
6. Operation
6.1 3-Speed Control
The recirculating pump features a 3-speed control switch, allowing you to adjust the flow rate based on your household's needs. The power consumption varies with the speed setting:
- Speed 1: 46W
- Speed 2: 85W
- Speed 3: 100W
Select a speed that provides satisfactory hot water delivery without excessive noise or energy consumption. The maximum flow rate is 10.5 GPM with a maximum head of 20 feet.
6.2 Wi-Fi Smart Plug
The included Wi-Fi smart plug replaces manual timing, allowing you to schedule pump operation via your smartphone. This ensures hot water is available when needed, reducing waiting times and saving water.
- Connect Smart Plug: Plug the recirculating pump into the Wi-Fi smart plug, then plug the smart plug into a standard electrical outlet.
- Download App: Download the compatible smart home application (e.g., Tuya Smart, Smart Life) to your smartphone.
- Pair Device: Follow the in-app instructions to pair the smart plug with your home's 2.4GHz Wi-Fi network.
- Set Schedules: Use the app to create schedules for the pump to turn on and off. For example, you can set it to run before you typically wake up or during peak hot water usage times.
- Voice Control: The smart plug is compatible with voice assistants like Alexa and Google Home, allowing for convenient voice control.
6.3 Sensor Valve Functionality

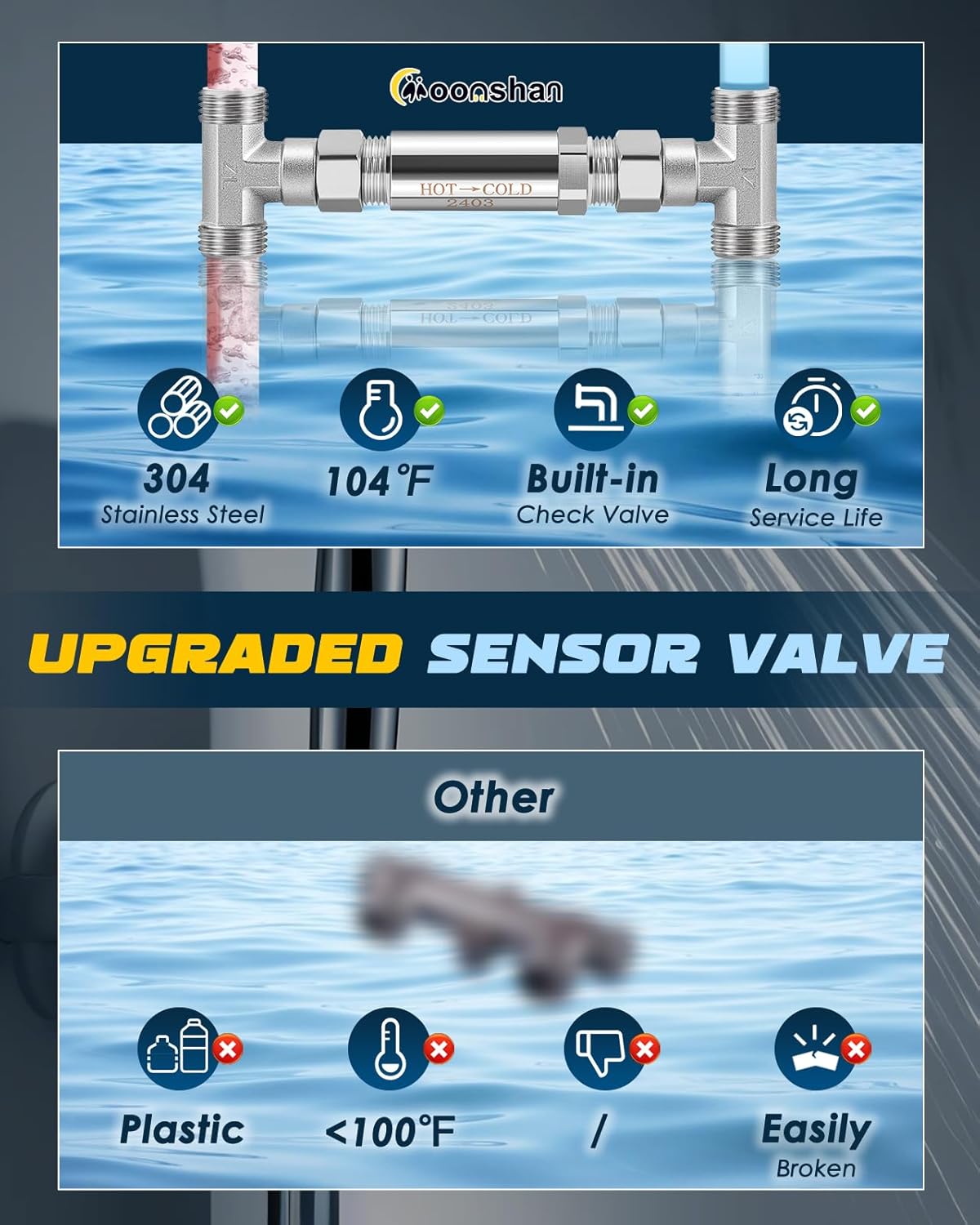

The stainless steel sensor valve monitors the water temperature in the hot water line. If the temperature drops below 104°F, the valve opens, allowing the cooler water to return to the water heater through the cold water line for reheating. Once the water reaches 104°F, the valve closes. This process ensures hot water is readily available at the faucet without affecting the cold water supply.
7. Maintenance
Regular maintenance helps ensure the longevity and efficient operation of your recirculating pump system.
- Filter Screen Cleaning: The stainless steel sensor valve includes a removable filter screen. Periodically inspect and clean this screen to prevent debris buildup that could impede water flow or valve operation.
- Leak Inspection: Regularly check all plumbing connections for any signs of leaks. Address any leaks promptly to prevent water damage.
- General Cleaning: Keep the exterior of the pump and smart plug clean and free of dust. Use a soft, damp cloth for cleaning. Do not use abrasive cleaners or solvents.
- Winterization: In colder climates, the pump can help prevent hot water pipes from freezing. However, ensure proper insulation for all exposed pipes to maximize protection.
8. Troubleshooting
If you encounter issues with your Moonshan recirculating pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water or delayed hot water | Pump not running; Smart plug schedule incorrect; Sensor valve malfunction; Air in lines | Check power to pump and smart plug; Verify smart plug schedule; Inspect sensor valve for debris; Bleed air from lines by opening hot water faucet. |
| Water leaks at connections | Loose connections; Insufficient Teflon tape; Damaged gaskets | Tighten connections; Reapply Teflon tape; Replace damaged gaskets. Ensure proper installation technique. |
| Banging or knocking noise in pipes | Air in the system; Water hammer; Pump vibration | Bleed air from lines; Consider installing a water hammer arrestor if problem persists; Ensure pump is securely mounted. |
| Cold water faucet affected by hot water | Sensor valve malfunction or incorrect installation | Verify sensor valve is installed correctly with proper hot/cold orientation; Check for debris in the valve. |
9. Warranty and Support
The Moonshan Instant Hot Water Recirculating Pump comes with a one-year warranty from the date of purchase, covering manufacturing defects. For warranty claims, technical support, or any questions regarding your product, please contact Moonshan customer service through the retailer's platform or the official Moonshan website. Please have your model number (MS-ZN-16) and purchase information ready when contacting support.
