Introduction
This user manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Oster Kit, which includes the 15L Oven & Fryer (Model OFOR160) and the Perfect Brew Espresso Coffee Maker (Model BVSTEM7300). Please read this manual thoroughly before first use and retain it for future reference.
Image: The Oster Kit, featuring both the 15L Oven & Fryer and the Perfect Brew Espresso Coffee Maker, showcasing their combined design.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons. This includes:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
Image: Safety certification mark (OCP NCC) for the Oster Espresso Coffee Maker, indicating compliance with safety standards.
Image: Safety certification mark (OCP SGS) for the Oster 15L Oven & Fryer, indicating compliance with safety standards.
Product Overview
Oster Perfect Brew Espresso Coffee Maker (Model BVSTEM7300)
The Oster Perfect Brew Espresso Coffee Maker is designed to bring the authentic espresso experience to your home. It features a 3-in-1 design with an integrated grinder, an Italian pump for optimal pressure, and precise temperature control with pre-infusion for a richer flavor.
Image: Front view of the Oster Perfect Brew Espresso Coffee Maker, highlighting its controls and sleek design.
Key Features:
- Integrated Grinder: Capacity for up to 250g of beans with 30 adjustable grind settings.
- Italian Pump: Ensures excellent quality espresso with the touch of a button, preparing up to 2 cups at a time.
- Temperature Control & Pre-infusion: Exclusive technology for stable temperature and perfect extraction, with water pre-infusion for enhanced flavor.
- Milk Frother: Included accessory for practical milk frothing, ideal for lattes and cappuccinos.
- Removable Water Reservoir: 2.8L capacity for convenience.
- Stainless Steel Finish: Durable and elegant design.
Included Accessories:
- Portafilter
- Tamper
- Milk Jug
- 2 Filters (one for short espresso, one for long espresso)
- Cleaning Brush and other cleaning items
Oster 15L Multifunction Compact Oven & Fryer (Model OFOR160)
The Oster 15L Multifunction Compact Oven & Fryer offers versatility and convenience for your kitchen. It combines the functions of an oven and an air fryer, allowing for oil-free frying and convection baking.

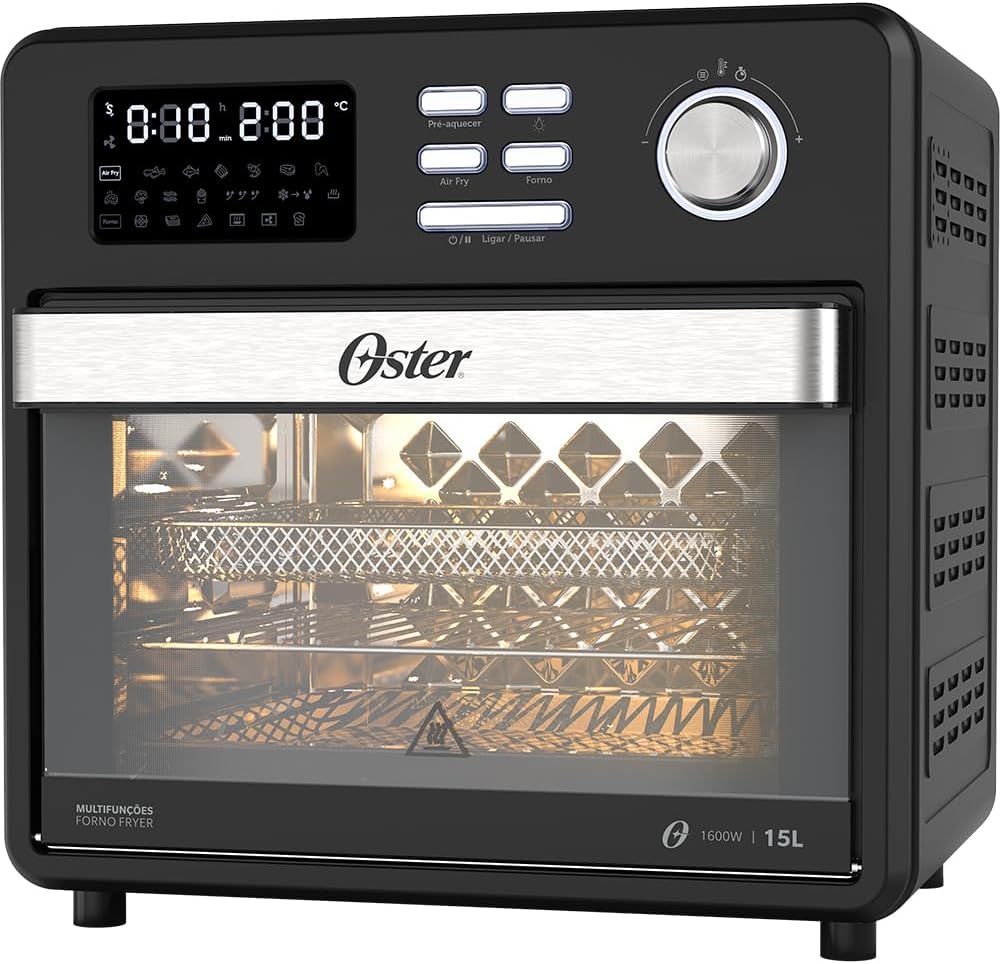

Image: Front view of the Oster 15L Multifunction Compact Oven & Fryer, showing its digital display and control knob.
Key Features:
- 2-in-1 Functionality: Combines oven and air fryer capabilities.
- 10 Manual Functions: Fryer, Grill, Dehydrate, Defrost, Reheat, Oven, Broil, Turbo Convection, Toast, Warm.
- 11 Pre-Programmed Functions: Chicken, Fish, Ribs, Shrimp, Meat, Chicken Wings, Vegetables, Bacon, French Fries, Lasagna, Pizza.
- Turbo Convection: Ensures uniform cooking and faster results.
- Digital Display & Luminous Panel: For easy operation and monitoring.
- 1600W Power & 15L Capacity: Suitable for various recipes and quantities.
- 4 Rack Levels: Provides flexibility for different cooking needs.
- Time and Temperature Control: Precise adjustments for optimal cooking.
Included Accessories:
- Crumb Tray
- Baking Pan and Grease Collector
- Frying Basket
- Grill Rack / Shelf
Image: The Oster 15L Oven & Fryer displayed with its various accessories, including the crumb tray, baking pan, frying basket, and grill rack.
Setup
Oster Perfect Brew Espresso Coffee Maker
- Unpacking: Carefully remove all packaging materials and accessories. Retain packaging for future transport if needed.
- Placement: Place the coffee maker on a stable, flat, heat-resistant surface, away from walls and heat sources. Ensure adequate ventilation.
- Initial Cleaning: Before first use, wash the water reservoir, portafilter, filters, and milk jug with warm soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
- Water Reservoir: Fill the 2.8L removable water reservoir with fresh, cold water up to the MAX line. Ensure it is securely placed back into the machine.
- Power Connection: Plug the power cord into a grounded 127V electrical outlet.
Oster 15L Multifunction Compact Oven & Fryer
- Unpacking: Remove all packaging materials, accessories, and any protective films from the appliance.
- Placement: Position the oven on a stable, level, heat-resistant surface. Ensure there is at least 10-15 cm (4-6 inches) of clear space on all sides and above the appliance for proper ventilation.
- Initial Cleaning: Wipe the interior and exterior of the oven with a damp cloth. Wash all accessories (crumb tray, baking pan, frying basket, grill rack) with warm soapy water, rinse, and dry thoroughly.
- First Use Burn-Off: Before cooking food, operate the oven empty for approximately 15 minutes at 200°C (400°F) to burn off any manufacturing residues. A slight odor or smoke may be present; this is normal. Ensure the area is well-ventilated.
- Power Connection: Plug the power cord into a grounded 127V electrical outlet.
Operating Instructions
Oster Perfect Brew Espresso Coffee Maker
Making Espresso:
- Fill Water Reservoir: Ensure the 2.8L water reservoir is filled with fresh, cold water.
- Add Coffee Beans: Open the lid of the integrated grinder and add up to 250g of fresh coffee beans. Close the lid.
- Select Grind Setting: Use the grind selector to choose one of the 30 available settings. Finer grinds are for espresso, coarser for other methods.
- Prepare Portafilter: Place the desired filter (short or long espresso) into the portafilter.
- Grind Coffee: Position the portafilter under the grinder outlet. Press the grind button to dispense freshly ground coffee into the portafilter.
- Tamp Coffee: Use the included tamper to press the ground coffee firmly and evenly into the portafilter. Ensure the surface is level.
- Attach Portafilter: Insert the portafilter into the brew head and twist firmly to lock it into place.
- Place Cups: Position one or two espresso cups on the drip tray beneath the portafilter spouts.
- Start Brewing: Press the desired espresso button (single or double shot). The machine will pre-infuse and then extract the espresso.
- Enjoy: Once brewing is complete, remove the cups. Carefully remove the portafilter and discard the used coffee grounds.
Image: A hand demonstrating the insertion of the portafilter into the Oster Perfect Brew Espresso Coffee Maker.
Image: Two freshly brewed cups of espresso, prepared using the Oster Perfect Brew Espresso Coffee Maker.
Using the Milk Frother:
- Fill the milk jug with cold milk (dairy or non-dairy).
- Position the steam wand into the milk, just below the surface.
- Turn the steam knob to activate the frother.
- Move the jug up and down slightly to create foam.
- Once desired foam is achieved, turn off the steam and remove the jug.
- Wipe the steam wand immediately after use with a damp cloth to prevent milk residue from drying.
Oster 15L Multifunction Compact Oven & Fryer
General Operation:
- Power On: Plug in the appliance. The digital display will illuminate.
- Select Function: Use the control knob or function buttons to select the desired cooking mode (e.g., Air Fry, Oven, Grill, Dehydrate).
- Adjust Temperature & Time: Use the control knob to set the temperature and cooking time according to your recipe. The display will show the selected settings.
- Preheat (if necessary): For some functions like "Oven" or "Air Fry", preheating may be required. The display will indicate "Pre-heat".
- Place Food: Place food in the appropriate accessory (frying basket for air frying, baking pan for baking, grill rack for grilling) and insert it into the oven at the recommended rack level.
- Start Cooking: Press the Start/Pause button to begin the cooking process.
- Monitor & Adjust: Monitor food through the viewing window. You can pause cooking to flip or stir food if needed.
- Completion: The oven will beep when cooking is complete. Carefully remove food using oven mitts.
Specific Functions:
- Air Fry: Ideal for crispy foods with little to no oil. Use the frying basket. Select "Air Fry" function.
- Oven: For baking and roasting. Use the baking pan or grill rack. Select "Oven" function.
- Grill/Broil: For browning and crisping the top of food. Use the grill rack. Select "Grill" function.
- Dehydrate: For drying fruits, vegetables, or making jerky. Use the grill rack. Select "Dehydrate" function and set low temperature for extended periods.
- Turbo Convection: This function ensures even heat distribution for faster and more uniform cooking. It is often integrated into other cooking modes.
Refer to the recipe guidelines for specific temperature and time recommendations for various foods.
Maintenance and Cleaning
Oster Perfect Brew Espresso Coffee Maker
- Daily Cleaning:
- Empty and rinse the drip tray and water reservoir daily.
- Clean the portafilter and filters after each use.
- Wipe down the exterior of the machine with a damp cloth.
- Clean the steam wand immediately after frothing milk to prevent blockages.
- Grinder Cleaning: Periodically clean the integrated grinder to remove coffee oil buildup. Refer to the grinder section of the manual for detailed instructions on disassembling and cleaning the burrs.
- Descaling: Depending on water hardness and usage, descale the machine every 2-3 months. Use a commercial descaling solution designed for coffee machines or a mixture of white vinegar and water (1:1 ratio). Follow the descaling instructions provided with your descaling solution.
- Storage: If storing for an extended period, ensure the machine is clean and dry. Empty all water and coffee beans.
Oster 15L Multifunction Compact Oven & Fryer
- Before Cleaning: Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
- Interior Cleaning: Wipe the interior walls, bottom, and glass door with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner. Do not use steel wool or abrasive pads.
- Exterior Cleaning: Wipe the exterior surfaces with a damp cloth. Do not immerse the oven in water.
- Accessory Cleaning: The crumb tray, baking pan, frying basket, and grill rack can be washed in warm soapy water. They are generally dishwasher safe, but hand washing is recommended to prolong their lifespan. Ensure they are completely dry before reinserting.
- Crumb Tray: Empty the crumb tray regularly to prevent buildup and potential fire hazards.
Troubleshooting
Oster Perfect Brew Espresso Coffee Maker
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee dispenses. | No water in reservoir; clogged filter/portafilter; machine not preheated. | Fill water reservoir; clean filter/portafilter; allow machine to preheat. |
| Espresso flows too slowly or not at all. | Coffee ground too fine; coffee tamped too hard; clogged filter. | Adjust grind setting to coarser; reduce tamping pressure; clean filter. |
| Espresso flows too quickly. | Coffee ground too coarse; not enough coffee; coffee not tamped enough. | Adjust grind setting to finer; add more coffee; increase tamping pressure. |
| Steam wand not producing steam. | Steam wand clogged; machine not hot enough. | Clean steam wand with a pin; allow machine to reach steaming temperature. |
| Machine leaks water. | Water reservoir not seated correctly; drip tray full; seal issue. | Ensure reservoir is properly seated; empty drip tray; contact support if issue persists. |
Oster 15L Multifunction Compact Oven & Fryer
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction; fuse blown. | Ensure plug is fully inserted; test outlet with another appliance; check household fuse/breaker. |
| Food not cooking evenly. | Overcrowding; incorrect rack position; temperature too low. | Do not overcrowd basket/pan; use recommended rack level; increase temperature. |
| White smoke coming from oven. | Grease/food residue on heating elements; fatty food cooking. | Clean interior thoroughly; use baking pan to catch drips from fatty foods. |
| Digital display not working. | Power issue; internal malfunction. | Check power connection; if problem persists, contact customer support. |
Specifications
Oster Perfect Brew Espresso Coffee Maker (Model BVSTEM7300)
| Model | BVSTEM7300 |
| Voltage | 127V |
| Water Reservoir Capacity | 2.8 Liters |
| Bean Hopper Capacity | 250g |
| Dimensions (LxHxD) | 366 x 440 x 396 mm (14.4 x 17.3 x 15.6 inches) |
| Safety Certification | OCP NCC |
Oster 15L Multifunction Compact Oven & Fryer (Model OFOR160)
| Model | OFOR160 |
| Voltage | 127V |
| Power | 1600W |
| Capacity | 15 Liters |
| Dimensions (LxHxD) | 345 x 340 x 315 mm (13.6 x 13.4 x 12.4 inches) |
| Safety Certification | OCP SGS |
Warranty and Support
Your Oster Kit (Oven & Fryer Model OFOR160 and Espresso Coffee Maker Model BVSTEM7300) is covered by a 12-month limited warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use.
The warranty does not cover:
- Damage resulting from misuse, abuse, negligence, or accident.
- Damage from unauthorized repairs or modifications.
- Normal wear and tear.
- Commercial use.
For warranty claims or technical support, please contact Oster customer service. Keep your proof of purchase for warranty validation.
Oster Customer Service: Please refer to the contact information provided on the official Oster website or your product packaging for the most up-to-date support details.
You can also visit the official Oster store on Amazon for more information: Oster Amazon Store
