Product Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient use of your Quansheng Long Range UV-5R Plus Walkie Talkie. Please read this manual thoroughly before operating the device to ensure proper functionality and to prevent damage.

Key Features

• AM/FM Aviation Band Receiving; Multi-Band Transmitting & Receiving; Wireless Radio Replication; Emergency Alert
• DTMF; Multi-Scan; High Capacity Battery; Long Standby Time; One Key call channel; Dual Display Of Frequency And Channel; Emergency Weather Channel Receiving; Cross-Band Intercom
• Channel scan And Add; 10-Group Scrambler; FM Radio; CTCSS/DCS; Type-C And charge-Base; 1750HZ; 200 Channel; Voice prompt
• The handheld radio is suitable for Security Guard, Supermarket Connection, Hotel, Construction Area Indication, Field Survival, Biking, Hiking and other Place. Support CHIRP & Keypad Programming (CHIRP compatible: select "Quansheng UV-K5" as the radio, use the latest chirp version)
• Manufacturer: QUANSHENG ELECTRONICS.,LTD. FCC ID: XBPUV-K5; IC: 30518-UVK5

Package Contents

Upon opening the package, please verify that all items are present and in good condition:

• Quansheng Long Range UV-5R Plus Walkie Talkie
• Microphone
• Antenna
• Battery (pre-installed or separate)
• Charging Base
• USB-C Charging Cable
• Belt Clip
• Hand Strap

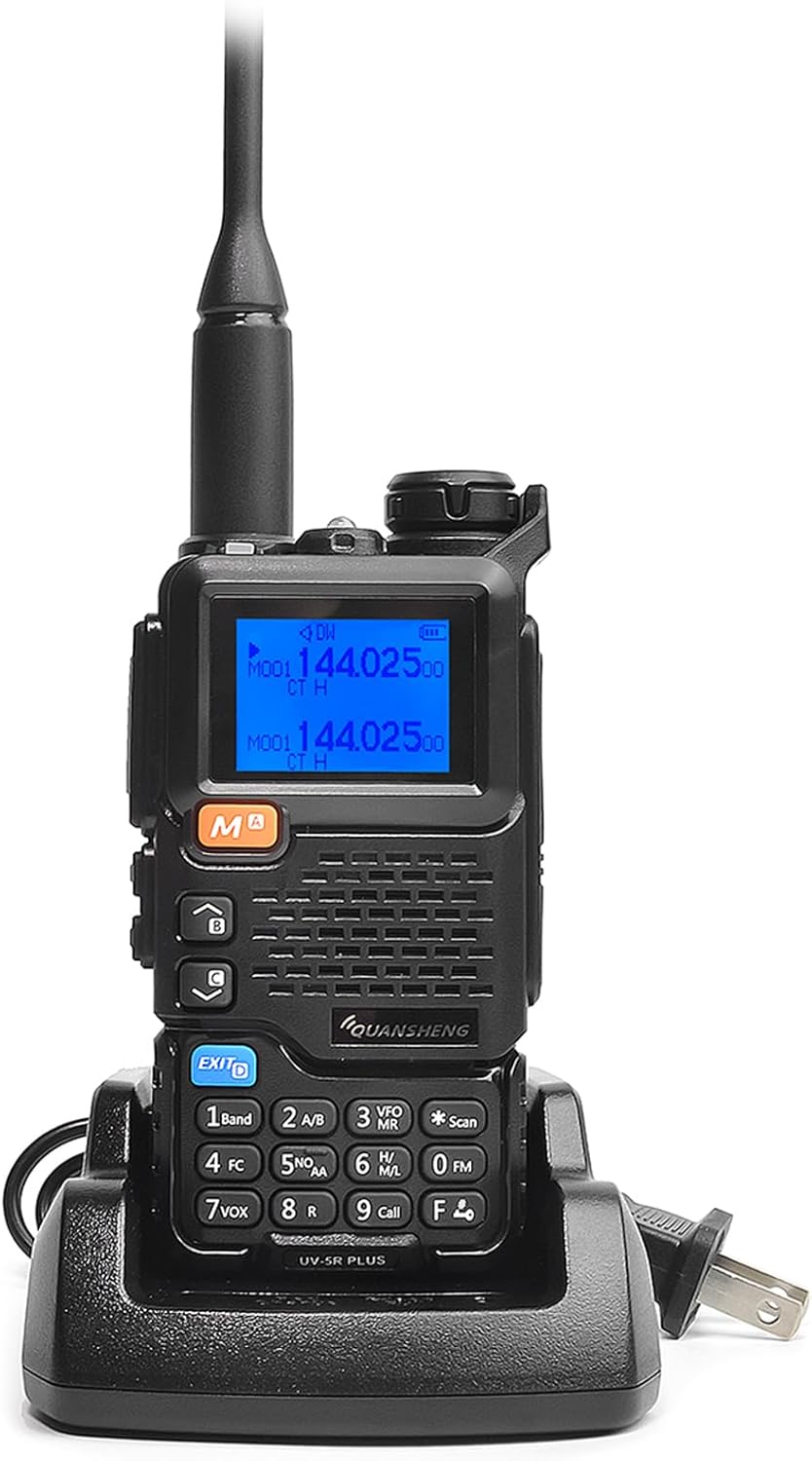

Image: The Quansheng UV-5R Plus Walkie Talkie shown with its charging base, highlighting the main unit and essential accessories.

Product Overview

Familiarize yourself with the various parts and controls of your walkie talkie.

Image: Detailed diagram of the Quansheng UV-5R Plus Walkie Talkie, pointing out key components such as Antenna, Jack Light, Power/Volume Switch, Earpiece/Mic Jack, PTT button, Menu (Confirm key), Up Key, Down Key, and the keypad.

Key Components:

• Antenna: For transmitting and receiving radio signals.
• Power/Volume Switch: Rotates to turn the radio on/off and adjust volume.
• PTT (Push-to-Talk) Button: Press and hold to transmit, release to receive.
• Menu (M) Key: Enters the menu system and confirms selections.
• Up/Down Keys: Navigate menu options and adjust settings.
• Keypad: For direct frequency input, channel selection, and function access.
• Earpiece/Mic Jack: Connects external audio accessories.
• USB-C Port: For convenient charging.

Setup

1. Battery Installation and Charging

Ensure the battery is fully charged before first use.

1. Align the battery pack with the grooves on the back of the radio.
2. Slide the battery upwards until it clicks into place.
3. To charge, place the radio into the charging base. Connect the USB-C cable to the charging base and a power source. The indicator light will show charging status.
4. A full charge typically takes 3-4 hours.

Image: Close-up of the Quansheng UV-5R Plus Walkie Talkie highlighting the USB-C charging port on the side.

2. Antenna Attachment

Screw the antenna clockwise into the connector on the top of the radio until it is finger-tight.

Image: A close-up view of the top of the walkie talkie, showing the base of the antenna securely attached.

Operating Instructions

1. Power On/Off and Volume Adjustment

Rotate the Power/Volume switch clockwise to turn on the radio. Continue rotating to increase volume. Rotate counter-clockwise to decrease volume and turn off.

Image: A close-up view of the power/volume knob at the top of the walkie talkie.

2. Channel/Frequency Selection

The radio supports both frequency mode (VFO) and channel mode (MR). Press the "VFO/MR" key to switch between modes.

• Frequency Mode (VFO): Directly input desired frequency using the keypad.
• Channel Mode (MR): Use the Up/Down keys to scroll through pre-programmed channels.

3. Transmitting and Receiving

To transmit, press and hold the PTT button on the side of the radio. Speak clearly into the microphone. Release the PTT button to receive.

4. Emergency Weather Alarm (NOAA)

This radio features NOAA weather alarm functionality. Refer to the specific menu settings to activate and configure weather alerts for your region.

Image: The Quansheng UV-5R Plus Walkie Talkie screen showing weather-related icons, indicating its NOAA emergency weather receiver capability.

5. Cross-Band Intercom

The cross-band intercom feature allows communication between different frequency bands. Consult the advanced settings in the menu for configuration.

Image: Two Quansheng UV-5R Plus Walkie Talkies side-by-side, illustrating the cross-band intercom feature with visual cues.

6. CHIRP Programming

This radio is compatible with CHIRP software for advanced programming. Select "Quansheng UV-K5" as the radio model in the latest CHIRP version for optimal compatibility.

Maintenance

1. Cleaning

Wipe the radio with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the radio is dry before use or charging.

2. Battery Care

To prolong battery life, avoid overcharging or completely draining the battery. Store the radio and battery in a cool, dry place when not in use for extended periods.

3. Antenna Care

Handle the antenna carefully to prevent bending or damage. Do not use the radio without the antenna attached, as this can damage the transceiver.

Troubleshooting

Specifications

Usage Scenarios

The Quansheng UV-5R Plus is versatile and suitable for various applications:

Logistics & Aviation

Image: A worker in a hard hat and safety vest using a walkie talkie at a busy port, with a cargo ship and an airplane in the background, illustrating use in logistics and aviation communication.

Security Operations

Image: A security guard from behind, wearing a "SECURITY" shirt and using a walkie talkie outdoors, demonstrating its utility in security operations.

Outdoor Activities & Survival

Image: A person wearing a bike helmet and backpack, using a walkie talkie in a natural, outdoor setting, highlighting its use for biking, hiking, and outdoor survival.

Product Views

Different perspectives of the Quansheng UV-5R Plus Walkie Talkie.

Image: A composite image showing the Quansheng UV-5R Plus Walkie Talkie from front, side, and back angles, providing a comprehensive view of its design.

Warranty and Support

For warranty information and technical support, please refer to the manufacturer's official website or contact their customer service department. Keep your purchase receipt as proof of purchase.

Manufacturer: QUANSHENG ELECTRONICS.,LTD.

FCC ID: XBPUV-K5; IC: 30518-UVK5
