Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Genérico Automatico Orange Pumps PC-12 pressure kit. Please read these instructions thoroughly before use and retain them for future reference. The PC-12 is designed to automate the operation of water pumps up to 16 Amperes, providing consistent water pressure for various applications.
Safety Information
WARNING: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.
- Always disconnect power before performing any installation, maintenance, or troubleshooting.
- Ensure all electrical connections are made by a qualified electrician and comply with local codes.
- Do not operate the device if it is damaged or if the electrical cable is frayed.
- This device is designed for use with water pumps. Do not use it for other liquids without consulting the manufacturer.
- Keep children and unauthorized personnel away from the installation area.
- The maximum water temperature for operation is 60°C.
Product Overview
The Automatico Orange Pumps PC-12 is a compact individual pressure kit designed to control water pumps. It features a 1-inch NPT male thread connection and includes a reset button. It provides dry-run protection for the pump.
Key Features:
- 1-inch threaded connections.
- Maximum amperage: 16 A.
- Voltage: 127 Volts.
- Dry-run protection.
- IP54 protection rating.
- Non-adjustable start pressure: 22.5 ± 2.5 psi.
Product Image:

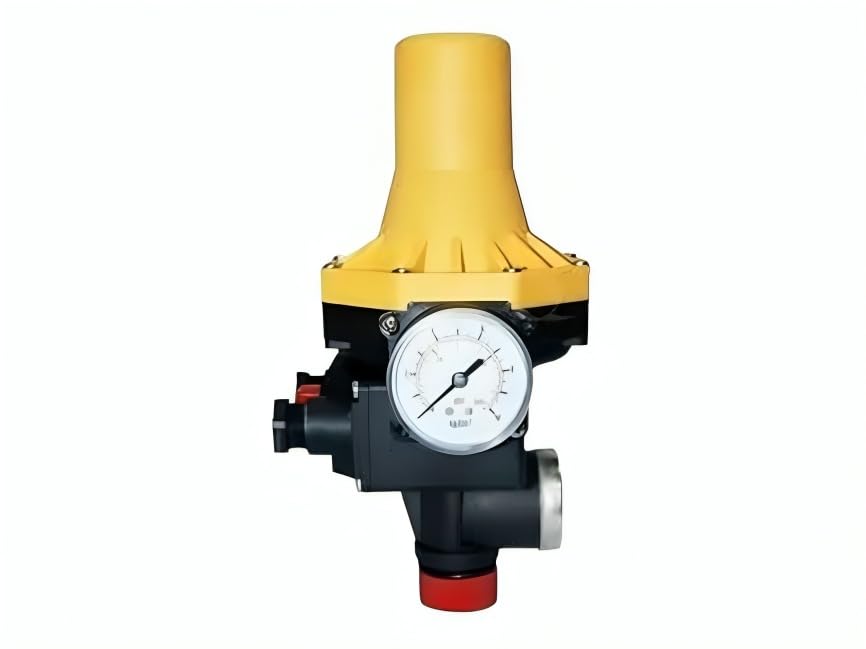

Image: The Genérico Automatico Orange Pumps PC-12 pressure kit. This image displays the compact yellow and black unit, highlighting its electrical input and output connections, as well as the 1-inch NPT threaded ports for water flow. The reset button is also visible on the front panel.
Specifications
| Specification | Value |
|---|---|
| Brand | Genérico |
| Model Number | PC-12 |
| Manufacturer | Orange Pumps |
| Product Type | Compact Individual Pressure Kit |
| Voltage | 127 Volts |
| Frequency | 60 Hz |
| Maximum Amperage | 16 A |
| Protection | Dry-run protection |
| IP Rating | IP54 |
| Inlet/Outlet Connections | 1" x 1" NPT Male Thread |
| Start Pressure | 22.5 ± 2.5 psi (Non-adjustable) |
| Maximum Water Temperature | 60°C |
| Maximum Operating Pressure | 145 psi |
| Weight | 1.1 kg (850 Grams) |
| Material | Plastic |
| Power Source | Corded Electric |
Setup and Installation
- Mounting: Securely mount the PC-12 unit in a vertical position, ensuring the water flow direction matches the arrows on the device. Choose a location protected from direct sunlight and freezing temperatures.
- Plumbing Connections: Connect the PC-12 to your water pump's discharge line using the 1-inch NPT male threaded connections. Ensure all connections are watertight using appropriate sealing tape or compound. The unit should be installed between the pump's discharge and the first tap.
- Electrical Connections: This step must be performed by a qualified electrician.
- Connect the power supply cable (127 Volts, 60 Hz) to the designated input terminals on the PC-12.
- Connect the water pump's power cable to the designated output terminals on the PC-12. Ensure the pump's maximum amperage does not exceed 16 A.
- Verify all connections are secure and properly insulated.
- Priming the Pump: Before starting, ensure your water pump is properly primed according to its own instruction manual. The PC-12 requires water flow to operate correctly.
Operating Instructions
- Initial Start-up: After completing the installation and ensuring the pump is primed, connect the PC-12 to the main power supply. The unit will automatically detect the water pressure.
- Automatic Operation: The PC-12 will automatically start the pump when the pressure drops below the preset start pressure (22.5 ± 2.5 psi), typically when a tap is opened. It will stop the pump when the water flow ceases (e.g., when the tap is closed) or if dry-run conditions are detected.
- Reset Button: In case of a dry-run protection activation or other fault, the pump will stop. To restart, press the "Reset" button located on the unit. Ensure the water supply to the pump is restored before resetting.
- Indicator Lights (if applicable, assume common ones): Observe any indicator lights on the unit. Typically, a green light indicates power, and a red light might indicate a fault or dry-run condition.
Maintenance
The Genérico Automatico Orange Pumps PC-12 is designed for minimal maintenance. However, regular checks can ensure optimal performance and longevity.
- Regular Inspection: Periodically inspect the unit and all connections for any signs of leaks, corrosion, or damage. Ensure electrical cables are intact.
- Cleaning: Keep the exterior of the unit clean and free from dust and debris. Do not use harsh chemicals or abrasive cleaners.
- Winterization (if applicable): If the unit is installed in an area subject to freezing temperatures, disconnect it and drain all water to prevent damage from ice expansion.
- No User-Serviceable Parts: Do not attempt to open or repair the unit yourself. Refer all servicing to qualified personnel.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start. | No power supply; Dry-run protection activated; Pump not primed; Faulty wiring. | Check power connection; Press the Reset button after ensuring water supply; Prime the pump; Check electrical connections. |
| Pump runs continuously. | Leak in the system; Faulty pressure sensor in PC-12; Small continuous flow. | Check for leaks in plumbing; Contact support if sensor is suspected; Ensure all taps are fully closed. |
| Pump cycles on and off frequently. | Small leak; Air in the system; Insufficient water supply. | Check for small leaks; Bleed air from the system; Ensure adequate water source. |
| Low water pressure. | Pump issue; Clogged filter; Insufficient water supply. | Check pump performance; Clean any filters in the system; Verify water source. |
Warranty Information
The Genérico Automatico Orange Pumps PC-12 comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by improper installation, misuse, neglect, freezing, or unauthorized repairs. Please retain your proof of purchase for warranty claims.
Support and Contact
For technical assistance, warranty claims, or further information, please contact your retailer or the manufacturer's customer service. Always provide your product model number (PC-12) and proof of purchase when seeking support.
Manufacturer: Orange Pumps
Country of Origin: China
