1. Introduction
The SEMPER PLUS 5 is a portable electrostimulation device designed for various therapeutic applications, including pain management, muscle rehabilitation, and strengthening. It features 2 channels and offers 5 distinct current types: TENS, EMS, Interferential (IF), Russian (RUSA), and Microcurrent. This device is suitable for both home use and professional physical therapy clinics. It includes a rechargeable Lithium-ion battery and 120 programs, offering both preset and free programming options.
This manual provides essential information for the safe and effective operation of your SEMPER PLUS 5 device. Please read it thoroughly before first use and keep it for future reference.
2. Safety Information
Always prioritize safety when using the SEMPER PLUS 5 device. Improper use can lead to adverse effects.
- Consult a Healthcare Professional: Always consult with a healthcare professional before using this device, especially if you have pre-existing medical conditions, are pregnant, or have a pacemaker.
- Electrode Placement: Ensure electrodes are properly attached to the skin. The device features a patient safety system that locks the unit if total or partial electrode detachment is detected, preventing accidental modifications during treatment.
- Keypad Lock: The device includes a keypad lock system to prevent accidental changes to treatment settings during operation. Activate this feature to maintain consistent therapy.
- Avoid Sensitive Areas: Do not place electrodes on the head, face, neck (especially carotid sinus), chest, or over open wounds, irritated skin, or areas with impaired sensation.
- Keep Dry: Do not use the device in wet environments or near water.
- Children and Pets: Keep the device out of reach of children and pets.
- Charging: Use only the provided charger and cable. Do not attempt to charge with damaged accessories.
3. Product Overview and Components
The SEMPER PLUS 5 device is designed for user-friendly interaction with an ergonomic design.
3.1 Device Features
- LCD screen with illumination.
- Rechargeable Lithium-ion battery (3.7V).
- 2 independent channels for electrostimulation.
- 5 current types: TENS, EMS, Interferential (IF), Russian (RUSA), Microcurrent.
- 120 programs (preset and free programming modes).
- Patient safety system and keypad lock.
- 2mm pin connector electrodes for versatility.
3.2 Package Contents
Your SEMPER PLUS 5 package includes:
- SEMPER PLUS 5 Electroestimulador Muscular device
- Instruction Manual
- Self-adhesive electrodes (2mm pin connector)
- Electrode cables
- USB charging cable
- Power adapter
- Carrying case
- Digital Therapeutic Guide
Figure 3.2.1: Complete package contents of the SEMPER PLUS 5 device, including the main unit, electrodes, cables, charger, manual, and carrying case.
Figure 3.2.2: Front view of the SEMPER PLUS 5 device, showing the LCD screen and control buttons for channels (CH1, CH2), mode (M), program (P), time/intensity (T/II), and start/stop (S).
4. Setup
4.1 Initial Charging
Before first use, ensure the device is fully charged. The SEMPER PLUS 5 uses a rechargeable Lithium-ion battery.
- Connect the USB charging cable to the device's charging port (located on the side/rear).
- Connect the other end of the USB cable to the provided power adapter.
- Plug the power adapter into a suitable electrical outlet.
- The battery indicator on the LCD screen will show charging status. Charge until the battery icon indicates full charge.
Figure 4.1.1: Rear view of the SEMPER PLUS 5 device, illustrating the rechargeable battery compartment and charging port.
4.2 Electrode Connection
- Ensure the device is turned off before connecting electrodes.
- Attach the electrode cables to the output channels (CH1 and CH2) on the top of the device.
- Connect the self-adhesive electrodes to the 2mm pin connectors on the electrode cables.
- Peel the protective film from the electrodes and apply them firmly to clean, dry skin in the desired treatment area. Refer to a therapeutic guide or your healthcare professional for proper electrode placement.
5. Operating Instructions
The SEMPER PLUS 5 offers 5 current types and 120 programs for diverse therapeutic needs.
Figure 5.0.1: The SEMPER PLUS 5 device, illustrating its capability to deliver 5 different current types: TENS, EMS, Interferential, Russian, and Microcurrent.
5.1 Powering On/Off
- To turn on: Press and hold the 'S' (Start/Stop) button until the screen illuminates.
- To turn off: Press and hold the 'S' button until the screen turns off.
5.2 Program Selection
The device offers 120 programs, categorized into preset and free programming modes.
- After powering on, press the 'M' (Mode) button to cycle through the 5 current types (TENS, EMS, IF, RUSA, MIC).
- Once a current type is selected, press the 'P' (Program) button to select a specific program number within that current type.
- For free programming modes (available in EMS and RUSA), you can adjust parameters such as ramp-up time, muscle contraction time, ramp-down time, and rest time using the 'T/II' button and channel intensity buttons.
Figure 5.2.1: The SEMPER PLUS 5 device demonstrating its versatility with preset and free programming, parameter modulation (Hz, mA, µs, ms), and adjustable treatment time.
5.3 Adjusting Intensity and Time
- Use the '+' and '-' buttons for CH1 and CH2 to adjust the intensity for each channel independently. Start with a low intensity and gradually increase until a comfortable sensation is felt.
- Press the 'T/II' button to adjust the treatment duration (5-90 minutes, adjustable).
5.4 Starting and Stopping Treatment
- To start treatment: After selecting the program and adjusting intensity/time, press the 'S' (Start/Stop) button.
- To stop treatment: Press the 'S' button again.
5.5 Keypad Lock
To activate the keypad lock, press and hold a specific button combination (refer to the device's screen prompts or the digital guide for exact instructions). This prevents accidental changes during treatment.

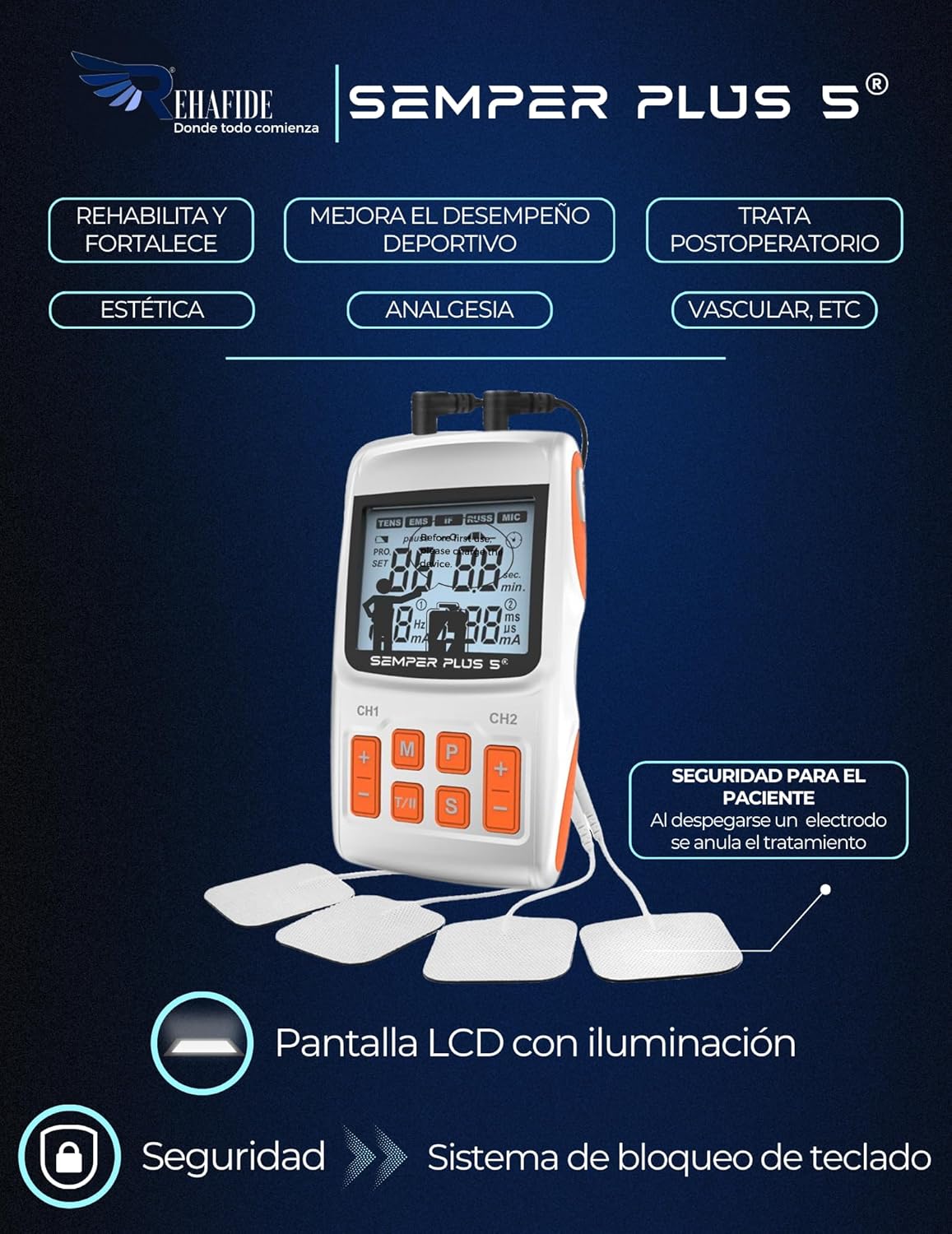

Figure 5.5.1: The SEMPER PLUS 5 device connected to electrodes, illustrating patient safety features such as automatic treatment cancellation upon electrode detachment and the keypad lock system.
6. Maintenance
6.1 Cleaning the Device
- Turn off the device and disconnect all cables before cleaning.
- Wipe the device surface with a soft, slightly damp cloth. Do not use abrasive cleaners or immerse the device in water.
6.2 Electrode Care
- After each use, reattach the protective film to the electrodes to preserve their adhesive quality.
- Replace electrodes when they lose their adhesiveness or become damaged.
6.3 Storage
- Store the device and accessories in the provided carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
- Ensure the device is fully charged before long-term storage to maintain battery health.
7. Troubleshooting
If you encounter issues with your SEMPER PLUS 5 device, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery or device not charged. | Charge the device fully using the provided charger. |
| No sensation or weak sensation during treatment. | Electrodes not properly attached, intensity too low, or electrodes are worn out. | Ensure electrodes are firmly attached to clean skin. Increase intensity gradually. Replace old electrodes. Check cable connections. |
| Device stops during treatment. | Electrode detachment detected (safety feature) or battery low. | Re-attach electrodes firmly. Charge the device if battery is low. |
| Keypad is unresponsive. | Keypad lock is active. | Deactivate the keypad lock (refer to device prompts or digital guide). |
8. Specifications
Technical details for the SEMPER PLUS 5 Electroestimulador Muscular:
| Feature | Detail |
|---|---|
| Channels | 2 independent channels |
| Current Types | TENS, EMS, Interferential (IF), Russian (RUSA), Microcurrent (MIC) |
| Programs | 120 (Preset and Free Programming) |
| Waveform (MIC) | Monophasic, square pulse |
| Waveform (Others) | Biphasic, square pulse |
| Output Current (TENS/EMS/RUSA) | 0 ~ 90 mA |
| Output Current (IF) | 0 ~ 30 mA |
| Output Current (MIC) | 0 - 0.7 mA |
| Pulse Width (TENS/EMS) | 50 ~ 400 µs |
| Pulse Width (RUSA) | 200 µs |
| Pulse Width (IF) | 50 / 100 µs |
| Pulse Width (MIC) | 2 ms - 500 ms |
| Frequency (TENS/EMS) | 2 - 150 Hz |
| Frequency (MIC) | 0.1 - 150 Hz |
| Frequency (RUSA) | Carrier F 2.5 KHz - Burst F 10 - 70 Hz |
| Frequency (IF) | Carrier F 5 Hz / 10 Hz - Beat F 1 - 200 Hz |
| Treatment Duration | 5 - 90 minutes (adjustable) |
| Power Source | 3.7 V Li-ion rechargeable battery |

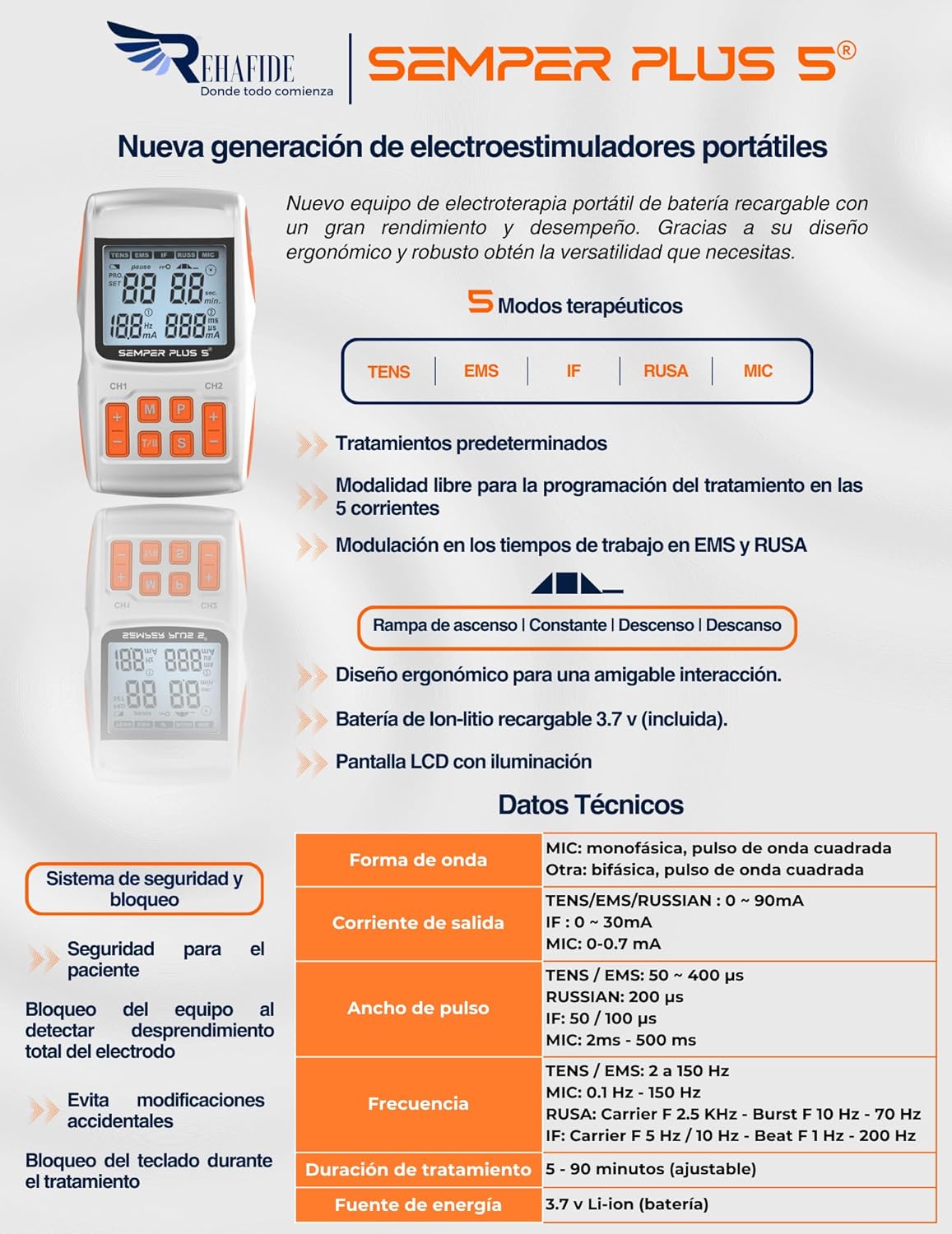

Figure 8.0.1: Detailed technical specifications for the SEMPER PLUS 5 device.
9. Warranty and Support
9.1 Warranty Information
The SEMPER PLUS 5 device comes with a 12-month warranty against manufacturing defects. This warranty ensures the product's reliability. Please note that the warranty does not apply to accessories or consumables (e.g., electrodes, cables).
The 30-day return guarantee does not apply to equipment that has already been used by the customer, as all our equipment is new.
9.2 Customer Support
For any questions, technical assistance, or warranty claims, please refer to the contact information provided with your purchase documentation or visit the official product support website.
