FoMup Electric Cigar Humidor Cabinet User Manual

1. Introduction and Overview

This manual provides detailed instructions for the proper setup, operation, and maintenance of your FoMup Electric Cigar Humidor Cabinet. Designed to maintain optimal conditions for cigar preservation, this 25-liter cooler features precise temperature and humidity control, Spanish cedar wood shelving, and enhanced security features.

Please read this manual thoroughly before operating the humidor to ensure safe and efficient use and to maximize the lifespan of your cigars.

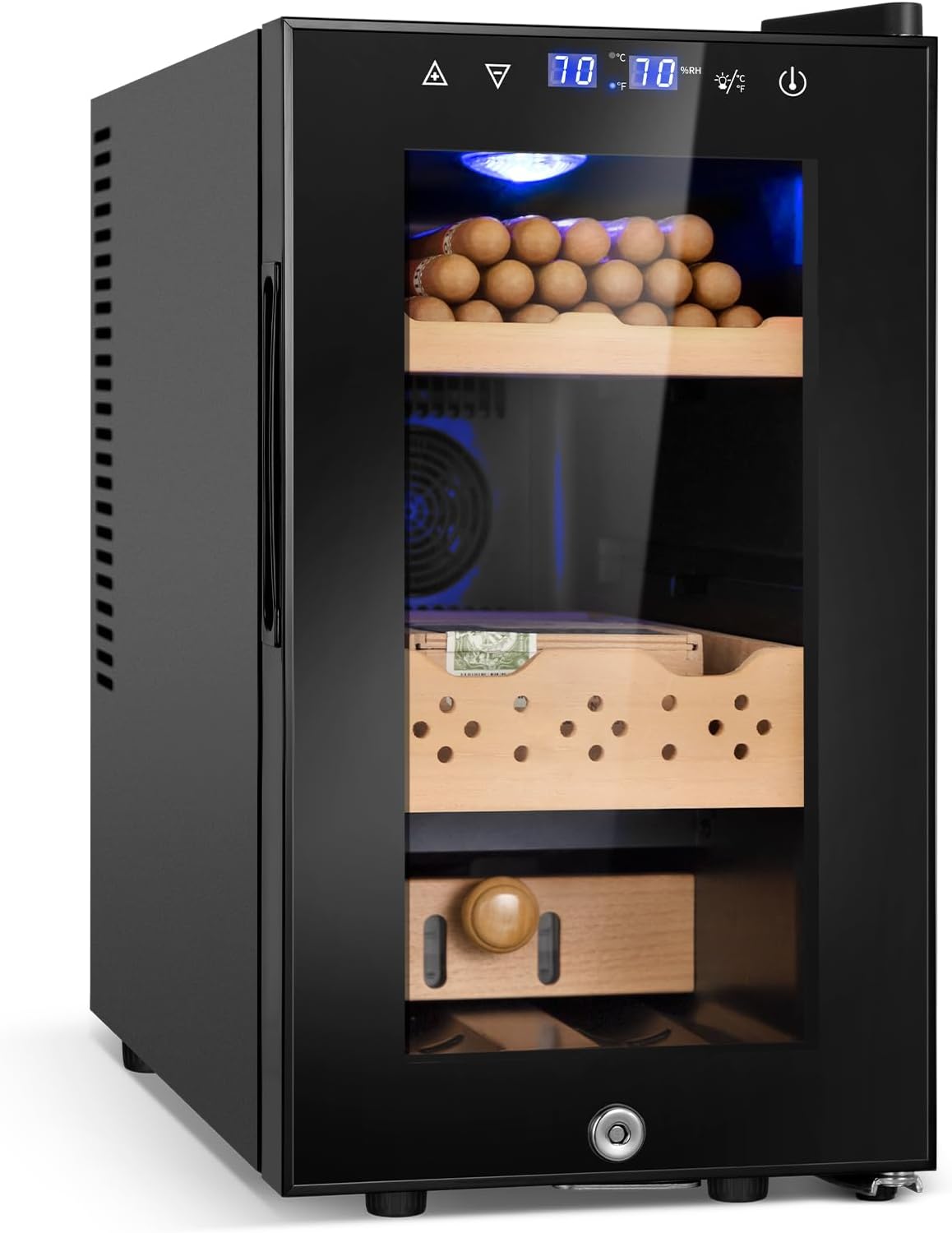

Figure 1: Front view of the FoMup Electric Cigar Humidor Cabinet.

2. Safety Information

• Ensure the humidor is placed on a stable, level surface to prevent tipping.
• Allow adequate ventilation around the unit (at least 4 inches from walls or other appliances).
• Do not block the air vents on the back or sides of the unit.
• Keep the power cord away from heat sources and sharp edges.
• Unplug the unit before cleaning or performing any maintenance.
• The humidor is equipped with a safety lock to prevent unauthorized access, especially by children. Keep the key in a secure location.
• Do not store flammable or explosive materials inside the humidor.

3. Product Features

3.1. Temperature and Humidity Control

The humidor features a digital touch control panel for precise management of internal temperature and humidity. The temperature can be adjusted between 59°F - 72°F (15°C - 22°C) and humidity between 60% - 75%.

Figure 2: Digital Touch Control Panel for temperature and humidity settings.

3.2. Spanish Cedar Wood Shelves and Drawers

The interior is fitted with high-quality Spanish cedar wood shelves and drawers. Spanish cedar is known for its ability to absorb excess moisture and release it when needed, helping to regulate humidity. It also imparts a pleasant aroma that enhances the cigar aging process.

Figure 3: Spanish Cedar Wood interior, highlighting humidity regulation and aroma benefits.

3.3. Stable Storage Environment

An internal cold air fan ensures balanced temperature distribution, while an evaporative fan maintains consistent humidity levels throughout the cabinet. This system guarantees a stable and uniform environment for your cigars.

Figure 4: Internal air cooling and moisture evaporation fan system.

3.4. Enhanced Security and Water Box

The humidor is equipped with a secure lock to protect your cigar collection. A built-in water box with a sponge facilitates easy humidification.

Figure 5: Key features including the safety lock and water box.

3.5. Double-Layer Tempered Glass and Silent Operation

The door features double-layer tempered glass, providing excellent insulation to maintain stable internal conditions while allowing visibility of your cigars. The unit operates silently, ensuring a peaceful environment.

Figure 6: Double-layer tempered glass for insulation and moisture retention.

3.6. Capacity and Design

With a 25-liter capacity, the humidor can store approximately 170 cigars, depending on their size. Its compact design makes it suitable for countertop placement.

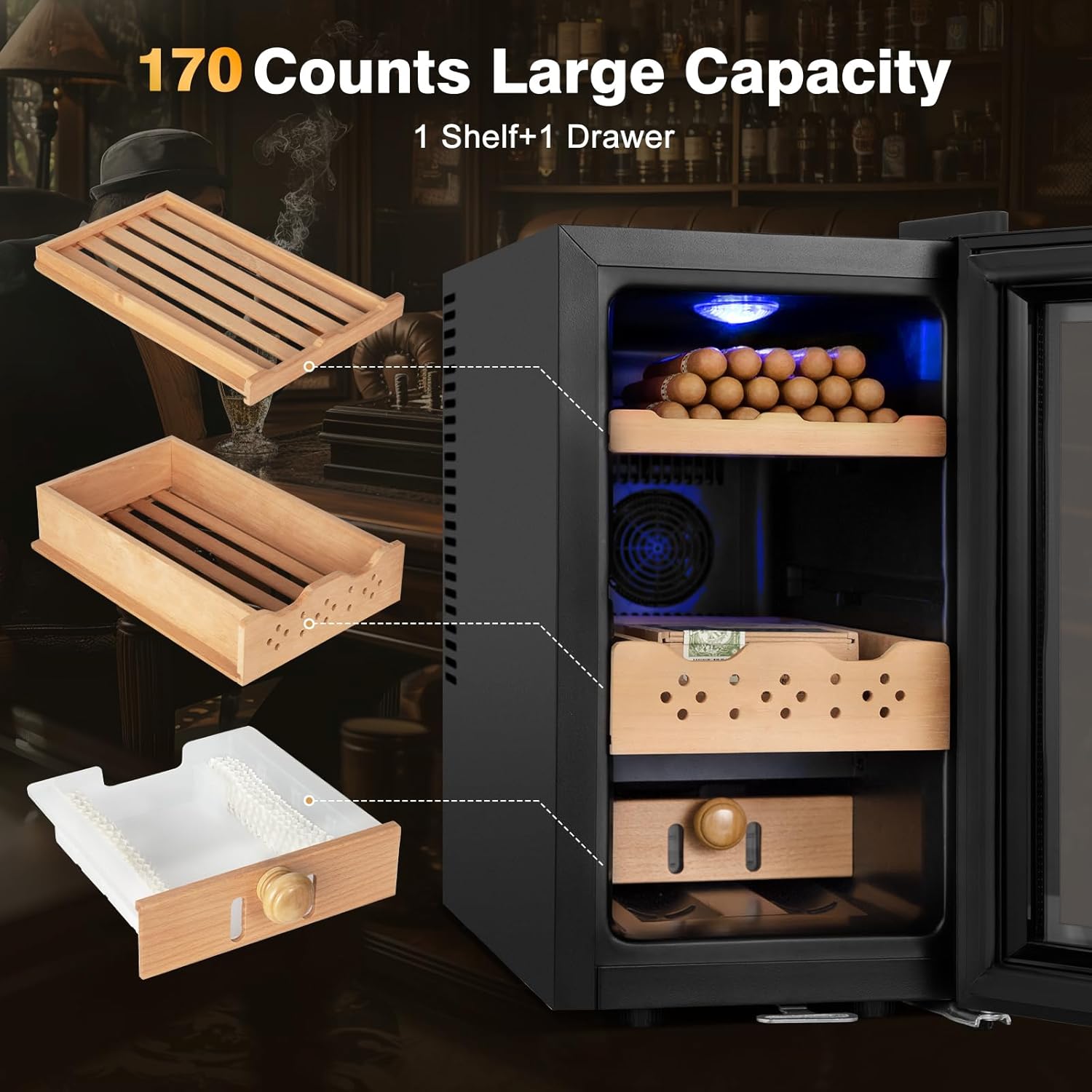

Figure 7: Internal layout with shelf and drawer, demonstrating capacity.

Figure 8: Compact size suitable for countertop placement, with dimensions.

3.7. Official Product Video

4. Setup Instructions

4.1. Unpacking

1. Carefully remove the humidor from its packaging.
2. Inspect the unit for any shipping damage. If damaged, contact customer support immediately.
3. Remove all internal packing materials, including tape and protective films.

4.2. Placement

• Place the humidor on a firm, level surface that can support its weight.
• Ensure there is at least 4 inches (10 cm) of space on the back and sides for proper air circulation.
• Avoid direct sunlight, heat sources, or areas with extreme temperature fluctuations.
• Adjust the adjustable feet at the bottom of the unit to ensure it is perfectly level.

4.3. Initial Seasoning (Important)

Before storing cigars, the Spanish cedar wood interior must be seasoned to prevent it from absorbing moisture from your cigars.

1. Fill the water box with distilled water. Ensure the sponge is fully saturated but not overflowing.
2. Place the filled water box back into its designated slot.
3. Close the humidor door and plug in the unit.
4. Set the humidity to 70% and temperature to 68°F (20°C).
5. Allow the humidor to run for at least 24-48 hours without cigars to allow the cedar to absorb moisture and stabilize the internal environment.
6. Monitor the humidity levels during this period. If it drops significantly, refill the water box.

5. Operating Instructions

5.1. Powering On/Off

• Plug the power cord into a grounded electrical outlet.
• Press the Power button (symbol: power icon) on the digital touch panel to turn the unit on or off.

5.2. Setting Temperature and Humidity

• Press the Power button briefly to toggle between temperature and humidity setting modes.
• Use the Increase (symbol: up arrow) and Decrease (symbol: down arrow) buttons to adjust the desired temperature (59°F - 72°F) or humidity (60% - 75%).
• The display will show the current internal temperature and humidity.

5.3. Temperature Unit Toggle

• Press the Light/Celsius and Fahrenheit toggle button (symbol: light/°C/°F icon) to switch the temperature display between Celsius (°C) and Fahrenheit (°F).

5.4. Internal Light Control

• Press the Light/Celsius and Fahrenheit toggle button (symbol: light/°C/°F icon) to turn the internal blue ambient light on or off.

6. Maintenance

6.1. Cleaning the Humidor

• Always unplug the unit before cleaning.
• Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• For the interior, use a clean, slightly damp cloth. Avoid using soap or chemical cleaners, as these can affect the cedar wood and cigar aroma.
• Clean the water box regularly to prevent mold or mildew growth. Use distilled water only.
• Ensure all surfaces are dry before plugging the unit back in.

6.2. Refilling the Water Box

• Regularly check the water level in the water box.
• When the water level is low, carefully remove the water box.
• Refill with distilled water only. Tap water contains minerals that can leave deposits and promote mold.
• Ensure the sponge is moist but not dripping before returning the water box to the humidor.

6.3. Spanish Cedar Wood Care

• Do not use any oils or polishes on the cedar wood, as this can impede its natural humidification properties.
• If the cedar shelves or drawers appear dry, ensure the humidor's humidity is set correctly and the water box is full.

7. Troubleshooting

If you encounter problems not listed here or if solutions do not resolve the issue, please contact FoMup customer support.

8. Specifications

9. Warranty and Support

FoMup provides 12 months of technical support for this cigar humidor. If you have any questions or require assistance during this period, please contact our professional after-sales service staff.

For support inquiries, please refer to the contact information provided with your purchase or visit the official FoMup website.
