1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Pureline PL2103 1 HP Square Flange Pool Motor. The PL2103 is designed as a direct replacement for popular 1 HP pool pumps, including models like Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, and Dyna-Max. It features high-quality components, such as sealed ball bearings, contributing to quiet operation and durability.
Figure 1.1: Front view of the Pureline PL2103 pool motor, showcasing its robust black casing and the shaft extending from the square flange.
Figure 1.2: Side view of the Pureline PL2103 pool motor, highlighting the motor body and cooling vents.
2. Safety Information
Always observe basic safety precautions when installing and operating this product to reduce the risk of fire, electric shock, or injury to persons.
- Electrical Hazard: Disconnect power at the circuit breaker before servicing. Improper wiring can cause severe injury or death.
- Professional Installation: Installation and servicing should be performed by a qualified professional in accordance with all local and national electrical codes.
- Grounding: Ensure the motor is properly grounded to prevent electric shock.
- Ventilation: Ensure adequate ventilation around the motor to prevent overheating.
- Water Exposure: Do not operate the motor if it has been submerged in water.
3. Package Contents
Verify that all items are present and undamaged upon opening the package.
- Pureline PL2103 1 HP Square Flange Pool Motor
- Instruction Manual (this document)
4. Setup and Installation
The Pureline PL2103 motor is designed as a drop-in replacement. However, proper installation is crucial for performance and safety.
4.1 Pre-Installation Checklist
- Ensure the power to the pump system is completely disconnected at the circuit breaker.
- Confirm the new motor's specifications (voltage, horsepower) match your existing pump requirements.
- It is highly recommended to use a new tune-up kit, which includes all necessary seals and gaskets for your pump. Reusing old seals can lead to leakage and potentially void the motor's warranty.
4.2 Wiring Instructions
Refer to the motor's label for specific wiring diagrams. Ensure the voltage setting on the motor matches your power supply (115V or 230V). Wiring must be done by a qualified person in accordance with the National Electrical Code (NEC) and local regulations.

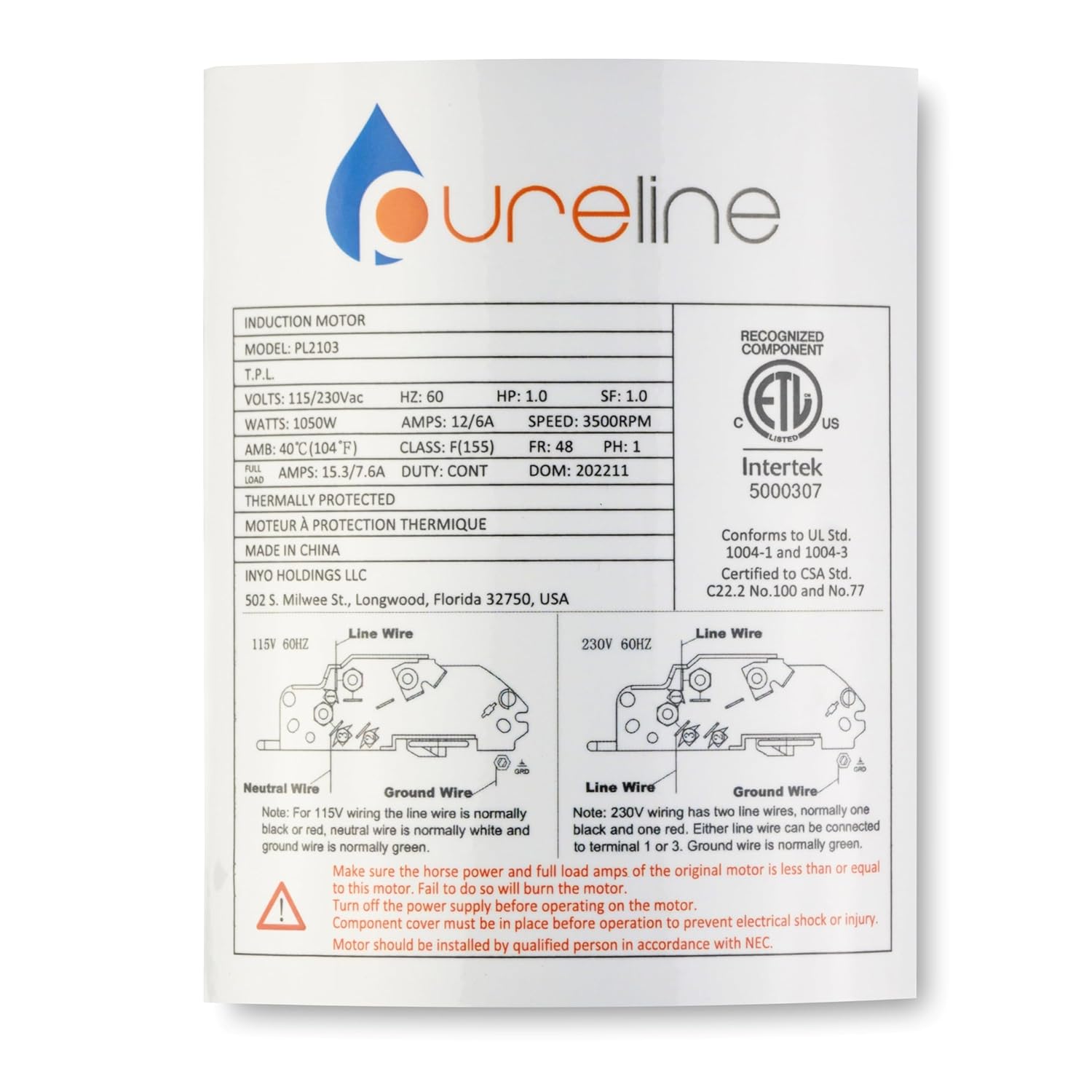

Figure 4.1: Motor label displaying electrical specifications and wiring diagrams for 115V and 230V configurations. Always consult this label for accurate wiring information.
- For 115V wiring: The line wire is typically black or red, the neutral wire is normally white, and the ground wire is green.
- For 230V wiring: This configuration uses two line wires, typically one black and one red. Either line wire can be connected to terminal 1 or 3. The ground wire is normally green.
- Verify that the horsepower and full load amps of the original motor are not less than or equal to the new motor's ratings to prevent motor burnout.
- Turn off the power supply before operating on the motor.
- A component cover must be in place before operation to prevent electrical shock or injury.
5. Operation
Once properly installed and wired, the Pureline PL2103 motor is designed for reliable and quiet operation.
- Ensure the pump is primed according to the pump manufacturer's instructions before starting the motor.
- Turn on the power supply to the pump system.
- Monitor the pump and motor for any unusual noises or vibrations during initial startup. The sealed ball bearings in the Pureline motor contribute to an ultra-quiet operation.
- Allow the pump to run for a few minutes to ensure proper water flow and pressure.
6. Maintenance
Regular maintenance helps ensure the longevity and efficient operation of your pool motor.
- Regular Inspection: Periodically inspect the motor for any signs of wear, damage, or corrosion.
- Check for Leaks: Frequently check the pump and motor area for any water leaks. Seal leakage is a common issue that can void motor warranties and should be addressed immediately. This is why using a new tune-up kit during installation is critical.
- Keep Clean: Ensure the motor's cooling vents are free from debris, dust, and obstructions to maintain proper airflow and prevent overheating.
- Wiring Check: Annually, have a qualified electrician inspect the electrical connections for tightness and integrity.
7. Troubleshooting
This section addresses common issues you might encounter with your pool motor.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor running loud | Worn bearings (less likely with new Pureline motor due to sealed bearings), pump cavitation, foreign object in pump. | Inspect pump for obstructions. If motor is new and loud, contact support. |
| Motor humming but not starting | Capacitor failure, seized pump impeller, incorrect wiring, low voltage. | Disconnect power immediately. Check wiring. Inspect impeller for freedom of movement. Consult a qualified electrician. |
| Water leaking from pump/motor area | Damaged or improperly installed seals/gaskets. | Replace all seals and gaskets using a new tune-up kit. Ensure proper installation. Leakage can void motor warranty. |
| Motor overheating/shutting off | Poor ventilation, low voltage, excessive load, clogged pump. | Ensure clear airflow around motor. Verify correct voltage supply. Check pump for clogs. |
If you experience persistent issues not covered here, or if you are unsure about any troubleshooting steps, please contact a qualified pool professional or Pureline customer support.
8. Specifications
Detailed technical specifications for the Pureline PL2103 Pool Motor.
| Attribute | Detail |
|---|---|
| Brand | Pureline |
| Model Name | PL2103 |
| Item Model Number | PL2103 |
| Horsepower | 1 hp |
| Product Dimensions | 38.1 x 25.4 x 25.4 cm |
| ASIN | B0D67WZMHR |
| Manufacturer | Pureline |
| Global Trade Identification Number | 00810109053148 |

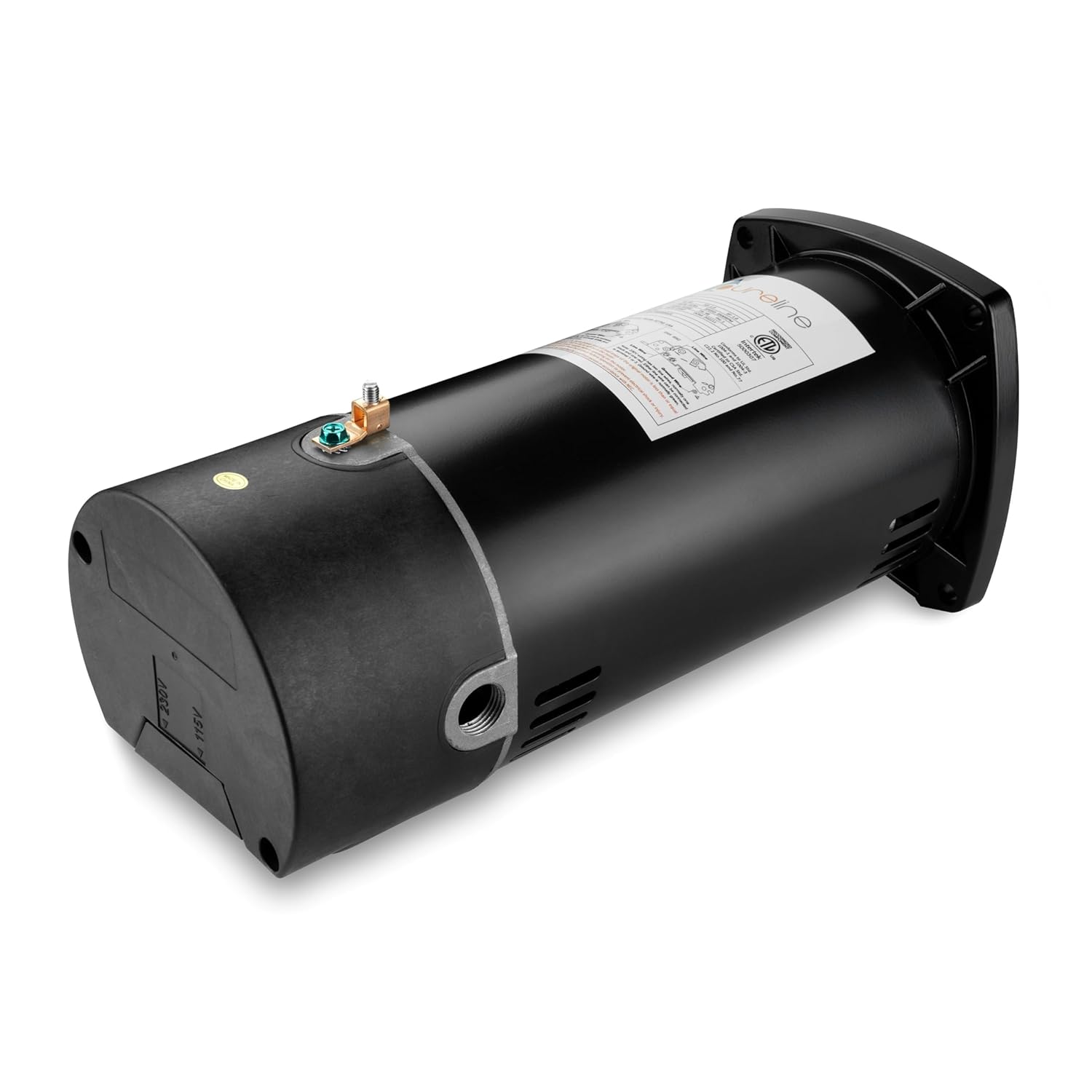

Figure 8.1: Rear view of the Pureline PL2103 pool motor, showing the electrical connection points and end cap.
9. Warranty and Support
The Pureline PL2103 replacement motor is backed by a full 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
Important Warranty Information:
- Seal leakage is one item which will void the motor's warranty. Ensure to protect your investment with a tune-up kit and proper installation to prevent leaks.
- Any unauthorized repairs or modifications to the motor will void the warranty.
For technical support, warranty claims, or further assistance, please contact Pureline customer service through their official channels. Refer to your purchase documentation for specific contact details.
