Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your SR SUN RISE 100℉ Thermostatic Shower System. This system features a 12-inch luxury rainfall shower head and a high-pressure handheld shower, designed to provide a consistent and comfortable showering experience. Please read this manual thoroughly before installation and use to ensure proper function and safety.

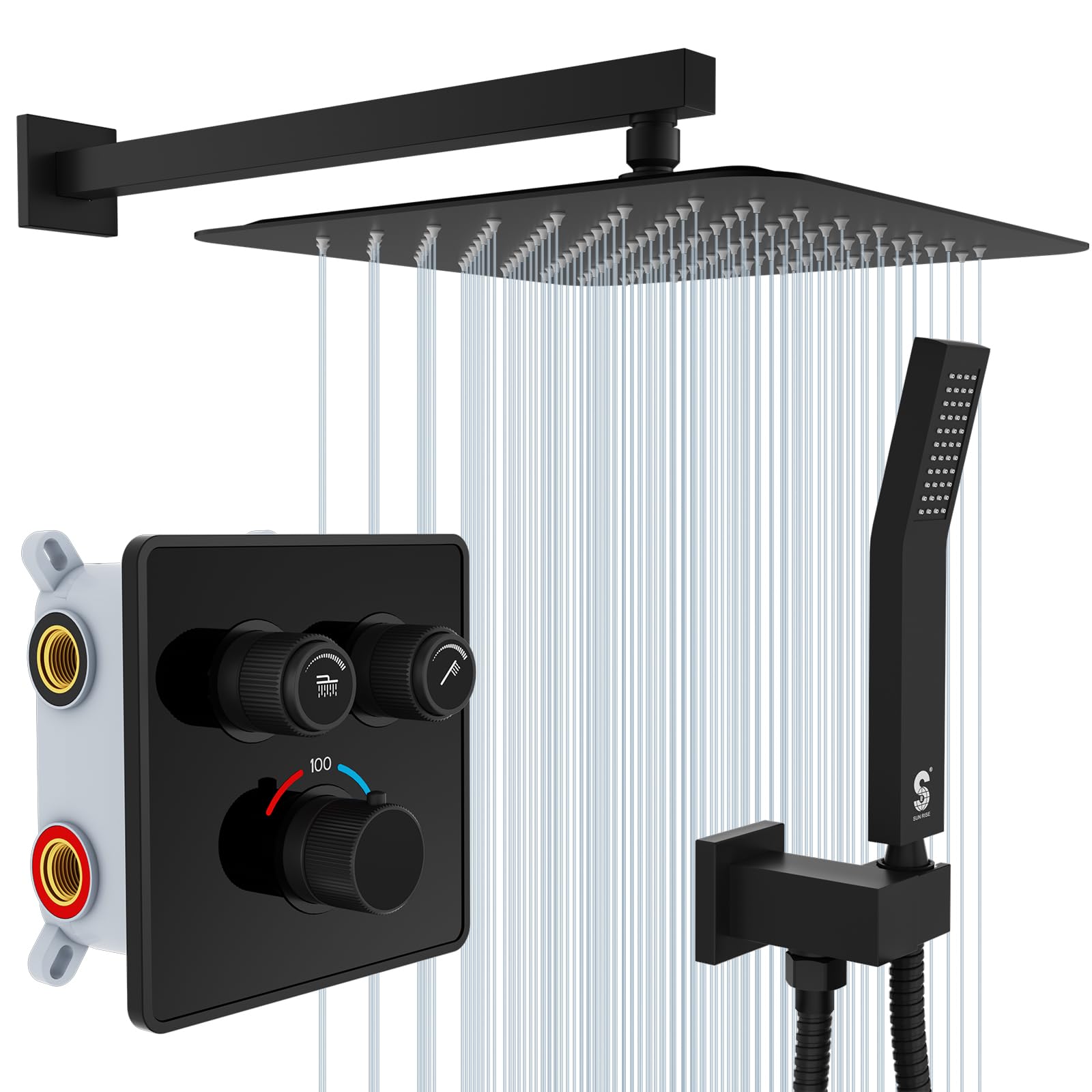

Image: The SR SUN RISE 100℉ Thermostatic Shower System in Matte Black, featuring a large rainfall shower head and a handheld shower.
Safety Information
The SR SUN RISE Thermostatic Shower System is equipped with advanced safety features to ensure a safe and comfortable bathing experience, especially for families with children and the elderly.
Thermostatic Control
The system provides a comfortable water temperature of 100℉ (38℃) every time. The internal thermostatic valve spool automatically adjusts the ratio of hot and cold water to stabilize the water temperature. This prevents sudden changes in water temperature, safeguarding against scalding from hot water or discomfort from cold water.
Image: Diagram showing the anti-scald thermostatic control mechanism, comparing stable temperature output of the thermostatic cartridge versus fluctuating temperatures of ordinary cartridges.
Safe Child Lock
The thermostat kit includes a child safety lock. To increase the hot water temperature beyond 100℉, you must hold down a button while rotating the temperature knob. This feature prevents accidental scalding, making it particularly suitable for households with children and elderly individuals.
Image: A person showering under the rainfall head, illustrating the one-touch thermostat set to a stable 100℉ temperature, emphasizing safety for children and the elderly.
Product Components
Before beginning installation, please ensure all components listed below are present in your package. If any parts are missing or damaged, contact customer support immediately.
Image: Detailed view of all components included in the SR SUN RISE shower system packaging, with numbered labels for each part.
- Rain Shower Head
- Wall Mounted Shower Arm
- Shower Arm Cover Plate
- Shower Bracket
- Shower Bracket Cover Plate
- Shower Head (Handheld)
- Shower Hose
- Accessories Required for Installation (screws, anchors, etc.)
- Installation Manual (this document)
- Plate for Valve
- Thermostatic Shower Valve
Setup and Installation
Professional installation is recommended for this shower system. Ensure all local plumbing codes are followed. Turn off the main water supply before starting any installation work.
Valve Installation
The core of the system is the brass valve, which houses the anti-scald pressure balance cartridge. This valve connects to your hot and cold water lines (NPT 1/2" connections) and directs water to the rain shower head and handheld shower head.
Image: Exploded view of the brass valve core, showing connections for hot water, cold water, rain shower head, and handheld shower head, along with the anti-scald pressure balance cartridge.
Dimensions and Mounting
Refer to the dimension diagram for precise measurements and recommended embedded depth for the valve. Ensure adequate space and proper pipe connections for both the wall-mounted shower arm and the handheld shower bracket.
Image: Technical drawing displaying all critical dimensions for the shower system, including the shower head, handheld shower, and valve body, with NPT 1/2" standard pipe connections.
Operating Instructions
Your SR SUN RISE shower system offers intuitive controls for a personalized showering experience.
Thermostatic Temperature Control
The central knob controls the water temperature. The default setting is 100℉ (38℃). To increase the temperature, press the safety lock button and rotate the knob towards the red indicator. To decrease the temperature, simply rotate the knob towards the blue indicator.
Shower Mode Selection and Water Flow Adjustment
The two upper knobs allow you to select your desired shower mode and adjust water flow. You can choose between the overhead rain shower, the handheld shower, or use both simultaneously.
Image: Close-up of the control panel, highlighting the individual buttons for selecting overhead shower, handheld shower, or both simultaneously. Tips for hot and cold water handles are also shown.
Each mode can be adjusted independently for water volume, from a gentle stream for water conservation to a strong stream for maximum flow. This allows you to customize your shower experience to your preference.
Image: Visual representation of how to adjust water flow for both the overhead and handheld shower modes, from water conservation settings to strong stream settings.
Official Product Video: Thermostatic Shower System Overview
Video: An official overview of the SR SUN RISE Thermostatic Shower System, demonstrating its features and operation, including temperature control and mode selection.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your shower system.
Cleaning
To maintain the matte black finish, clean regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Rinse thoroughly and dry with a soft cloth.
Check Valve
The system is equipped with a check valve to prevent backflow and dripping. Periodically inspect the check valve for any debris or blockages that might affect its function. If dripping occurs, ensure the check valve is clean and properly seated.
Image: Illustration of the handheld shower head with an integrated check valve, demonstrating its function in preventing dripping and backflow.
Troubleshooting
If you encounter issues with your shower system, refer to the following common problems and solutions:
- Inconsistent Water Temperature: Ensure the thermostatic control knob is set correctly. If the issue persists, check your home's hot and cold water supply pressure.
- Low Water Pressure: Check if the main water supply is fully open. Inspect shower heads for mineral buildup and clean if necessary.
- Loud Hum or Vibration from Mixer: This can sometimes occur due to water pressure fluctuations or issues with the mixing valve cartridge. Ensure all connections are secure. If the problem persists, contact customer support for assistance, as a replacement cartridge may be needed.
- Dripping Shower Head: Verify that the check valve is clean and functioning correctly. Ensure the diverter knobs are fully closed when not in use.
For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact SR SUN RISE customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | SR SUN RISE |
| Model Number | SRSH-BGRAJ1001 |
| Color | Matte Black |
| Material | Brass |
| Finish Type | Matte Black |
| Number of Handles | 1 (for temperature control) |
| Mounting Type | Wall Mount |
| Head Size (Rain Shower) | 12 inches |
| Included Components | Adjustable Shower Bracket, Brass Handheld Shower Head, Rain Shower Head, Shower Mixer Valve with Trims, Wall Mounted Shower Arm |
| UPC | 850066607589 |
| GTIN | 850066607589 |
Warranty and Support
SR SUN RISE is committed to customer satisfaction. If you have any questions about your shower system, please do not hesitate to contact us. We stand by our products and aim to respond to all inquiries within 24 hours. Please refer to your purchase documentation for specific warranty details.
For support, please visit the official SR SUN RISE website or contact our customer service team directly.
