1. Introduction
The Crystal Quest Gold Shower Filter (Model CQE-SP-00898) is designed to enhance your showering experience by providing cleaner, healthier water. This advanced multi-stage filtration system effectively reduces or removes various impurities, contributing to softer skin and hair.
2. Product Features
- Advanced Multi-Stage Filtration: Utilizes a cutting-edge system to remove chlorine, chloramines, THMs, pesticides, sulfur, heavy metals, hydrogen sulfide, and iron oxides.
- Optimal Hydration and Wellness: Regulates contaminant levels for balanced water, supporting better hydration and overall wellness.
- Enhanced Skin and Hair Health: Provides water that is gentle and beneficial, leaving skin feeling refreshed and hair healthier, shinier, and silkier.
- Stylish Design: Features a luxurious gold finish to complement various bathroom decors.
- Certified Quality: Manufactured by Crystal Quest, an ISO-certified business, ensuring high quality and sustainability. The product is BPA-free.
3. Package Contents
Verify that all components are present before beginning installation:
- Crystal Quest Gold Shower Filter Unit
- Replaceable Multi-Stage Filter Cartridge
- Plumber's Tape
- Gaskets/O-rings
- Instruction Manual
Figure 1: Exploded view diagram detailing the various components of the shower filter and their assembly order.
4. Setup and Installation
Installation of the Crystal Quest Gold Shower Filter is designed to be straightforward. No specialized tools are typically required.
- Prepare the Shower Arm: Unscrew your existing shower head from the shower arm. Clean any residue from the threads of the shower arm.
- Apply Plumber's Tape: Wrap plumber's tape (provided) clockwise around the threads of the shower arm approximately 3-5 times. This helps ensure a watertight seal.
- Install the Filter Unit: Screw the Crystal Quest Gold Shower Filter unit onto the shower arm. Hand-tighten until snug. Do not overtighten. Ensure a gasket is properly seated inside the filter's connection point.
- Attach Shower Head: Apply plumber's tape to the threads on the bottom of the filter unit. Screw your existing shower head onto the filter unit. Hand-tighten until snug. Ensure a gasket is properly seated inside the shower head's connection point.
- Initial Flush: Turn on the shower and let the water run for 60 seconds to flush out any loose carbon particles from the new filter cartridge. The water may appear discolored initially; this is normal and will clear.
Figure 2: A close-up of the shower filter unit, highlighting its compact design and gold finish.
Figure 3: The Crystal Quest shower filter seamlessly integrated with a standard shower head, ready for use.
Video 1: Official Crystal Quest video demonstrating the benefits of their shower filter for cleaner water, highlighting its filtration capabilities.
5. Operating Instructions
Once installed, the Crystal Quest Gold Shower Filter operates automatically. Simply turn on your shower as usual. The multi-stage filtration process will immediately begin purifying your water.
For optimal performance, ensure the initial flush procedure (Step 5 in Setup and Installation) has been completed.
Figure 4: This image illustrates the experience of showering with Crystal Quest filtered water, promoting healthier skin and hair.
6. Maintenance
Regular maintenance involves replacing the filter cartridge to ensure continuous effective filtration.
- Filter Cartridge Replacement: The filter cartridge should be replaced every 12 to 18 months, or sooner if you notice a decrease in water flow or filtration effectiveness.
- Replacement Procedure:
- Turn off the water supply to the shower.
- Unscrew the shower head from the filter unit.
- Unscrew the filter unit from the shower arm.
- Carefully open the filter housing to access the old cartridge.
- Remove the old cartridge and insert a new Crystal Quest replacement cartridge, ensuring it is properly seated.
- Reassemble the filter housing, screw the filter unit back onto the shower arm, and reattach the shower head.
- Perform an initial flush as described in the Setup and Installation section.

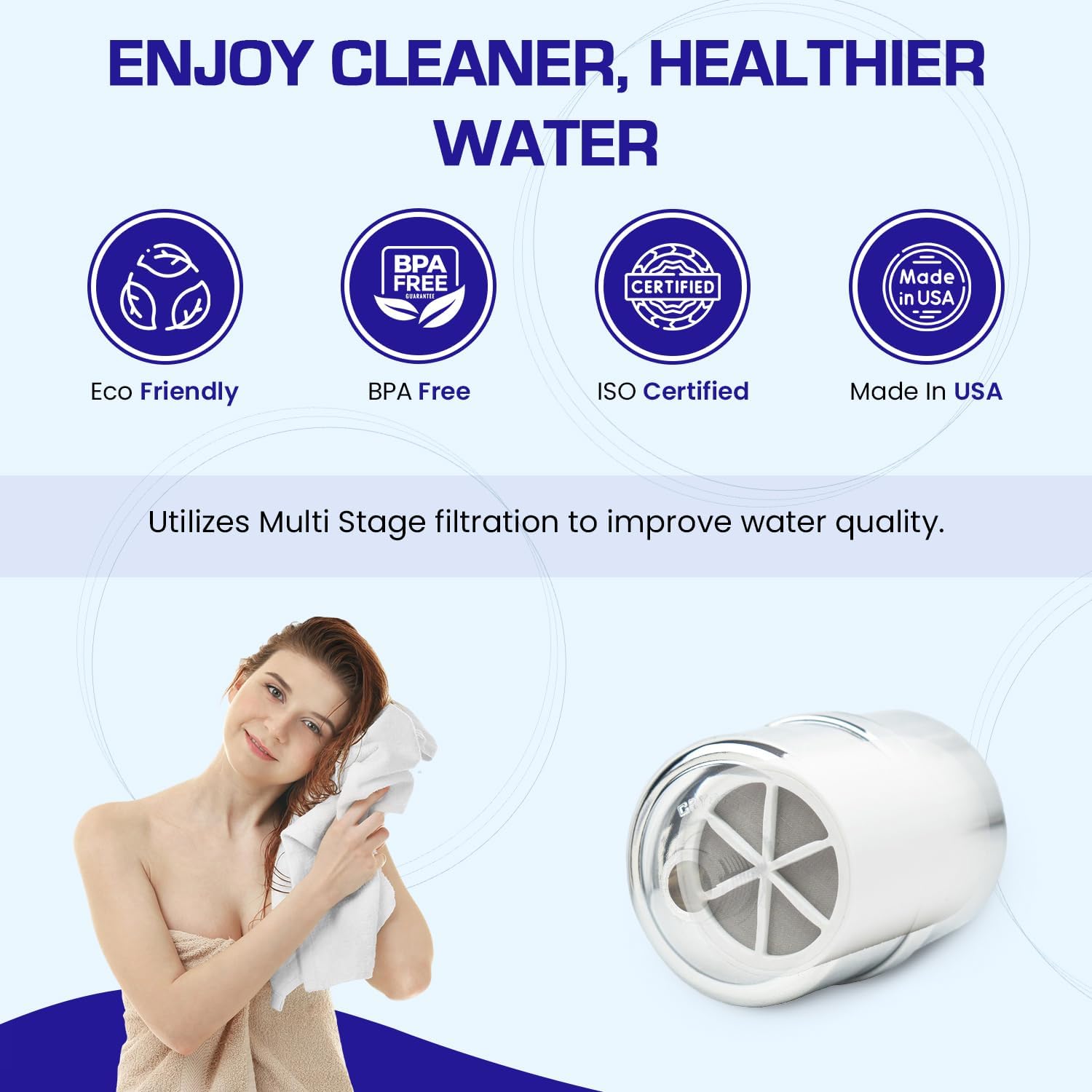

Figure 5: A view of the multi-stage filter cartridge, the core component responsible for water purification.
7. Troubleshooting
If you encounter any issues with your Crystal Quest Gold Shower Filter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Improperly installed plumber's tape or missing/damaged gaskets. | Ensure plumber's tape is applied correctly and all gaskets are properly seated and undamaged. Tighten connections hand-tight. |
| Reduced Water Flow | Clogged filter cartridge or mineral buildup in shower head. | Replace the filter cartridge if it's past its lifespan. Clean your shower head to remove any mineral deposits. |
| Water Discoloration (initial use) | Loose carbon particles from new filter. | This is normal. Continue flushing the filter for a few minutes until water runs clear. |
8. Specifications
- Model Number: CQE-SP-00898
- Material: Polypropylene (PP)
- Color: Gold
- Item Weight: 1 Pound
- Product Dimensions: 9 x 4 x 5 inches
- Flow Rate: 2 Gallons Per Minute
- Installation Method: Wall Mounted
- Filter Lifespan: Up to 12-18 months (depending on water quality and usage)
9. Warranty Information
Crystal Quest provides a 1-year EU Spare Part Availability Duration for this product. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Crystal Quest customer support.
10. Support and Contact
For further assistance, technical support, or to purchase replacement parts, please contact Crystal Quest directly. Visit the official Crystal Quest website for contact details and additional product information.
