1. Introduction
This manual provides comprehensive instructions for the installation, use, and maintenance of your Zohisin Stainless Steel Manual Transmission Pedal Kit. Please read this guide thoroughly before installation to ensure proper fitment and long-term performance.
2. Product Overview
The Zohisin Manual Transmission Pedal Kit is designed to enhance the interior of compatible vehicles. It consists of three pedals crafted from high-quality stainless steel and durable rubber, offering both aesthetic appeal and functional grip. The polished surface contributes to a refined look, while the rubber components ensure secure foot placement.

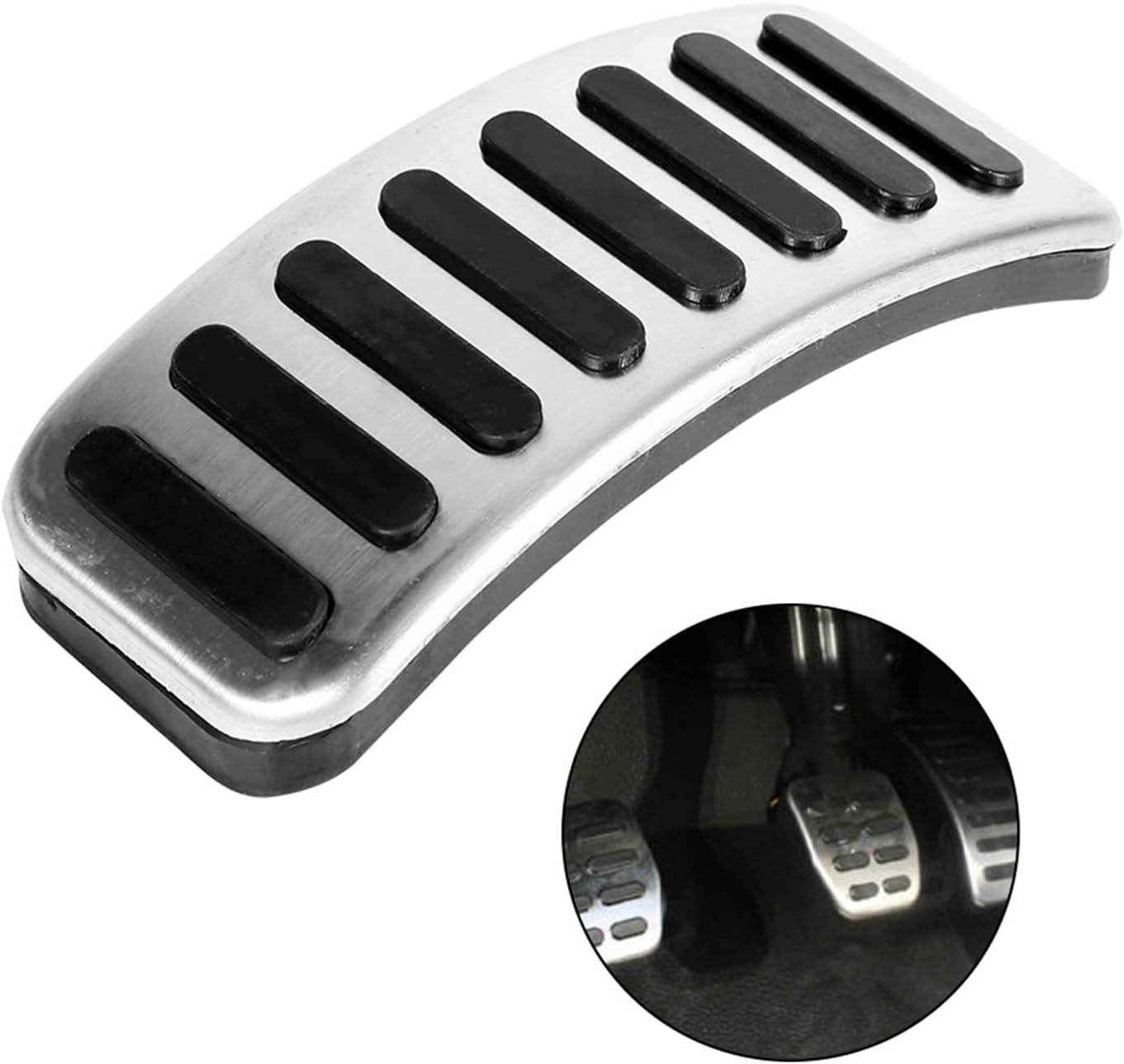

Image: A single Zohisin stainless steel pedal, featuring multiple black rubber strips for enhanced grip. This image highlights the polished finish and the design of the individual pedal.
Image: Two Zohisin stainless steel pedals displayed side-by-side on a dark surface, showcasing their rectangular shape and rubber inserts. This view provides a clear look at the design of the brake and clutch pedals.
3. Specifications
| Attribute | Detail |
|---|---|
| Material | Stainless Steel + Rubber |
| Color | Silver |
| Quantity | 3 Pieces (Accelerator, Brake, Clutch) |
| Package Weight | 178g (approximately 5.1 ounces) |
| Package Dimensions | 5.91 x 3.54 x 2.76 inches |
| Model Number | Zohisinsdkph2mg8x |
Image: The complete set of three Zohisin pedals, including the accelerator, brake, and clutch. The image displays approximate dimensions, with the accelerator pedal measuring 11cm in length and the brake/clutch pedals measuring 6.5cm in width.
4. Compatibility
This pedal kit is designed for various manual transmission vehicles. Known compatible models include:
- Specific Ranger models (13-18)
- Specific models (08-18)
- Specific models (09-18)
- Other car vehicles with similar pedal configurations.
Important: This product is only suitable for left-hand drive vehicles.
5. Package Contents
The Zohisin Manual Transmission Pedal Kit includes the following items:
- 1x Accelerator Pedal (Stainless Steel with Rubber)
- 1x Brake Pedal (Stainless Steel with Rubber)
- 1x Clutch Pedal (Stainless Steel with Rubber)
6. Setup and Installation
The Zohisin pedal kit features a no-drill installation process. Follow these steps for proper installation:
- Preparation: Before beginning, ensure the vehicle's engine is off and the parking brake is engaged.
- Clean Surface: Thoroughly clean the surface of the existing pedals and the surrounding area. Ensure the surfaces are dry and free from dirt, grease, or debris. This step is crucial for secure fitment.
- Remove Existing Rubber (if applicable): For brake and clutch pedals, carefully remove any existing rubber covers from the original pedals. The accelerator pedal typically does not have a removable rubber cover.
- Install New Pedals:
- Brake and Clutch Pedals: Align the new stainless steel and rubber pedals over the existing metal pedals. Press firmly around the edges until the new pedal cover is securely seated. The rubber backing should grip the original pedal.
- Accelerator Pedal: Slide the new accelerator pedal cover over the existing accelerator pedal. Ensure it fits snugly and does not interfere with pedal movement.
- Verify Security: After installation, firmly press each pedal several times to ensure it is securely attached and does not shift or slip. Confirm that the pedals operate freely without obstruction.
Image: A Zohisin stainless steel pedal shown installed in a car's footwell, demonstrating its appearance and fit within the vehicle's interior. This image illustrates the final installed look.
Image: A Zohisin pedal separated into its stainless steel top and rubber backing components. This view highlights the textured rubber underside designed for secure, non-slip installation over existing pedals.
7. Maintenance
To maintain the appearance and functionality of your Zohisin pedals:
- Regularly clean the stainless steel surface with a soft, damp cloth to remove dust and dirt.
- Avoid using abrasive cleaners or harsh chemicals, as these may damage the finish or the rubber components.
- Periodically check the pedals to ensure they remain securely attached and that the rubber grips are intact.
8. Troubleshooting
If you encounter issues with your pedal kit, consider the following:
- Pedal feels loose: Re-check the installation steps. Ensure the original pedal surface was clean and dry before installation. Press firmly to ensure the new pedal cover is fully seated and gripping the original pedal.
- Pedal does not fit: Verify that your vehicle is a left-hand drive model and that its original pedals match the general shape and size for which this kit is designed. Refer to the compatibility section.
9. Important Notes
- This product is designed exclusively for left-hand drive vehicles.
- Always ensure the original pedal surfaces are clean and dry before installing the new pedal covers.
- Due to variations in monitor calibration, the color of the product displayed in images may appear slightly different from the actual item.
10. Warranty and Support
Specific warranty information for the Zohisin Stainless Steel Manual Transmission Pedal Kit is not provided in this manual. For warranty details, technical support, or further assistance, please contact the manufacturer, Zohisin, directly through their official channels or the retailer from whom the product was purchased.
