FIRElood LH55-2-3 Wood Burning Kit User Manual
Model: LH55-2-3
1. Product Overview
The FIRElood LH55-2-3 Wood Burning Kit is a professional-grade pyrography tool designed for intricate wood burning, gourd art, and other creative projects. It features a digital thermometer for precise temperature control (25~750℃), three pyrographic pens, and 37 assorted wood burning pen tips, offering versatility for various artistic techniques.
Figure 1: Overview of the FIRElood LH55-2-3 Wood Burning Kit, showing the main unit, pens, and various tips.
2. Safety Instructions
- Always operate the wood burning kit in a well-ventilated area to avoid inhaling fumes.
- Ensure the work surface is heat-resistant and non-flammable.
- Keep flammable materials away from the heated pen tips and main unit.
- Allow the pen tips to cool completely before changing them or storing the unit.
- Use heat-resistant gloves when handling hot components.
- Keep out of reach of children and pets.
- Never touch the heated pen tip directly.
3. Package Contents
Verify that all items listed below are included in your package:
- 1 x FIRElood LH55-2-3 Main Wood Burning Unit
- 3 x Pyrography Pens (including quick-heating copper core pen and traditional copper core pen)
- 37 x Assorted Wood Burning Pen Tips
- 1 x Pen Holder with Cleaning Sponge
- 1 x Screwdriver
- 1 x Metal Tweezers
- 1 x Nicking Tool
- Small Planks for practice
- Pen Tip Storage Box

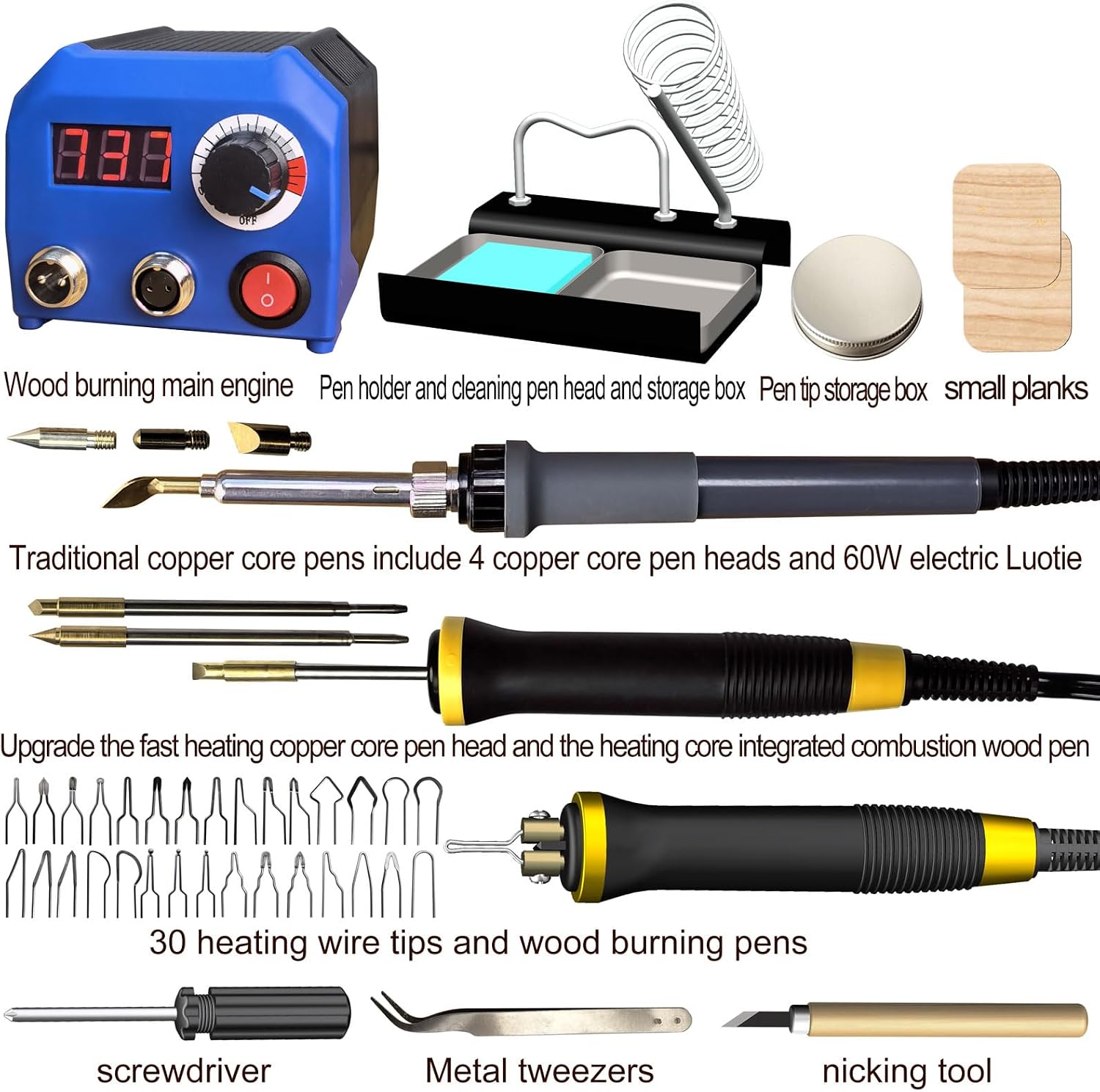

Figure 2: Detailed view of the complete package contents.
4. Setup
- Place the main unit on a stable, heat-resistant surface.
- Connect the desired pyrography pen to one of the dual output ports (Part A or Part B) on the main unit. Ensure a secure connection.
- Select and install the appropriate pen tip for your project. For wire-shaped tips, ensure they are properly secured in the pen.
- Plug the main unit's power cord into a suitable electrical outlet.
Figure 3: The main unit features dual output ports, allowing for independent operation of two pens.
Video 1: This video demonstrates the setup process of the FIRElood LH55-2-3 Wood Burner kit, including connecting the pens and preparing for use.
5. Operating Instructions
- Turn on the main unit using the power switch. The digital display will illuminate.
- Adjust the temperature using the rotary knob. The digital thermometer displays the current temperature, allowing for precise control between 25℃ and 750℃.
- Allow the pen tip to heat up to the desired temperature. Wire-shaped tips heat up in seconds, while solid tips may take longer.
- Begin burning by gently applying the heated tip to the wood surface. Experiment with different tips and temperatures to achieve various shades and textures.
- For detailed work, use finer tips and lower temperatures. For shading or broader strokes, use wider tips and adjust temperature as needed.
Figure 4: An artist using the wood burning tool to create detailed artwork on a wooden surface.
Figure 5: A close-up view of the pyrography pen creating fine lines on wood.
Figure 6: Examples of artistic creations possible with the wood burning kit, showcasing different techniques and shading.
6. Maintenance
- Regularly clean the pen tips using the provided cleaning sponge or fine-grit sandpaper when cool.
- Ensure the pen tips are free of carbon buildup for optimal performance.
- Store the pen tips in the storage box to prevent damage and loss.
- Keep the main unit clean and free from dust and debris.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pen tip not heating up | Loose connection, faulty tip, insufficient temperature setting. | Check pen connection, replace tip, increase temperature. |
| Inconsistent burning results | Carbon buildup on tip, incorrect temperature for wood type, uneven pressure. | Clean tip, adjust temperature, practice consistent pressure. |
| Unit not powering on | Power cord not plugged in, power switch off, circuit breaker tripped. | Check power connections, ensure switch is on, reset breaker. |
8. Specifications
- Model: LH55-2-3
- Brand: FIRElood
- Temperature Range: 25℃ - 750℃ (Adjustable)
- Product Dimensions: 4.33 x 3.94 x 3.3 inches
- Item Weight: 3.3 pounds
- Power: 60W (for traditional copper core pen)
- Country of Origin: China
- Date First Available: May 30, 2024
9. Warranty and Support
FIRElood products are designed for quality and durability. For warranty information, technical support, or any inquiries regarding your LH55-2-3 Wood Burning Kit, please refer to the contact details provided on the product packaging or visit the official FIRElood website. Keep your purchase receipt for warranty claims.
