Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Homekicen Dual Antique Shower Head System. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

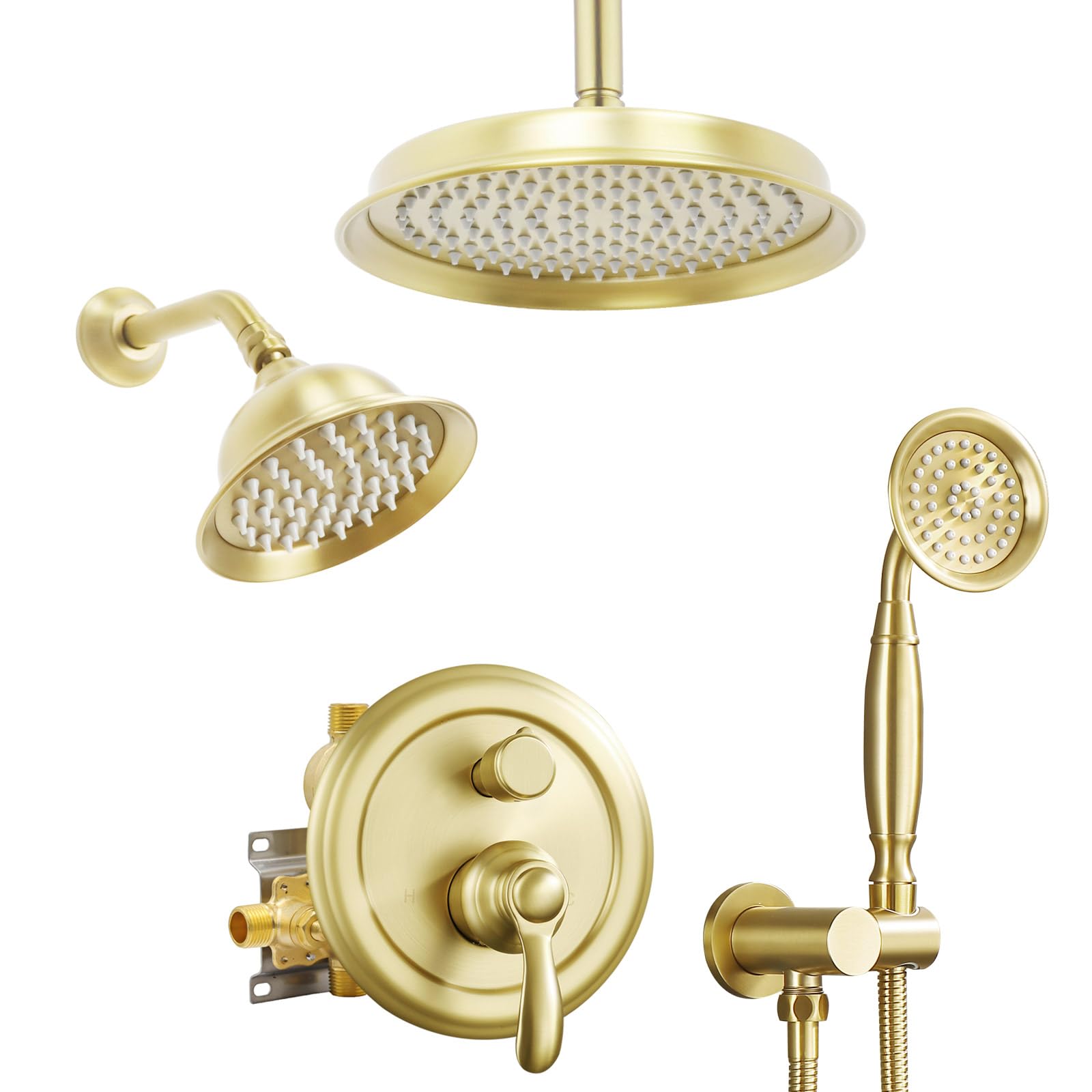

Image: Overview of the Homekicen Dual Antique Shower Head System in Brushed Gold.
Safety Information
Observe the following safety precautions during installation and operation:
- Always turn off the main water supply before beginning any plumbing work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- Ensure all connections are secure and watertight to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use harsh chemicals or abrasive cleaners on the product finish.
- The pressure balancing valve is designed to prevent sudden temperature fluctuations. Ensure it is installed correctly.
Package Contents
Verify that all components are present before beginning installation:
- 9-inch Rain Shower Head
- 12-inch Ceiling Mount Shower Arm
- 6-inch Rainfall Shower Head
- 7.87-inch Wall Mount Shower Arm
- Handheld Spray
- 59-inch Shower Hose
- 3-Way Diverter Mixing Valve (Rough-in Valve)
- Trim Kit for Diverter Valve
- Mounting Hardware
Image: Complete set of shower system components.
Setup and Installation
Professional installation is recommended for this shower system. Follow local plumbing codes and regulations.
1. Rough-in Valve Installation
Install the 3-way diverter brass rough-in valve according to the diagram. Ensure proper connection of hot and cold water inlets (NPT 1/2") and outlets for the shower heads and handheld spray.
Image: Detailed view of the balance valve connections. Hot water inlet, cold water inlet, and three outlets (Outlets 1, 2, 3) for different shower functions are clearly marked.
2. Shower Head and Arm Installation
- 9-inch Rain Shower Head: Attach the 12-inch ceiling mount shower arm to the designated outlet from the rough-in valve. Securely fasten the 9-inch rain shower head to the ceiling arm.
- 6-inch Rainfall Shower Head: Attach the 7.87-inch wall mount shower arm to another designated outlet from the rough-in valve. Securely fasten the 6-inch rainfall shower head to the wall arm.
- Handheld Spray: Connect the 59-inch shower hose to the remaining outlet from the rough-in valve and to the handheld spray. Install the adjustable angle holder for the handheld spray at a convenient height.
Image: 9-inch rain shower head with ceiling mount arm.
Image: 6-inch rainfall shower head with wall mount arm.
Image: Handheld spray with hose and adjustable holder.
3. Trim Kit Installation
Install the trim kit components (escutcheon plate, handle) over the rough-in valve according to the manufacturer's instructions, ensuring a flush and secure fit.
4. Leak Test
Once all components are installed, slowly turn on the main water supply and check all connections for leaks. Address any leaks immediately by tightening connections or applying plumber's tape as needed.
Operating Instructions
Your Homekicen shower system offers three distinct showering modes:
- Temperature and Flow Control: Use the main handle on the trim kit to adjust water temperature and flow. Rotate the handle to control temperature and pull/push to control flow.
- 3-Way Diverter: The diverter knob on the trim kit allows you to switch between the three shower functions:
- Position 1: Activates the 9-inch Ceiling Mounted Rain Head.
- Position 2: Activates the 6-inch Wall Mounted Rainfall Head.
- Position 3: Activates the Handheld Spray.
- Handheld Spray: The handheld spray provides targeted water delivery. Its adjustable angle holder allows for convenient positioning.
Maintenance
Regular maintenance will help preserve the finish and functionality of your shower system.
- Cleaning the Finish: Clean the brushed gold finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning Nozzles: The shower heads feature "Touch to Clean" nozzles. Periodically rub the rubber nozzles with your finger or a soft brush to dislodge mineral buildup and maintain optimal spray performance.
- General Inspection: Periodically check all connections for any signs of wear or leaks.
Image: Detail of touch-to-clean nozzles on the 9-inch rain shower head.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water pressure | Mineral buildup in nozzles; partially closed shut-off valve; clogged aerator. | Clean nozzles (Touch to Clean feature); ensure shut-off valves are fully open; check for clogs in the shower heads. |
| Water leaks from connections | Loose connections; worn O-rings or gaskets; improper sealing. | Tighten connections; replace O-rings or gaskets; reapply plumber's tape if necessary. |
| Inconsistent water temperature | Pressure balancing valve issue; water heater settings; cross-connection. | Verify pressure balancing valve installation; check water heater settings; consult a plumber if issue persists. |
| Diverter not switching properly | Internal debris; worn diverter cartridge. | Flush the system; if problem persists, the diverter cartridge may need replacement. Contact customer support. |
Specifications
| Brand | Homekicen |
| Model Number | WY-FG-9SS-DW3 |
| Color | Brushed Gold |
| Material | Brass, Stainless Steel |
| Finish Type | Oil Rubbed |
| Number of Handles | 1 |
| Mounting Type | Ceiling Mount (for 9-inch head), Wall Mount (for 6-inch head) |
| Head Sizes | 9 inches (Rain Shower Head), 6 inches (Rainfall Shower Head) |
| Shower Hose Length | 59 inches |
| Valve Type | 3-Way Diverter Pressure Balance Valve |
| Compliance | ASME A112.18.1-2018/CSA B125.1-18 (for pressure balancing valve cartridge) |
Warranty and Support
Homekicen provides a 5-year protection for this shower system. If any part malfunctions due to quality reasons within this period, replacement parts will be provided. For warranty claims, technical assistance, or replacement parts, please contact Homekicen customer service.
Manufacturer: Homekicen
For support, please refer to the contact information provided with your purchase or visit the official Homekicen website.
