Transformers TF-T01 True Wireless Earbuds User Manual

1. Introduction

The Transformers TF-T01 True Wireless Earbuds offer a unique blend of iconic design and advanced audio technology. Designed for comfort and durability, these earbuds provide a superior listening experience with deep bass sound and smart noise cancelling capabilities. They are built to withstand various activities, from intense workouts to daily commutes, ensuring reliable performance.

Key Features:

• Transformers-Inspired Design: Housed in a metal charging case with a magnetic closure, reflecting the futuristic spirit of the Transformers universe.
• Comfortable and Secure Fit: IPX5 Waterproof rating, suitable for workouts and outdoor adventures.
• Advanced Bluetooth 5.4 Technology: Ensures exceptional audio-video sync, ultra-low latency, and superior interference resistance.
• Smart Touch Control: Easy management of music and calls with simple touch gestures.
• Long-Lasting Battery Life: Up to 60 hours of playback time with the charging case.

2. What's in the Box?

Upon unboxing your Transformers TF-T01 True Wireless Earbuds, please ensure all components are present:

• TF-T01 Wireless Earbuds x 1 pair
• Portable Charging Box x 1
• USB-C Charging Cable x 1
• User Manual x 1

Figure 2.1: Included components of the TF-T01 package.

3. Setup and Initial Use

3.1 Initial Charging

Before first use, fully charge the portable charging box and earbuds. Connect the provided USB-C charging cable to the charging port on the case and a power source. The charging case takes approximately 1.5 hours to fully charge. The earbuds will charge automatically when placed inside the case.

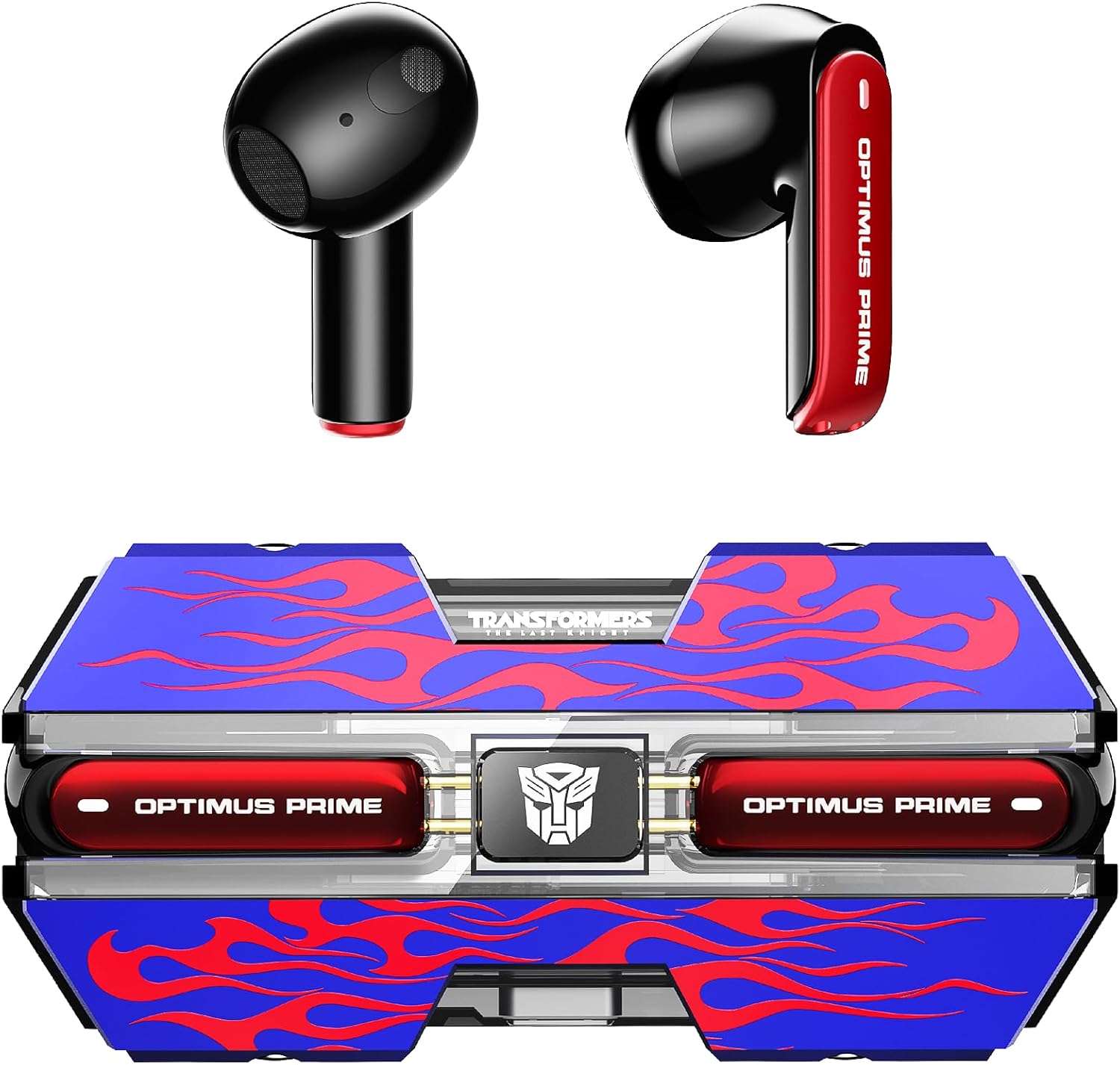

Figure 3.1: Earbuds in their charging case.

3.2 Bluetooth Pairing

The TF-T01 earbuds feature one-step pairing for convenience.

1. Ensure the charging case is charged and the earbuds are inside.
2. Open the charging case. The earbuds will automatically enter pairing mode.
3. On your device (smartphone, tablet, etc.), navigate to Bluetooth settings.
4. Select "TF-T01" from the list of available devices to connect.
5. Once connected, you will hear an audio prompt confirming successful pairing.

Figure 3.2: One-step pairing process.

Figure 3.3: Bluetooth 5.4 connectivity for stable pairing.

4. Operating the Earbuds

4.1 Smart Touch Controls

The TF-T01 earbuds feature intuitive touch controls on each earbud for easy management of audio and calls. Specific gestures control various functions:

4.2 Call Handling

With the built-in microphone, you can easily manage calls wirelessly. The smart noise cancelling feature helps ensure clear communication.

• Answering/Ending Calls: Single tap either earbud.
• Rejecting Calls: Long press either earbud.

Figure 4.1: Clear calls with ENC Noise Reduction.

4.3 Game/Music Dual Mode

The TF-T01 earbuds offer a dual mode for optimized audio experience. Triple tap either earbud to switch between Game Mode (for ultra-low latency and immersive gaming sound) and Music Mode (for high-fidelity audio playback).

Figure 4.2: Enjoying gaming with specialized audio mode.

Figure 4.3: MultiPoint Pairing for seamless device switching.

5. Battery Life and Charging

The TF-T01 earbuds provide extended listening times:

• Earbud Playback: 5-6 hours of continuous use on a single charge.
• Total Playback with Case: Up to 60 hours with multiple charges from the portable charging box.

The charging case itself has a 300 mAh capacity and charges fully in approximately 1.5 hours using the included USB-C cable.

6. Maintenance and Care

6.1 Water Resistance (IPX5)

The earbuds are rated IPX5 waterproof, meaning they are resistant to splashes and sweat. This makes them suitable for workouts and light rain. However, they are not designed for submersion in water or for use during swimming.

Figure 6.1: IPX5 Water Resistance for active use.

6.2 Cleaning and Storage

To maintain optimal performance and hygiene:

• Wipe the earbuds and charging case with a soft, dry, lint-free cloth regularly.
• Avoid using abrasive materials, solvents, or aerosol sprays.
• Store the earbuds in their charging case when not in use to protect them and keep them charged.
• Keep the product away from extreme temperatures and humidity.

7. Troubleshooting

If you encounter issues with your TF-T01 earbuds, try the following common troubleshooting steps:

• No Sound/Connection Issues:
  • Ensure earbuds are charged.
  • Verify Bluetooth is enabled on your device.
  • Forget "TF-T01" from your device's Bluetooth list and re-pair.
  • Place earbuds back in the case, close, wait a few seconds, then open to reset.
• One Earbud Not Working:
  • Ensure both earbuds are charged.
  • Place both earbuds back in the case, close, and then open to re-sync them.
• Charging Issues:
  • Check the USB-C cable and power adapter for damage.
  • Ensure the charging contacts on the earbuds and inside the case are clean and free of debris.

For further assistance, please refer to the official Transformers support channels.

8. Specifications

9. Warranty and Support

The Transformers TF-T01 True Wireless Earbuds come with a standard manufacturer's warranty. For detailed warranty information, including coverage and duration, please refer to the warranty card included in your product packaging or visit the official Transformers product support website.

For technical support, troubleshooting assistance, or any product-related inquiries, please contact Transformers customer service. Contact details can typically be found on the product packaging, the official website, or within the included user manual.
