Fms F-16 Fighting Falcon 64mm EDF Jet RC Airplane Instruction Manual

1. Safety Information

Read this entire instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property, and cause serious injury.

General Safety Warnings:

• Always operate your model in open areas away from people, vehicles, and buildings.
• Keep a safe distance in all directions around your model to avoid collisions or injury.
• Never operate your model with low transmitter batteries.
• Always disconnect the battery after use.
• This product is intended for adults. Not a toy.

Battery Safety:

• Use only approved LiPo chargers.
• Never leave charging batteries unattended.
• Store batteries in a cool, dry place away from direct sunlight.
• Do not puncture, drop, or short-circuit batteries.

2. Package Contents

The Fms F-16 Fighting Falcon PNP (Plug and Play) package includes the following components:

• F-16 Fighting Falcon aircraft fuselage
• Wings (left and right)
• Vertical stabilizers (left and right)
• Horizontal stabilizers (left and right)
• Main landing gear (2)
• Nose landing gear (1)
• External fuel tanks (2)
• Missiles (various types)
• Decal sets (5 different options)
• Motor, ESC, Ducted Fan, Servos (pre-installed)
• Instruction Manual

Note: This is a PNP version. A radio transmitter, receiver, flight battery, and charger are NOT included and must be purchased separately.

3. Assembly Instructions

The Fms F-16 Fighting Falcon is designed for easy assembly. Follow these steps to prepare your aircraft for flight.

3.1 Unboxing and Component Identification

Carefully remove all components from the packaging. Inspect for any damage during shipping. Familiarize yourself with each part as shown in the image below.

Image: All Fms F-16 Fighting Falcon components laid out for assembly, including the fuselage, wings, tail sections, landing gear, and various armaments.

3.2 Landing Gear Installation

Install the main and nose landing gear. The front landing gear features CNC-machined aluminum parts for durability and shock absorption. The rear landing gear uses plastic-wrapped steel wire for realism and strength.

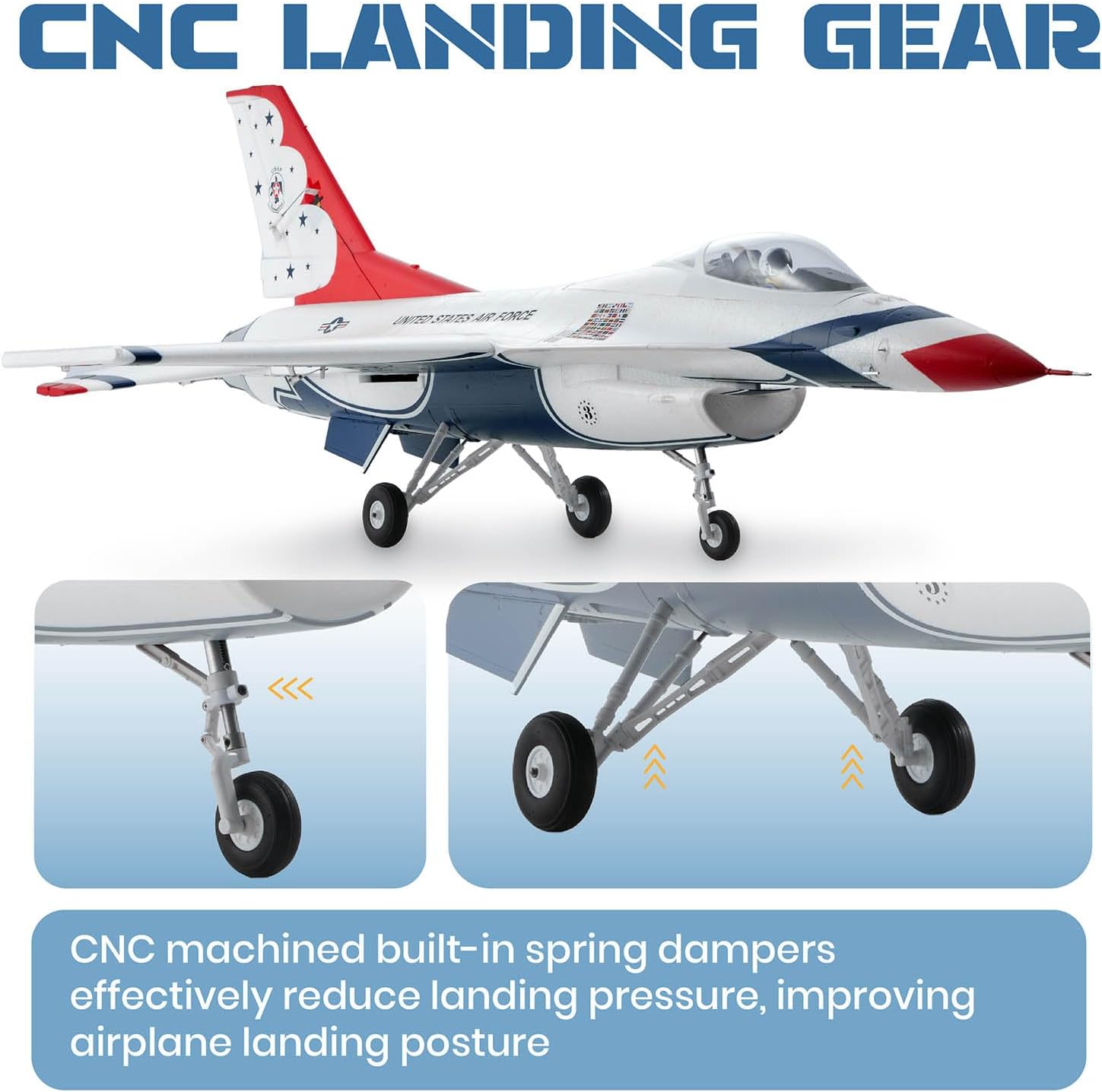

Image: Detailed view of the CNC machined landing gear, highlighting the built-in spring dampers for effective shock absorption during landings.

3.3 Wing and Tail Assembly

Attach the main wings, vertical stabilizers, and horizontal stabilizers to the fuselage. Ensure all connections are secure. Some parts may require adhesive (not included) as indicated in the detailed video below.

Video: This video demonstrates the unboxing and assembly process for the Fms F-16 Fighting Falcon 64mm EDF Jet, including attaching wings, tail, and landing gear.

3.4 Receiver and Battery Installation

Install your compatible receiver (not included) into the designated compartment within the fuselage. Connect the servos and ESC to the receiver according to your receiver's manual. Securely place your flight battery (not included) in the battery compartment, ensuring it is balanced for optimal flight performance.

Image: Close-up view showing the cockpit with push-button latch design, pre-installed ball joint servo arm, and the 40A ESC with reverse function, indicating internal component access.

3.5 External Armament Attachment

Attach the external fuel tanks and missiles to the designated hardpoints on the wings and fuselage. These accessories enhance the scale realism of your F-16.

Image: The Fms F-16 Fighting Falcon showcasing its realistic external fuel tanks and missiles, ready for customization with included decals.

4. Pre-Flight Checklist

Before each flight, perform the following checks to ensure safe operation:

• Battery Check: Ensure flight battery is fully charged and securely installed.
• Transmitter Check: Ensure transmitter batteries are fully charged.
• Control Surfaces: Verify all control surfaces (ailerons, elevator, rudder) move freely and correctly in response to transmitter inputs.
• Motor/Fan Check: Ensure the EDF unit spins freely and without obstruction.
• Structural Integrity: Check all parts for damage, loose connections, or cracks.
• Center of Gravity (CG): Confirm the aircraft's CG is within the recommended range (refer to the manual for exact location).

5. Operating Instructions

Operating the Fms F-16 Fighting Falcon requires practice. Start with basic maneuvers in a large, open area.

5.1 Binding the Receiver (if applicable)

If your receiver is not pre-bound, follow the specific binding instructions provided with your radio system. Ensure a successful bind before proceeding.

5.2 Take-off Procedure

Place the aircraft on a smooth, flat surface facing into the wind. Gradually increase throttle to full power. The aircraft will accelerate and lift off. Maintain a steady climb to a safe altitude before attempting maneuvers.

5.3 Flight Controls

The F-16 features 6-channel control for precise maneuvers:

• Throttle: Controls motor speed and thrust.
• Ailerons: Controls roll (banking) of the aircraft.
• Elevator: Controls pitch (nose up/down) for climbing or descending.
• Rudder: Controls yaw (nose left/right) for directional control.

5.4 Landing Procedure

Approach the landing strip into the wind. Gradually reduce throttle and maintain a controlled descent. Flare gently just above the runway to touch down smoothly on the landing gear. Cut throttle completely upon touchdown.

5.5 Authentic Navigation Lights

The F-16 is equipped with detailed navigation lights on the wings, vertical stabilizer, and intake, adhering to the real aircraft lighting scheme (left red, right green, rear white). These lights improve visibility and realism, especially in low-light conditions.

Image: The Fms F-16 Fighting Falcon displaying its authentic navigation lights, enhancing visibility and realism during flight.

Video: This video showcases the Fms F-16 Fighting Falcon 64mm EDF Jet in flight, demonstrating its maneuverability and realistic appearance.

6. Maintenance

Proper maintenance ensures the longevity and performance of your Fms F-16 Fighting Falcon.

• Cleaning: Wipe down the aircraft with a soft, dry cloth after each flight to remove dirt and debris.
• Storage: Store the aircraft in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the flight battery before storage.
• Propeller/Motor Care: Regularly inspect the EDF unit for any obstructions or damage. Ensure the motor spins freely.
• Control Linkages: Check all control linkages and hinges for free movement and secure connections.

7. Troubleshooting

Here are some common issues and their potential solutions:

8. Specifications

Detailed specifications for the Fms F-16 Fighting Falcon 64mm EDF Jet:

• Brand Name: Fms
• Model Name: Fighting Falcon
• Model Number: FMS146PGY
• Age Range Description: Adult
• Length: 1090mm / 42.9 in
• Wingspan: 712mm / 28 in
• Material Type: Foam
• Power Source: Battery Powered (Battery not included)
• Included Components: Motor, ESC, Ducted Fan, Servos
• Assembly Required: Yes
• Operation Mode: Manual
• Color: Battlefield Gray
• Theme: Military

Image: Diagram illustrating the length (1090mm / 42.9 in) and wingspan (712mm / 28 in) of the Fms F-16 Fighting Falcon.

9. Warranty and Support

Return Policy:

This product is eligible for a 30-day refund/replacement policy. Please refer to the seller's return policy for full details.

Damaged or Incorrect Product:

• Damaged during shipping: Contact customer support immediately. Provide photos of the damaged product and packaging.
• Received wrong product: Keep all packing material and original boxes. You will be required to return the incorrect item (Fms will cover return shipping costs). The correct item will be shipped once the new, unused product is returned.

Contact Support:

For any questions or support needs, please contact Fms customer service through the retailer's platform or visit the official Fms store online.
