Introduction
Thank you for choosing the Bonsenkitchen VS3016 Food Vacuum Sealer. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before first use and keep it for future reference. This vacuum sealer is designed to remove air from specially designed bags, preserving food freshness up to 6 times longer than traditional storage methods.
Product Overview and Key Features
The Bonsenkitchen VS3016 Food Vacuum Sealer is a multi-functional appliance designed for efficient food preservation. Its key features include:
- Powerful and Stable Suction: Engineered for continuous high-speed operation, providing strong and stable suction for faster and tighter sealing compared to conventional machines. Achieves optimal vacuum levels and airtight seals.
- 4 Multi-functional Modes:
- Seal: For sealing bags only, without vacuuming.
- Vac&Seal: Automatic vacuuming and sealing with a single touch, ideal for non-liquid foods like meat, nuts, and vegetables.
- Pulse Vac: Allows manual control of the vacuum process, suitable for delicate foods like bread to prevent deformation, or moist foods to prevent liquid from entering the machine.
- Accessory: For use with external vacuum accessories such as wine stoppers and vacuum containers.
- Integrated Cutter: Easily cut bags to your desired size without needing scissors.
- Extended Food Freshness: Effectively removes air from vacuum bags, preventing freezer burn and spoilage, keeping food fresh up to 6 times longer.
- "Globefish Technology": Ensures efficient vacuuming and sealing by maintaining a clear air passage and effective sealing strip contraction.
Image: Overview of the Bonsenkitchen VS3016 Food Vacuum Sealer highlighting its four operating modes.
Package Contents
Your Bonsenkitchen VS3016 Food Vacuum Sealer package includes:
- 1 x Bonsenkitchen VS3016 Vacuum Sealer Machine
- 1 x User Manual
- 1 x Vacuum Bag Roll (28 x 600 cm)
- 20 x Vacuum Bags (15 x 20 cm)
- 20 x Vacuum Bags (20 x 30 cm)
- 10 x Vacuum Bags (28 x 40 cm)
- 2 x Connectors
- 1 x Vacuum Hose
Image: All items included in the Bonsenkitchen VS3016 starter kit.
Setup
- Unpack: Carefully remove all components from the packaging.
- Inspect: Check the appliance and accessories for any damage. Do not use if damaged.
- Placement: Place the vacuum sealer on a flat, stable, and dry surface.
- Power Connection: Plug the power cord into a suitable electrical outlet.
- Prepare Bags: If using a roll, use the integrated cutter to create a bag of the desired length. Seal one end of the bag using the "Seal" mode (refer to Operating Instructions).

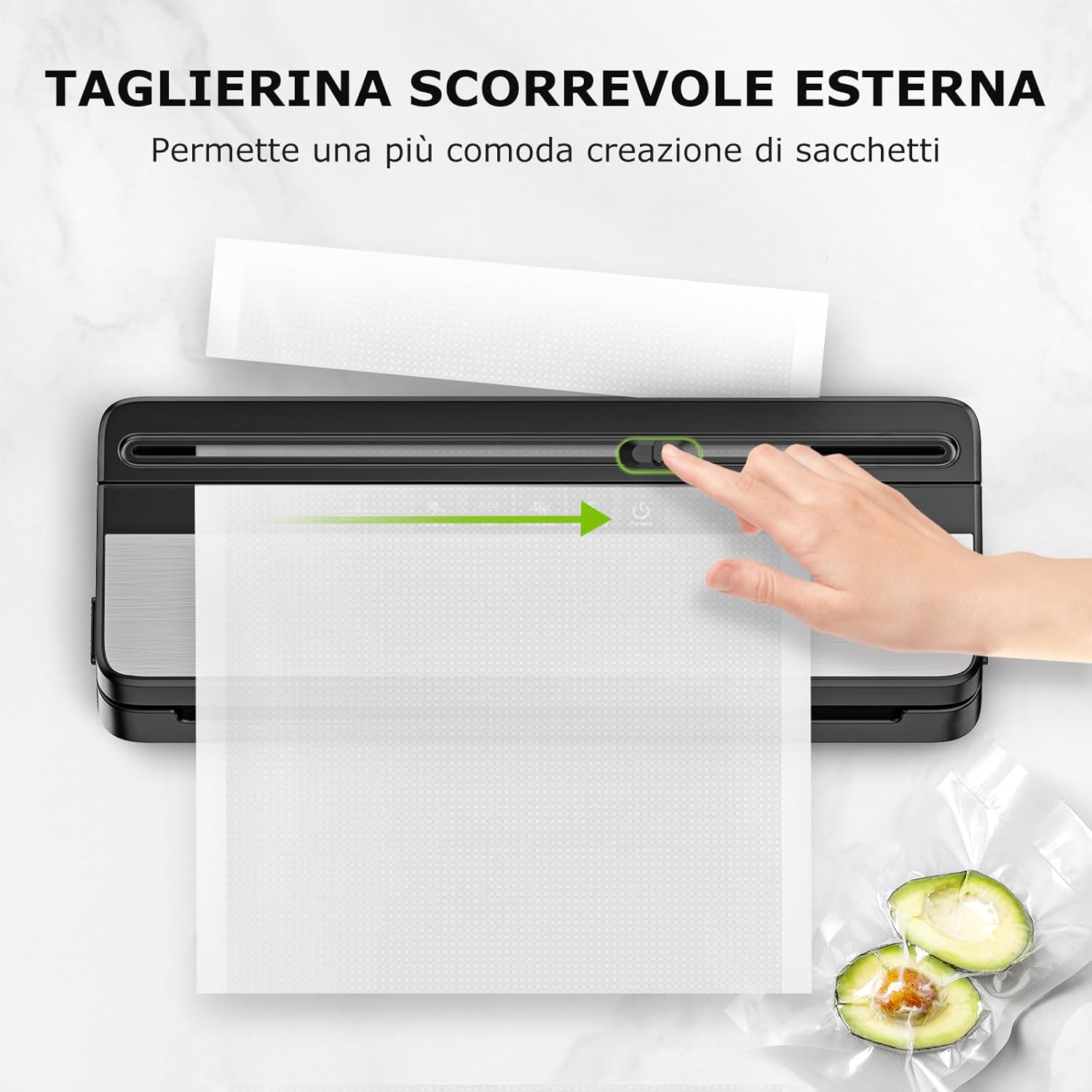

Image: Using the integrated cutter to prepare a vacuum bag.
Operating Instructions
General Operation Steps:
- Place the food inside a vacuum sealer bag, ensuring at least 7-10 cm of space between the food and the top edge of the bag.
- Open the lid of the vacuum sealer.
- Place the open end of the bag into the vacuum channel, ensuring it lies flat across the sealing strip.
- Close the lid firmly until both sides click into place.
- Select the desired operating mode.
1. Seal Mode (For Sealing Only)
Use this mode to seal bags without vacuuming, for example, when creating a bag from a roll or sealing delicate items that do not require vacuuming.
- Prepare the bag as described in the General Operation Steps.
- Press the "Seal" button. The indicator light will illuminate.
- The machine will automatically seal the bag. Once complete, the light will turn off.
- Open the lid and remove the sealed bag.
Video: Demonstration of the Bonsenkitchen VS3016 vacuum sealer, showing the sealing process and various operating modes.
2. Vac&Seal Mode (Automatic Vacuum & Seal)
This mode is ideal for most dry and solid foods, such as meat, nuts, and vegetables, providing automatic vacuuming and sealing.
- Place the food in the bag and position it in the vacuum channel.
- Close the lid firmly.
- Press the "Vac&Seal" button. The machine will automatically remove air and then seal the bag.
- Once the process is complete and the indicator light turns off, open the lid and remove the vacuum-sealed bag.

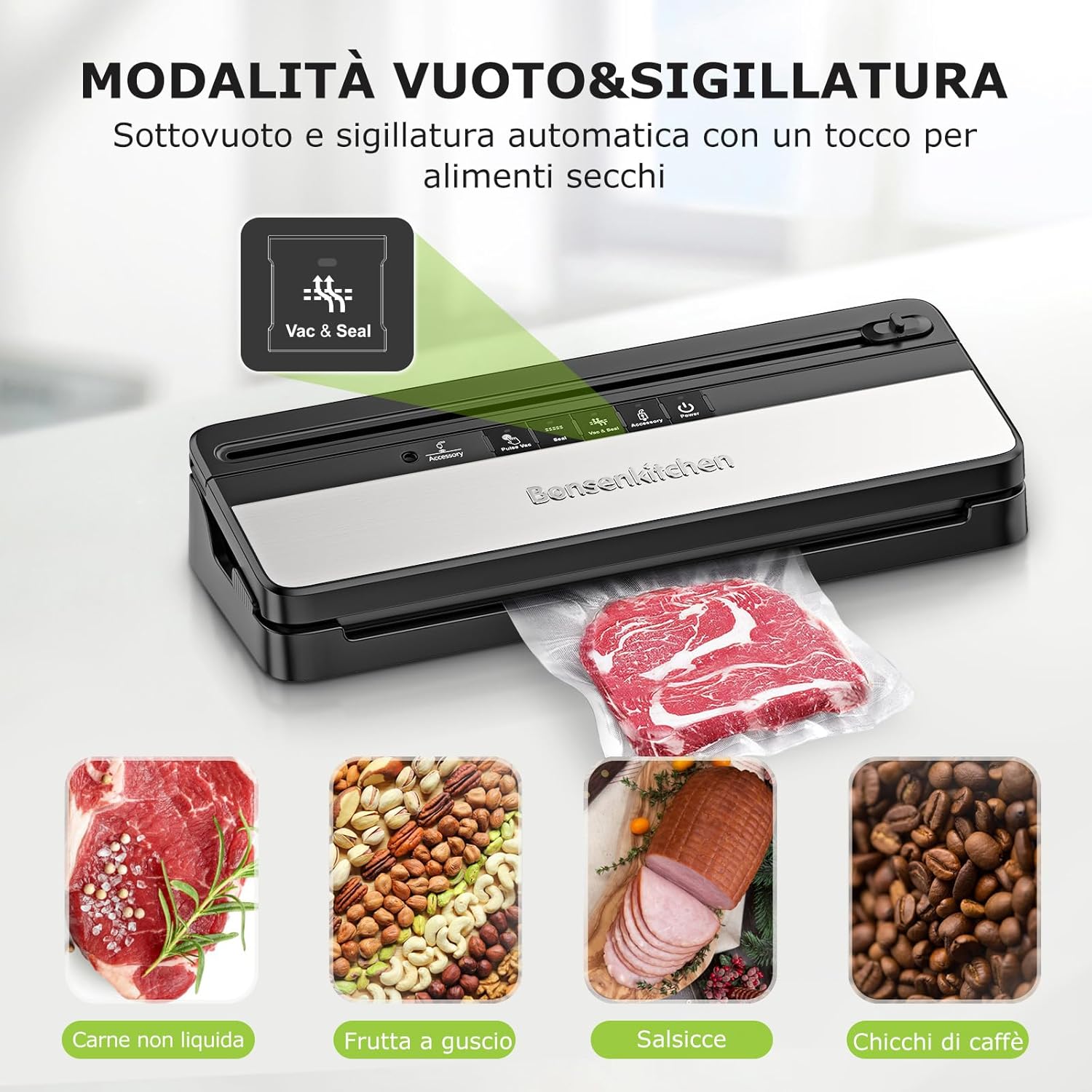

Image: The Vac&Seal mode in action, suitable for various dry food items.
3. Pulse Vac Mode (Manual Vacuum Control)
Use this mode for delicate or moist foods where you need precise control over the vacuum level to prevent crushing or drawing liquids into the machine.
- Place the food in the bag and position it in the vacuum channel.
- Close the lid firmly.
- Press and hold the "Pulse Vac" button to start vacuuming.
- Monitor the bag and release the button when the desired vacuum level is reached or if liquid approaches the sealing area.
- Immediately press the "Seal" button to seal the bag.
- Once sealed, open the lid and remove the bag.
Image: Detailed steps for using the Pulse Vac mode, ideal for fragile foods.
4. Accessory Mode (External Vacuum System)
This mode allows you to vacuum seal external containers, jars, or wine bottles using the included vacuum hose and connectors.
- Connect one end of the vacuum hose to the "Accessory" port on the vacuum sealer.
- Connect the other end of the hose to the appropriate connector for your vacuum container or wine stopper.
- Ensure the container lid is properly sealed or the wine stopper is firmly in place.
- Press the "Accessory" button. The machine will begin to vacuum the container.
- Once the vacuum process is complete, the machine will stop automatically. Remove the hose.
Image: Using the Accessory mode with external vacuum containers and wine stoppers.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your vacuum sealer.
- Cleaning: Always unplug the appliance before cleaning. Wipe the exterior with a soft, damp cloth. Do not immerse the unit in water or any other liquid.
- Vacuum Channel: Regularly clean the vacuum channel and sealing strip to remove any food debris or moisture. This helps maintain a proper seal.
- Sealing Strip: Inspect the sealing strip for any signs of wear or damage. A damaged strip can affect sealing performance.
- Storage: Store the vacuum sealer in a dry place, away from direct sunlight and extreme temperatures. Ensure the lid is unlatched during storage to prevent compression of the sealing gaskets, which can lead to poor sealing over time.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Not plugged in; power outlet issue. | Ensure power cord is securely plugged in. Test the outlet with another appliance. |
| Bag does not vacuum properly. | Bag not positioned correctly; lid not fully closed; bag is damaged; moisture in vacuum channel. | Reposition bag, ensuring it's flat. Press down firmly on lid until it clicks. Use a new bag. Clean vacuum channel. |
| Bag does not seal. | Sealing strip dirty or damaged; bag material incompatible; too much moisture. | Clean sealing strip. Use only Bonsenkitchen or compatible vacuum sealer bags. Ensure bag opening is dry. |
| Liquid drawn into machine during vacuuming. | Food is too moist; incorrect mode used. | Use "Pulse Vac" mode for moist foods and manually control vacuum. Pre-freeze very moist foods. |
| Food is crushed during vacuuming. | Incorrect mode used for delicate food. | Use "Pulse Vac" mode for delicate foods and manually control vacuum. |
Specifications
- Brand: Bonsenkitchen
- Model: VS3016
- Color: Black (Integrated Cutter)
- Power Source: Corded Electric
- Operating Mode: Semi-automatic
- Manufacturer: Bonsenkitchen
Warranty and Support
Bonsenkitchen provides a warranty for this product against defects in materials and workmanship under normal use. For specific warranty terms, duration, and to register your product, please refer to the warranty card included in your package or visit the official Bonsenkitchen website. If you encounter any issues or have questions regarding your VS3016 Food Vacuum Sealer, please contact Bonsenkitchen customer support for assistance.
Contact information can typically be found on the product packaging, the official Bonsenkitchen website, or by searching for "Bonsenkitchen customer support" online.
