Introduction
Welcome to your new tectake® Dirk Basketball Hoop System. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor basketball system. Please read these instructions carefully before use to ensure optimal performance and safety.

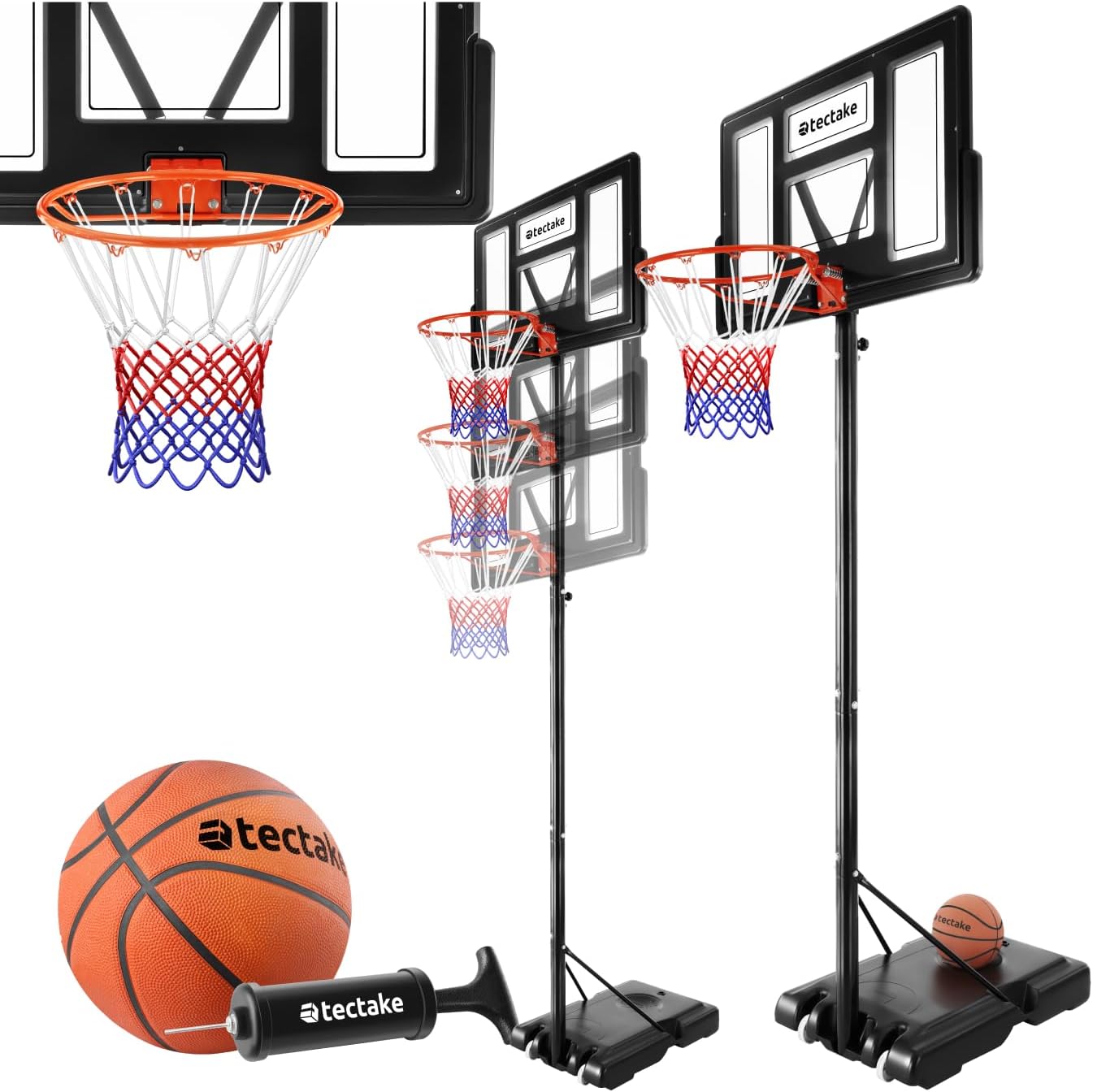

An overview of the tectake® Dirk Basketball Hoop System, showcasing the adjustable hoop, sturdy base with wheels, included basketball, and air pump.
This image highlights the main features of the basketball system, including 9-level height adjustment, a fillable base for stability, an elastic hoop, high mobility with wheels, a robust steel frame, durable plastic components, and included accessories (ball and pump).
Safety Instructions
To ensure safe operation and prevent injury, please observe the following safety guidelines:
- Always ensure the base is filled with water or sand to the recommended capacity before use to prevent tipping.
- Regularly check all bolts, screws, and connections to ensure they are tight and secure.
- Do not hang on the rim or backboard, as this can cause damage to the system and lead to serious injury.
- Keep children under supervision when using the basketball system.
- Do not attempt to adjust the height while someone is playing or standing near the hoop.
- Inspect the system for any signs of wear or damage before each use. Do not use if damaged.
- Place the system on a level, stable surface away from obstacles.
Package Contents
Please verify that all components are present before beginning assembly:
- Basketball Hoop (Backboard, Rim, Net)
- Telescopic Pole Sections
- Base with Wheels
- Basketball
- Air Pump
- Mounting Hardware (Bolts, Nuts, Washers, Tools)
- Assembly Instructions
Setup and Assembly
Follow these step-by-step instructions carefully for proper and safe assembly. It is recommended to have two people for assembly.
- Prepare the Base: Place the base on a flat, stable surface. Fill the base with approximately 75 liters of water or 90 kg of sand through the designated opening. This ballast is crucial for the stability of the system. Securely close the opening.
- Assemble the Pole: Connect the telescopic pole sections according to the assembly instructions provided in the package. Ensure all sections are securely fastened with the provided hardware.
- Attach Backboard and Hoop: Carefully attach the backboard to the upper pole section using the specified bolts and nuts. Then, attach the basketball rim to the backboard, ensuring the net is properly secured to the rim.
- Connect Pole to Base: Insert the assembled pole into the designated slot on the filled base. Secure the pole to the base using the provided hardware, ensuring a tight and stable connection.
- Final Checks: Before first use, double-check all connections, bolts, and nuts to ensure they are securely tightened. Verify that the system is stable and does not wobble.
The base of the basketball system can be filled with up to 75 liters of water or 90 kg of sand to ensure maximum stability during play. The integrated wheels allow for easy repositioning of the system.
Operating Instructions
Adjusting Hoop Height
The tectake® Basketball Hoop System features a 9-position height adjustment mechanism, allowing you to set the hoop height from approximately 234 cm (7.6 ft) to 302 cm (9.9 ft). To adjust the height:
- Loosen the locking mechanism on the telescopic pole.
- Carefully slide the upper pole section up or down to the desired height.
- Once the desired height is reached, securely tighten the locking mechanism to prevent the pole from slipping during play.
The basketball hoop's height is easily adjustable from 2.30 meters to 3.05 meters, accommodating players of all ages and skill levels. This feature allows for a professional playing experience.
Portability
The base of the system is equipped with robust wheels, allowing for easy movement and repositioning of the basketball hoop. To move the system, slightly tilt the pole to lift the front of the base off the ground, then roll it to your desired location.
Maintenance
Regular maintenance will extend the life of your basketball system:
- Cleaning: Clean the backboard, pole, and base with a damp cloth and mild soap. Avoid abrasive cleaners that could damage the finish.
- Stability Check: Periodically check the water or sand level in the base and refill if necessary. Ensure the base cap is always securely closed.
- Hardware Inspection: Regularly inspect all bolts, nuts, and connections for tightness. Tighten any loose hardware to maintain structural integrity.
- Net Replacement: The net may wear over time. Replace it with a standard basketball net when necessary.
- Winter Storage: If storing outdoors in freezing temperatures, empty the water from the base to prevent cracking due to ice expansion. Store the system in a sheltered area if possible to protect it from extreme weather.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| System is unstable/wobbles | Base not filled sufficiently; loose hardware; uneven surface. | Fill base completely with water or sand; tighten all bolts and nuts; move to a level surface. |
| Difficulty adjusting height | Locking mechanism is too tight; pole sections are stuck. | Loosen the locking mechanism; apply a small amount of silicone lubricant to the pole sections if needed. |
| Backboard or rim feels loose | Mounting hardware is loose. | Tighten all bolts connecting the backboard to the pole and the rim to the backboard. |
Specifications
Detailed technical specifications for your tectake® Basketball Hoop System:
| Feature | Specification |
|---|---|
| Model Number | 405214 |
| Total Dimensions (L x W x H) | Approx. 111 x 150 x 289-364 cm (43.7 x 59.1 x 113.8-143.3 inches) |
| Adjustable Hoop Height | Approx. 234-302 cm (7.6-9.9 ft) |
| Backboard Dimensions (L x W x H) | Approx. 110 x 4 x 71 cm (43.3 x 1.6 x 28 inches) |
| Base Dimensions (L x W x H) | Approx. 60 x 90 x 15 cm (23.6 x 35.4 x 5.9 inches) |
| Base Capacity | Approx. 75 liters of water or 90 kg of sand |
| Inner Hoop Diameter | Approx. 45 cm (17.7 inches) |
| Net Length | Approx. 43 cm (16.9 inches) |
| Telescopic Rod Diameter | Approx. 6.7 cm (2.6 inches) |
| Wheel Dimensions (Diameter x Width) | Approx. 8.2 x 2.3 cm (3.2 x 0.9 inches) |
| Basketball Size | Size 7 (Diameter approx. 24 cm / 9.4 inches) |
| Weight (unfilled) | Approx. 18.2 kg (40.1 lbs) |
| Material | Powder-coated steel, polyethylene, polyethylene terephthalate, polypropylene, polyester |
This diagram provides precise measurements for the entire basketball system, including total dimensions, backboard, base, and hoop diameter.
Warranty and Support
Your tectake® Basketball Hoop System is designed for durability and performance. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official tectake website. If you require technical support, have questions about assembly, or need replacement parts, please contact tectake customer service through the contact information provided on their official website or your purchase documentation.
