Luxell LX-2000J 6 Bar Heater with Humidifier

1. Introduction

Thank you for choosing the Luxell LX-2000J 6 Bar Heater with Humidifier. This appliance is designed to provide efficient heating and maintain optimal humidity levels in your home or office. Please read this manual carefully before operating the heater to ensure safe and effective use. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This heater has a rollover protection safety switch and overheat protection mechanisms. It will automatically shut off if tipped over or if internal temperatures exceed safety thresholds. If this occurs, unplug the heater and allow it to cool before attempting to restart.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

3. Product Overview and Features

The Luxell LX-2000J is designed for efficient and comfortable heating with added humidity control.

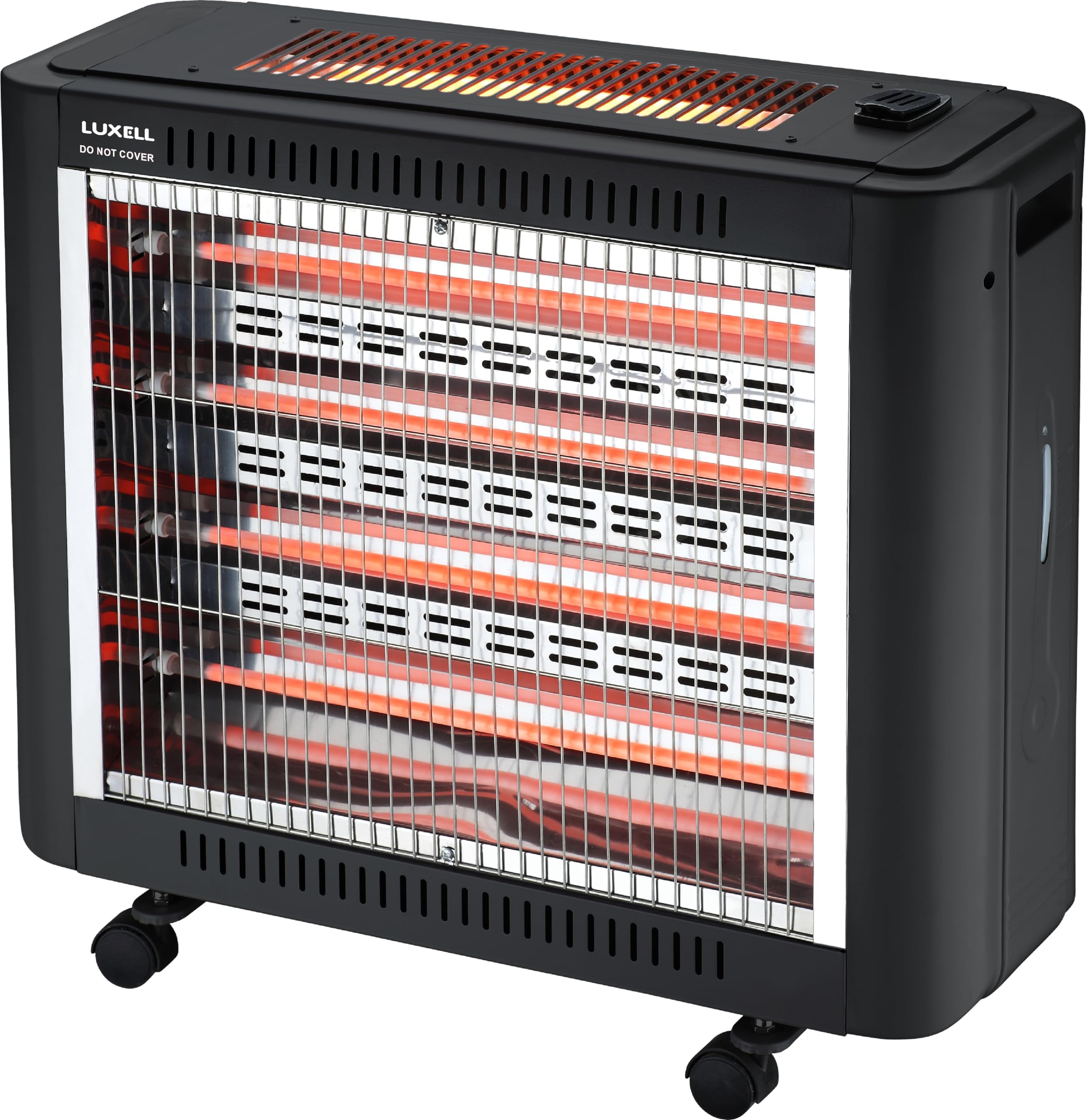

Figure 1: Luxell LX-2000J 6 Bar Heater with Humidifier. This image provides an overall view of the heater, highlighting its design and the visible heating elements.

Figure 2: Close-up view of the Luxell LX-2000J, illustrating the arrangement of the four front and two top heating elements, along with the control panel for thermostat and power settings.

Figure 3: Detailed view highlighting key features such as the dual switch control, integrated wheel mounts for mobility, and the polished stainless steel reflector for enhanced heat distribution.

• Powerful Heating Elements: Six electric heating elements (four in the front and two on top) deliver a total output of 2000 watts for rapid and effective space heating.
• Adjustable Thermostat: Customize the temperature to suit your preferences and room requirements.
• Humidifier Functionality: A built-in humidifier combats dryness, enhancing indoor air quality, especially during colder months.
• Polished Stainless Steel Reflector: Enhances heat distribution, ensuring uniform warmth throughout the room and eliminating cold spots.
• Integrated Wheels for Mobility: Concealed within the side cover, four wheels facilitate effortless relocation.
• Safety Features: Includes rollover protection safety switch and overheat protection mechanisms for safe operation.
• Sleek Design: Black/grey color scheme and modern aesthetic complement various interior decor styles.

4. Setup

1. Unpacking: Carefully remove the heater from its packaging. Retain packaging for storage. Inspect the heater for any signs of damage. Do not operate if damaged.
2. Placement: Place the heater on a firm, level surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from walls, furniture, curtains, and other combustible materials. Do not place the heater directly below a power outlet.
3. Power Connection: Ensure the heater is switched off before plugging it into a standard 220-240V, 50-60Hz electrical outlet. Do not use extension cords or power strips.
4. Humidifier Water Tank (if applicable): If using the humidifier function, locate the water tank (usually at the side or back). Fill it with clean, distilled water to the indicated maximum level. Ensure the tank is securely closed and properly seated.

5. Operating Instructions

Familiarize yourself with the controls before operating the heater.

1. Power On/Off: Plug the heater into a suitable electrical outlet. Use the main power switch (often a rocker switch) to turn the heater ON.
2. Adjusting Heating Elements/Power Settings: The LX-2000J features dual switch control, allowing you to activate different combinations of heating elements for various power outputs. Typically, there are switches for the front elements and top elements. Select the desired heating level (e.g., 1000W, 1500W, 2000W) by engaging the appropriate switches.
3. Setting the Thermostat: Rotate the thermostat dial to your desired temperature setting. The heater will cycle on and off to maintain the set temperature. For continuous heating, set the thermostat to its maximum position.
4. Using the Humidifier: If the water tank is filled, activate the humidifier function using its dedicated switch or button. The humidifier will begin to release mist, adding moisture to the air. Monitor the water level and refill as needed.
5. Power Off: To turn off the heater, switch off all heating element switches and the humidifier switch, then turn off the main power switch. Unplug the heater from the wall outlet when not in use.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your heater.

• Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents. Ensure no water enters the internal components.
• Humidifier Cleaning: If using the humidifier, regularly clean the water tank and humidifier components to prevent mineral buildup and mold growth. Follow specific instructions for humidifier cleaning if provided with the unit.
• Storage: When not in use, store the heater in a cool, dry place. It is recommended to store it in its original packaging to protect it from dust and damage.

7. Troubleshooting

If you encounter issues with your Luxell LX-2000J heater, refer to the following common problems and solutions:

• Heater does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the main power switch is in the 'ON' position.
  • Verify that the thermostat is set to a temperature higher than the current room temperature.
  • Check if the overheat protection or rollover switch has been activated. Unplug the unit, wait 10-15 minutes for it to cool down, and then plug it back in.
• Insufficient heat output:
  • Ensure all desired heating elements are switched on for maximum power.
  • Check if the thermostat is set to a higher temperature.
  • Ensure the room size is appropriate for a 2000W heater.
• Humidifier not producing mist:
  • Check if the water tank is filled with water.
  • Ensure the humidifier function is switched on.
  • Clean the humidifier components for any mineral buildup.
• Heater suddenly turns off:
  • This is likely due to the overheat protection or rollover safety switch. Unplug the heater, allow it to cool for 10-15 minutes, and ensure it is on a stable, level surface before restarting.

8. Specifications

9. Warranty and Customer Support

For warranty information and customer support, please refer to the warranty card included with your product or contact your retailer. Keep your purchase receipt as proof of purchase.
