1. Introduction
Thank you for choosing the Salamander Designs Synergy Model 347 Quad-Width AV Cabinet. This manual provides essential information for the proper assembly, operation, maintenance, and troubleshooting of your new AV cabinet. Please read these instructions carefully before beginning assembly or use to ensure safe and optimal performance.
The Synergy Model 347 is designed to house a wide range of audio-visual components, offering a robust and aesthetically pleasing solution for your home entertainment system. Its quad-width design and four doors provide ample storage and easy access to your equipment.
2. Setup and Assembly
Assembly of the Synergy Model 347 AV Cabinet requires careful attention to detail. It is recommended that two adults perform the assembly. Ensure all components are present before starting.
2.1. Unpacking and Component Check
- Carefully unpack all components from the packaging.
- Verify that all parts listed in the hardware and component list are present and undamaged. Refer to the included parts diagram.
- Place all components on a soft, clean surface to prevent scratches during assembly.
2.2. Assembly Steps
- Attach Side Panels: Secure the left and right side panels to the base unit using the provided cam locks and dowels. Ensure they are flush and stable.
- Install Shelves: Insert shelf pins into the desired height positions on the side panels. Carefully place the adjustable shelves onto the pins.
- Mount Back Panel: Slide the back panel into the grooves on the side and top panels. Secure it with the small screws provided. Ensure cable management cutouts are correctly oriented.
- Attach Top Panel: Place the top panel onto the assembled frame and secure it using the remaining cam locks and dowels.
- Install Doors: Attach the hinges to the cabinet frame and then to the doors. Adjust the hinges to ensure proper door alignment and smooth operation.
- Leveling: Adjust the leveling feet on the bottom of the cabinet to ensure it sits stable and level on your floor.

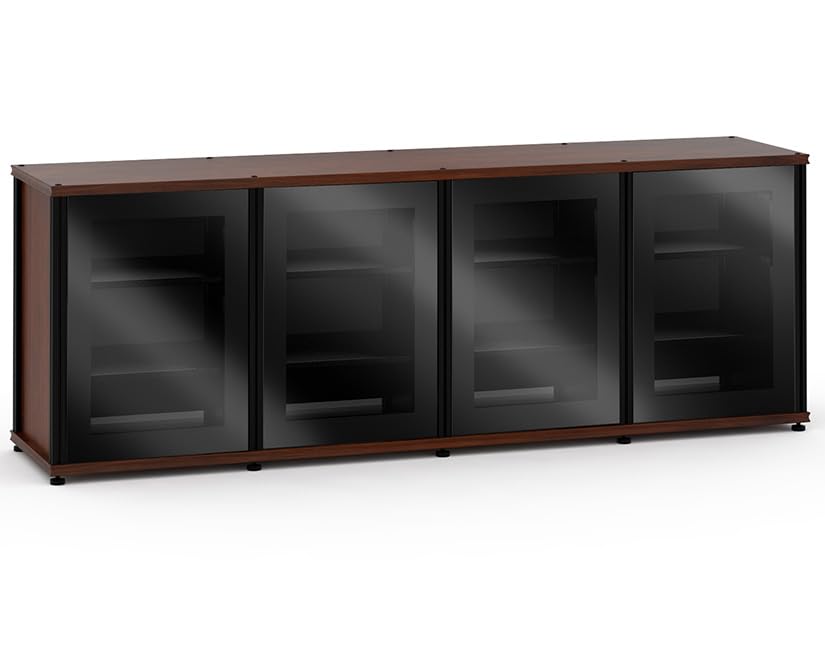

Figure 1: Assembled Salamander Designs Synergy Model 347 Quad-Width AV Cabinet. This image shows the dark walnut finish, black glass doors, and black support posts, providing a visual reference for the completed assembly.
3. Operating Instructions
The Synergy Model 347 AV Cabinet is designed for straightforward use. Follow these guidelines for optimal performance and longevity.
3.1. Component Placement
- Place heavier components on lower shelves to maintain stability.
- Distribute weight evenly across shelves.
- Ensure adequate space around components for ventilation.
3.2. Cable Management
- Utilize the cable management cutouts on the back panel to route wires neatly.
- Avoid kinking or pinching cables.
- Use cable ties (not included) to bundle cables and keep them organized.
3.3. Ventilation
The cabinet is designed with passive ventilation. Ensure that the rear of the cabinet is not pressed directly against a wall to allow for proper airflow. For high-heat components, consider additional active cooling solutions (not included).
4. Maintenance and Care
Regular maintenance will help preserve the appearance and functionality of your AV cabinet.
4.1. Cleaning
- Wood Surfaces: Wipe with a soft, damp cloth. For stubborn marks, use a mild wood cleaner specifically designed for dark walnut finishes. Avoid abrasive cleaners or harsh chemicals.
- Glass Surfaces: Use a standard glass cleaner and a lint-free cloth. Spray cleaner onto the cloth, not directly onto the glass, to prevent overspray onto wood.
- Metal Components: Wipe with a soft, dry cloth.
4.2. General Care
- Avoid exposing the cabinet to direct sunlight or extreme temperature changes, which can cause fading or warping.
- Do not place hot items directly on the wood surface without protection.
- Periodically check all fasteners and tighten if necessary to ensure stability.
5. Troubleshooting
This section addresses common issues you might encounter with your AV cabinet.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly or unstable. | Uneven floor; loose assembly fasteners. | Adjust the leveling feet on the bottom of the cabinet. Ensure all assembly screws and cam locks are tightened securely. |
| Doors do not close properly or are misaligned. | Hinges are not adjusted correctly; loose hinge screws. | Adjust the hinge screws to align the doors. Refer to the hinge manufacturer's instructions for specific adjustment points (usually three screws for depth, height, and side-to-side). Tighten all hinge screws. |
| Scratches or minor damage to wood finish. | Accidental impact; abrasive cleaning. | For minor scratches, use a wood repair marker or furniture polish matching the dark walnut finish. Avoid abrasive materials for cleaning. |
6. Specifications
Key specifications for the Salamander Designs Synergy Model 347 AV Cabinet:
- Model: Synergy Model 347
- Brand: Salamander Designs
- Type: Quad-Width AV Cabinet
- Color: Dark Walnut
- Door Style: Open Frame (with Black Glass)
- Mounting Type: Floor Mount
- Shape: Rectangular
- Assembly Required: Yes
- GTIN/UPC: 634878215329
- Manufacturer: Salamander Designs
7. Warranty Information
Salamander Designs products are manufactured to high standards and are backed by a limited warranty. Please refer to the warranty card included with your purchase or visit the official Salamander Designs website for detailed warranty terms and conditions. This warranty typically covers manufacturing defects in materials and workmanship under normal use.
Please retain your proof of purchase for warranty claims.
8. Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your Salamander Designs Synergy Model 347 AV Cabinet, please contact our customer support team.
- Website: www.salamanderdesigns.com/support
- Email: support@salamanderdesigns.com
- Phone: Refer to the contact information on the official website for regional support numbers.
When contacting support, please have your model number (Synergy Model 347) and proof of purchase readily available.
