Huogary Electric Kitchen Composter WF001 User Manual

1. Important Safety Information

Please read all safety instructions before operating the Huogary Electric Kitchen Composter. Failure to follow these instructions may result in injury or damage to the appliance.

• Do not use the composter with non-biodegradable materials such as metal, diapers, or smoke.
• Keep the product away from heat sources and direct sunlight.
• Use caution when handling components, as they may be hot after a cycle.
• Ensure the composter is placed on a stable, level surface.
• Do not immerse the main unit in water or other liquids.
• Unplug the appliance before cleaning or performing maintenance.

2. Product Overview

The Huogary Electric Kitchen Composter WF001 is designed to convert food waste into dry, nutrient-rich fertilizer for plants. It reduces food waste volume by up to 90% and features an odorless operation with activated carbon filters.

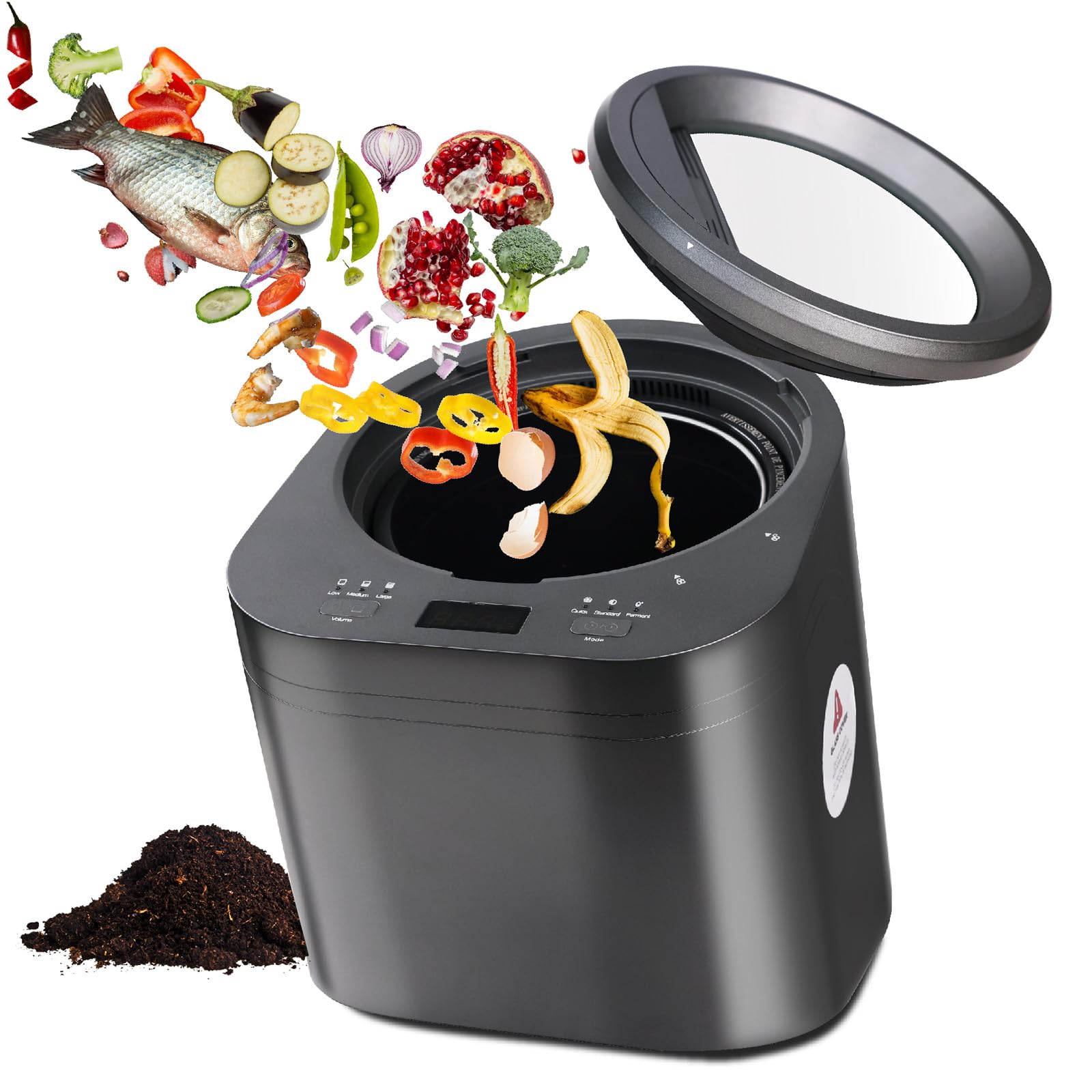

Image: The Huogary Electric Kitchen Composter WF001 unit, a compact countertop appliance.

Key Features:

• Capacity: 2 Liters processing bin.
• Waste Reduction: Reduces food waste volume by up to 90%.
• Operating Modes: Three modes available: Fast, Standard, and Fermentation.
• Odor Control: Equipped with two replaceable activated carbon filters.
• Display: Real-time LCD working time display.
• Visibility: Visible glass window on the lid to monitor the process.
• Cleaning: Removable compost bin is dishwasher safe.

3. Setup

Follow these steps to set up your composter for first use:

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
2. Placement: Place the composter on a flat, stable, and heat-resistant surface in a well-ventilated area. Ensure there is adequate space around the unit for air circulation.
3. Install Filters: The unit comes with two activated carbon filters. Ensure they are correctly installed in their designated compartments, typically located at the rear or base of the unit. Refer to the diagram below for filter location.
4. Power Connection: Plug the power cord into the composter and then into a standard electrical outlet.

Image: Diagram showing the composter's dimensions and the location of the odor filter at the base.

4. Operating Instructions

Operating the Huogary Electric Kitchen Composter is a simple three-step process:

1. Fill: Open the lid and place food scraps into the compost bin. Do not overfill the bin beyond the maximum fill line.
2. Select Mode & Convert: Close the lid securely. Select the desired operating mode (Fast, Standard, or Fermentation) using the control panel. The unit will begin processing, typically taking 2 to 4.5 hours depending on the mode and load size. The LCD display will show the remaining time.
3. Retrieve: Once the cycle is complete, the composter will cool down. Open the lid and retrieve the processed material, which is now dry compost fertilizer.

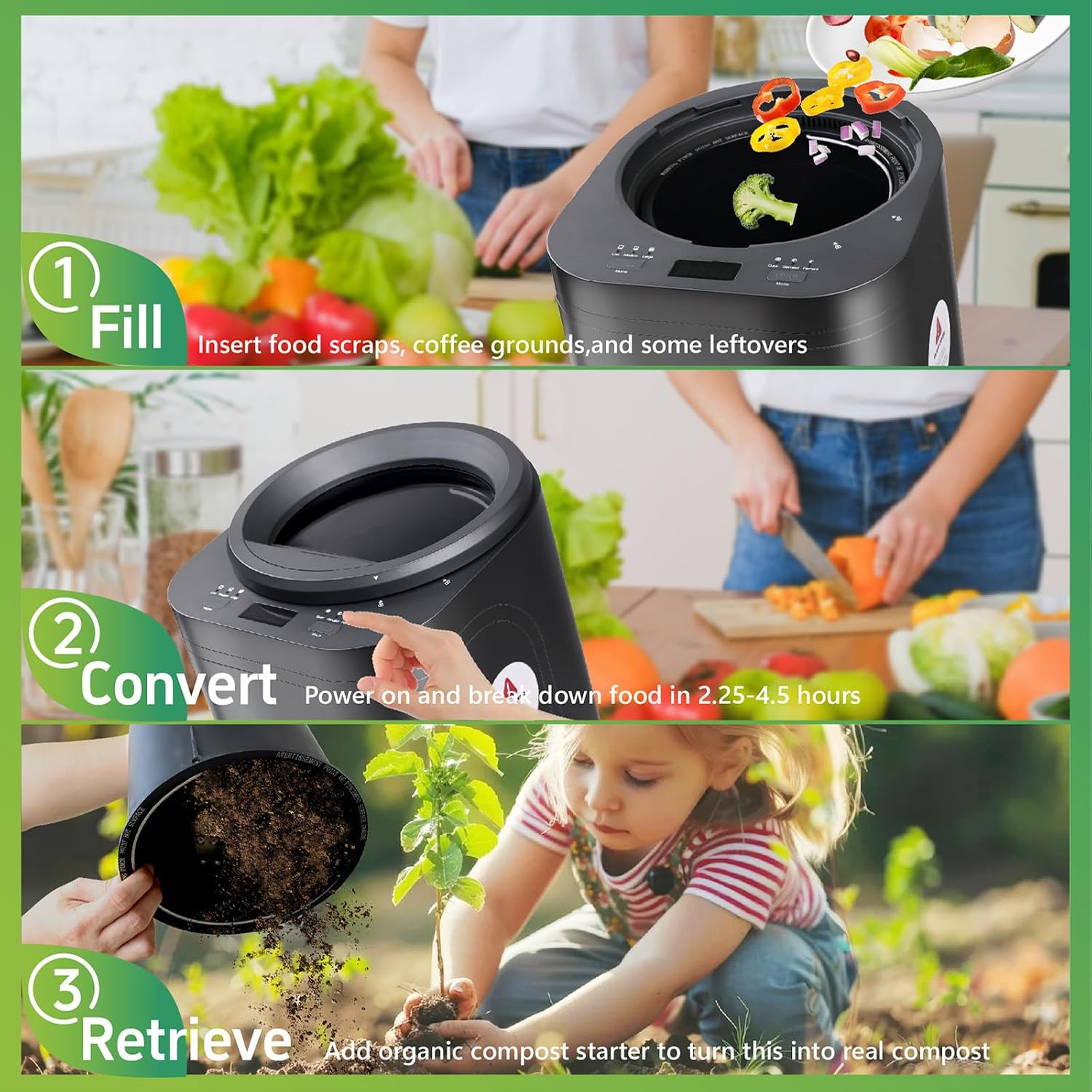

Image: Visual representation of the three operational steps: filling the composter, starting the conversion process, and retrieving the finished compost.

Image: Overhead view of the composter's clear lid, allowing observation of the contents, and indicating the three available processing modes: Quick, Standard, and Ferment.

5. What Can Be Composted

The Huogary Electric Kitchen Composter can process a wide variety of organic materials:

• Fruits and vegetable scraps
• Small bones (e.g., chicken bones, fish bones)
• Food residues and leftovers
• Biodegradable biomaterials
• Potted plants and leaves
• Starches (e.g., bread, pasta)
• Coffee grounds and nuts
• Soft shells (e.g., eggshells)
• Meat scraps

Materials to Avoid:

• Large bones or hard shells
• Non-food items (e.g., plastic, glass, metal, rubber)
• Diapers or sanitary products
• Cooking oils or excessive liquids
• Chemicals or cleaning agents

Image: A collage illustrating various types of food waste suitable for composting, including fruits, vegetables, starches, coffee grounds, soft shells, small bones, meat scraps, and plants/leaves.

6. Maintenance

Cleaning the Compost Bin:

The removable compost bin can be cleaned either manually or in a dishwasher.

• Manual Cleaning: Remove the bin from the unit. Wash with warm water and mild dish soap. Rinse thoroughly and dry completely before reinserting.
• Dishwasher Cleaning: The compost bin is dishwasher safe. Place it on the top rack of your dishwasher.

Replacing Activated Carbon Filters:

The activated carbon filters are crucial for odor control and should be replaced periodically, typically every 3-6 months depending on usage.

1. Unplug the composter from the power outlet.
2. Locate the filter compartments, usually at the rear or base of the unit (refer to the diagram in Section 3).
3. Open the compartment cover and remove the old filters.
4. Insert new activated carbon filters, ensuring they are correctly seated.
5. Close the compartment cover securely.

7. Troubleshooting

If you encounter issues with your Huogary Electric Kitchen Composter, refer to the following common problems and solutions:

• Unit Not Starting: Ensure the power cord is securely plugged into both the unit and the electrical outlet. Check if the lid is properly closed and latched.
• Unusual Odor: Check if the activated carbon filters need replacement. Ensure the compost bin is clean and dry before use. Avoid composting prohibited items.
• Processing Cycle Too Long/Short: The cycle duration depends on the selected mode and the type/amount of food waste. If the issue persists, ensure the bin is not overfilled or underfilled.
• Error Message Displayed: If an error code appears on the LCD, consult the full product manual or contact customer support for specific guidance.
• Compost Material is Wet: Ensure the lid is properly sealed during operation. Avoid adding excessive liquids to the bin.

If these solutions do not resolve the issue, please contact customer support.

8. Product Specifications

9. Warranty and Customer Support

Warranty Information:

The Huogary Electric Kitchen Composter WF001 comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.

Customer Support:

For technical assistance, warranty claims, or general inquiries, please contact Huogary customer support. Refer to your purchase documentation or the official Huogary website for the most current contact information.
