Tineco iFLOOR 3 Breeze Cordless Wet Dry Vacuum and Mop User Manual

1. Important Safety Instructions

Before operating this appliance, read all instructions thoroughly. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• This appliance is for household use only. Do not use outdoors or on commercial surfaces.
• Do not allow children to operate the appliance. Close supervision is necessary when used near children.
• Use only Tineco cleaning solutions specifically designed for this appliance.
• Do not immerse the appliance in water or other liquids.
• Do not handle the charger or appliance with wet hands.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Always turn off the appliance before making any adjustments, changing accessories, or storing.
• Store the appliance indoors in a dry place.

2. Package Contents

Carefully unpack your Tineco iFLOOR 3 Breeze and check that all items are present:

• Main Body (Wet Dry Vacuum)
• Handle Assembly
• Charging Base
• Power Adapter
• Cleaning Tool
• Cleaning Solution (Tineco Deodorizing & Cleaning Solution)
• Accessory Holder
• User Manual

3. Product Overview

Familiarize yourself with the components of your Tineco iFLOOR 3 Breeze.

Figure 3.1: The Tineco iFLOOR 3 Breeze cordless wet dry vacuum and mop, shown with a bottle of cleaning solution. This image displays the overall design of the unit, highlighting its sleek, upright form factor and the separate clean and dirty water tanks.

• Clean Water Tank (CWT): Holds fresh water and cleaning solution.
• Dirty Water Tank (DWT): Collects dirty water and debris.
• Brush Roll: Actively scrubs and cleans floors.
• Handle: Ergonomic grip with control buttons.
• LED Display: Shows battery level, cleaning mode, and error indicators.
• Self-Cleaning Button: Initiates the self-cleaning cycle.
• Power Button: Turns the unit on/off.

4. Setup and Assembly

1. Handle Assembly: Insert the handle into the main body until it clicks securely into place.
2. Charging:
   • Place the charging base on a flat, stable surface near a power outlet.
   • Connect the power adapter to the charging base and plug it into the outlet.
   • Place the iFLOOR 3 Breeze onto the charging base. The LED display will indicate charging status. Ensure the unit is fully charged before first use.
3. Filling the Clean Water Tank (CWT):
   • Press the CWT release button and remove the tank.
   • Open the tank cap and fill with clean tap water up to the MAX line.
   • Add one capful of Tineco cleaning solution to the CWT. Do not overfill.
   • Close the cap securely and reinsert the CWT into the main body until it clicks.

5. Operating Instructions

The Tineco iFLOOR 3 Breeze is designed for one-step cleaning of sealed hard floors.

Figure 5.1: A person operating the Tineco iFLOOR 3 Breeze, demonstrating its cordless design and ease of use for vacuuming and mopping hard floors simultaneously.

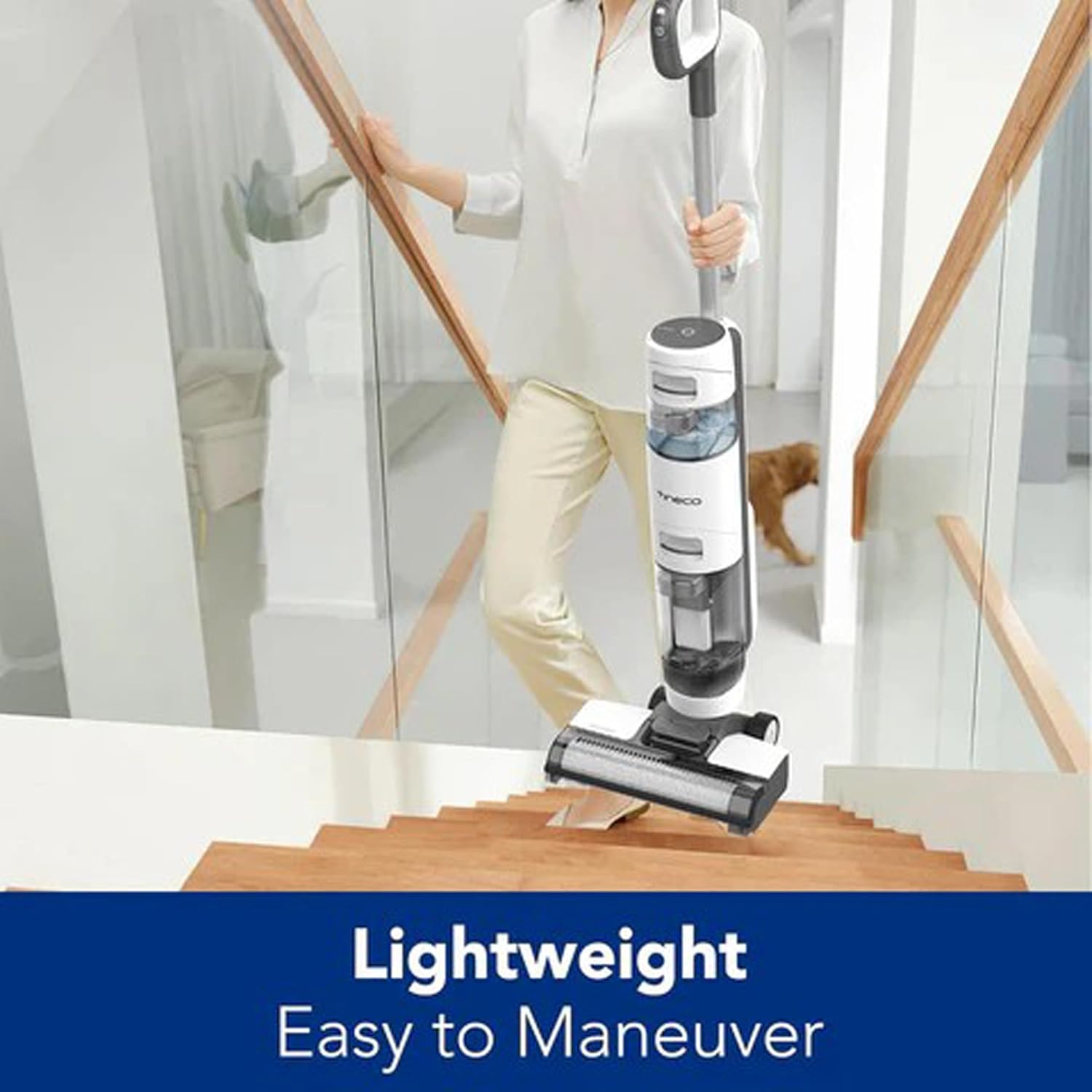

Figure 5.2: The Tineco iFLOOR 3 Breeze being carried up a staircase, illustrating its lightweight design and ease of maneuverability between different areas of a home.

1. Power On: Press the Power Button to turn on the appliance. It will start in standard cleaning mode.
2. Cleaning:
   • Tilt the main body back to engage the brush roll and begin cleaning.
   • Move the appliance slowly forward and backward over the floor surface. The unit provides a self-propulsion system for easier maneuverability.
   • The iFLOOR 3 Breeze simultaneously vacuums debris and washes the floor, leaving it clean and streak-free.

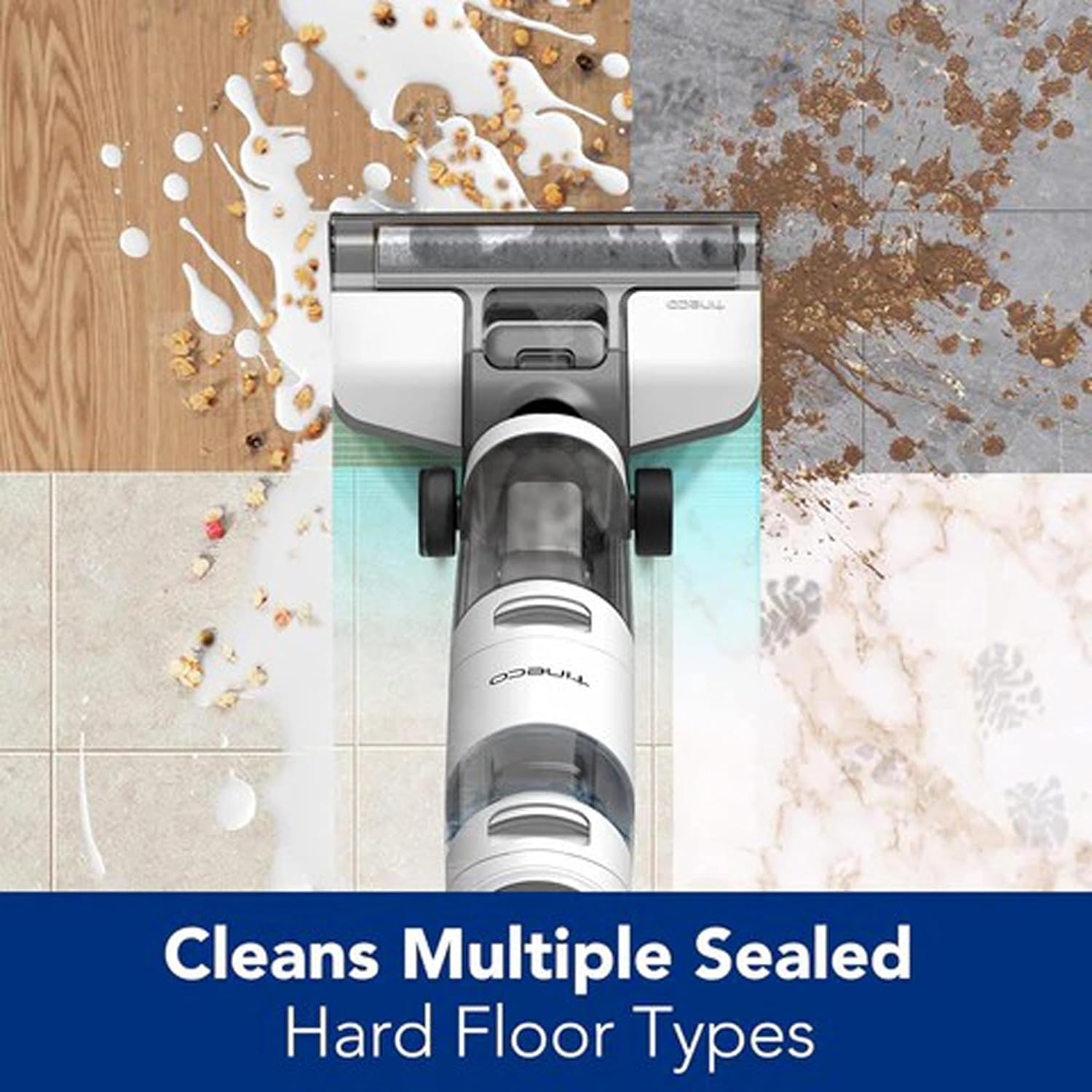

Figure 5.3: An overhead view illustrating the Tineco iFLOOR 3 Breeze effectively cleaning different types of sealed hard floors, such as wood, tile, and laminate, removing both wet and dry messes.

Figure 5.4: A close-up of the Tineco iFLOOR 3 Breeze's brush head in action, with arrows indicating the self-propulsion system that assists in moving the unit across the floor, reducing user effort.

Figure 5.5: This image shows the Tineco iFLOOR 3 Breeze cleaning a liquid spill on a hard floor, demonstrating its ability to quickly dry surfaces without leaving streaks, ensuring immediate usability of the cleaned area.

3. Monitoring Tanks: The LED display will indicate when the Dirty Water Tank is full or the Clean Water Tank is empty.
4. Power Off: Press the Power Button again to turn off the appliance.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your appliance.

Figure 6.1: A diagram illustrating the separate clean water and dirty water tanks within the Tineco iFLOOR 3 Breeze, highlighting the system that keeps clean and dirty water isolated for effective cleaning.

1. Emptying and Cleaning the Dirty Water Tank (DWT):
   • After each use, or when the DWT full indicator illuminates, remove the DWT.
   • Open the DWT lid and carefully dispose of the dirty water and debris.
   • Rinse the DWT and its filter thoroughly with clean water. Allow to air dry completely before reassembling.
2. Self-Cleaning Cycle:
   • After cleaning, place the appliance on the charging base.
   • Ensure the CWT has sufficient water (above the MIN line) and the DWT is empty.
   • Press the Self-Cleaning Button. The appliance will perform an automatic cleaning cycle of the brush roll and internal tubes.
   • Once complete, empty and clean the DWT again.

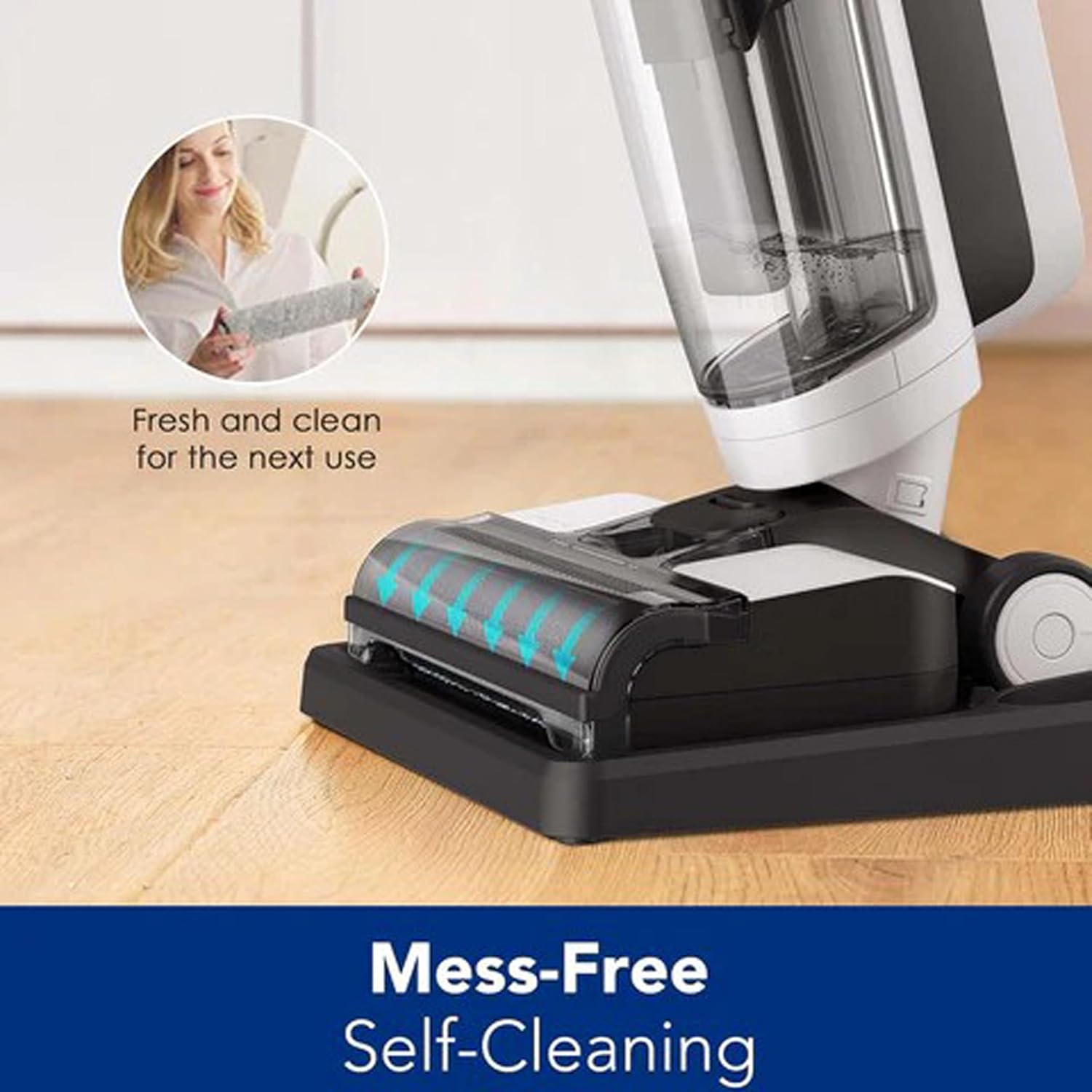

Figure 6.2: A close-up view of the Tineco iFLOOR 3 Breeze's brush roll undergoing its self-cleaning process while docked on the charging base. This feature ensures the brush is clean and ready for the next use without manual intervention.

3. Cleaning the Brush Roll:
   • If the self-cleaning cycle is insufficient, remove the brush roll cover and then the brush roll.
   • Use the provided cleaning tool to remove any hair or debris wrapped around the brush roll.
   • Rinse the brush roll under running water. Allow it to air dry completely before reinserting.
4. Cleaning the Filter:
   • The filter located in the DWT should be rinsed after each use.
   • Allow the filter to air dry for at least 24 hours before reinserting. Replace the filter every 3-6 months, or as needed.

7. Troubleshooting

Refer to this section for common issues and their solutions.

If the problem persists after attempting the solutions above, please contact Tineco Customer Support.

8. Specifications

9. Warranty and Support

Tineco provides a limited warranty for this product. Please refer to the warranty card included in your package or visit the official Tineco website for detailed warranty terms and conditions.

For technical support, troubleshooting assistance, or to order replacement parts, please contact Tineco Customer Service:

• Website: www.tineco.com (Check for regional support contact information)
• Email: Refer to your warranty card or website for specific email addresses.
• Phone: Refer to your warranty card or website for specific phone numbers.

When contacting support, please have your model number (FW040400MY) and purchase date available.
